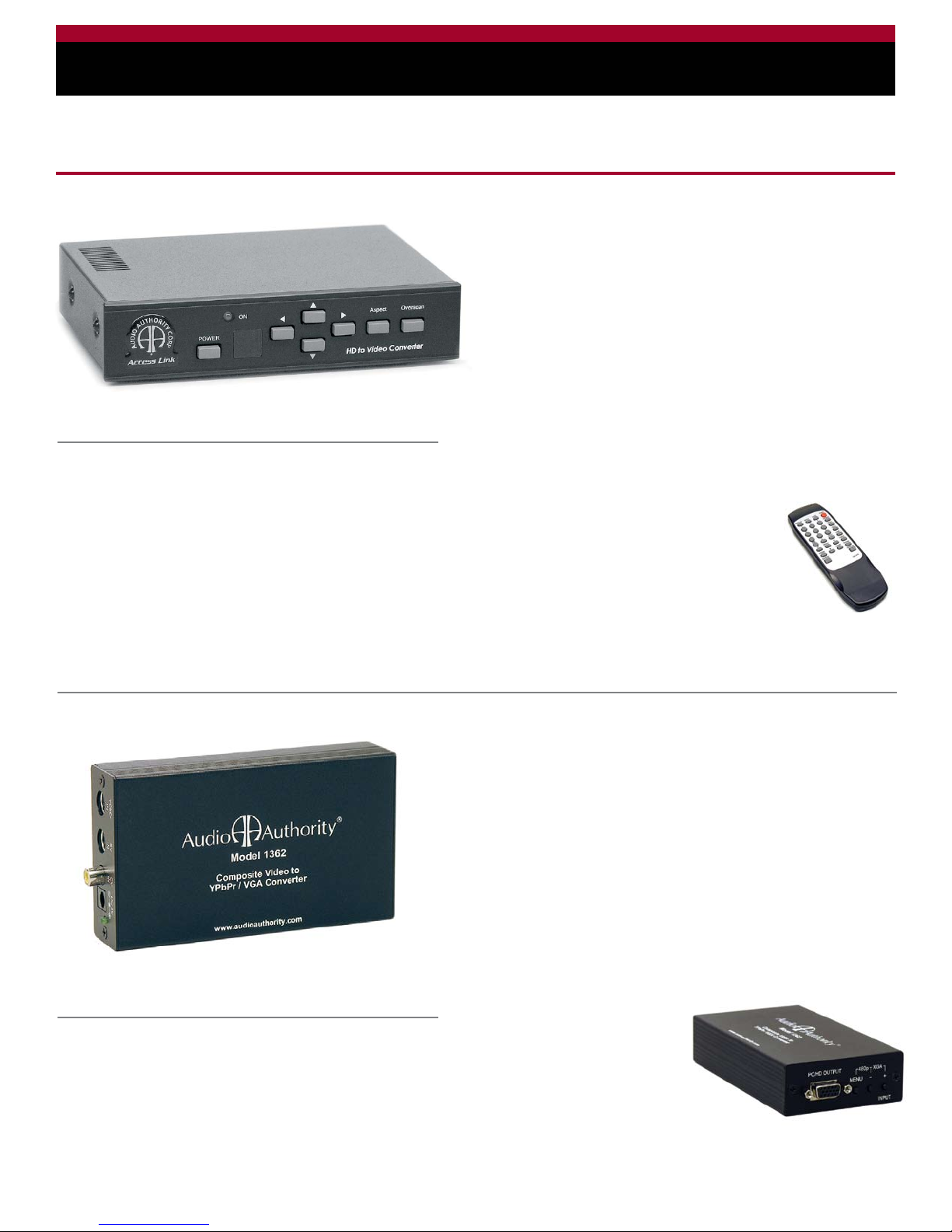

Model 1361:

Component/RGB to Composite/S-Video

1361 FEATURES:

• Selectable PC or HDTV Inputs

• NTSC or PAL Outputs, Composite, S-Video or Component

• Supports PC Inputs up to UXGA (1600x1200@60Hz)

• Supports HDTV inputs up to 1080i

• Loop thru outputs - Both PC and HDTV

• Adjustable image scaling: Pan, Position and Zoom

• Aspect Ratio adjustment

• Remote Control with On Screen Display

Model 1362:

Composite/S-Video to Component/RGB

1362 FEATURES:

• Composite video, S-Video or YPbPr inputs to PC/HD outputs

• PC resolutions to 1280x1024

• All HDTV progressive scan resolutions

• 32Mb frame memory

• Integral picture adjustments

• Onscreen display for setup and adjustment

Many satellite receivers and cable boxes do not offer

simultaneous output on YPbPr and composite outputs. To

distribute the same signal to TVs with HD component inputs

as well as TVs with composite or S-Video inputs, a quality

down-converter is required. The Model 1361 converts an HD

component or PC video signal to standard analog NTSC or PAL

video. Output is either composite and S-Video or standard

deﬁnition component (YCbCr) format, with a simultaneous

HD pass-thru. The Model 1361 settings

are controlled via front panel push-button,

an IR remote or an RS-232 interface and

its over-scan feature allows you to ﬁll the

entire video screen.

Video Convertors/Scalers — solutions for mixed signal distribution systems

Some high deﬁnition signal distribution systems include one

or more standard deﬁnition sources. To distribute these signals

to HDTVs, a quality scaler is required. Audio Authority’s

Model 1362 scaler converts a standard analog NTSC or PAL

video signal to high deﬁnition component video (YPbPr).

Input may be either composite, S-Video, standard deﬁnition

component (YCbCr), or RGsB format. Output may be YPbPr

or RGBHV. Simply connect

a source and display, then

select the easy-to-use

onscreen menus for setup

and adjustments.

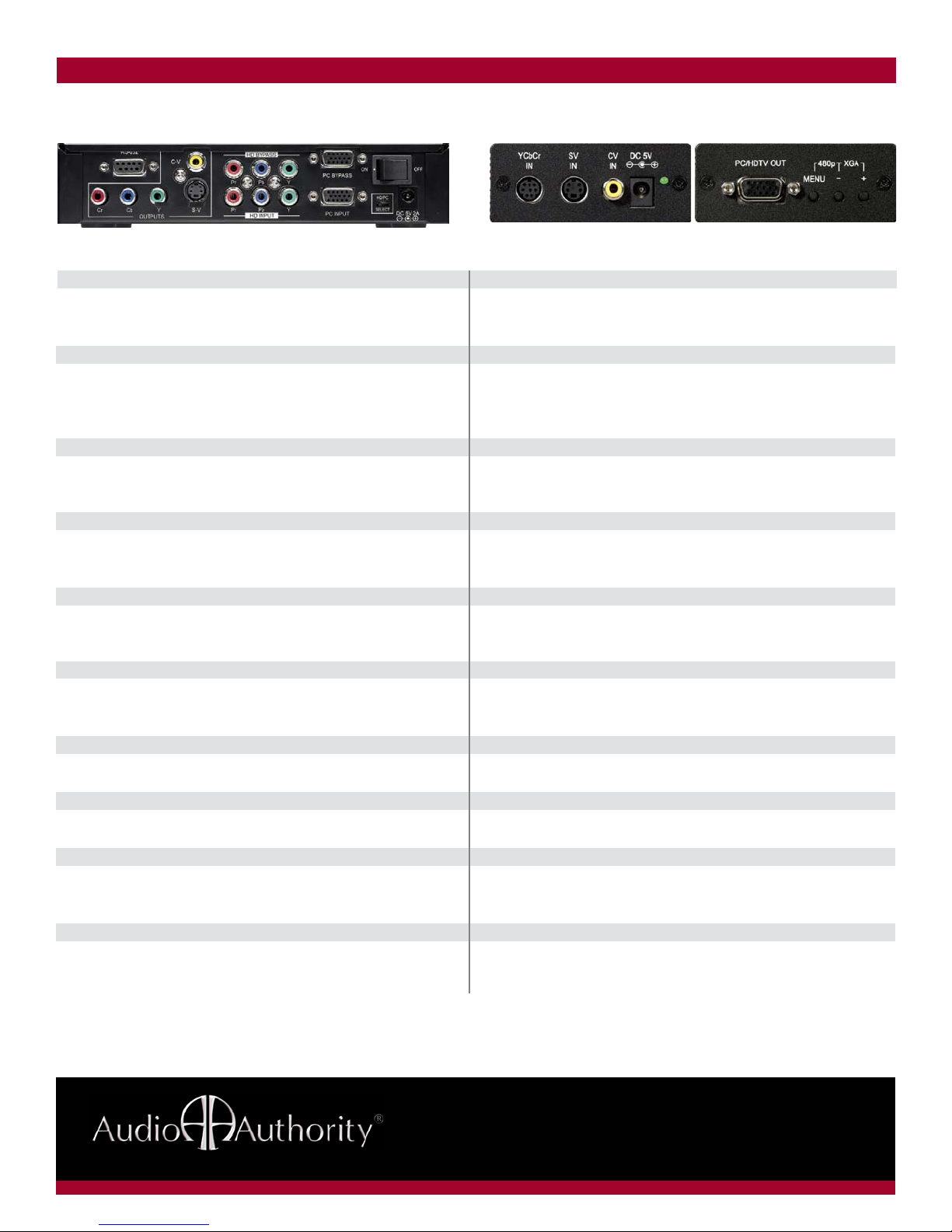

Product Focus

Models 1361 & 1362

Video Input Connectors

HDTV Component (YPbPr) Three RCA female (loops to output)

PC One HD-15 female (loops to output)

Video Output Connectors

Composite One RCA female

S-Video 4-pin Mini-DIN female

Component (YPbPr) Three RCA female

Input Signal

HDTV Resolution Supported 480i/p, 576i/p, 720p,1080i

PC Resolution Supported VGA, SVGA, XGA, SXGA, UXGA

Output Signal

Composite/S-Video NTSC or PAL, interlaced

Component YCbCr

Control Methods

Local Push buttons on unit + OSD

Remote IR remote control w/OSD + RS-232

Mechanical

Size (H-W-D) 2”x 8”x6” (50 x 204 x 155mm)

Weight (Net) 2.2 lbs. (1kg)

Warranty

Limited Warranty 1 year replacement

Power Requirement

External Power Supply 5 VDC @ 2A

Regulatory Approvals

1361 FCC, CE

Power Supply UL, CE, CSA

Accessories Included

Power adapter, HD-15 to HD-15 VGA cable, 3-RCA to 3-RCA cable,

RCA to RCA component cable, S-Video cable, IR remote control,

Application Software CD, User manual

MODEL 1361

Audio Authority also offers an extensive line of audio and video switchers, converters, and distribution amps. All units are FCC, and

CE approved, and all power supplies are UL, CE and CSA approved.

Video Converters/Scalers

Video Input Connectors

Composite One RCA female

S-Video 4-pin Mini-DIN female

YUV 8-pin Mini-DIN w/breakout cable

Video Output Connectors

HDTV/PC HD-15

Input Signal

Input Format Composite Video, S-Video, YUV (Y,R-Y,B-Y)

Input Signal Levels One HD-15 female (loops to output)

Output Signal

Output Format RGBHV, YPbPr

Output Signal Levels RGB @ 0.7V p-p, 75Ω. H&V Sync @ 3-5V

p-p, TTL

Control Methods

Local Front Panel Buttons

Adjustments Brightness, Contrast, Color, Tint, Sharpness,

H&V Peaking

Mechanical

Size (H-W-D) 1.2”x 5.25”x 3” (30 x 133 x 76mm)

Weight (Net) .62 lbs. (280 g)

Warranty

Limited Warranty 1 year replacement

Power Requirement

External Power Supply 5 VDC @ 2A

Regulatory Approvals

1362 FCC, CE

Power Supply UL, CE, CSA

Accessories Included

Power adapter, 8 pin Mini DIN to 3 RCA cable, HD-15 to 3 RCA cable, User

manual

MODEL 1362

2048 Mercer Road, Lexington, KY 40511-1071 USA

Phone: 859-233-4599 • Fax: 859-233-4510

Customer Toll-Free USA & Canada: 800-322-8346

www.audioauthority.com

8/08

EXPERT AUDIO/VIDEO SOLUTIONS SINCE 1976
