ADDON C5

Quick Guide manual

WELCOME TO

AUDIO PRO

CONNECTED

HIFI

The Audio Pro Connected HiFi products lets you enjoy wireless multi-room

sound that enables you to enjoy your favorite music anywhere and

everywhere around your home. By utilizing your existing home network and

the Audio Pro app on your iOS or Android™ device, you can explore, browse,

and play music from your own music library or from many online streaming

music services.

In addition to easy wiﬁ connection there is also Bluetooth wireless tech-

nology if you don’t have a wireless network. You can also connect your TV,

turntable or cd-player by cable to enjoy all your music.

The legendary Audio Pro sound quality is included!

AUDIO PRO AB, SWEDEN.

Audio Pro, Garnisonsgatan 52, SE-250 24 Helsingborg, Sweden

Audio Pro®, the Audio Pro logotype, the ‘a’ symbol, and ace-bass®are all registered trademarks

ment in development. Speciﬁcations may be changed without notice.

Google, the Google logo, Google Apps, Android, Android Market, Google Places, Google Maps,

YouTube, Google Navigation, Google Calendar, Gmail and Google Search are trademarks of

Google Inc. The Android robot is created and shared by Google and used according to the

Creative Commons 3. 0 Attribution License.

All other products and services mentioned may be trademarks or service marks of their respective

owners.

THIS DOCUMENT CONTAINS INFORMATION THAT IS SUBJECT TO CHANGE WITHOUT NOTICE.

Your new device has Spotify Connect built in.

You need a Spotify premium account to take advantage of Spotify Connect.

Spotify Connect lets you control the music playing on your device, using the

Spotify app on your mobile, tablet or PC. Listening is seamless. You can take

calls, play games, even switch your phone o–all without interrupting the music.

Learn more at spotify.com/connect

The Spotify software is subject to third party licenses found here:

www.spotify.com/connect/third-party-licenses

Airplay, iPad, iPhone,

and iPod touch are

trademarks of Apple Inc.,

registered in the U.S.

and other countries. App

Store is a service mark of

Apple Inc.

The Bluetooth® word

mark and logos are

registered trademarks

owned by Bluetooth SIG,

Inc. and any use of such

marks by AUDIO PRO AB,

is under license. Other

trademarks and trade

names are those of thier

respective owners.

The Wi-Fi CERTIFIED Logo

is a certiﬁcation mark of

the Wi-Fi Alliance.

REAR VIEW

MAX1000mA

ADDON C10

CONTROLS

On/O Pair Bluetooth

Select source Play/Pause 3.5mm input

Wiﬁ Presets

Connect to network

Input switch

USB port is only for

charging of external

devices, could not

support Apple devices.

NOTE:

Volume control

CONNECT TO NETWORK

IMPORTANT REQUIREMENTS

NETWORK: Your network must have a high-speed Internet

connection, as the Audio Pro system is designed to provide you

with free, online software updates.

PLEASE NOTE:

Audio Pro speakers communicates over a 2.4GHz home

network supporting 802.11 b/g/n wireless technology. 5GHz

networks are not supported in an Audio Pro setup.

ROUTER; High-speed DSL/Cable modem, or ﬁber-to-the-home

broadband connection for proper playback of Internet-based

music services.

There is dierent performance of dierent routers.

Please use a good wireless router for best performance.

You need this:

Wireless router with high

speed internet connection.

iOS or Android device

connected to your network

Have your network

password ready.

PSWRD

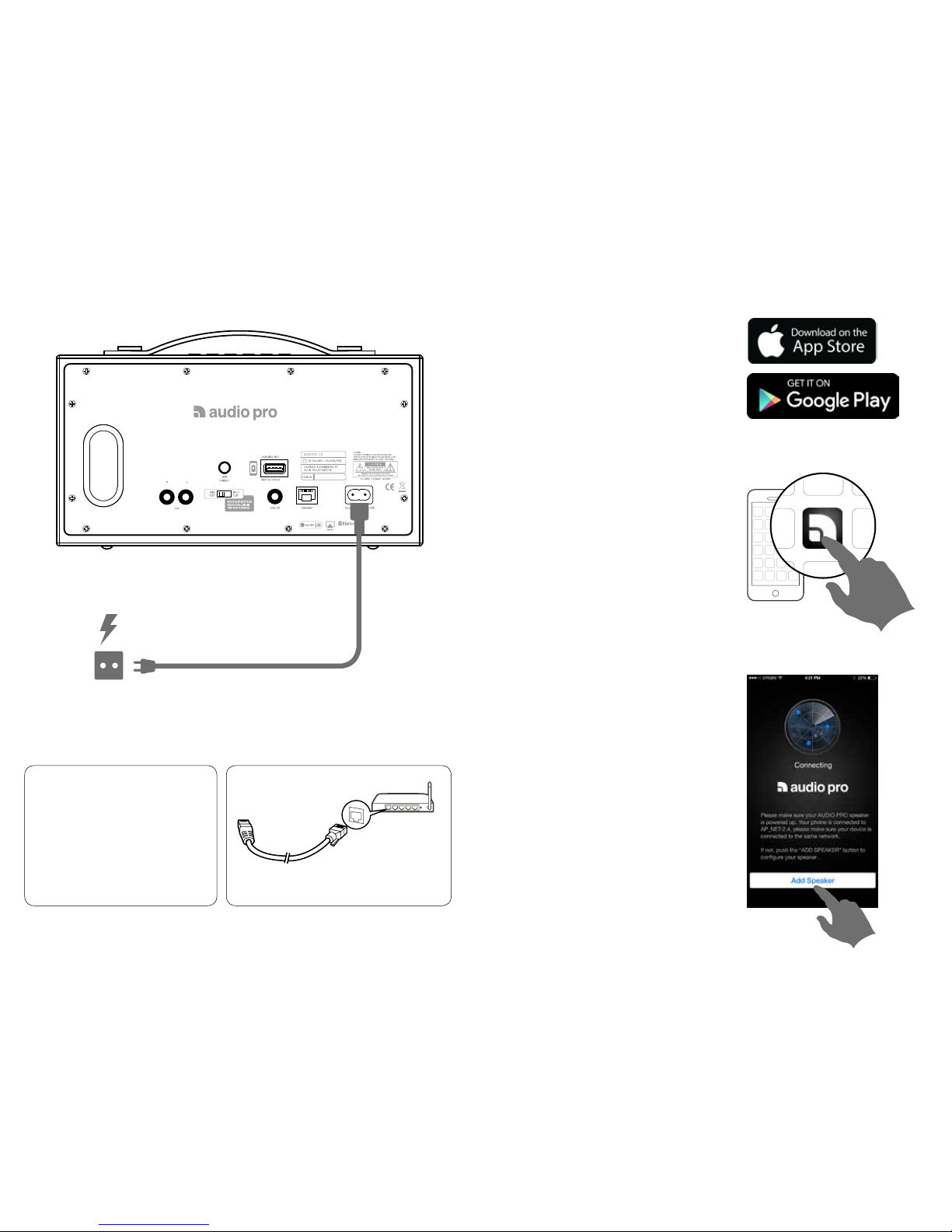

2. DOWNLOAD THE AUDIO PRO APP

Start adding speakers

Search for ”Audio Pro Control”

Launch app and follow instructions

1. CONNECT TO POWER

TIPS

Place speaker close to your router when

doing the setup. You can later view

signal strength in the app for other

placements.

Connect to wired network with ethernet cable.

OPTION  OPTIONAL

100-240V

50-60Hz

APP OVERVIEW

1. Music services

and sources.

2. Player view 3. Speaker list

Speaker Settings

Play All/Pause All

Change name

Adjust Bass/Treble

Set sleeptimer

Check units

WiFi connection

Preset List

Unit info

Select Stereo, Left or

Right channel

Grouped units,

Master at top

Add speaker

Volume controls

To Player view

THREE MAIN VIEWS

SWIPESWIPE

GROUPING SPEAKERS

Press and hold unit ﬁeld, and

drag onto other ﬁeld to group.

To ungroup, press and hold

speaker ﬁeld and drag below the

dotted line.

Making a preset lets you access your favourite radio channel or playlist

with a touch of a button. You don’t have to have your smartphone or

tablet there!

NOTE

The speaker onto which you release

speaker ﬁeld on becomes Master

speaker. Music will play on all speakers

in group.Volume can be adjusted

separately. Up to 8 units can be in one

group.

1. ON SPEAKER

Play content in app.

Push preset button for ca 2 s

until sound is heard. Done!

In the app using the

dierent music

services, ﬁnd and

push the speaker icon

to make a preset. Tune-in

Spotify

Tidal

2 s

MAKE A WIFI PRESET

PLAYBACK SETTING SWITCH

WIFI PLAY

Use this setting when playing

audio in your wiﬁ network.

INPUT PLAY

Use this setting when playing

from devices connected by

cable, or Bluetooth.

Necessary for lip sync when

speaker connected to TV.

RESTREAMING MUSIC

Restreaming makes it possible to

stream audio connected by cable

to one speaker wirelessly to more

speakers.

Connect a device by cable to RCA

or AUX inputs.

Make a group of speakers and

play content connected to Master

speaker.

Note: Using Spotify Connect requires a Spotify Premium account.

Choose input

as source

PLAYING SPOTIFY USING SPOTIFY CONNECT

Spotify app launches

Play music and tap

Available Units at

bottom.

Select your speaker in

device list.

Go back to Audio Pro

app to manage music.

FAQ/TROUBLESHOOTING

HOW MANY SPEAKERS CAN BE

USED AT ONE TIME?

The system can support up to 32 Audio

Pro music players/speakers on the net-

work at once.

WHAT MUSIC SOURCES IS SUPPORTED?

Spotify, Napster, TuneIn, iHeartRadio,

TIDAL and we will continue to add more

all the time. Deezer, Pandora and Sound-

cloud is upcoming services.

Plus you can enjoy music on your phone

or tablet, in your network or NAS and

from analog sources connected to Aux or

RCA inputs.

Note:

With Bluetooth you can play any

music service.

CAN I PLAY APPLE MUSIC?

Yes, you can. As the speakers have

Apple AirPlay® incorporated, just choose

your speaker in the Airplay setting on

your iOS device.

CAN I USE SPEAKERS AS A STEREO PAIR?

Yes, all speakers can be set to stereo, left

or right. Make a group of two speakers,

and set them to Left and Right to make

a stereo pair.

MY SPEAKER WON’T CONNECT TO MY

WIFI NETWORK

• Place your speaker closer to your router

• Speaker can only connect to 2,4Ghz

network

• Make sure you connect to your wireless

network with the right password

• If it’s a really long distance you can use

ethernet cable

• Restart your Router

CAN’T CONNECT WITH BLUETOOTH

• Activate Bluetooth on your device,

Push the “pair Bluetooth” button on

the speakers control panel. Your speaker

should be visible within 20 seconds on

your device with the products name.

push the name to pair the devices.

• Place your speaker closer to your

Bluetooth device. Maximum distance is

around 10 meters.

NO SOUND FROM THE SPEAKER

• Increase volume

• Make sure you use the right input

• Press the play/pause button if music is

paused when streaming

• Check your internet connection

THERE IS A SOUND DELAY WHEN

CONNECTED TO TV BY CABLE

• Change the input switch on the back

panel of the speaker

MY PRESETS WILL NOT PLAY

• Check your internet connection

PAIR BLUETOOTH

LED ﬂashes

Device Bluetooth

Settings

5-20s

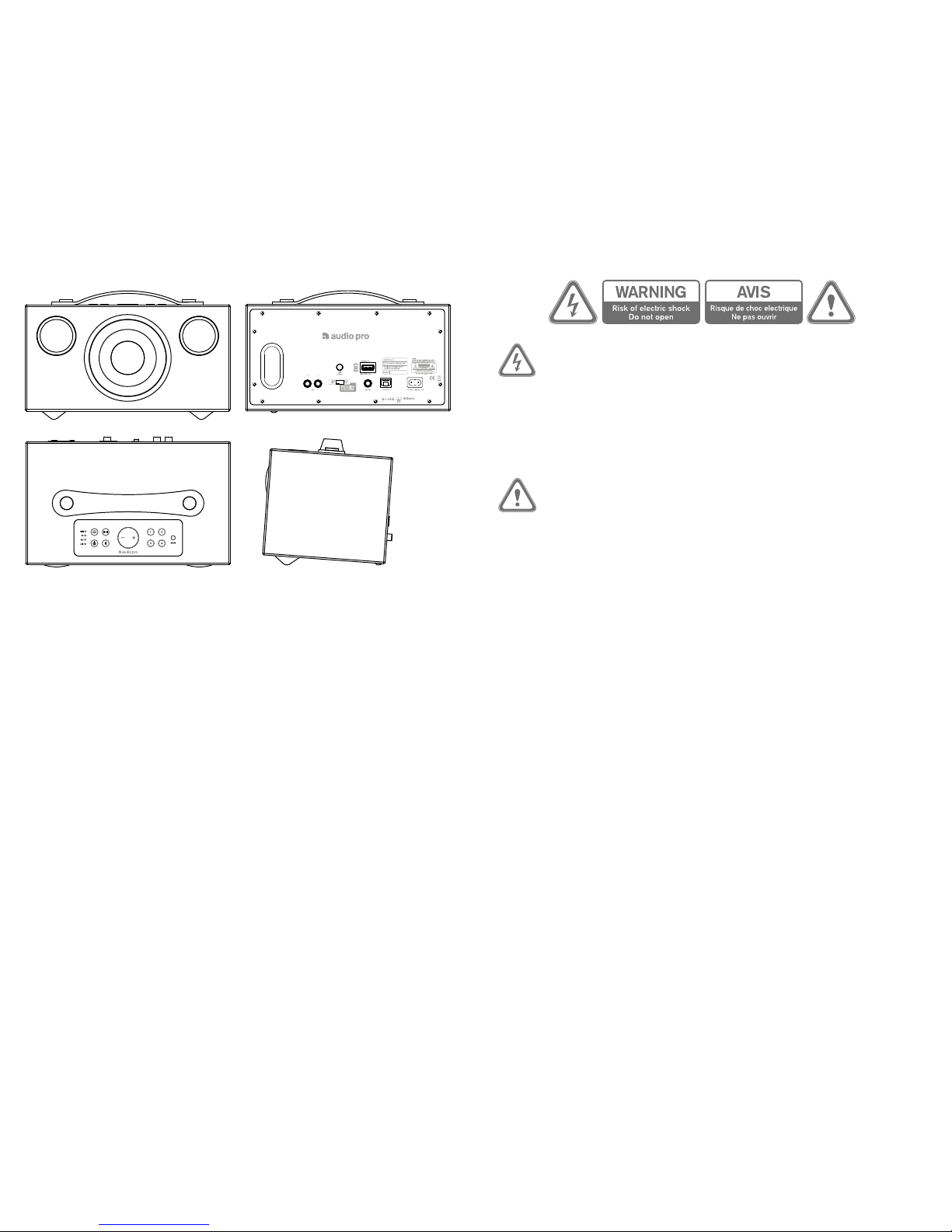

AUDIO PRO C5

EN: SPECIFICATIONS

Type: Powered stereo speaker with bass reflex

Amplifier: Digital Class D amplifier, 2x8W + 25W

Tweeter: 2 x ¾” textile dome tweeter

Woofer: 1 x 4”

Frequency range: 50–20.000Hz

Crossover frequency: 3.800Hz

Dimensions HxWxD: 130 x 250 x 150 mm

Inputs:

- Wifi

- Bluetooth standard V4.0

- Aux In 3.5mm stereo

- RCA in

Ethernet Wlan port

Technology: Airplay, Spotify Connect, DLNA

Outputs: USB DC OUT /max 5V, 1000mA

Wireless LAN

Network type: Conforming to IEEE 802.11 b/g/n

Used frequency range: 2.4 GHz

BOX CONTENTS

1 x Addon T5 Speaker

1 x Quick Start Guide

2 x Power cable

SV: Den pilförsedda blixtsymbolen i en liksidig triangel är avsedd att varna användaren

för förekomsten av oisolerad ”farlig spänning” innanför produktens hölje. Spänningen

kan vara så hög att människor riskerar att utsättas för elektriska stötar.

EN: The lightning flash with arrowhead symbol, within an equilateral triangle, is

intended to alert the user to the presence of uninsulated “dangerous voltage” within the

product’s enclosure that may be of sufficient magnitude to constitute a risk of electric

shock to persons.

DE: Das Blitzsymbol mit Pfeilspitze im gleichseitigen Dreieck ist der Hinweis auf strom-

führende Teile im Geräteinneren, bei deren Berührung die Gefahr eines lebensgefährli-

SV: Utropstecknet i en liksidig triangel är avsett att uppmärksamma användaren på

att det finns viktiga instruktioner för bruk och underhåll (service) i det referensmaterial

som medföljer utrustningen.

EN: The exclamation point within an equilateral triangle is intended to alert the user to

the presence of important operating and maintenance (servicing) instructions in the

literature accompanying the appliance.

DE: Das Ausrufezeichen im gleichseitigen Dreieck soll auf wichtige Bedienungs- und

Wartungs-Hinweise in dieser Bedienungsanleitung aufmerksam machen.

VARNING:

FÖR ATT MINSKA RISKEN FÖR BRAND ELLER

ELEKTRISK STÖT, UTSÄTT INTE PRODUKTEN

FÖR REGN ELLER FUKT.

OBSERVERA:

FÖR ATT MINSKA RISKEN FÖR ELEKTRISKA

STÖTAR SKA DU EJ AVLÄGSNA ENHETENS

HÖLJE ELLER DEN BAKRE PANELEN.

UTRUSTNINGEN INNEHÅLLER INGA

KOMPONENTER SOM KAN REPARERAS AV

ANVÄNDAREN. ALL SERVICE SKA UTFÖRAS

AV SÄRSKILT UTBILDAD PERSONAL.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS APPARATUS

TO RAIN OR MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK). NO

USER-SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PER-

SONNEL.

WARNUNG:

UM BRAND - UND STROMSCHLAGGE-

FAHREN ZU VERMEIDEN, DARF DIESES

GERÄT WEDER NÄSSE NOCH FEUCHTIGKEIT

AUSGESETZT SEIN (Z. B. REGEN, DAMPF).

VORSICHT:

ZUR VERMEIDUNG ELEKTRISCHER SCHLÄGE

DÜRFEN WEDER DIE VORDERE NOCH DIE

HINTERE GEHÄUSEABDECKUNG ENTFERNT

WERDEN. IM INNERN DES GERÄTES BEFIND-

EN SICH KEINERLEI BEDIENUNGSELEMENTE

FÜR DEN BENUTZER. REPARATUR- UND

WARTUNGSARBEITEN DÜRFEN NUR VON

GESCHULTEN FACHKRÄFTEN DURCH-

GEFÜHRT WERDEN.

Andere Handbücher für ADDON C5

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Audio Pro Sprecher Handbücher

Audio Pro

Audio Pro A2.42 Live Bedienungsanleitung

Audio Pro

Audio Pro Cinema Precision Series PM-09C Bedienungsanleitung

Audio Pro

Audio Pro Addon T4 Bedienungsanleitung

Audio Pro

Audio Pro Cinema C2 Bedienungsanleitung

Audio Pro

Audio Pro Avantek Two Bedienungsanleitung

Audio Pro

Audio Pro ADDON C10W Bedienungsanleitung

Audio Pro

Audio Pro Image Series Image 44 Bedienungsanleitung

Audio Pro

Audio Pro Cinema Precision Series PM-09S Bedienungsanleitung

Audio Pro

Audio Pro Avantek Onehouse Bedienungsanleitung

Audio Pro

Audio Pro Evo Series Evo 10 Gebrauchsanweisung

Audio Pro

Audio Pro Image Series Image 12 Bedienungsanleitung

Audio Pro

Audio Pro QUBE Gebrauchsanweisung

Audio Pro

Audio Pro Wigo WI-160 Bedienungsanleitung

Audio Pro

Audio Pro Avantek One Bedienungsanleitung

Audio Pro

Audio Pro Cinema Room Betriebsanleitung

Audio Pro

Audio Pro Focus SA-5 Bedienungsanleitung

Audio Pro

Audio Pro Avantek Onehouse Bedienungsanleitung

Audio Pro

Audio Pro Black Diamond V.2 Bedienungsanleitung

Audio Pro

Audio Pro Evidence E.4 Bedienungsanleitung

Audio Pro

Audio Pro Cinema C1 Bedienungsanleitung

Audio Pro

Audio Pro Avanti Series SW-150 Bedienungsanleitung

Audio Pro

Audio Pro Evo Series Evo 40 Bedienungsanleitung

Audio Pro

Audio Pro ADDON THREE Bedienungsanleitung

Audio Pro

Audio Pro Image Series Image 44 Gebrauchsanweisung

Beliebte Sprecher Handbücher anderer Marken

argon audio

argon audio IE20 Bedienungsanleitung

Denon

Denon SC-N7 Bedienungsanleitung

Gemline

Gemline Ace 3952 Bedienungsanleitung

Focal

Focal ON WALL 300 Bedienungsanleitung

HEADRUSH

HEADRUSH Maximus HRSP 5024 Bedienungsanleitung

SoundLogic

SoundLogic BCCS-6/6395 Bedienungsanleitung

Peavey

Peavey DTH 218 Bedienungsanleitung

Avantree

Avantree Pluto Air Bedienungsanleitung

Morel

Morel Integra Series INTEGRA OVATION 4 Bedienungsanleitung

Oppo

Oppo SONICA Bedienungsanleitung

Bose

Bose SoundLink Wireless Music System Bedienungsanleitung

Rocksteady

Rocksteady Stadium Bedienungsanleitung

Bowers & Wilkins

Bowers & Wilkins 4 Bedienungsanleitung

Sonance

Sonance SONOS OUTDOOR Series Bedienungsanleitung

Electro-Voice

Electro-Voice EVID FM4.2 Bedienungsanleitung

Pioneer

Pioneer XW-HTD630 Bedienungsanleitung

Onn

Onn BWA16AA002 Bedienungsanleitung

HP GL313AA - USB Speakers PC Multimedia Bedienungsanleitung
