Audio Technica PRO 63 Bedienungsanleitung

SCALE IS 5 DECIBELS PER DIVISION

Polar Pattern

200 Hz

LEGEND

5 kHz

1 kHz

8 kHz

240

180

210

270

300

330

150

120

12" or more on axis

100

50 200

LEGEND

10k

500 2k 20k

Frequency in Hertz

Frequency Response

Response in dB

10 dB

• Ideal for musical instrument pickup and general use

• Hi-ENERGY®neodymium magnet for improved output and

transient response

• Two-stage screen reduces wind noise and “popping” during close

use

• Corrosion-resistant contacts from gold-plated XLRM-type

connectors

• Tailored response provides natural, full-range reproduction

• Rugged design and construction for reliable performance

• Cardioid polar pattern reduces pickup of sounds from the sides

and rear, improving isolation of desired sound source

Output from the microphone’s XLRM-type connector is low

impedance (Lo-Z) balanced. The signal appears across Pins 2 and

3; Pin 1 is ground (shield). Output phase is “Pin 2 hot” – positive

acoustic pressure produces positive voltage at Pin 2.

Plug Type Ground Audio “+” Audio “–”

XLR Pin 1 Pin 2 Pin 3

1/4" “TRS” Sleeve Tip Ring

1/4" Sleeve Tip Sleeve

To avoid phase cancellation and poor sound, all mic cables must be

wired consistently: Pin 1-to-Pin 1, etc. For a high-impedance (Hi-Z)

mic input, connect a Lo-Z balanced cable to a Hi-Z matching

transformer (A-T CP8201 or equal) at the equipment input.

When using the PRO 63 in settings with a stage monitor speaker,

the speaker should be located 180° off axis (at the rear of the

microphone). This placement, in conjunction with the microphone’s

uniform cardioid pickup pattern, will virtually eliminate the possibility

of undesired audio feedback.

Take care to keep foreign particles from entering the windscreen.

An accumulation of iron or steel filings on the diaphragm, and/or

foreign material in the windscreen’s mesh surface, can degrade

performance.

Audio-Technica U.S., Inc., 1221 Commerce Drive, Stow, Ohio 44224

Audio-Technica Limited, Old Lane, Leeds LS11 8AG England

www.audio-technica.com

PRO 63 CARDIOID DYNAMIC MICROPHONE

PRO 63 SPECIFICATIONS†

ELEMENT Dynamic

POLAR PATTERN Cardioid

FREQUENCY RESPONSE 70-16,000 Hz

OPEN CIRCUIT SENSITIVITY –55 dB (1.7 mV) re 1V at 1 Pa*

IMPEDANCE 300 ohms

WEIGHT (less cable and accessories) 10.9 oz (309 g)

DIMENSIONS 7.17" (182.1 mm) long,

1.63" (41.4 mm) head diameter

OUTPUT CONNECTOR Integral 3-pin XLRM-type

CABLE 15.0' (4.5 m) cable with XLRF-type

connector at microphone end,

XLRM-type connector at equipment

end

ACCESSORIES FURNISHED AT8470 Quiet-Flex™stand clamp for

5/8"-27 threaded stands;

5/8"-27 to 3/8"-16 threaded adapter;

soft protective pouch

†In the interest of standards development, A.T.U.S. offers full details on its test

methods to other industry professionals on request.

*1 Pascal = 10 dynes/cm 2= 10 microbars = 94 dB SPL

Specifications are subject to change without notice.

Andere Audio Technica Mikrofon Handbücher

Audio Technica

Audio Technica unipoint U859QL Bedienungsanleitung

Audio Technica

Audio Technica UniLine U853RU Bedienungsanleitung

Audio Technica

Audio Technica AT935QMRx Bedienungsanleitung

Audio Technica

Audio Technica ATW-C6100 Bedienungsanleitung

Audio Technica

Audio Technica ES947C/FM3 Bedienungsanleitung

Audio Technica

Audio Technica AT875R Bedienungsanleitung

Audio Technica

Audio Technica ES963 Betriebsanleitung

Audio Technica

Audio Technica ARTIST ELITE ATW-C5400 Bedienungsanleitung

Audio Technica

Audio Technica AT4040 Bedienungsanleitung

Audio Technica

Audio Technica AT2020USB+ Bedienungsanleitung

Audio Technica

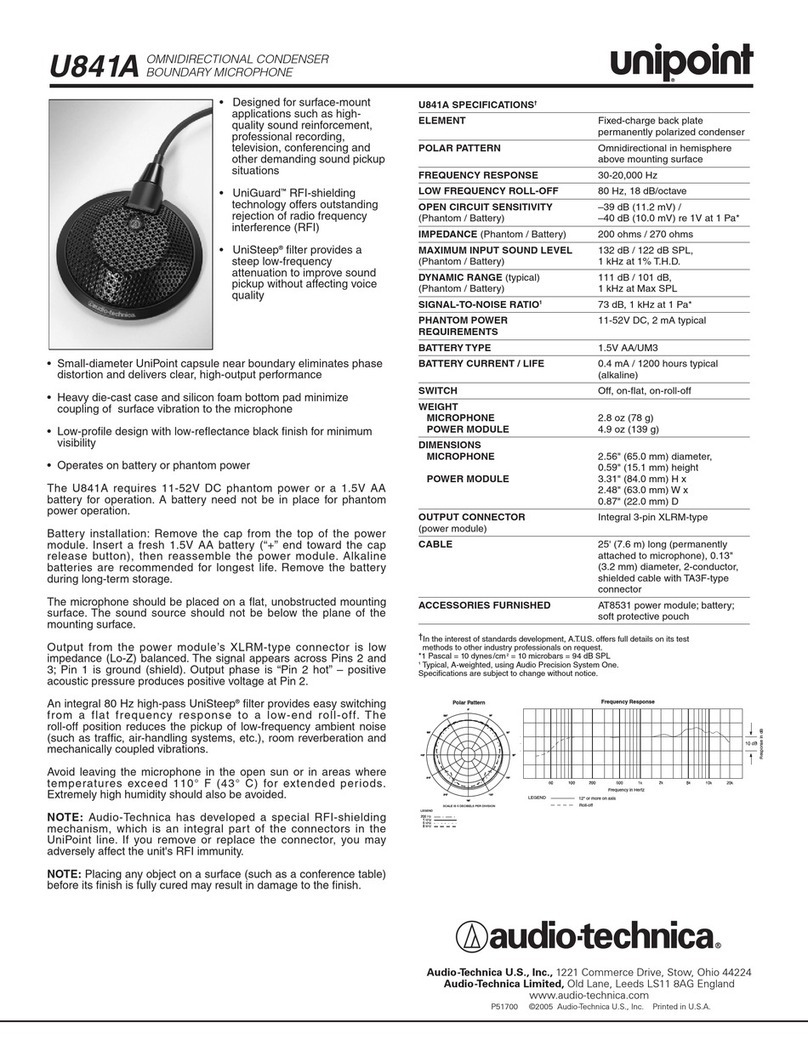

Audio Technica Unipoint U841A Bedienungsanleitung
