Introduction

Thank you for purchasing this Audio-Technica product.

Read through this user manual before using the product to ensure its correct use. Also, keep this manual, along with the warranty, for future reference.

This product can be used only in the countries where the product is sold. Make sure that the operating voltage of the product is correct for the country you live in.

Package contents

Make sure that you have all the included items listed below before using this product.

If some items are missing or damaged, contact your local Audio-Technica dealer.

• Turntable body • Felt mat • Dust cover

• Platter (with drive belt) • Counterweight • Headshell (AT-HS3) with VM stereo cartridge

(AT91R)

• Power cable

• User manual (this document)

• 45 RPM adapter

After purchase, we suggest that you save all packaging materials for possible future storage, moving, or shipping.

Safety precautions

Important information

Warning:

To prevent fire or shock hazard, do not expose this apparatus to rain or

moisture.

Caution:

Do not expose this apparatus to drips or splashes.

To avoid electric shock, do not open the cabinet.

Refer servicing to qualified personnel only.

Do not expose this apparatus to excessive heat such as sunshine, fire

or the like.

Do not subject this apparatus to strong impact.

This apparatus should be located close enough to the AC outlet so

that you can easily grasp the power cord plug at any time.

In case of emergency, disconnect the power cord plug of this

apparatus quickly.

Do not place any objects filled with liquids, such as vases, on this

apparatus.

To prevent fire, do not place any naked flame sources (such as lighted

candles) on this apparatus.

Do not install this apparatus in a confined space such as a bookcase or similar

unit.

To install this apparatus only in the place where ventilation is good.

Notes on use

Turntable body

• Do not set and use the product in locations that are considerably hot or

humid, dirty, or subject to extreme vibrations.

• The product should be positioned on a flat, level surface.

Cartridge

• Attach the provided protector to the cartridge when the product is not in use.

• Do not touch the stylus of the cartridge with your finger.

• Do not allow the stylus to bump against the platter, felt mat, or edge of the

record.

Part names and functions

Overall diagram

145 RPM adapter (shown in receptacle)

Select the platter speed (33-1/3 or 45 RPM).

2Platter

3Felt mat

4Spindle

5Dust cover hinge holders

Attachment points for dust cover hinges.

6Tonearm part

For details, refer to “Tonearm” on p. 5.

7Size selector

Switch between 12" and 7", according to the size of the record.

8Platter speed button

Select the platter speed (33-1/3 or 45 RPM).

9START button

Spins the platter and moves the tonearm.

10 STOP button

Returns the tonearm to its original position and stops the platter.

11 Dust cover

12 Pre-amplifier selector switch

If using an amplifier with a PHONO input jack, set this switch to the

PHONO position. If connecting to the AUX jack of an amplifier, set this

switch to the LINE position.

13 RCA audio cable (with grounding wire)

Connect to PHONO input jack (grounding wire to ground terminal, if

available) or AUX (LINE) input jack of a receiver, amplifier or other

connectable equipment.

14 AC inlet

Insert the power cable here.

8 9

12 14

Part names and functions

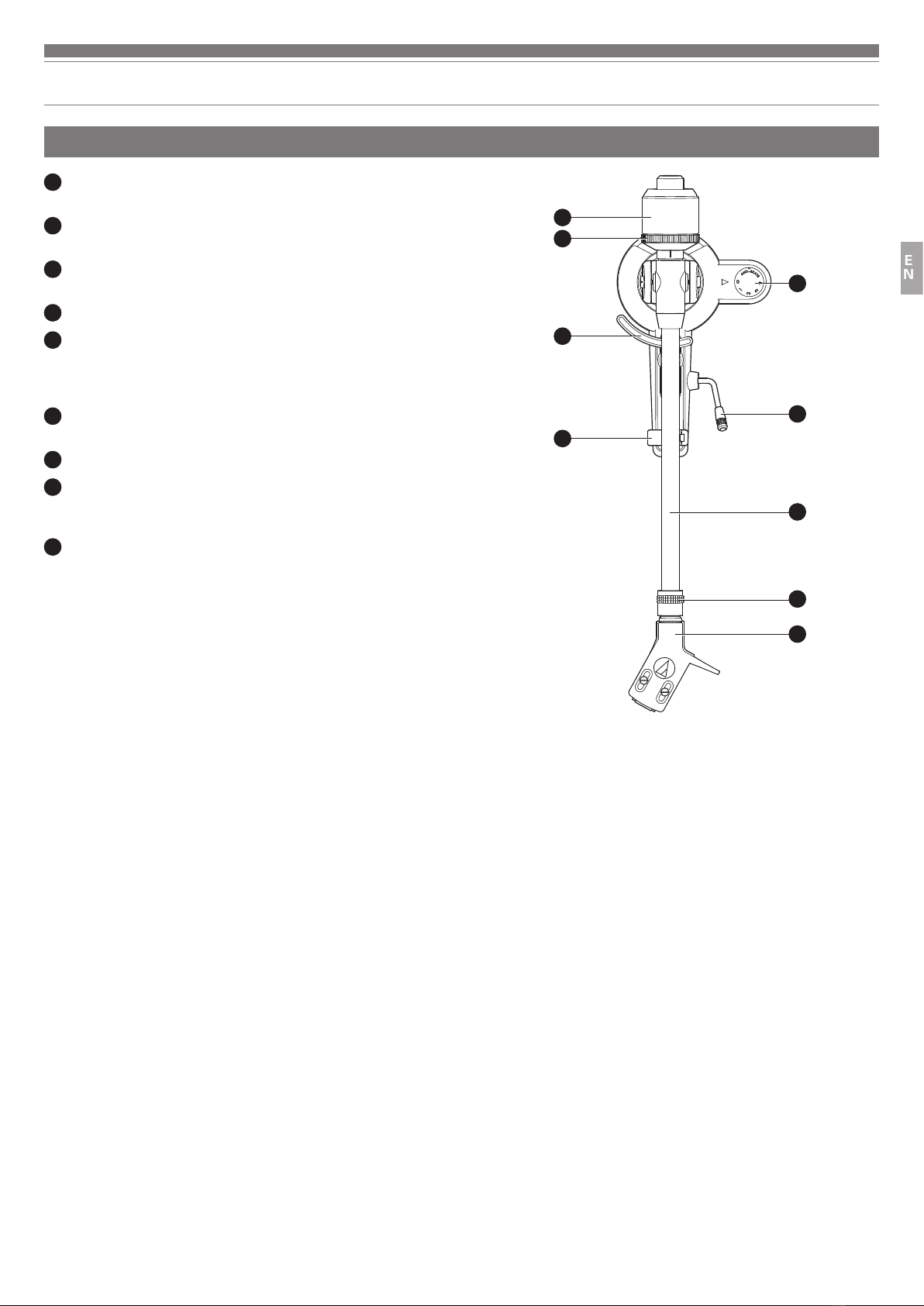

Tonearm

1Counterweight

Balances the tonearm and adjusts to provide the proper tracking force.

2Tracking force gauge ring

Use to adjust the tracking force.

3Tonearm lift

Moves the tonearm vertically to and from the face of the record.

4Tonearm rest

5Anti-skate control dial

While the record is playing, a force acts on the stylus tip to pull it inward.

This force can be counteracted by setting the same values for anti-skate

and the tracking force.

6Tonearm lift control lever

Operates the tonearm lift.

7Tonearm

8Locking ring

Rotate the ring to the left (counterclockwise) to secure the headshell. To

remove the headshell, rotate the ring to the right.

9Headshell and cartridge

The cartridge (AT91R) is mounted to the headshell (AT-HS3).

Preparation for use

Installing the turntable

• Mount the product on a level surface.

• To avoid the effects of vibrations and acoustic pressure, do not mount the

product next to such items as speakers.

• The product may pick up radio static if placed next to a radio. Therefore, try

to keep the product away from radios.

• If the product is near equipment (cell phone, etc.) that emits strong radio

waves, noise may occur.

Placing the platter and the felt mat

This product requires some assembly before using it for the first time.

Do not connect the power cable until assembly is complete.

1. Set the platter on the spindle.

• Make certain that the platter is fully seated on the spindle.

2. Place the belt on the motor pulley (brass-colored).

• Align one of the platter openings with the brass motor pulley, and, while pulling

both ends of the red ribbon that comes attached to the belt, place the belt on the

motor pulley, as per the diagram. When doing this, be careful not to twist the

belt.

Belt

Motor pulley

(brass-colored)

Red ribbon

Straight Twisted

3. Remove the red ribbon from the belt.

4. Set the felt mat on the platter.

• After setting the felt mat, put the 45 RPM adapter into the space made for it on

the upper left.

Felt mat45 RPM adapter

PlatterOpening

Motor pulley

(brass-colored)

Spindle

Preparation for use

Assembling the tonearm

1. Insert the headshell into the locking ring.

• Hold the right and left edges of the headshell so that you do not damage the

stylus or cut the cartridge’s wires.

2. With the headshell inserted, turn the locking ring

counterclockwise (to the left).

3. With the tracking force gauge ring facing forward, attach

the counterweight to the back of the tonearm, and slowly

turn it counterclockwise (to the left).

Tonearm balance and tracking force

In order for the cartridge to pick up sound correctly from the record’s grooves,

the tonearm’s balance and tracking force must be adjusted to fit the

specifications of the cartridge. If the tonearm’s balance and tracking force are

not properly adjusted, the record or the cartridge’s stylus may become damaged.

• Do not drag the cartridge’s stylus across the record or felt mat when

adjusting the tonearm’s balance or tracking force. Doing so may damage the

stylus.

Setting tonearm balance

1. Remove the cartridge’s protector.

2. While holding headshell, remove the cable tie used to

secure the tonearm at the time of delivery.

3. While still lightly holding the headshell, turn the

counterweight to adjust the tonearm’s balance.

• Adjust the balance so that the tonearm is level when you release the headshell.

4. Return the tonearm to the tonearm rest.

Locking ring

Tonearm Counterweight

Adjust so that tonearm is level

Preparation for use

Setting tracking force

1. While supporting the counterweight so that it does not

move, turn the tracking force gauge ring so that its “0”

position lines up with the centerline on the back of the

tonearm (the tracking force is not adjusted simply by

turning the tracking force gauge ring).

2. Turn the counterweight and the tracking force gauge

ring together counterclockwise until the centerline value

matches the recommended tracking force value for the

cartridge you are using.

• Refer to the cartridge maker’s specifications for the recommended tracking force

value.

• The tracking force value for the cartridge provided with this product is 2.0 g.

Setting the anti-skate adjustment

While the record is playing, a force acts on the stylus tip to pull it inward. This

force can be counteracted by setting the same values for anti-skate and the

tracking force.

1. Adjust the anti-skate control dial to have the same value

as the tracking force value.

• The tracking force value for the cartridge provided with this product is 2.0 g.

Installing/removing the dust cover

When attaching the dust cover, insert the hinges of the dust cover into the

two dust cover hinge holders on the back of the body. When removing the dust

cover, slowly pull the dust cover out from the dust cover hinge holders.

Setting pre-amplifier selector switch

This product has a built-in phono equalizer function. You can use the product,

even if you do not have a phono amplifier or connectable equipment with a

built-in phono amplifier.

Use the pre-amplifier selector switch to set the output, as shown below.

Connectable

equipment being

used

Position of

pre-amplifier

selector switch

Where to connect

RCA audio cable

Device with phono

input

PHONO Phono input jack and

ground (earth) terminal of

connectable equipment

Device without phono

input

LINE AUX or line input jack of

connectable equipment

PC sound card LINE PC sound card’s line input

jack*1

An audio adapter (sold separately) may be required to connect the RCA audio cable to

the line input jack of the PC sound card.

Centerline

Tracking force gauge ring Hinge

Preparation for use

Connecting the device

Align the settings for the pre-amplifier selector switch and connect the RCA audio cable to an input jack that is compatible with the connectable equipment you are

using (amplifier, receiver, active speakers, sound card, etc.).

• The RCA audio cable's red jack is for the right (R) channel, and the white jack is for the left (L) channel.

Rotating the platter

1. Using your hands, rotate the platter ten times.

• Raise the tonearm lift control lever to lift the tonearm. Slowly rotate the turntable

ten times by hand in the direction of the arrow.

• You may want to hold the tonearm to prevent it from moving. This step is for

resetting the auto mechanism, getting rid of any twists in the belt and making

sure the belt rides smoothly along the drive rim on the underside of the platter.

Connecting the power cable

This product does not have a power switch. A standby current is always running

through the product, even when it is not being used; disconnect the power cable

plug from the outlet when not using the product for a long period of time.

1. Connect the power cable plug to the outlet.

• For safety, raise the tonearm by lifting the tonearm lift control lever to the UP

position.

• Connect the power cable plug to the outlet without removing the cartridge’s

protector. If the platter has rotated, press the STOP button without touching the

tonearm, and then wait until the tonearm returns to its original position.

• If you play a record immediately after inserting the power cable, the sound that

is played may be garbled. Wait a short time (about 30 seconds) after plugging the

power cable plug into the outlet before playing a record.

Depending on the connectable equipment you are using, a ground

(earth) terminal may be present near the phono input jack. If this is

the case, connect the grounding wire of the RCA audio cable to it.

This will help prevent a low humming noise that might otherwise

be heard during playback.

With PHONO*1 Without PHONO

To outlet

Connectable equipment

(Amplifier, etc.)

Tonearm

Playing a record

Before playing a record

1. Remove the cartridge’s protector.

• Pull the protector straight forward to remove it.

• Applying a downward force may cause the stylus to come off the body. Only low

volume is output if the stylus has come off, or is about to come off, so refer to

“Replacing the stylus” on p. 11 to reattach the stylus correctly.

2. Place the record on the felt mat so that the center hole

aligns with the spindle.

• If playing a 45 RPM record with a large center hole, attach the 45 RPM adapter

(see the right side of the diagram below).

Automatic operation

Lower the volume of the amplifier, speakers, etc. sufficiently.

1. Select the size with the size selector.

• Select “12"” for an LP record with a 12" diameter, and “7"” for a 45 RPM record

with a 7" diameter.

2. Press the speed with the platter speed button.

• Select “33” for a 33-1/3 RPM record, and “45” for a 45 RPM record.

3. Press the START button.

• Do not bump the product while the record is playing.

• Do not switch the record size selection while the record is playing. Doing either of

these can cause the product to malfunction.

Manual operation

Lower the volume of the amplifier, speakers, etc. sufficiently.

1. Raise the tonearm by lifting the tonearm lift control lever

to the UP position.

Tonearm lift control lever

2. Position the tonearm over the desired location (groove)

on the record.

3. Lower the tonearm by moving the tonearm lift control

lever to the DOWN position.The tonearm descends

slowly onto the record and play begins.

• Alternatively, you can skip steps 1 to 3, and use the finger-lift on the headshell to

position the tonearm over the desired location on the record. Carefully lower the

tonearm to the record surface.

• Do not subject the product to strong impact during playback.

Pausing the record

1. After lowering the volume of the amplifier, speakers, etc.

sufficiently, lift the tonearm with the tonearm lift control

lever.

protector

45 RPM adapter

Inhaltsverzeichnis

Sprachen:

Andere Audio Technica Drehscheibe Handbücher

Audio Technica

Audio Technica AT6006R Bedienungsanleitung

Audio Technica

Audio Technica AT-LP2D-USB Betriebsanleitung

Audio Technica

Audio Technica AT-LP3XBT Bedienungsanleitung

Audio Technica

Audio Technica AT-LP120-USB Betriebsanleitung

Audio Technica

Audio Technica AT-PL50 Installationsanleitung

Audio Technica

Audio Technica AT-LPW50BT Bedienungsanleitung

Audio Technica

Audio Technica 60th ANNIVERSARY AT-LP2022 Bedienungsanleitung

Audio Technica

Audio Technica AT-LP1240-USB XP EDITION Bedienungsanleitung

Audio Technica

Audio Technica AT-LPW50BT Bedienungsanleitung

Audio Technica

Audio Technica AT-LP3 Bedienungsanleitung

Audio Technica

Audio Technica VM540ML Bedienungsanleitung

Audio Technica

Audio Technica AT-LP2D-USB Bedienungsanleitung

Audio Technica

Audio Technica AT-LP120XUSB-BK Bedienungsanleitung

Audio Technica

Audio Technica AT-LP5 Bedienungsanleitung

Audio Technica

Audio Technica AT-LP120XUSB Bedienungsanleitung

Audio Technica

Audio Technica AT-LP3WH Bedienungsanleitung

Audio Technica

Audio Technica VM520EB Bedienungsanleitung

Audio Technica

Audio Technica AT-ART1000 Bedienungsanleitung

Audio Technica

Audio Technica AT-LP60-USB Kurzanleitung

Audio Technica

Audio Technica AT-LP5 Betriebsanleitung

Audio Technica

Audio Technica AT-LP120-USB Betriebsanleitung

Audio Technica

Audio Technica VM520EB/H Bedienungsanleitung

Audio Technica

Audio Technica AT-LP60XBT Bedienungsanleitung

Audio Technica

Audio Technica AT-LP2D-USB Betriebsanleitung

Beliebte Drehscheibe Handbücher anderer Marken

Gemini

Gemini CDT-05 MKII Bedienungsanleitung

Rotel

Rotel RP-820 Bedienungsanleitung

Shuman

Shuman MC-250BT Bedienungsanleitung

Stanton

Stanton STR8-150 Bedienungsanleitung

Crosley

Crosley McQueen CR7011-GY Bedienungsanleitung

Reloop

Reloop SMP-1 Bedienungsanleitung

auna

auna TT-Classic Plus Bedienungsanleitung

COMO AUDIO

COMO AUDIO Turntable Analog Bedienungsanleitung

Dual

Dual 1009 F Bedienungsanleitung

REED

REED Muse3C Bedienungsanleitung

AXIOMTEK

AXIOMTEK OPS883-H Series Bedienungsanleitung

Pioneer

Pioneer PL-71 Bedienungsanleitung

Vestax

Vestax PDX-a1 Bedienungsanleitung

Denon

Denon DP-400 Bedienungsanleitung

Dual

Dual 504 Bedienungsanleitung

Audio-Techica

Audio-Techica AT-LP60XBT Bedienungsanleitung

Goldring

Goldring G99 Bedienungsanleitung

Acoustic Signature

Acoustic Signature Typhoon NEO Bedienungsanleitung
