AudioCodes C448HD Bedienungsanleitung

AudioCodes C448HD IP Phones

Quick Guide

Page | 1

1. Before Installing

Congratulations on purchasing your AudioCodes C448HD IP Phone!

Before installing your phone, make sure the following items are included in the shipped box:

C448HD IP Phone

AC power adapter (optional)

Cat 5e Ethernet cable

Handset

Handset cord

Desktop stand

Wall mount

2. Physical Description

Navigation Control

Touch Screen

Back Key

VOICEMAIL Key

HOLD Key

Alphanumerical

Keypad

Headset Key

CONTACTS Key

REDIAL

Key

TRANSFER Key

Mute Key

Volume Keys

MENU Key

Speakerphone Key

Microphone

Page | 2

3. Cabling the Phone

Warning: Prior to connecting power, refer to the Compliancy and Regulatory Information

document at https://www.audiocodes.com/library/technical-documents.

To cable the phone:

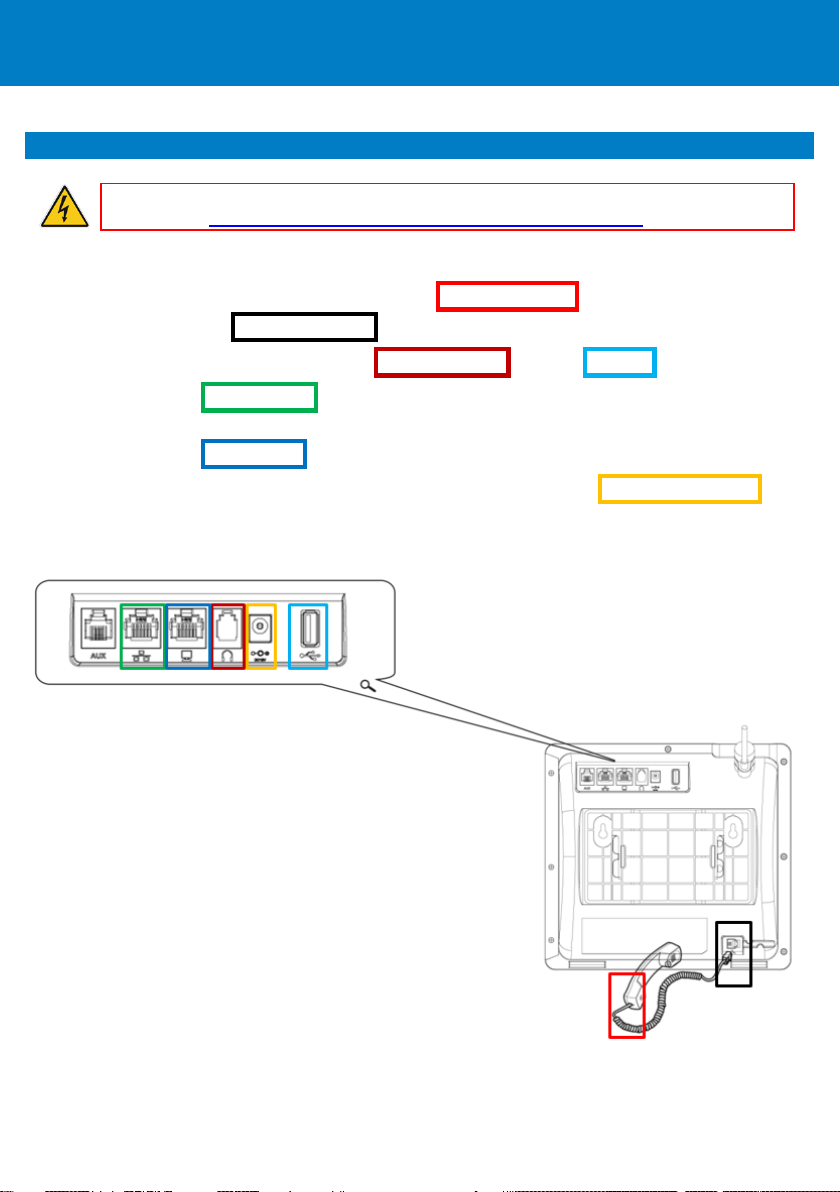

1. [Refer to the illustration below] Connect the short, straight end of the phone cord to the

handset and the longer straight end of the cord to the handset jack on the phone.

2. (Optional) Connect a headset to the RJ-9 headset port or to the USB port .

3. Connect the RJ-45 LAN port to your LAN network (LAN port or LAN switch/router) with a CAT 5

/ 5e Ethernet cable.

4. Connect the RJ-45 PC port to a computer with a CAT 5 / 5e straight-through Ethernet cable.

5. Connect the connector tip of the AC power adapter to the phone's DC 12V power socket and

connect the two-prong AC adapter directly to the electrical wall outlet. When the phone

powers up, all the LEDs momentarily light up.

Page | 3

4. Mounting the Phone on a Desktop or Wall

Desktop: Slide the L-shaped stand's short or long edge slots onto these rails.

Wall: Slide the wall mount fitting onto these rails.

To mount the phone on a wall:

1. Using the mounting plate's two screw holes as a template, mark the locations on the wall where

you want to mount the phone. The horizontal distance between the screw holes is 4 7/8 inches

(123.8 mm).

2. Drill a hole in the wall at the two marked locations.

3. Insert an anchor (not supplied) in each hole for the 3.9mm screws.

4. Insert two screws (not supplied) into the two masonary anchors. It's recommended to use tapp

3.9 x 32mm (DIN 7981 C) self-tapping pan Phillips-head screws.

5. Leave about 3/16 inch or 5 mm between the screw head and the wall.

6. On the rear of the phone, detach the base used for desktop mounting.

Wall Mount

Desk Mount

Page | 4

7. Hang the plate on the screws.

8. Attach the phone to the plate.

Page | 5

5. Signing In

To sign in with your username and password:

1. After connecting to the network, touch the Sign In button.

2. Enter your username (e.g., [email protected]).

3. Enter your password (the same as your Microsoft Exchange password).

Page | 6

To sign in from another device:

1. Touch the Sign In button, and then select the Sign in from another device option.

2. In the Web browser, navigate to https://microsoft.com/devicelogin.

3. In the Microsoft Web page, enter the code shown on the C448HD screen, and then complete

the process by entering your username and password.

Page | 7

6. Basic Phone Operations

To make a call: Enter a phone number, and then touch the DIAL menu. To call a phone contact,

touch the DIRECTORY menu, select the directory contact, and then touch the DIAL menu.

To redial a number: Press the REDIAL key, select a dialed number, and then touch the DIAL menu.

To answer a call: Pick up the handset, or press the speaker or headset key.

To put a call on hold and make another call: Press the HOLD key on the phone, touch the CALL

MENU and then select New Call.Enter a phone number, and then press DIAL. To return to the held

call, navigate to the held call, and then uncheck the HOLD touch menu.

To mute yourself: Press the mute key. To unmute yourself, press the mute key again.

To transfer a call: During a call, press the TRANSFER key on the phone, enter a number in the

Transfer to… field, and then press the TRANSFER touch menu.

To forward incoming calls to another phone:

1. When the phone is idle, touch the FORWARD menu, and then touch Forward to a number.

2. Enter the number to which you want to forward the calls, and then touch the START menu.

To deactivate call forwarding, touch the FORWARD menu, and then select Do not forward calls.

Page | 8

Notice Information

Information contained in this document is believed to be accurate and reliable at the time of printing. However, due

to ongoing product improvements and revisions, AudioCodes cannot guarantee accuracy of printed material after

the Date Published nor can it accept responsibility for errors or omissions. Updates to this document can be

downloaded from https://www.audiocodes.com/library/technical-documents.

This document is subject to change without notice.

Date Published: September-01-2020

Document #: LTRT-13252
