8” LCD OVERHEAD

TV/MONITOR WITH

DVD PLAYER

POWER EJECT REW PLAY F.F STO P

CHANNEL

AUTO

PROGRAM SOURCE

SELECT PICTURE

SELECT VOLUME

ON OFF AUTO

INPUTAUDIO

VIDEO

HEADPHONES

Important Notice

It is unlawful in most jurisdictions for a person to drive a motor vehicle which is equipped with a television viewer or

screen that is located in the motor vehicle at any point forward of the back of the driver’s seat, or that is visible, directly

or indirectly, to the driver while operating the vehicle. In the interest of safety, the PROVD8 should never be installed

where it will be visible, directly or indirectly, by the operator of the motor vehicle.

Warnings

Do not use any solvents or cleaning materials when cleaning the video monitor.

Do not use any abrasive cleaners, they may scratch the screen. Use only a lightly dampened lint free cloth to wipe

the screen if it is dirty.

Lock the LCD screen in the fully closed position when not in use.

Before putting on headphones always adjust the volume setting to the lowest position.

Remember to leave the dome light switch in the off or auto positions when the vehicle is unattended, as the dome

lights, if left on, can drain the vehicle’s battery.

Do not put pressure on the screen.

Caution children to avoid touching or scratching the screen, as it may become dirty or damaged.

Television Reception

This entertainment system is designed primarily for viewing prerecorded movies or playing video games. Television

reception in a moving vehicle will be limited and in some areas will not be possible due to weak and variable signal

strength.Televisionviewinginastationaryvehiclewillresultinanimprovement,butmaystillbemarginalduetosignal

strength. The quality of the picture will not be consistent with home TV reception. Reception may be affected by

weather and distance from TV station. A weak signal may cause the picture to roll, be snowy, or cause some color

loss.

Congratulations on your purchase of the Audiovox

PROVD8 Overhead TV/Monitor with DVD Player. The

PROVD8hasbeendesignedto giveyouand yourfamily

many years of video entertainment in the mobile

environment. Please read the directions that follow to

familiarize yourself with the product and to ensure that

you obtain the best results from your equipment.

Please NOTE: Installation options vary, see the

individualowner’smanuals for eachcomponentinyour

system to obtain a full understanding of each

component’s operation.

Safety Precaution

For safety reasons, when changing video media it is

recommendedthatthevehicle is not in motion, andthat

you do not allow children to unfasten seat-belts to

change video media or make any adjustments to the

system. System adjustments can be accomplished

using the remote control unit, while seat-belts remain

fastened. Enjoy your Audiovox entertainment system

but remember-safety of all passengers remains the

number one priority.

Features

· 8 Inch (4:3) TFT (Thin Film Transistor) Active

Matrix LCD (Liquid Crystal Display) Monitor

· Built-in DVD Player

· Built-in TV Tuner

· AVIInput

· AUX (Game/Camcorder) Input

· OSD (On Screen Display) for Control of Picture

Quality and Functions

· Three Frequency FM Modulator (remote

control) with OSD for Frequency Display

· Infrared Transmitter for IR Wireless

Headphones

· Headphone / Speaker Amplifier

· Headphone Jacks (DVD/TV/Monitor)

· Forward and Side Remote Sensor

· Dome Lights with Switch

· Backlit Controls for Low Light Operation

· Full Function Remote Control

Controls and Indicators Diagram

POWER EJECT REW PLAY F.F STOP

CHANNEL

AUTO

PROGRAM SOURCE

SELECT PICTURE

SELECT VOLUME

ON OFF AUTO

INPUT

AUDIO

HEADPHONES

VIDEO



" #







'

&

%

$

# "

!





Figure 1

-1-

-2-

Main Function Descriptions

1. DVD Disc Insertion Slot

2. Infrared Transmitter and Sensor

Use to transmit audio to wireless headphones. Also

allows the remote control to operate the PROVD8

and to control other accessories in the system

3. PLAY (u) Button

This button is used to enter the play mode.

4. FWD(uu)

Allows the user to search in a forward direction

at 2,4, and 8 times the normal speed.

5. STOP ( ) Button

6. PICTURE SELECT Button

Eachtimethisbuttonispressed,theonscreenpicture

adjustment display cycles through “adjustment bars”

for BRIGHTNESS, CONTRAST, COLOR and TINT.

Once the desired adjustment bar is displayed, use

theVOLUMEUP/DOWNbuttonstoadjustthesetting.

Thedisplaywillautomaticallyturnoffifnoadjustments

are made within 6 seconds, or if any other button is

depressed.

7. VOLUME DOWN (-) Button

Use this button to decrease the volume level of the

headphone jacks. It is also used to make picture

adjustments in picture select mode.

8. VOLUME UP (+) Button

Use this button to raise the volume level of the

headphone jacks. It is also used to make picture

adjustments in picture select mode.

NOTE: These buttons will not affect the volume of

wireless headphones or the wired RF modulator.

When using these devices the volume must be

adjusted with the wireless headphone volume

controlorwithyourradio’svolumecontrol(see page

10, Wireless Headphones, or page 11, Wired FM

Modulator).

9. Three Position Dome Light Switch

·Auto – Automatically switches on the dome

lights in conjunction with the vehicle’s interior

illumination.

·Off – The dome lights will not turn on in this

position.

·On – Turns on the dome lights.

10. Screen Release

Movesindirectionofthearrowtoreleasethedrop

down screen.

11. Rev (tt)

Allowstheuser to search inabackwardsdirection.

12. Eject ( ) Button

Ejects Disc.

13. Power Button

(Bright red when system is on, dim when off).

14. Source Select

(DVD,TV,AV1,AUX).

15. TVAuto-program

AllowstheusertoscanandprogramactiveTVstations

into memory.

16. Channel Up (p) Button

Usethis buttontoincreasethechannel numbertothe

desired channel.

17. Channel Up (q) Button

Use this button to decrease the channel number to

the desired channel.

18. Dome Lights

provideadditionalinteriorillumination.

19. Drop Down LCD Panel.

20. Auxiliary AudioInput(Right).

21. Auxiliary AudioInput(Left).

22. AuxiliaryVideo Input.

23. Side Remote Sensor Eye

AllowstheremotecontroltooperatethePROVD8and

control the other accessories.

24. Headphone Jacks

Allows the use of wired headphones with a 1/8” plug

for listening to video program audio.

25. PROVD8 Ventilation Opening

NOTE:Audiovox recommends theuse ofthe Audiovox

HP275Headphoneswhen usingwiredheadphones.

-3-

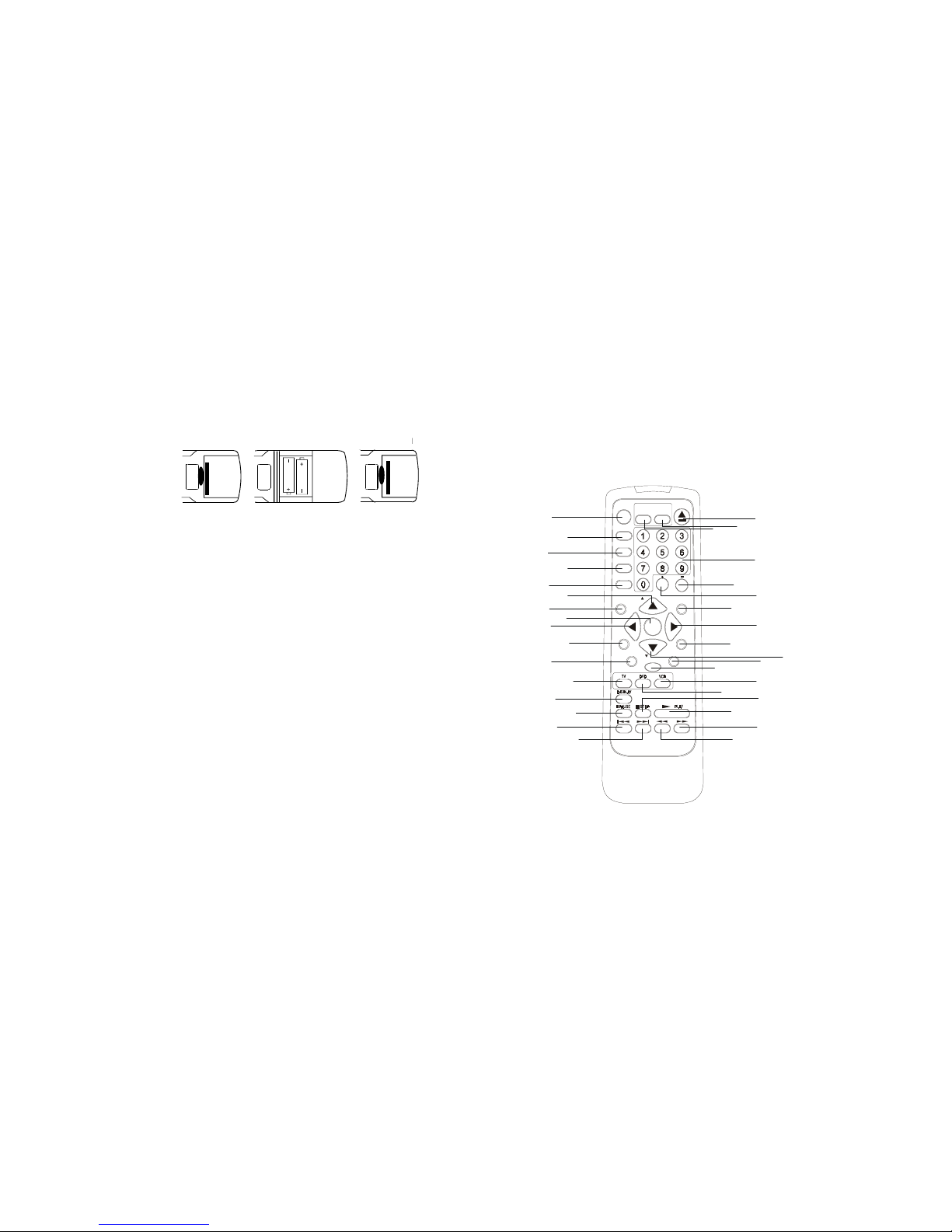

REMOTE CONTROL OPERATION

BATTERY INSTALLATION

Before attempting to operate your Remote Control,

install the batteries as described below.

1) Turn the Remote Control face down. Using a

fingernail, lift the battery cover off.

2) Install two “AAA” batteries as shown. Make

sure that proper polarity (+ or -) is observed.

3) Align the cover tabs with the remote control

and press down until the cover clicks.

The remote control will operate the PROVD8 and

Audiovox VCP’s. It is not a universal remote control

and will not control equipment from other

manufacturers.

-4-

POWER

ON/OFF SELECT

EJECT

SOURCE

AUTO

ERASE/

RETURN

A-B

REPEAT

SETUP

PIX

Enter

FM TRANSMITTER

MEMORY

SKIP/

WRITE VOL

MUTE CH

%

&

'





!

!

$

#

"

!









4. SKIP / SEARCH

This button selects between SKIP and SEARCH

modes. In “SKIP mode” the TV tuner will tune and

stoponchannels that areprogrammedintomemory

when the CHANNEL UP/DOWN buttons are used.

When the SKIP mode is disabled, the TV will stop

on all active channels.

5. ERASE / WRITE

While tuned to a channel, pressing this button will

storeor erase thechannelfrom memory. The stored

channel numbers are displayed in “GREEN” on the

LCD display screen, and the non-stored channel

numbers are in “RED”.

6. Channel Up (p) Button

Usethisbuttonto increasethe channelnumbertothe

desired channel and to scroll upward in menu

options.

7. MUTE Button

Pressthis button tomutethe audiowhileusingwired

headphones.

Pressing the button again restores sound to the

previously set level.

8. ENTER Button

Used to select or switch a highlighted selection.

*Function control is available on the unit and the remote control.

DVD Remote Function Descriptions

1. DVD POWER ON/OFF Button*

Press this button to turn the PROVD8 on. The

DVD or selected video source will be displayed

on screen and the picture will appear in a few

seconds. Press the button again to turn the

PROVD8 off.

2. SOURCE Button

Video equipment connected to the AUDIO/

VIDEOinputscanbeselectedand displayed on

the LCD display screen by pressing this button.

Each time the button is pressed, the Audio /

Video source will change in the following

sequence: DVD, TV, AV1 and AUX.

3. AUTO MEMORY

When the AUTO MEMORY button is pressed,

allchannelsaresearched and channels that are

detected with signals of sufficient levels are

automatically stored. Please refer to page 3 for

more information on TV reception.

-5-

9. LEFT (t) Button

Allows the user to shift left in the menu options.

10. MENU Button

Allows the user to access the main menu.

11. RETURN Button

Allows the user to exit the set up menu.

12. TV Mode Select

Switches certain function keys on the remote control

for TV functions.

13. DISPLAY

Display Menu, This includes Title,Chapter,Time,

Audio,Subtitle,Angle, Repeat, and Bookmark.

14. PAUSE Button (II)

DVD disc play will be paused. During Disc

Playback, momentarily press the PLAY Button to

Pause the Disc from the unit.

15. PREVIOUS (ltt)

Selects the previous chapter or track on a disc.

16. NEXT (uul)

Selects the next chapter or track on a disc.

17. EJECT(▲▲

▲▲

▲) Button *

The disc will be ejected disc from disc mechanism.

18. FM Transmitter Frequency Select Button

(Selects 88.3MHz,88.7MHz,89.1MHz).

19. FM Transmitter On/Off Button.

UsedtoturntheFMModulatoronandoff.

20. NUMBERS Buttons

Allowstheusertoenterthenumbers0to9forselection

of CD tracks, password and chapters.

21. VOLUME DOWN (-) Button

Use this button to decrease the volume level of the

headphone jacks. It is also used to make picture

adjustments in picture select mode.

22. VOLUME UP (+) Button

Use this button to raise the volume level of the

headphone jacks. It is also used to make picture

adjustments in picture select mode.

NOTE: These buttons will not affect the volume of

wirelessheadphonesorawiredRFmodulator. When

using these devices the volume must be adjusted

with thewirelessheadphone volume control or with

your radio’s volume control (see page 10, Wireless

Headphones,orpage 11, Wired FMModulator).

-6-

*Function control is available on the unit and the remote control.

23. PICTURE SELECT Button

Each time this button is pressed, the on screen

picture adjustment display cycles through

“adjustmentbars” forBRIGHTNESS,CONTRAST,

COLOR and TINT. Once the desired adjustment

bar is displayed, use the VOLUME UP/DOWN

buttons to adjust the setting. The display will

automatically turn off if no adjustments are made

within 6 seconds, or if any other button is

depressed.

24. RIGHT ( ) Button

Allows the user to shift to the right in the menu

options.

25. SETUP Button

Allows the user to select the DVD options

(Language, Video, Audio, Rating, Exit) Press

SETUP to activate this function. When finished

press SETUP to exit the Setup Menu.

26. CHANNEL DOWN (▼▼

▼▼

▼) Button

Allows the user to scroll downward in the menu

options.

27. REPEAT Button

Allows the user to repeat various portions of a

DVD, CD or MP3 and displays the repeat menu

(Chapter, Title, Disc, Off).

28. A-B REPEAT Button

Allows the user to repeat play of a DVD, CD or MP3

from point A to point B.

29. VCP Mode Select Button

Switches certain function keys on the remote control

for VCP functions.

30. DVD Mode Select Button

Switches certain function keys on the remote control

for DVD functions.

31. STOP (n) Button

DVD disc play will be stopped.

32. PLAY Button ( u)Button*

Press this button to activate the play mode while

a disc is loaded into the disc compartment.

33. Scan Forward (uu) Button

Allows the user to search in a forward direction at

2,4, and 8 times the normal speed.

34. Scan Backward (tt) Button

Allows the user to search in a backward direction

at 2, 4, and 8 times the normal speed.

*Function control is available on the unit and the remote control.

-7-

Inhaltsverzeichnis

Andere Audiovox Auto-Videosystem Handbücher

Audiovox

Audiovox VBP5000 Bedienungsanleitung

Audiovox

Audiovox D1812PKG - 8" Portable DVD Player D1812pk Bedienungsanleitung

Audiovox

Audiovox 128-5495E Kurzanleitung

Audiovox

Audiovox Movies 2 Go MMSV58 Bedienungsanleitung

Audiovox

Audiovox PROVE8 - 8" Dropdown TV/DVD LCD Monitor Bedienungsanleitung

Audiovox

Audiovox Movies 2 Go AVXMTGHR1M Montage- und Bedienungsanleitung

Audiovox

Audiovox Movies 2 Go AVXMTGHR1M Technisches Datenblatt

Audiovox

Audiovox 50-0300A-002 SERIES Bedienungsanleitung

Audiovox

Audiovox AVT-597 Bedienungsanleitung

Audiovox

Audiovox Mobile Video VOD128 Bedienungsanleitung

Audiovox

Audiovox VOD705DL - DVD Player With LCD Monitor Bedienungsanleitung

Audiovox

Audiovox Mobile Video HR7010PKG Bedienungsanleitung

Audiovox

Audiovox VME 9512 TS - Bedienungsanleitung

Audiovox

Audiovox VOD102 - DVD Player With LCD Monitor Bedienungsanleitung

Audiovox

Audiovox PROV716 Bedienungsanleitung

Audiovox

Audiovox VME 9325BTA - Bedienungsanleitung

Audiovox

Audiovox HRDV700 Bedienungsanleitung

Audiovox

Audiovox MMD85 - 8.5 Inch Dropdown Video Monitor Bedienungsanleitung

Audiovox

Audiovox AVXMTG13UHD Bedienungsanleitung

Audiovox

Audiovox Mobile Video VOD128 Bedienungsanleitung

Audiovox

Audiovox Rampage VBP1000S Bedienungsanleitung

Audiovox

Audiovox VOD85 - DVD Player With LCD Monitor Bedienungsanleitung

Audiovox

Audiovox 50-0245x-002 SERIES Bedienungsanleitung

Audiovox

Audiovox VME 9309 TS Bedienungsanleitung

Beliebte Auto-Videosystem Handbücher anderer Marken

Stinger

Stinger HEIGH10 RB10RAM13B Bedienungsanleitung

Eonon

Eonon E1057 Bedienungsanleitung

Milion

Milion D2223 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-8153 Bedienungsanleitung

Voxx Electronics

Voxx Electronics HR8MA1 Bedienungsanleitung

Axxera

Axxera AV604Bi Bedienungsanleitung

Clarion

Clarion NX706E Bedienungsanleitung

Pyle view

Pyle view PLDN74BTi Bedienungsanleitung

Clarion

Clarion NX602 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-5850N Bedienungsanleitung

RCA

RCA DRC6296 - Twin 9" Mobile DVD System Benutzerhandbuch

Lanzar

Lanzar SVDVD5 Bedienungsanleitung

Kia

Kia MTXM100YPPE Bedienungsanleitung

Eonon

Eonon E1060 Bedienungsanleitung

Macrom

Macrom M-AN900 Bedienungsanleitung

Hyundai

Hyundai BAPE-L3000N Bedienungsanleitung

r.LiNK

r.LiNK RL2-UCON8-SM Bedienungsanleitung

Blaupunkt

Blaupunkt DVP 01C Bedienungsanleitung
