INSTALLATION &

OPERATING GUIDE

DANTE®

–AES67

MICROPHONE INTERFACE

M55WDM55WD

The Audix Dante–AES67 microphone systems are the industry’s ﬁrst integrated

solution to eliminate multiple connectors by providing audio, LED status and logic

functionality with a single RJ45 cable connection. This design reduces conventional

wiring and installation time by 90% and eliminates wiring errors. Once the connection

is made to the network via the Audix DN4 interface, the Audix microphone(s) will be

automatically recognized and populated by model number in the Audix DSP plugin.

IN THE BOX

• M55D microphone

• Knurled fastener

• Seismic / restraint cable

• Spec sheet

• Installation guide

THE AUDIX INTEGRATED MICROPHONE SYSTEM | DANTE–AES67

SWITCH

DSP

AUDIX DN4

M55D

FIGURE 6

Connect the DN4/DN43 Dante-AES67

interface to a PoE switch (see DN4/

DN43 guide).

FIGURE 1

Drill a 3/4” (19mm) hole in the ceiling

tile. Place cylinder on top of hole after

removing the lid, and insert M55D collar

through the hole. Fasten nut.

FIGURE 3

Insert category cable into RJ45

receptacle of M55D and DN4/DN43

mic input. Use Audix Cat7 or shielded

category cable.

FIGURE 2

Plug in 7 pin microphone connector

into mating receptacle as shown above.

Refasten lid.

FIGURE 4

Seismic cable installation; Insert cable

through the top of cable stay barrel

pulling excess cable until taut. Place

cable eyelet under brass screw and

fasten.

FIGURE 5

Connect up to four microphones to the

Audix DN4 or one M3 and one single-

channel microphone to the Audix DN43

interface.

INSTALLATION

CABLE RELEASE PIN

CABLE STAY

BARREL

CABLE

M55D v1.2

corporation. Speciﬁcations subject to change without notice. For service

and warranty information, visit AudixUSA.com/service or call 800.966.8261

FIGURE 10

1. Mic ID will show model number

by channel

2. Starting “state” LED color can be

selected

3. Gain control

4. High pass ﬁlter

5. Low pass ﬁlter

6. See Q-SYS™ designer asset manager

Audix help ﬁle for detailed instructions

FIGURE 9

1. Open Dante controller to conﬁrm

discovery on your network

2. If using Q-SYS™ DSP open Designer

Asset Manager and Dowload Audix

Plugin

3. Open Audix Plugin

4. See Figure 10 for Q-SYS™ control and

LED functions

5. For DSP’s currently without Audix

plugin, audio channels can be routed

through the Dante controller.

6. See tech support at audixusa.com for

updated API / Plugin information

FIGURE 7

For desired microphone coverage

and position, loosen M55D knurled

nut (aprox. half-turn), adjust cable

length, and retighten nut.

OPERATION OVERVIEW

FINAL ADJUSTMENT



  

M55

Andere Audix Mikrofon Handbücher

Audix

Audix M70 Bedienungsanleitung

Audix

Audix 4-piece Drum Mic Package DP4a Bedienungsanleitung

Audix

Audix Fisuon Series Bedienungsanleitung

Audix

Audix M70 Bedienungsanleitung

Audix

Audix Fusion Series Bedienungsanleitung

Audix

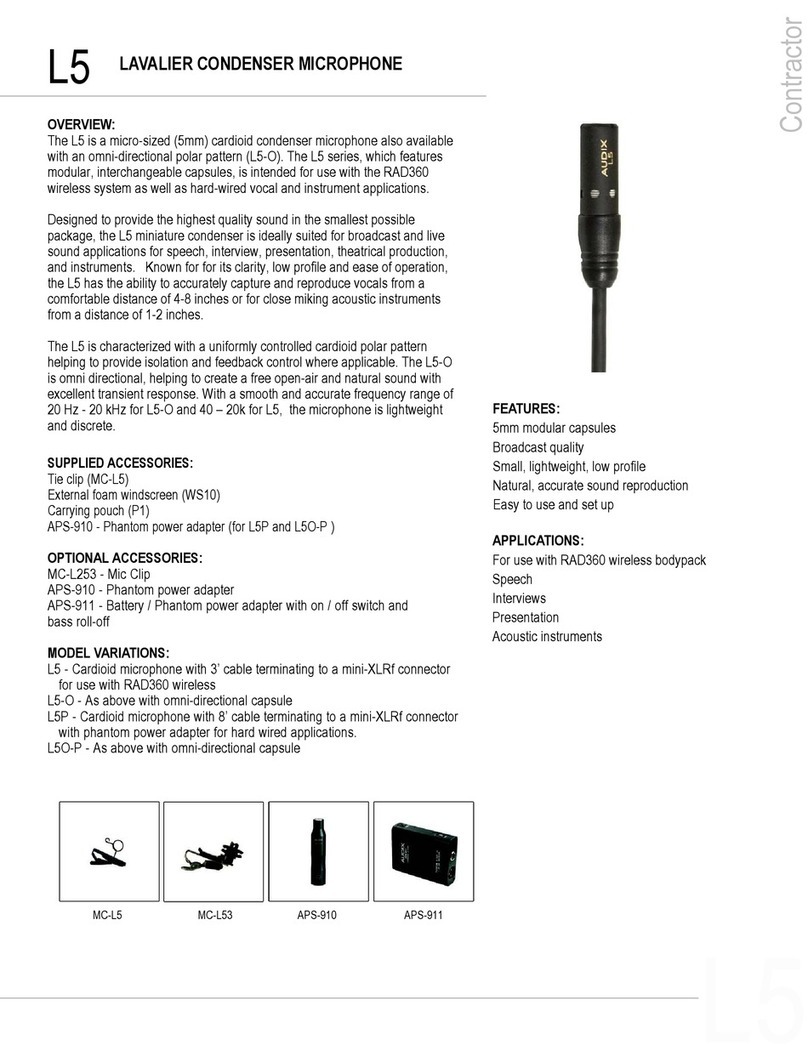

Audix L5 Bedienungsanleitung
