Austin Hughes CyberView DK117 Bedienungsanleitung
UM-CV-751-DK117-Q321V1 www.austin-hughes.com
751
Designed and manufactured by Austin Hughes
1U Dual Slide LCD Console Drawer
DK117
Options :
- SDI
- HDMI
- DC power
User Manual
dedicated KVM switch and rackmount screen technology
17” 4K LCD Console Drawer
UM-CV-751-DK117-Q321V1 www.austin-hughes.com
Legal Information
First English printing, November 2020
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
■Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40º Celsius (104º Fahrenheit).
■When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
■When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
■Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment’s ratings label.
■Observe all precautions and warnings attached to the equipment.
■If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage.
■Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, re or electrical shock.
■ Only qualied service personnel should open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty.
■ If any part of the equipment becomes damaged or stops functioning, have it checked by qualied service personnel.
What the warranty does not cover
■ Any product, on which the serial number has been defaced, modied or removed.
■Damage, deterioration or malfunction resulting from:
□ Accident, misuse, neglect, re, water, lightning, or other acts of nature, unauthorized product modication, or
failure to follow instructions supplied with the product.
□Repair or attempted repair by anyone not authorized by us.
□Any damage of the product due to shipment.
□Removal or installation of the product.
□ Causes external to the product, such as electric power uctuation or failure.
□ Use of supplies or parts not meeting our specications.
□Normal wear and tear.
□Any other causes which does not relate to a product defect.
■Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modications made to this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
■Re-position or relocate the receiving antenna.
■Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
UM-CV-751-DK117-Q321V1 www.austin-hughes.com
< Part. 3 > Options
3.1 3G / HD / SD-SDI Broadcast-grade input
3.2 HDMI
3.3 DC Power : 12V / 24V / 48V / 125V
P.15
P.16
P.17
< Part. 2 > Specications / OSD
2.1 Product Specications
2.2 Keyboard / Mouse Specications
2.3 On-screen Display Operation ( OSD )
P. 7
P.9 - 11
P.12 - 14
< Part. 1 > DK117
1.1 Package Content
1.2 Structure Diagram & Dimension
1.3 Installation
1.4 Connection
Contents
P. 1
P. 1
P.3 - 5
P. 6
< Part. 4 > KVM Integration P.18
UM-CV-751-DK117-Q321V1 www.austin-hughes.com
■It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
Unpacking
Before Installation
How To Clean Your LCD Monitor
Caution :
■To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or
plugging your monitor into an electrical outlet.
■When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can
scratch or damage your display. Pressure damage is not covered under warranty.
■ Use only cleansers made specically for cleaning monitors and monitor screens. Cleansers not made to
clean monitors and monitor screens can scratch the LCD display or strip o the nish.
■Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly
onto the screen or case can cause damage which is not covered under warranty.
■Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based
paper product such as paper towels can scratch your LCD screen.
Cleaning Your Monitor
To clean your LCD safely, please follow these steps :
Disconnect the power cord.
Gently wipe the surface using a clean, dry microber cloth. Use as little pressure as possible.
1
2
Cleaning Tough Marks and Smudges
To remove tough marks and smudges, please follow these steps :
Disconnect the power cord.
Spray a small amount of non-abrasive cleanser on a microber cloth.
Gently wipe the surface. Use as little pressure as possible.
Wait until your monitor is completely dry before plugging it in and powering it up.
1
2
Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your
microber cloth rst, not directly on the parts you are cleaning.
3
4
UM-CV-751-DK117-Q321V1 www.austin-hughes.comP. 1
DK117
5
Carry handle to release the 2-pt lock
LCD interchangeable module kit
Installation Slides
LCD membrane
Membrane switch (KVM option)
1
2
4
7
8
9
1
2
3
6
7
8
Audio speaker ( for SDI or HDMI option )
Keyboard interchangeable module kit
Touchpad mouse module
1U dual slide for LCD console drawer
4
3
6
9
5
5
DK117 unit X 1
- USB cable X 2
- Power cord X 1
- M6 screw, cage nut & cup washer X 8
The above package content is only for the single console models.
It varies with options such as KVM, SDI, HDMI & DC power.
< 1.1 > Package Content
< Part 1 >

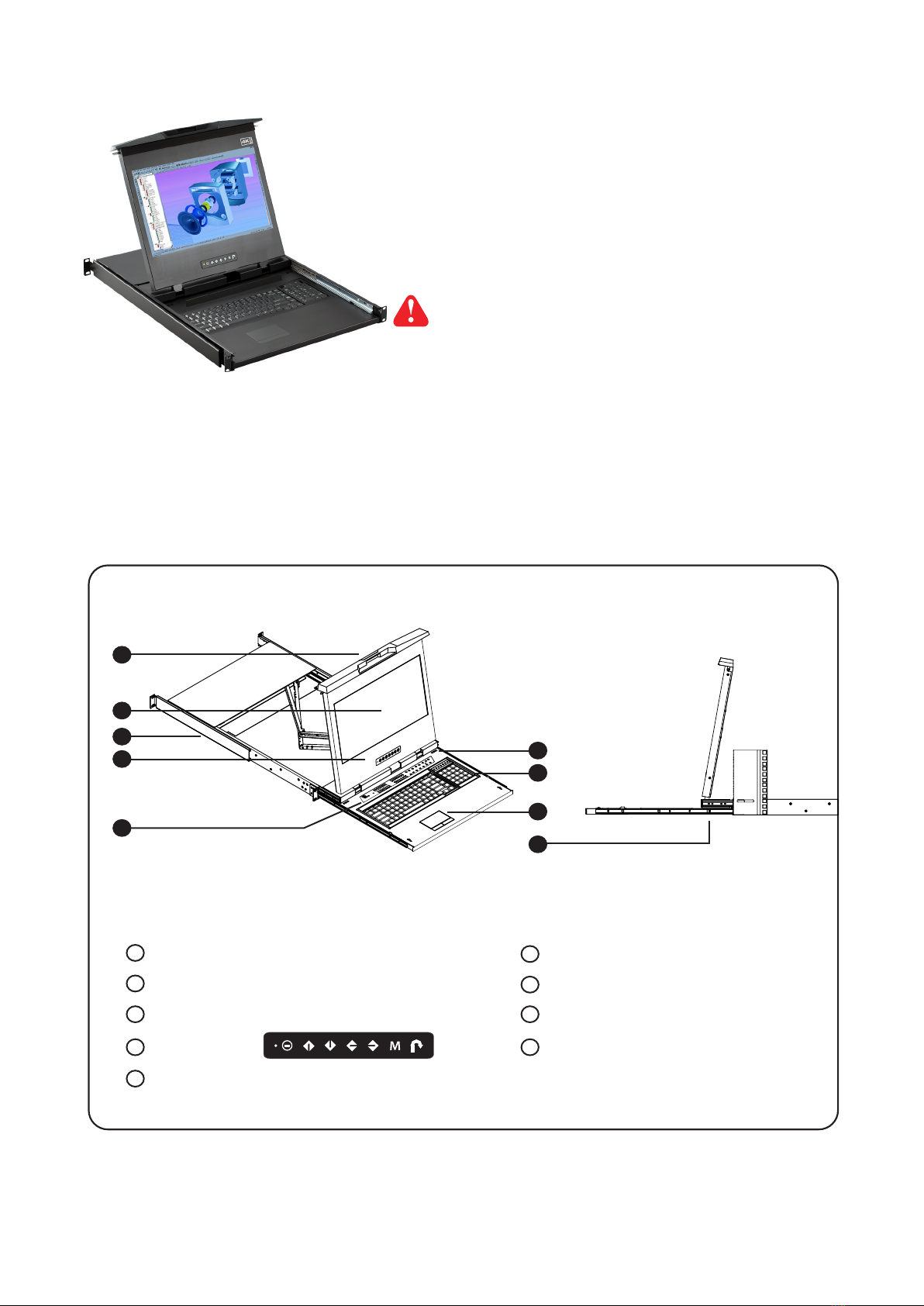

< 1.2 > Structure Diagram
UM-CV-751-DK117-Q321V1 www.austin-hughes.comP. 2

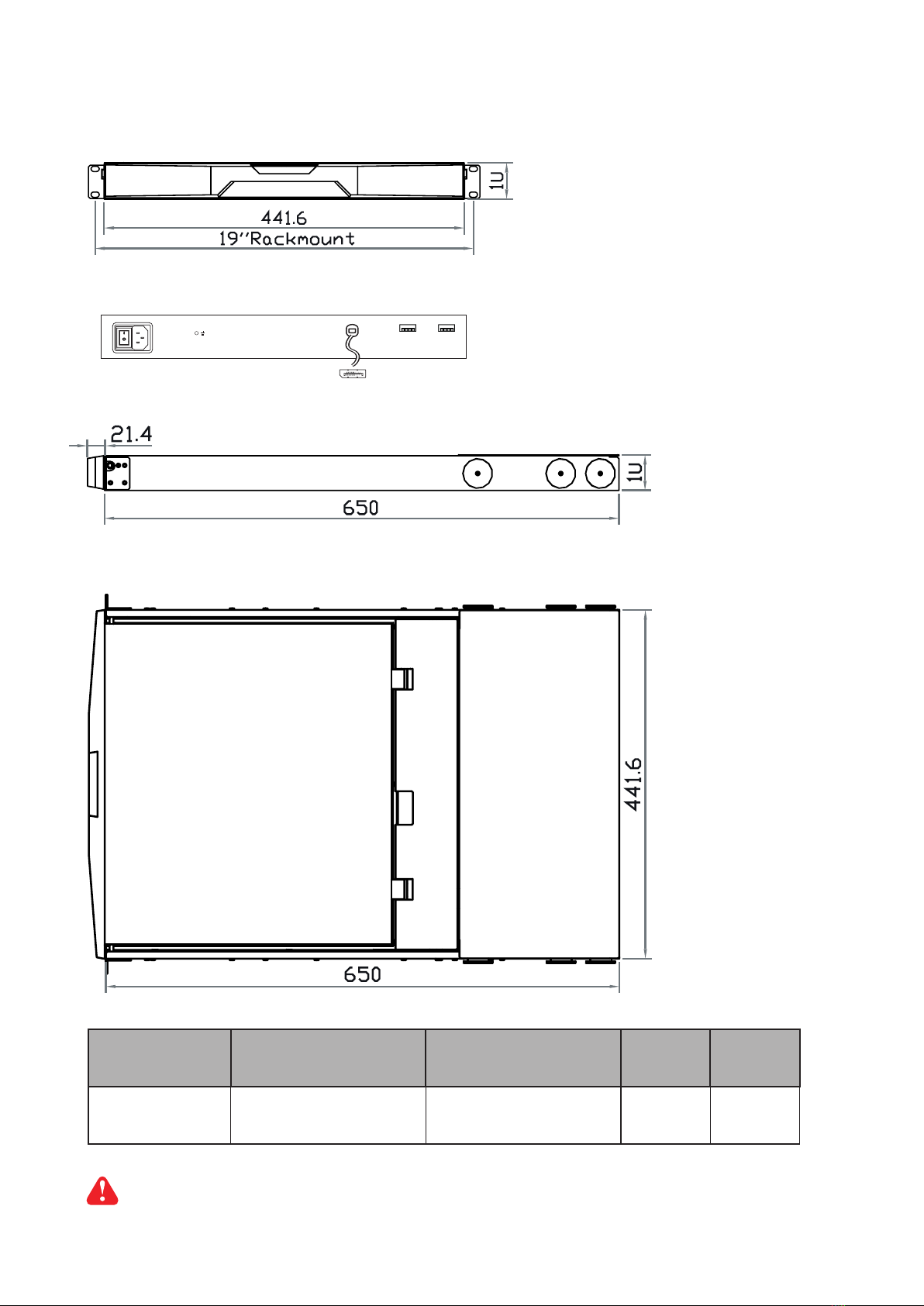

< 1.2 > Dimension
Side View
Top View
Front View
The weight is only for the single console models. It varies with accessories & options
such as KVM, SDI, HDMI & DC power.
UNIT : mm
1mm = 0.03937 inch
Model Product Dimension
(W x D x H)
Packing Dimension
(W x D x H) Net Weight Gross
Weight
DK117 441.6 x 650 x 44 mm
17.4 x 25.6 x 1.73 inch
595 x 860 x 140 mm
23.4 x 33.9 x 5.5 inch
12 kg
26.4 lb
18 kg
39.6 lb
Rear View
AC Input
100~240V Keyboard Mouse
attached 6ft
DP cable
Power
UM-CV-751-DK117-Q321V1 www.austin-hughes.comP. 3
DK117
■Fix the LCD console drawer into the rack.
Complete the installation
Step 3
■ Insert the left and right rear mounting brackets into
the LCD console drawer.
Step 1

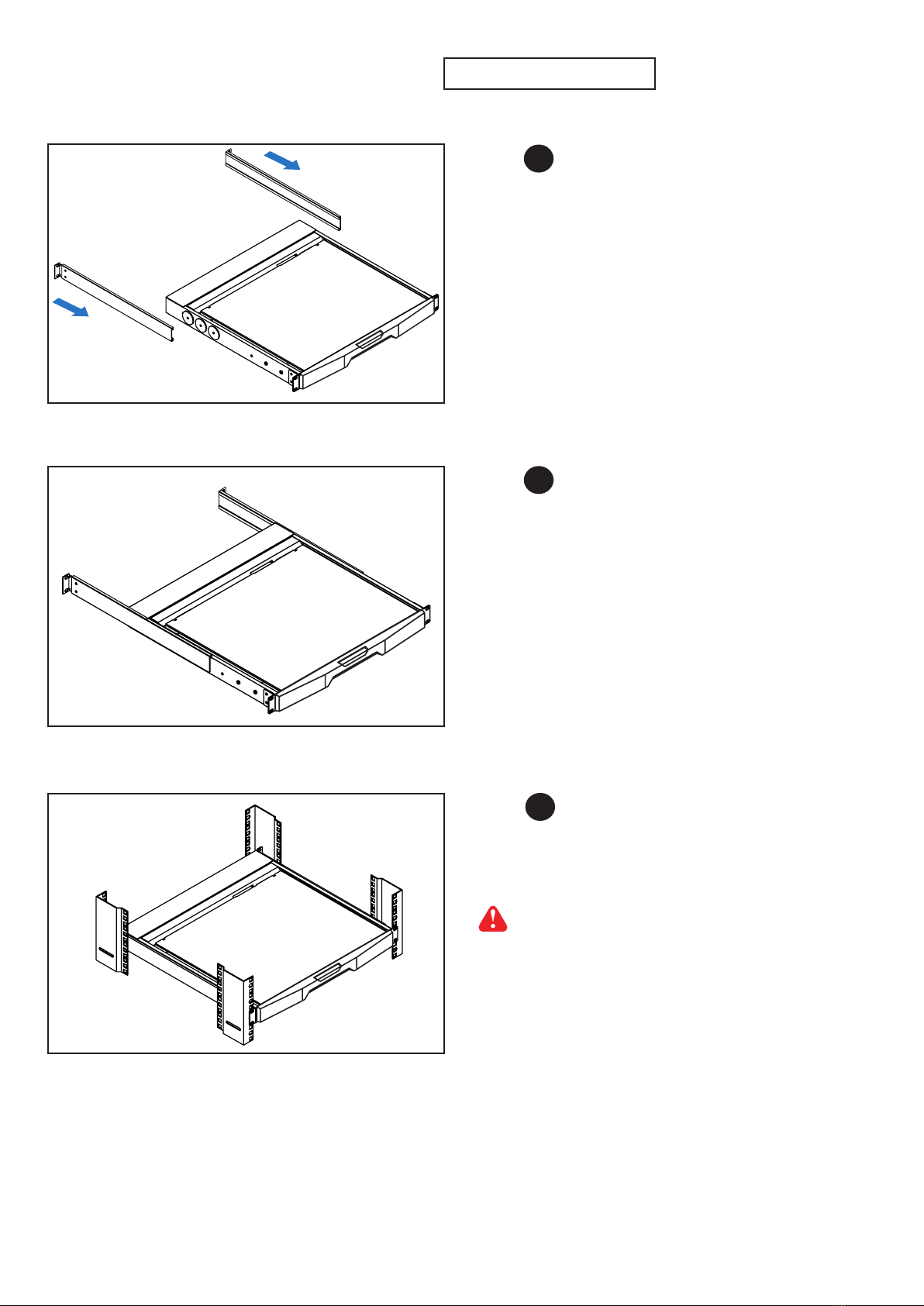

< 1.3 > Installation - How to install Installation Slides
Step 2
■Measure the depth of the front and rear mounting rails.
■Align each rear mounting bracket to a suitable length.
M6 screw, cage nut & cup washer x 8 are provided.
UM-CV-751-DK117-Q321V1 www.austin-hughes.comP. 4

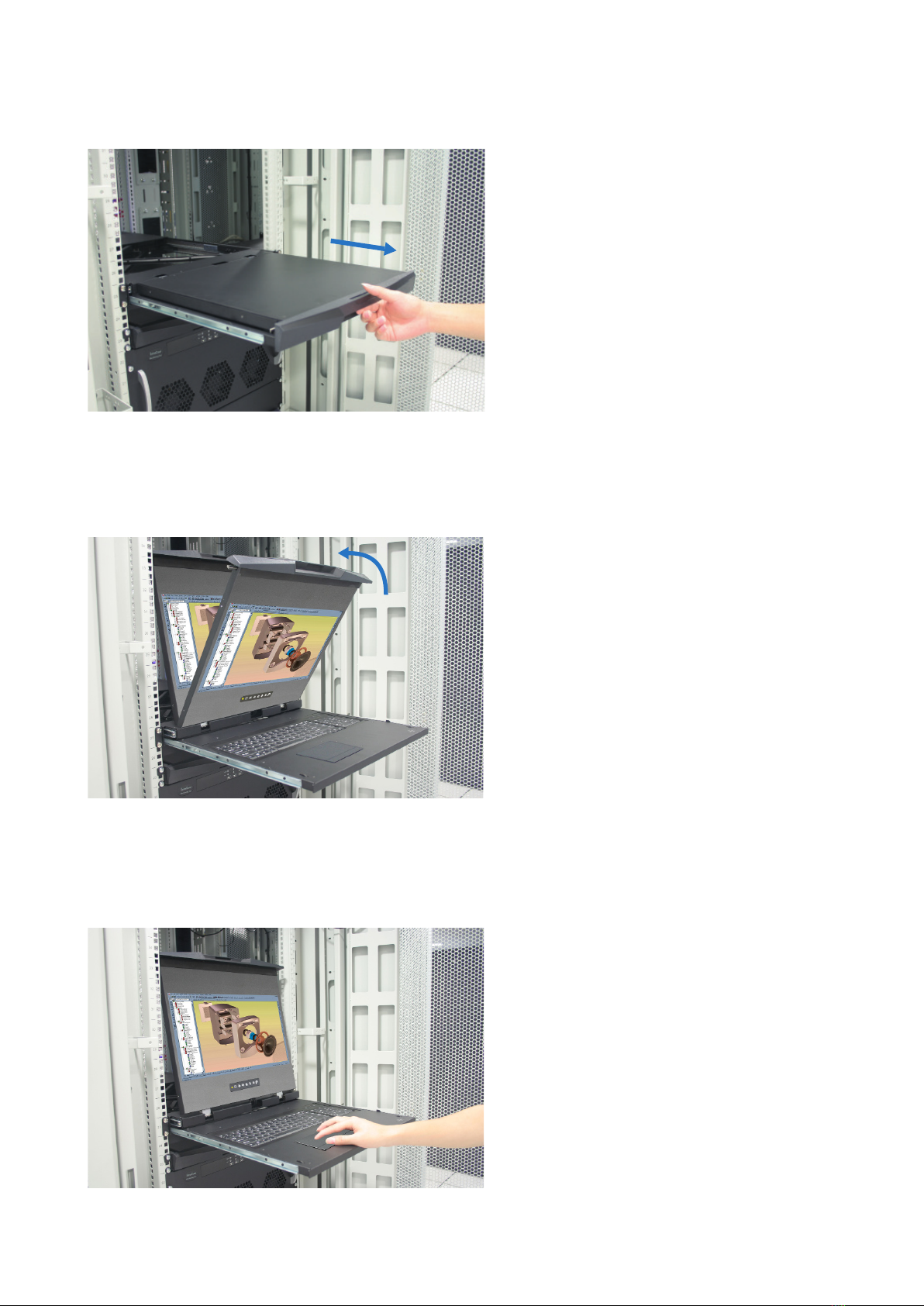

■Press the handle button and gently slide out
the drawer.
■Flip up the LCD to a suitable angle.
■Operate the LCD console drawer.
< 1.3 > Installation - How to Use the Dual Slides
UM-CV-751-DK117-Q321V1 www.austin-hughes.comP. 5
DK117
Installation - How to Use the Dual Slides

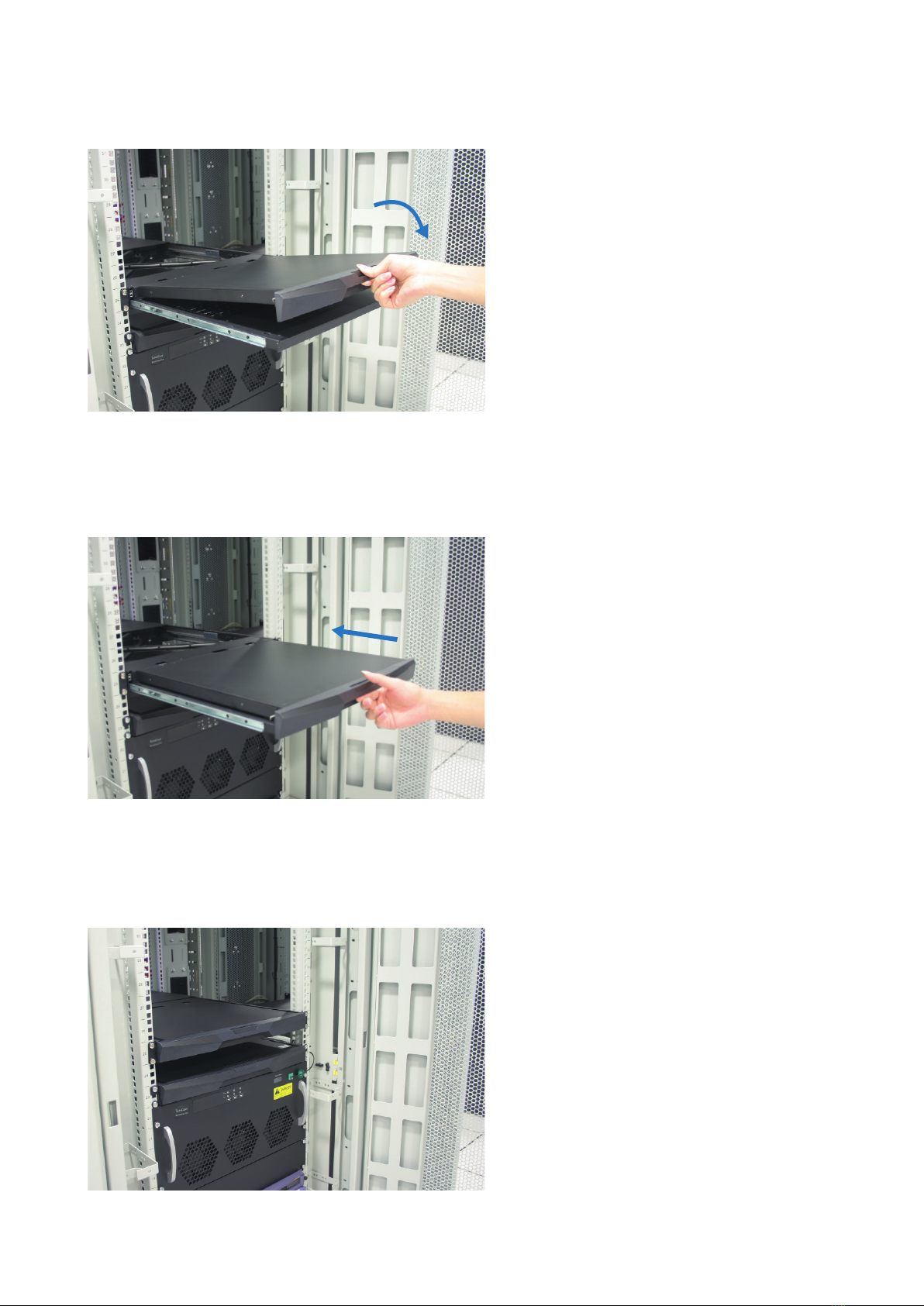

■Flip down the front panel.
■Press the handle button and gently push
back the drawer into the rack.
■Return the LCD console drawer to park
position.
UM-CV-751-DK117-Q321V1 www.austin-hughes.comP. 6

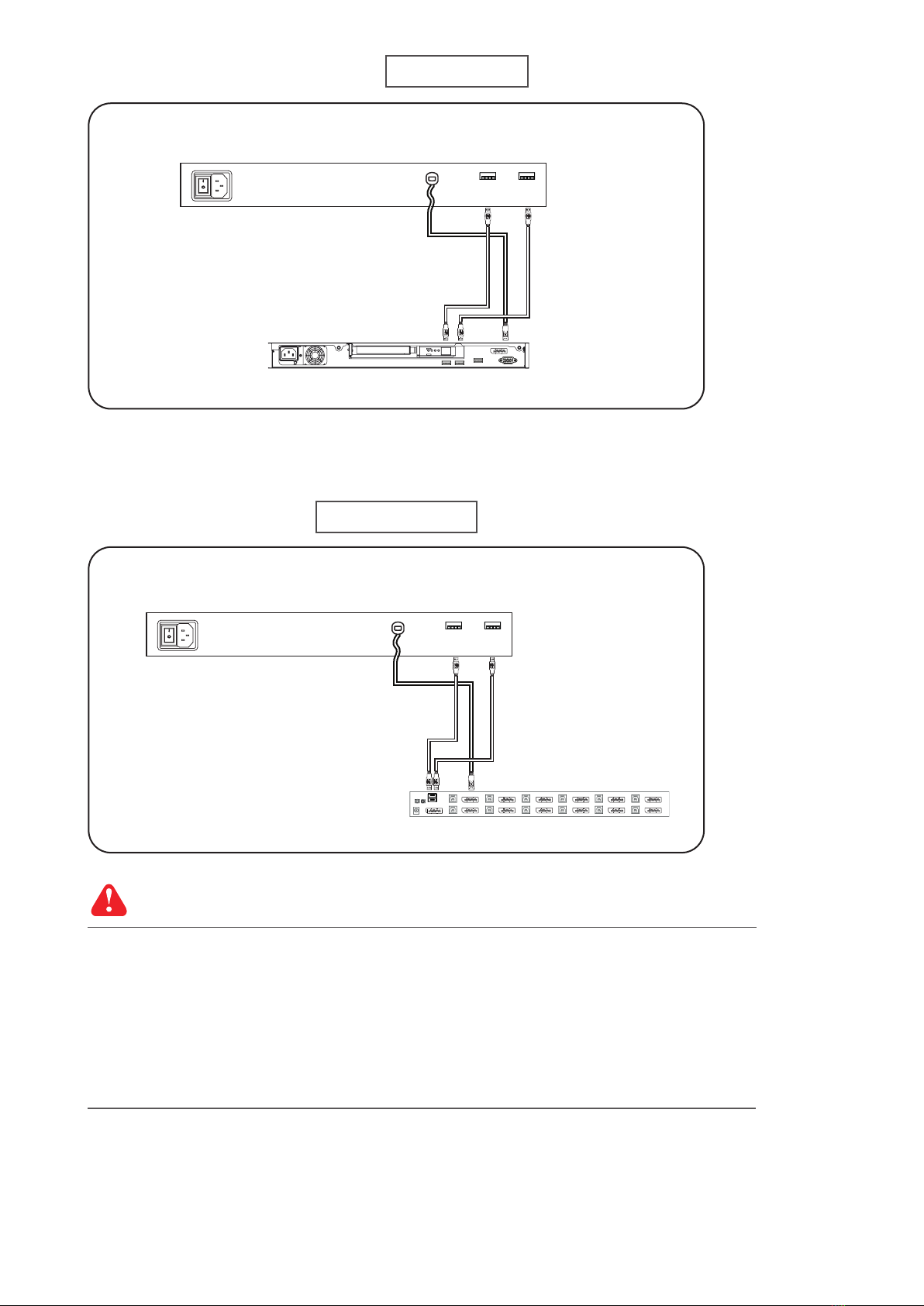

< 1.4 > DK117 Connection to DP Server
DK117 Connection to external KVM
Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such
as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while
servers and KVM are powered on may cause irreversible damage to the servers, KVM and LCD
console drawer. Before attempting to connect anything to the LCD console drawer, we suggest
turning o the power to all devices. Apply power to connected devices again only after the LCD
console drawer is receiving power. The company is not responsible for damage caused in this way.
Power Keyboard Mouse
DP console KVM
LCD Console Drawer
DP
USB
attached 6ft
DP cable
LCD Console Drawer
DP server
DP
USB
Power Keyboard Mouse
attached 6ft
DP cable
