Austin Hughes RP-HF117 Bedienungsanleitung

UM-CV-751-RP-HF117-Q322V1 www.austin-hughes.com

751

User Manual

Designed and manufactured by Austin Hughes

1U LCD Drawer

RP-HF117

17” High Brightness FHD 1080p LCD 1000 cd/m²

Options :

- SDI

- HDMI / Audio

- Touchscreen / DC power

dedicated KVM switch and rackmount screen technology

UM-CV-751-RP-HF117-Q322V1 www.austin-hughes.com

Legal Information

First English printing, July 2022

Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness

of the contents. The information in this document is subject to change without notice. We are not liable for any injury or

loss that results from the use of this equipment.

Safety Instructions

Please read all of these instructions carefully before you use the device. Save this manual for

future reference.

■Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.

■Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with

temperatures not exceeding 40º Celsius (104º Fahrenheit).

■When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing

damage to other equipment or injury to persons nearby.

■When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the

power supply. Proper air convection is necessary to keep it from overheating.

■Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.

■If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current

labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed

on the equipment’s ratings label.

■Observe all precautions and warnings attached to the equipment.

■If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being

damaged by transient over-voltage.

■Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power

supply or on other hardware may cause damage, ﬁre or electrical shock.

■Only qualiﬁed service personnel should open the chassis. Opening it yourself could damage the equipment and

invalidate its warranty.

■If any part of the equipment becomes damaged or stops functioning, have it checked by qualiﬁed service personnel.

What the warranty does not cover

■Any product, on which the serial number has been defaced, modiﬁed or removed.

■Damage, deterioration or malfunction resulting from:

□Accident, misuse, neglect, ﬁre, water, lightning, or other acts of nature, unauthorized product modiﬁcation, or

failure to follow instructions supplied with the product.

□Repair or attempted repair by anyone not authorized by us.

□Any damage of the product due to shipment.

□Removal or installation of the product.

□Causes external to the product, such as electric power ﬂuctuation or failure.

□Use of supplies or parts not meeting our speciﬁcations.

□Normal wear and tear.

□Any other causes which does not relate to a product defect.

■Removal, installation, and set-up service charges.

Regulatory Notices Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of

the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation.

Any changes or modiﬁcations made to this equipment may void the user’s authority to operate this equipment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the equipment oﬀand on, the

user is encouraged to try to correct the interference by one or more of the following measures:

■Re-position or relocate the receiving antenna.

■Increase the separation between the equipment and receiver.

■Connect the equipment into an outlet on a circuit diﬀerent from that to which the receiver is connected.

UM-CV-751-RP-HF117-Q322V1 www.austin-hughes.com

Contents

< Part. 1 > RP-HF117

1.1 Package Content P.1

1.2 Structure Diagram & Dimension P.1

1.3 Installation P.3

< Part. 2 > Speciﬁcations / OSD / Remote Controller

2.1 Product Speciﬁcations P.4

2.2 On-screen Display Operation ( OSD ) P.6

< Part. 3 > Options

3.1 3G / HD / SD-SDI Broadcast-grade input P.8

3.2 HDMI & Audio P.9

3.3 F17” Touchscreen : Resistive ( 1-point touch ) P.10

3.4 DC Power : 12V / 24V / 48V / 125V / 250V P.12

UM-CV-751-RP-HF117-Q322V1 www.austin-hughes.com

■It is very important to mount the equipment in a suitable cabinet or on a stable surface.

■Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive

dust, dirt, heat, water, moisture and vibration.

The equipment comes with the standard parts shown in package content. Check and make sure they are

included and in good condition. If anything is missing, or damaged, contact the supplier immediately.

Unpacking

Before Installation

How To Clean Your LCD Monitor

Caution :

■To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or

plugging your monitor into an electrical outlet.

■When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can

scratch or damage your display. Pressure damage is not covered under warranty.

■Use only cleansers made speciﬁcally for cleaning monitors and monitor screens. Cleansers not made to

clean monitors and monitor screens can scratch the LCD display or strip oﬀthe ﬁnish.

■Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly

onto the screen or case can cause damage which is not covered under warranty.

■Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based

paper product such as paper towels can scratch your LCD screen.

Cleaning Your Monitor

To clean your LCD safely, please follow these steps :

Disconnect the power cord.

Gently wipe the surface using a clean, dry microﬁber cloth. Use as littl e pressure as possible.

Cleaning Tough Marks and Smudges

To remove tough marks and smudges, please follow these steps :

Disconnect the power cord.

Spray a small amount of non-abrasive cleanser on a microﬁber cloth.

Gently wipe the surface. Use as little pressure as possible.

Wait until your monitor is completely dry before plugging it in and powering it up.

Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your

microﬁber cloth ﬁrst, not directly on the parts you are cleaning.

UM-CV-751-RP-HF117-Q322V1 www.austin-hughes.comP. 1

RP-HF117

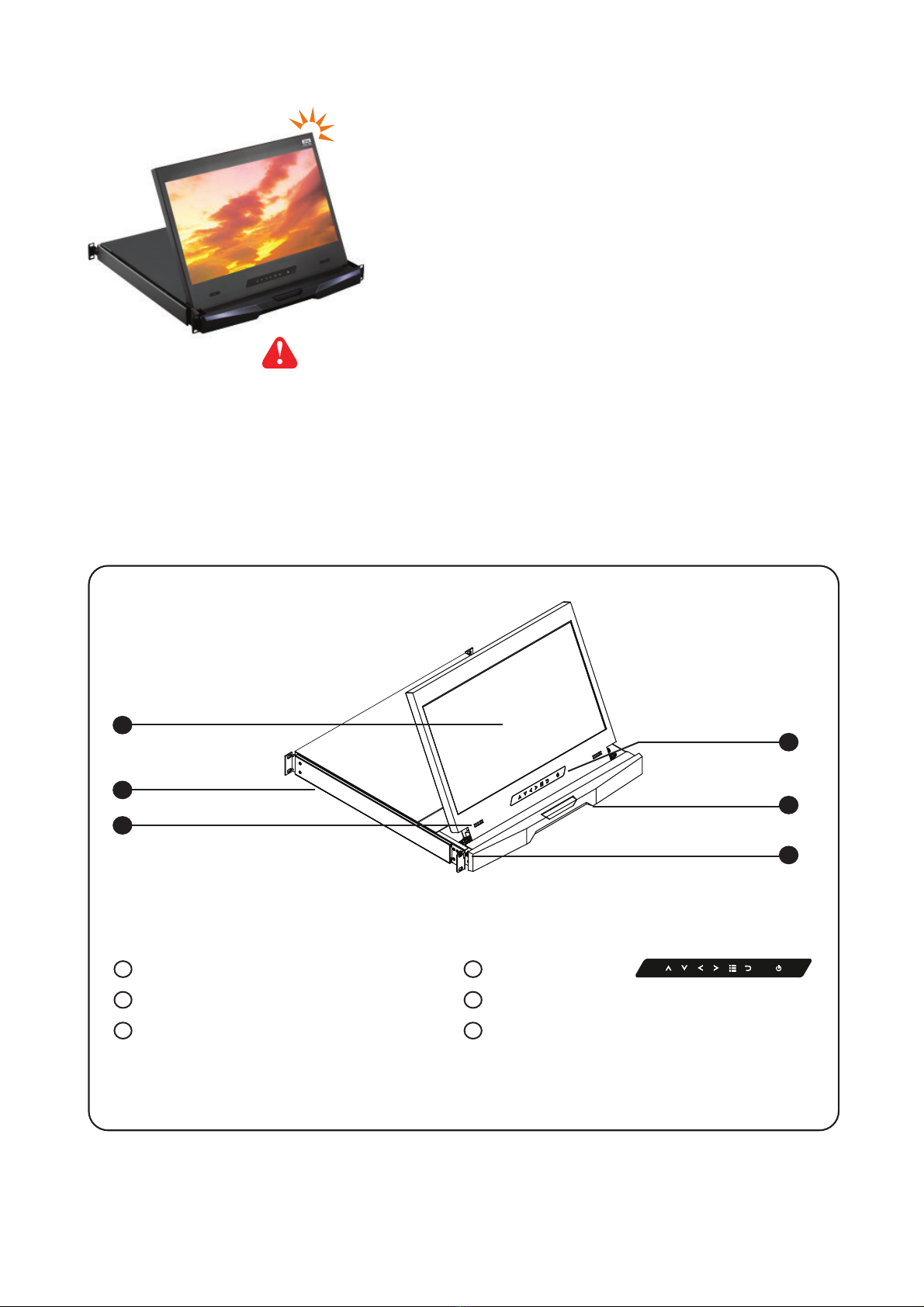

LCD panel

Installation Slide

Audio speaker ( for SDI, HDMI or Audio option )

LCD OSD membrane

Carry handle to release the 2-pt lock

2-point lock

< 1.1 > Package Content

< Part 1 >

RP-HF117 unit X 1

- 6ft VGA cable X 1

- Power cord X 1

- M6 screw, cage nut & cup washer X 8

< 1.2 > Structure Diagram

The above package content is only for the pure model ( VGA and DVI-D only ).

It varies with options such as SDI, HDMI, audio, touchscreen & DC power.

UM-CV-751-RP-HF117-Q322V1 www.austin-hughes.comP. 2

Model Product Dimension

(W x D x H)

Packing Dimension

(W x D x H) Net Weight Gross

Weight

RP-HF117 441.6 x 480 x 44 mm

17.4 x 18.1 x 1.73"

588 x 758 x 120 mm

23.1 x 29.8 x 4.7”

11 kg

24.2 lb

15 kg

33 lb

The weight is only for the pure models. It varies with accessories & options

such as SDI, HDMI, audio, touchscreen & DC power.

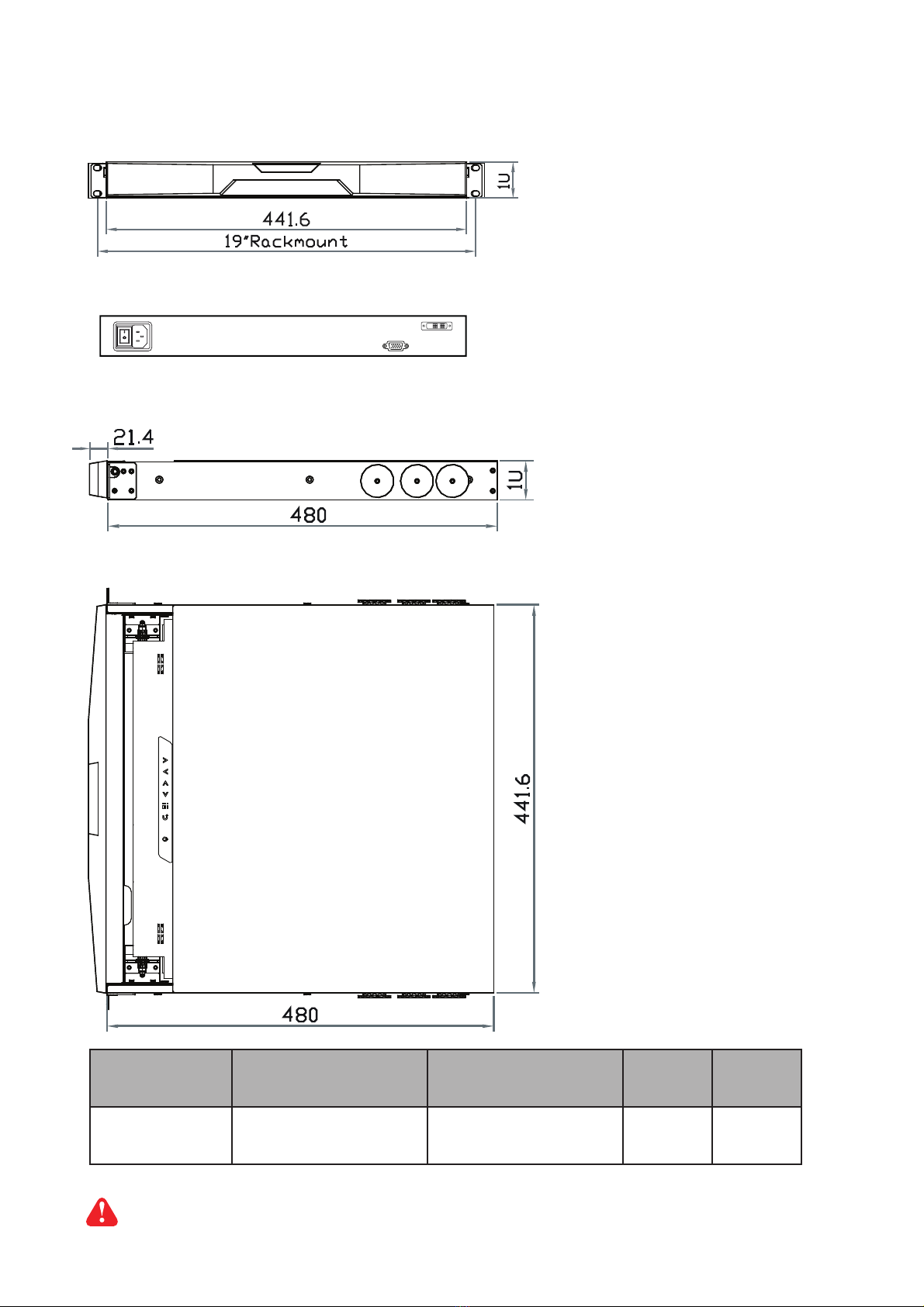

< 1.2 > Dimension

Front View

UNIT : mm

1mm = 0.03937 inch

Top View

Side View

Power

VGA

DVI-D

Rear View

UM-CV-751-RP-HF117-Q322V1 www.austin-hughes.comP. 3

RP-HF117

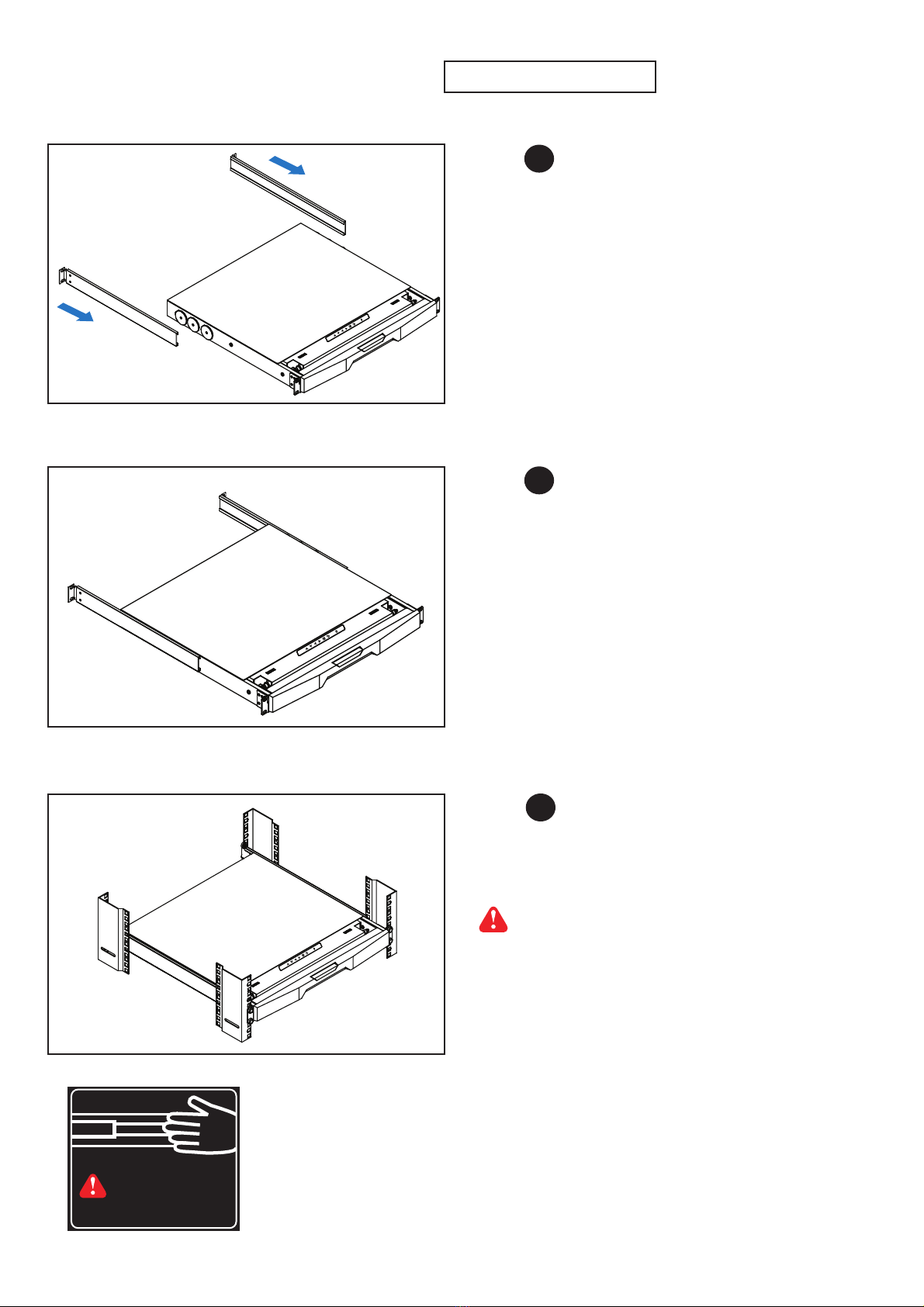

< 1.3 > Installation - How to install Installation Slides

■Fix the display drawer into the rack.

Complete the installation

Step 3

■Insert the left and right rear mounting brackets into

the display drawer.

Step 1

Step 2

■Measure the depth of the front and rear mounting rails.

■Align each rear mounting bracket to a suitable length.

M6 screw, cage nut & cup washer x 8 are provided.

After use the drawer

Basically, user can push in the drawer back to park position by releasing the

left & right slide lock arrow (as long as the drawer starts moving, he/she can

release their finger right away, holding the arrow is not necessary).

Keep Your Fingers

Away From The Slide Stop

UM-CV-751-RP-HF117-Q322V1 www.austin-hughes.comP. 4

Audio

Connectivity

Audio Input Connector 3.5mm stereo jack

Impedance / Power level 30kΩ/ 750mV

Audio Output Connector 3.5mm stereo jack

Resistance / Power level 30kΩ/ 2.8V

Speaker Dual Stereo Speaker 2W x 2

* When the audio output is connected, speaker output is OFF

LCD

Panel Panel Size ( diagonal ) 17.3-inch Widescreen TFT color LCD

Display pixel ( dots x lines ) 1920 x 1080

Brightness ( typ. ) 1000

Contrast Ratio ( typ. ) 600:1

Color 16.7 M, 8-bit

Viewing Angle ( L/R/U/D ) 80/80/60/80

Response Time ( ms ) 5.5

Dot pitch ( mm ) 0.1989

Display Area ( mm ) 381.888H x 214.812V

Surface treatment Anti-glare, Hard-coating

Surface hardness 3H

Backlight Type LED

MTBF ( hrs ) 50,000

Video

Connectivity

Digital HDMI HDMI 1.3, HDCP 1.1

DVI DVI-D, TMDS single link

Analog VGA Analog 0.7Vp-p

Plug & Play DVI / VGA VESA EDID structure 1.3

Synchronization VGA Separate, Composite & SOG

Power Power Supply Range Auto-sensing 100 to 240VAC,

50 / 60Hz

Power Consumption Screen ON Max. 39W

Power saving mode Max. 2W

Power button OFF Max. 1W

< 2.1 > Product Speciﬁcations

< Part 2 >

Compliance EMC FCC & CE

Safety CE / LVD & UKCA

Environmental RoHS3 & REACH / WEEE

UM-CV-751-RP-HF117-Q322V1 www.austin-hughes.comP. 5

RP-HF117

Environmental

Conditions

Operating Temperature 0 to 55°C degree

Humidity 10~90%, non-condensing

Altitude 16,000 ft

Storage / Non-operating Temperature -20 to 60°C degree

Humidity 5~90%, non-condensing

Altitude 40,000 ft

Shock 10G acceleration (11ms duration)

Vibration 10~300Hz 0.5G RMS random

Physical

Speciﬁcation

Product ( W x D x H ) 441.6 x 480 x 44 mm

17.4 x 18.9 x 1.73 inch

Packing ( W x D x H ) 588 x 758 x 120 mm

23.1 x 29.8 x 4.7 inch

Net Weight 11 kg / 24.2 lb

Gross Weight 15 kg / 33 lb

* All dimensions stated are subject to change if options are selected / integrated to base model part codes

Applicable

Format

DVI-D / VGA Input PC Signal 1920 x 1080 x 60Hz

1680 x 1050 x 60Hz

1440 x 900 x 60Hz

1360 x 768 x 60Hz

1280 x 1024 x 60Hz

1280 x 768 x 60Hz

1280 x 720 x 60Hz

1152 x 864 x 60Hz

1024 x 768 x 60Hz

800 x 600 x 60Hz

640 x 480 x 60Hz

Audio Signal 2ch Linear PCM

HDMI Input PC Signal Same as VGA

HDMI 1.3 1920 x 1080 x 50 / 60Hz ( 1080p )

1920 x 1080 x 25 / 30Hz ( 1080i )

1280 x 720 x 50 / 60Hz ( 720p )

720 x 480 x 50 / 60Hz ( 576p / 480p )

Audio Signal 2ch Linear PCM

UM-CV-751-RP-HF117-Q322V1 www.austin-hughes.comP. 6

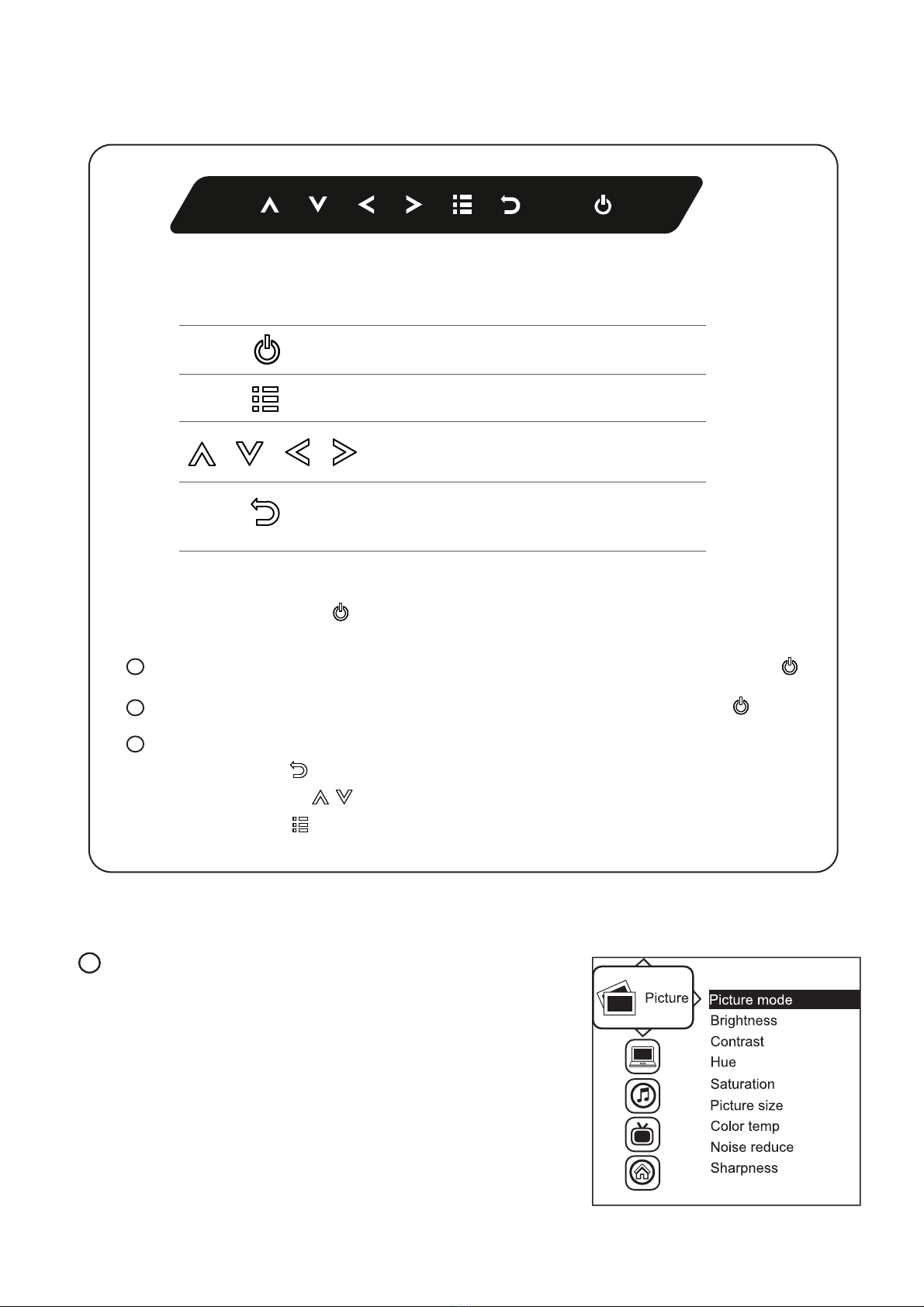

< 2.2 > On-screen Display Operation ( OSD )

Exit the OSD screen

Go back to the previous on-screen sub-menu or

main menu

Scroll through menu options and adjust

the displayed control

Display the OSD menu

Act as an Enter key to select screen setting options

Turn the monitor on or oﬀ

Membrane Switch Function

Remark : All LED touch buttons in WHITE light.

The LED of Power touch button will ﬂash continuously when there is no signal input.

All the LED touch buttons will automatically turn oﬀafter 10 minutes of idle status ( except the Power ).

Light up all membrane buttons, please press any button for 1 - 2 seconds ( except the Power ).

Select another video input (only available for models with multiple video input) :

( a ) Press the button to call up the on-screen video mode on top right corner.

( b ) Use up/down arrow to the select the video input

( c ) Press the button to conﬁrm the selection


Picture mode : Standard / Vivid / Soft / User mode to choose

Brightness : Adjust background black level of the screen image

Contrast : Adjust the diﬀerence between the image background

(black level) and the foreground (white level)

Hue: Adjust the screen hue value

Saturation : Adjust the saturation of the image color

Picture size : Adjust the image size

Color temp : Standard / Cool / Warm / User to choose

Noise reduce : Reduce the noise of the image

Sharpness : Adjust the image from weak to sharp

Andere Austin Hughes LCD-Schublade Handbücher

Austin Hughes

Austin Hughes CyberView RKP2417K Bedienungsanleitung

Austin Hughes

Austin Hughes CyberView H117 Bedienungsanleitung

Austin Hughes

Austin Hughes CyberView N117 Bedienungsanleitung

Austin Hughes

Austin Hughes CyberView ERM Series Bedienungsanleitung

Austin Hughes

Austin Hughes Cyberview LS-120 Series Bedienungsanleitung

Austin Hughes

Austin Hughes CyberView K1417 Bedienungsanleitung

Austin Hughes

Austin Hughes CyberView X124 Bedienungsanleitung

Austin Hughes

Austin Hughes CyberView DK117 Bedienungsanleitung

Austin Hughes

Austin Hughes CyberView K117 Bedienungsanleitung

Austin Hughes

Austin Hughes RP-H117 Bedienungsanleitung

Austin Hughes

Austin Hughes Cyber View SP-120 Bedienungsanleitung

Austin Hughes

Austin Hughes CyberView HF117 Bedienungsanleitung

Austin Hughes

Austin Hughes CyberView K123 Bedienungsanleitung

Austin Hughes

Austin Hughes CyberView RK-2d Bedienungsanleitung

Austin Hughes

Austin Hughes CyberView RKP117 Bedienungsanleitung

Austin Hughes

Austin Hughes CYBER VIEW HF117 Bedienungsanleitung

Austin Hughes

Austin Hughes CyberView F1417 Bedienungsanleitung

Austin Hughes

Austin Hughes CyberView RP-120 Bedienungsanleitung

Austin Hughes

Austin Hughes CyberView SP-117 Bedienungsanleitung

Austin Hughes

Austin Hughes CyberView RKP117 Bedienungsanleitung

Austin Hughes

Austin Hughes CyberView D117 Bedienungsanleitung

Austin Hughes

Austin Hughes CyberView 751 Series Bedienungsanleitung

Austin Hughes

Austin Hughes CyberView RKP2417F Bedienungsanleitung

Austin Hughes

Austin Hughes CyberView L120 Bedienungsanleitung

Beliebte LCD-Schublade Handbücher anderer Marken

Acnodes

Acnodes KD 8228 Bedienungsanleitung

Ameriwood

Ameriwood 9524328PCOM Bedienungsanleitung

Kesseböhmer

Kesseböhmer TANDEM solo Bedienungsanleitung

Crystal Image Technologies

Crystal Image Technologies RMD-151-A Series Bedienungsanleitung

APW Wyott

APW Wyott Ease Extreme HDX-1-120 Bedienungsanleitung

NTI

NTI RACKMUX-V17-N Bedienungsanleitung

Uplift Desk

Uplift Desk STR018 Bedienungsanleitung

Acnodes

Acnodes KDC 81932 Bedienungsanleitung

Acnodes

Acnodes RK1200T Bedienungsanleitung

StarTech.com

StarTech.com DuraView RACKCONS1501 Bedienungsanleitung

Mocka

Mocka Mischa Bedienungsanleitung

GRASS

GRASS DWD XP Bedienungsanleitung

StarTech.com

StarTech.com DuraView RACKCONS1701 Bedienungsanleitung

Fisher & Paykel

Fisher & Paykel IZONA CoolDrawer RB36S Bedienungsanleitung

Synergy Global Technology

Synergy Global Technology LCD1U17-44 Bedienungsanleitung

Fujitsu

Fujitsu RC25 Bedienungsanleitung

Acnodes

Acnodes RK 1000B Bedienungsanleitung

I-Tech

I-Tech RKP115 Bedienungsanleitung
