Avalue Technology FPC-1707 Bedienungsanleitung

Part No. E2017FP07A1R

FPC-1707/17L08

/21W07/21W08

17”/21”W TFT Touch Panel PC

Quick Reference Guide

1st Ed –22 May 2017

FPC-1707/17L08/21W07/21W08

2 FPC-1707/17L08/21W07/21W08 Quick Reference Guide

Content

1. Getting Started............................................................................................................3

1.1 Safety Precautions ................................................................................................3

1.2 Packing List...........................................................................................................3

1.3 System Specifications ...........................................................................................4

1.4 System Overview...................................................................................................8

1.4.1 Rear View..................................................................................................................................... 8

1.5 System Dimensions.............................................................................................10

1.5.1 FPC-1707................................................................................................................................... 10

1.5.2 FPC-17L08................................................................................................................................. 11

1.5.3 FPC-21W07 ............................................................................................................................... 12

1.5.4 FPC-21W08 ............................................................................................................................... 13

2. Hardware Configuration...........................................................................................14

2.1 FPC-1707/21W07 connector mapping ................................................................15

2.1.1 Serial Port connector 1(COM1).................................................................................................. 15

2.1.2 Serial Port connector 2~4 (COM2~4) ........................................................................................ 15

2.2 FPC-17L08/21W08 connector mapping ..............................................................16

2.2.1 Serial Port connector 1(COM1).................................................................................................. 16

2.2.2 Serial Port connector 2~3 (COM2~3) ........................................................................................ 16

2.3 Installing Hard Disk & Memory ............................................................................17

2.3.1 Install Memory............................................................................................................................ 17

2.3.2 Install HDD................................................................................................................................. 18

Quick Reference Guide

FPC-1707/17L08/21W07/21W08 Quick Reference Guide

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

1.2 Packing List

1 x FPC-1707/17L08/21W07/21W08 Touch Panel PC

1 x DVD-ROM contains the followings:

—User’s Manual (this manual in PDF file)

—Ethernet driver and utilities

—VGA drivers and utilities

—Audio drivers and utilities

—Chipset drivers

Other major components include the followings:

—60W/84W adapter(For FPC-1707/21W07 only) and power cord

FPC-1707/17L08/21W07/21W08

4 FPC-1707/17L08/21W07/21W08 Quick Reference Guide

1.3 System Specifications

Panel

FPC-1707

FPC-21W07

LCD Size

17", 4:3

21.5"

Display Type

SXGA

Full HD

Resolution

1280 x 1024

1920 x 1080

Pixel pitch

0.264mm (H) x 0.264mm (V)

0.248mm (H) x 0.248mm (V)

Luminance

250 cd/m²

Contrast ratio

1000

3000

Viewing angle

80 (U), 80 (D), 85 (L), 85 (R)

89 (U), 89 (D), 89 (L), 89 (R)

Response time

5 ms

18 ms

Backlight

LED

Touch Type

5 Wires resistive

Touch Light

Transmission

80 %

Touch Controller

USB touch (EETI)

System

SBC

EMX-CDV

Processor

Intel® Atom™ D2550 2-Core 1.86GHz processor

System Chipset

Intel® ICH10-R Chipset

I/O Chipset

Fintek F81214

System Memory

2 x 204-Pin DDR3 800MHz SO-DIMM up to 4GB or 204-Pin DDR3 1066MHz

SO-DIMM

Watchdog Timer

H/W Reset: 1sec.~255sec. and 1sec. or 1min./step

H/W Status

Monitor

Monitoring System Temperature and Voltage with Auto Throttling Control

Expansion

1 x Mini PCIe

1 x Mini PCIe Supports mSATA

Storage

EMI Test

1 x 2.5" Drive Bay

I/O

USB

5 x USB 2.0

Com Port

1 x RS-232/422/485

3 x RS-232

Other

1 x WiFi

Display

Quick Reference Guide

FPC-1707/17L08/21W07/21W08 Quick Reference Guide

Chipset

Intel® Cedarview Integrated Graphics Supports dual display

Resolution

VGA: Max. resolution 2048 x 1536 @60Hz

HDMI: Max. resolution 1920 x 1200 @60Hz

LVDS: Max. resolution 1920 x 1080 @60Hz

Audio

Chipset

Realtek ALC269

Supports 5.1-CH

Audio Interface

Mic-In, Line-In and Line-Out

Speaker Output

2 x 2W

Ethernet

Chipset

2 x Realtek 8111E

Ethernet

Interface

10/100/1000 Base-Tx GbE compatible

Lan Port

2 x RJ-45

Power Requirement

Power

Connector

Lockable DC Jack

Power

Requirement

+12V

Power Type

AT/ATX (ATX is default setting)

Adapter

Input: 100 ~ 240Vac/ 50 ~ 60Hz

Mechanical & Environmental

System Fan

Fan

Construction -

Front

Black

Construction -

Rear

Black

Dimension

387.5 X 346 X 76.6 mm

526 X 346.5 X 80.4 mm

Weight

6.14 Kgs

7.32 Kgs

Operating

Temperature

0°C ~ 40°C (32°F ~ 104°F)

Storage

Temperature

-10°C ~ 50°C (14°F ~ 122°F)

Operating

Humidity

0% ~ 90% Relative Humidity, Non-condensing

Vibration Test

With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis

Mounting

Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm

Shock Test

With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms

FPC-1707/17L08/21W07/21W08

6 FPC-1707/17L08/21W07/21W08 Quick Reference Guide

Panel

FPC-17L08

FPC-21W08

LCD Size

17", 4:3

21.5"

Display Type

SXGA

Full HD

Resolution

1280 x 1024

1920 x 1080

Pixel pitch

0.264mm (H) x 0.264mm (V)

0.248mm (H) x 0.248mm (V)

Luminance

250 cd/m²

Contrast ratio

1000

3000

Viewing angle

80 (U), 80 (D), 85 (L), 85 (R)

89 (U), 89 (D), 89 (L), 89 (R)

Response time

5 ms

18 ms

Backlight

LED

Touch Type

5 Wires resistive

Touch Light

Transmission

80 %

Touch Controller

USB touch (EETI)

System

SBC

EMX-Q87

Processor

4th Gen Intel® Core™ i3-4330TE 2-Core 2.4GHz processor

4th Gen Intel® Core™ i5-4570TE 2-Core 2.7GHz processor

System Chipset

Intel® Q87 Chipset

I/O Chipset

Nuvoton NTC6106D

System Memory

2 x 204-Pin DDR3 1333MHz SO-DIMM or 204-Pin DDR3 1600MHz SO-DIMM

Expansion

1 x Mini PCIe Supports mSATA

Storage

EMI Test

1 x 2.5" Drive Bay

I/O

USB

4 x USB 3.0

1 x USB 2.0

Com Port

1 x RS-232/422/485

2 x RS-232

Other

1 x WiFi

Display

Chipset

Intel® Q87 Chipset Integrated Supports triple display

Resolution

DP: Max. resolution 3840 x 2160 @60Hz

LVDS: Max. resolution 1920 x 1200 @60Hz

VGA: Max. resolution 1920 x 1200 @60Hz

HDMI: Max. resolution 1920 x 1080 @60Hz

Audio

Quick Reference Guide

FPC-1707/17L08/21W07/21W08 Quick Reference Guide

Chipset

Realtek ALC892

Supports 5.1-CH

Audio Interface

Mic-In, Line-In and Line-Out

Speaker Output

2 x 2W

Ethernet

Chipset

1 x Intel® I211AT

1 x Intel® I217LM

Ethernet

Interface

10/100/1000 Base-Tx GbE compatible

Lan Port

2 x RJ-45

Power Requirement

ACPI

Single Power ATX Support S0, S1, S3, S4, S5

ACPI 3.0 Compliant

Power Type

AT/ATX (ATX is default setting)

Mechanical & Environmental

System Fan

Fan

Construction -

Front

Black

Construction -

Rear

Black

Dimension

387.5 X 346 X 76.6 mm

526 X 346.5 X 80.4 mm

Weight

6.14 Kgs

7.32 Kgs

Operating

Temperature

0°C ~ 40°C (32°F ~ 104°F)

Storage

Temperature

-10°C ~ 50°C (14°F ~ 122°F)

Operating

Humidity

0% ~ 90% Relative Humidity, Non-condensing

Vibration Test

With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis

Mounting

Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm

Shock Test

With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms

Note: Specifications are subject to change without notice.

FPC-1707/17L08/21W07/21W08

8 FPC-1707/17L08/21W07/21W08 Quick Reference Guide

1.4 System Overview

1.4.1 Rear View

FPC-1707

FPC-21W07

FPC-17L08

FPC-21W08

Quick Reference Guide

FPC-1707/17L08/21W07/21W08 Quick Reference Guide

FPC-1707/21W07

Connectors

Label

Function

Note

COM1~4

Serial port connector 1~4

DB-9 male connector

HDMI

HDMI connector

VGA

VGA connector

DB-15 female connector

PS/2

PS/2 connector

LAN1/2

RJ-45 Ethernet 1/2

Line-in

Line-in audio jack

Line-out

Line-out audio jack

Mic-in

Microphone-in audio jack

Power Switch

System power switch

USB

5 x USB 2.0 connector

DC-IN

DC power-in connector

FPC-17L08/21W08

Connectors

Label

Function

Note

COM1~3

Serial port connector 1~3

DB-9 male connector

HDMI

HDMI connector

VGA

VGA connector

DB-15 female connector

PS/2

PS/2 connector

LAN1/2

RJ-45 Ethernet 1/2

Line-in

Line-in audio jack

Line-out

Line-out audio jack

Mic-in

Microphone-in audio jack

Power Switch

System power switch

USB

4 x USB 3.0 connector

1 x USB 2.0 connector

DP connector

FPC-1707/17L08/21W07/21W08

10 FPC-1707/17L08/21W07/21W08 Quick Reference Guide

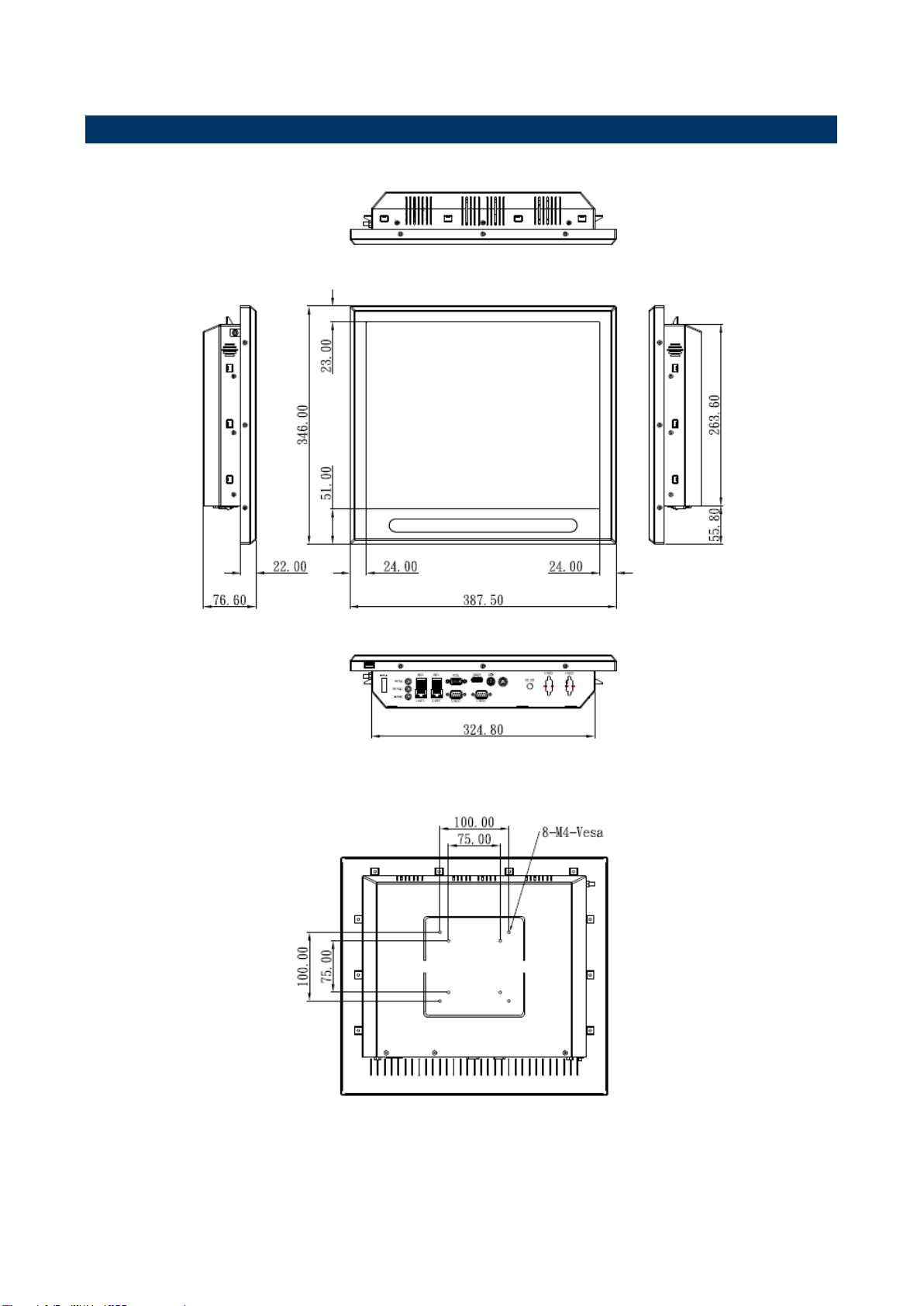

1.5 System Dimensions

1.5.1 FPC-1707

(Unit: mm)

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Avalue Technology Touchscreen Handbücher

Avalue Technology

Avalue Technology LPC-1909 Series Bedienungsanleitung

Avalue Technology

Avalue Technology ARC-15W32 Bedienungsanleitung

Avalue Technology

Avalue Technology ARC-1533 Bedienungsanleitung

Avalue Technology

Avalue Technology BFC-1509 Bedienungsanleitung

Avalue Technology

Avalue Technology FPC-10W07 Bedienungsanleitung

Avalue Technology

Avalue Technology FPC 17 W Series Bedienungsanleitung

Avalue Technology

Avalue Technology SID-21W04 Bedienungsanleitung

Avalue Technology

Avalue Technology WG-1201 Bedienungsanleitung

Avalue Technology

Avalue Technology OFT-07W33 Bedienungsanleitung

Avalue Technology

Avalue Technology LPC 10 SERIES Bedienungsanleitung

Avalue Technology

Avalue Technology LPC-08A1 Bedienungsanleitung

Avalue Technology

Avalue Technology SID-21V-Z37-A1R Bedienungsanleitung

Avalue Technology

Avalue Technology FPC-10W09 Bedienungsanleitung

Avalue Technology

Avalue Technology AID-240SBW Bedienungsanleitung

Avalue Technology

Avalue Technology OFP-21W38 Bedienungsanleitung

Avalue Technology

Avalue Technology CCD-07WR2 Bedienungsanleitung

Avalue Technology

Avalue Technology PPC-1529 Bedienungsanleitung

Avalue Technology

Avalue Technology MPC-21W3 Bedienungsanleitung

Avalue Technology

Avalue Technology SPC-1533 Bedienungsanleitung

Avalue Technology

Avalue Technology APC-2138 Bedienungsanleitung

Avalue Technology

Avalue Technology MPC-10W3 Bedienungsanleitung

Avalue Technology

Avalue Technology AID-173SHR Bedienungsanleitung

Avalue Technology

Avalue Technology VNS-15W01 Bedienungsanleitung

Avalue Technology

Avalue Technology SPC-1207 Series Bedienungsanleitung

Beliebte Touchscreen Handbücher anderer Marken

FlowLine

FlowLine Data loop Bedienungsanleitung

ALPEX

ALPEX AEx-8 P Series Bedienungsanleitung

Ltech

Ltech E5S Bedienungsanleitung

Harman

Harman AMX MODERO S MSD-701-L2 Bedienungsanleitung

Acnodes

Acnodes PC 1150 Bedienungsanleitung

AIS

AIS IP10IA99 series Bedienungsanleitung

IBASE Technology

IBASE Technology ASTUT-152-RE1S Bedienungsanleitung

YASKAWA

YASKAWA TP 610C Bedienungsanleitung

B&R

B&R Power Panel C Series Bedienungsanleitung

Beijer Electronics

Beijer Electronics X2 control Bedienungsanleitung

AXIOMTEK

AXIOMTEK GOT321W-521 Bedienungsanleitung

TRIDONIC.ATCO

TRIDONIC.ATCO x-touchBOX Bedienungsanleitung

Qomo

Qomo QIT1386 Bedienungsanleitung

DFI

DFI KS104-CD Bedienungsanleitung

AMX

AMX AXP-PPC Leitfaden

Sartorius

Sartorius X3 PR 5410 Bedienungsanleitung

AMX

AMX Modero X Series Bedienungsanleitung

Advantech

Advantech TPC-30 Series Bedienungsanleitung
