Avantco SCL Series Bedienungsanleitung

COMMERCIAL

REFRIGERATOR & FREEZER

SERVICE MANUAL

(SCL/SCLM)

MODEL: SCL1

SCL2

SCL2-36

SCL2-60

SCL3

SCLM1

SCLM2

SCLM2-36

SCLM2-60

SCLM3

TABLE OF CONTENTS

1. EXPLODED VIEW AND PARTS LIST.......................... 3

1.1 SCL1 & SCLM1..................................................................................................3

1.2 SCL2 & SCLM2..................................................................................................5

1.3 SCL236 & SCLM236 ..........................................................................................7

1.4 SCL260 & SCLM260 ..........................................................................................9

1.5 SCL3& SCLM3.................................................................................................11

2. WIRING DIAGRAM..................................................... 13

2.1 SCL1 & SCLM1................................................................................................13

2.2 SCL2 & SCLM2................................................................................................14

2.3 SCL236 & SCLM236 ........................................................................................15

2.4 SCL260 & SCLM 260 .......................................................................................16

2.5 SCL3 & SCLM3................................................................................................17

3. PART DETAIL............................................................. 18

3.1 Front view.........................................................................................................18

3.2 Back View.........................................................................................................22

3.3 Inner View ........................................................................................................24

4. CONTROLLER INSTRUCTION.................................. 26

4.1 Refrigerator controller.......................................................................................26

5. REPLACEMENT OF MAIN PARTS............................ 29

5.1 Door .................................................................................................................29

5.2 Replacing the Temperature Display..................................................................30

5.3 Compressor & Condenser unit..........................................................................31

5.4 Lids and evaporator unit...................................................................................34

6. CLEANING AND MAINTENANCE............................. 37

6.1 CLEANING.......................................................................................................37

6.2 Maintenance.....................................................................................................38

7. TROUBLESHOOTING................................................ 39

1. EXPLODED VIEW AND PARTS LIST

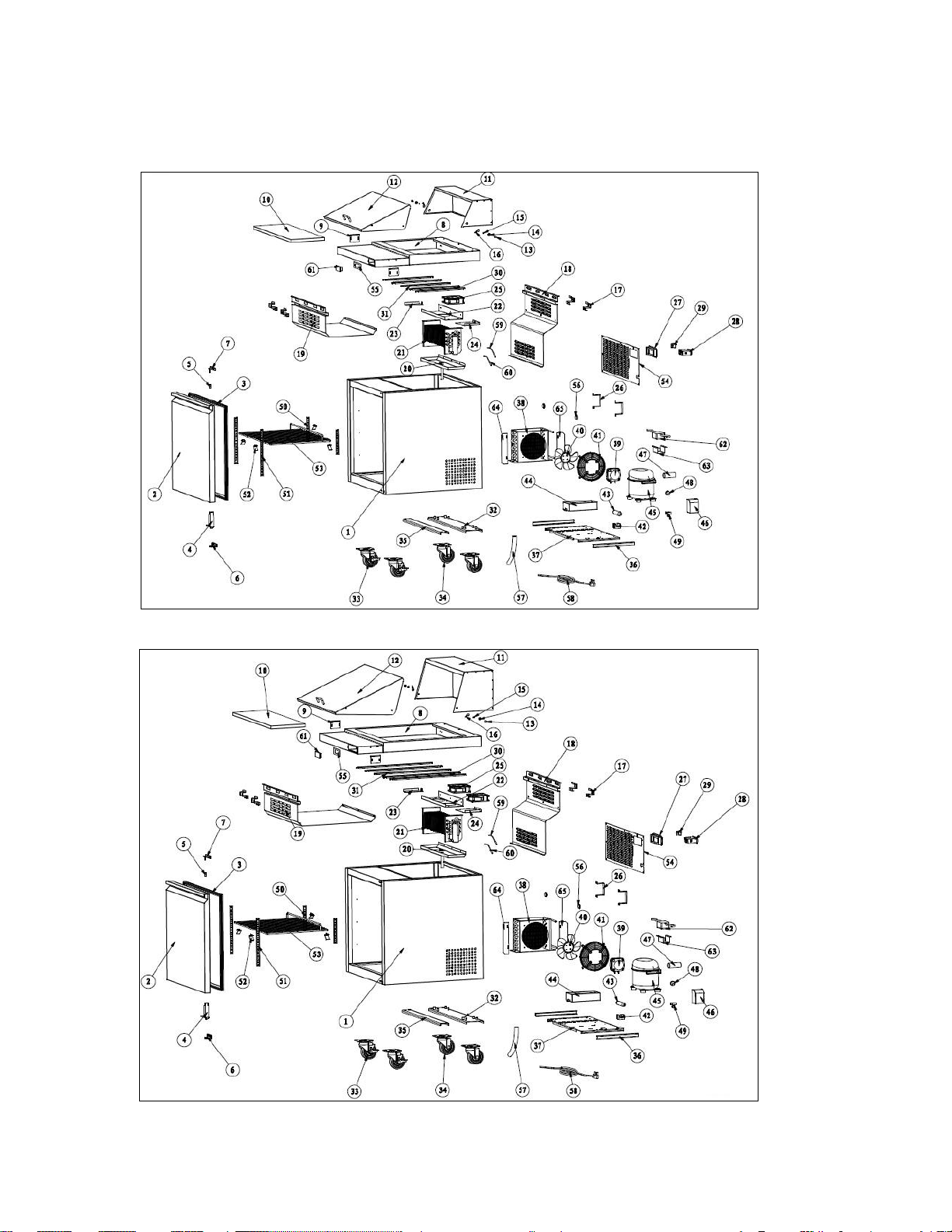

1.1 SCL1 & SCLM1

SCL1

SCLM1

- Consult Factory - Only Units Manufactured Before 6/1/15.

1 CABINET: N/A 34 4" CASTER: 17819301

2 DOOR: 17817006 35 INSTALLATION BOARD SUPPORT

3 GASKET: 178GSKT17313 36 COMPRESSOR UNIT TRACK

4 178CARTRIDGE 37 COMPRESSOR UNIT INSTALLATION BOARD

5 HINGE AXIS: 17812251 38 CONDENSER: 17811501

6 BOTTOM RIGHT HINGE:

178HINGSCLBR 39 CONDENSER FAN MOTOR: 17819194

7 UPPER RIGHT HINGE:

178HINGSCLTR 40 CONDENSER FAN MOTOR BLADE: 17814791

8 TOP BOARD 41 CONDENSER FAN COVER: 17810515

9 MOUNT FOR CUTTING BOARD 42 FILTER FIXER

10 CUTTING BOARD: 178CBS972

(SCL1) 178CBSM728 (SCLM1) 43 FILTER

11 BACK COVER: 17816214/17813121 44 OUTER DRAIN PAN: 17817738

12 LID: 17813430/17818952 45 COMPRESSOR: 17817554

13 DOWEL: 17817446 46 SPLICE BOX

14 PLASTIC BOLT: 17817446 47 START CAPACITOR

15 NUT: 17817446 48 OVERLOAD PROTECTOR

16 SPLIT PIN: 17817446 49 STARTER

17 AIR DUCT SUPPORT 50 K STRIP-2 HOLES: 17814517

18 EVAPORATOR COVER 51 K STRIP-3 HOLES: 17815412

19 AIR RETURN COVER 52 K CLIP

20 INNER DRAIN PAN: 17813591 53 SHELF: 178SHELFSCL

21 EVAPORATOR:17812503 54 BACK GRILL

22 FAN MOTOR INSTALLATION PANEL 55 FAHR TEMP DISPLAY INSTALLATION BOARD

23 LEFT CLAPBOARD OF EVAP 56 FOAMING HOLE COVER

24 RIGHT CLAPBOARD OF EVAP 57 DRAIN TUBE(Φ16mm）

25 EVAPORATOR FAN MOTOR:

17813407 58 POWER CORD: 17810175

26 STAND OFF BRACKET:17818837 59 TEMPERATURE SENSOR 1 (THERMOSTAT):

17811959

27 THERMOSTAT INSTALLATION BOX 60 TEMP SENSOR 2(FAHRENHEIT TEMP DISP)

28 THERMOSTAT: 17815350 61 FAHRENHEIT TEMP DISPLAY: 17817225

29 POWER SWITCH: Green- 17810364

Red-17810365 62 TRANSFORMER FOR FAHRENHEIT TEMP DISPLAY

30 PAN BRACKET-15mm 63 TRANSFORMER HOLDER

31 PAN BRACKET-25mm: 17815874 64 AIR SHEILD BOARD 1

32 CASTER SUPPORT 65 AIR SHEILD BOARD 2

33 4" CASTER WITH BRAKE: 17816412

SCL2

SCLM2

1.2 SCL2 & SCLM2

1 CABINET: N/A 35 CASTER SUPPORT

2 RIGHT DOOR: 17810080 36 4" CASTER WITH BRAKE: 17816412

3 GASKET: 178GSKT11759 37 4" CASTER: 17819301

4 178CARTIRIDGE 38 INSTALLATION BOARD SUPPORT

5 HINGE AXIS: 17812251 39 COMPRESSOR UNIT TRACK

6 BOTTOM RIGHT HINGE:

178HINGSCLBR 40 COMPRESSOR UNIT INSTALLATION BOARD

7 UPPER RIGHT HINGE:

178HINGSCLTR 41 CONDENSER: 17813281

8 LEFT DOOR: 17810080 42 CONDENSER FAN MOTOR: 17810976

9 GASKET: 178GSKT11759 43 CONDENSER FAN MOTOR BLADE: 17814269

10 BOTTOM LEFT HINGE:178HINGSCLBL 44 CONDENSER FAN COVER: 17810515

11 UPPER LEFT HINGE: 178HINGSCLTL 45 FILTER FIXER

12 TOP BOARD 46 FILTER

13 MOUNT FOR CUTTING BOARD 47 OUTER DRAIN PAN: 17817738

14 CUTTING BOARD:

178CBS1046/178CBSM747 48 COMPRESSOR: 17810635

15 BACK COVER: 17814129/17819918 49 SPLICE BOX

16 LID: 17813359/17819990 50 START CAPACITOR

17 DOWEL: 17817446 51 OVERLOAD PROTECTOR

18 PLASTIC BOLT: 17817446 52 STARTER

19 NUT: 17817446 53 K STRIP-2 HOLES: 17814517

20 SPLIT PIN: 17817446 54 K STRIP-3 HOLES: 17815412

21 AIR DUCT SUPPORT 55 K CLIP: 178CLIP

22 EVAPORATOR COVER 56 SHELF: 178SHELFSCL2

23 AIR RETURN COVER 57 BACK GRILL

24 INNER DRAIN PAN: 17814037 58 FAHR TEMP DISPLAY INSTALLATION BOARD

25 EVAPORATOR: 17814715 59 FOAMING HOLE COVER

26 FAN MOTOR INSTALLATION PANEL 60 DRAIN TUBE(Φ16mm): 17819999

27 LEFT CLAPBOARD OF EVAP 61 POWER CORD: 17810175

28 RIGHT CLAPBOARD OF EVAP 62 TEMPERATURE SENSOR 1 (THERMOSTAT): 17811959

29 EVAPORATOR FAN MOTOR:

17813407 63 TEMP SENSOR 2(FAHRENHEIT TEMP DISP)

30 STAND OFF BRACKET: 17818837 64 FAHRENHEIT TEMP DISPLAY: 17817225

31 THERMOSTAT INSTALLATION BOX 65 TRANSFORMER FOR FAHRENHEIT TEMP DISPLAY

32 THERMOSTAT: 17815350 66 TRANSFORMER HOLDER

33 POWER SWITCH: Green- 17810364

Red-17810365 67 PAN BRACKET-15/90mm

34 PAN BRACKET-25mm: 17815874

- Consult Factory - Only Units Manufactured Before 6/1/15.

1.3 SCL236 & SCLM236

1 CABINET 34 PAN BRACKET-15: 178SCLB15354/178SCLB15532

2 RIGHT DOOR（445*666mm）35 PAN BRACKET-25: 178SCLB25354/178SCLB25532

3 GASKET 36 THERMOMETER

4 SPRING HINGE: 178CARTRIDGE 37 CASTER SUPPORT

5 HINGE AXIS: 17812251 38 4" CASTER WITH BRAKE: 17816412

6 BOTTOM RIGHT HINGE: 178HINGSCLBR 39 4" CASTER: 17819301

7 UPPER RIGHT HINGE: 178HINGSCLTR 40 ASSEMBLING PANEL SUPPORT

8 LEFT DOOR（445*666mm）41 COMPRESSOR UNIT TRACK

9 GASKET 42 COMPRESSOR UNIT INSTALLATION BOARD

10 BOTTOM LEFT HINGE: 178HINGSCLBL 43 CONDENSER: 17811501

11 UPPER LEFT HINGE: 178HINGSCLTL 44 CONDENSER FAN MOTOR: 17819194

12 TOP BOARD:

45 BLADE OF CONDENSER FAN MOTOR: 17814791

13 MOUNT FOR CUTTING BOARD 46 CONDENSER FAN COVER: 17810515

14 CUTTING BOARD: 178CBS1036/178CBSM736 47 FILTER FIXER

15 BACK COVER 48 FILTER（Φ25x167-B）

16 LID 49 OUTER DRAIN PAN: 17817738

17 DOWEL: 17817446 50 COMPRESSOR（NE6170Z): 17817554

18 PLASTIC BOLT: 17817446 51 SPLICE BOX

19 NUT: 17817446 52 START CAPACITOR

20 SPLIT PIN: 17817446 53 OVERLOAD PROTECTOR

21 AIR DUCT SUPPORT 54 STARTER

22 EVAPORATOR COVER 55 K STRIP-2 HOLES: 17814517

23 AIR RETURN COVER 56 K STRIP-3 HOLES: 17815412

24 INNER DRAIN PAN: 17814037 57 K CLIP: 178CLIP

25 EVAPORATOR（5R4K594L: 17814715 58 SHELF(402*434MM): 178SHELFSC23

26 FAN MOTOR INSTALLATION PANEL 59 BACK GRILL

27 LEFT CLAPBOARD OF EVAPORATOR 60 FOAMING HOLE COVER

28 RIGHT CLAPBOARD OF EVAPORATOR 61 DRAIN HOSE

29 EVAPORATOR FAN MOTOR: 17813407

（4715MS-12T-B5A）62 POWER CORD(16AWG 2.5M): 17810175

30 STANDOFF BRACKET: 17818837 63 TEMPERATURE SENSOR OF CABINET INSIDE:

17811959

31 THERMOSTAT INSTALLATION BOX 64 CONDENSER BAFFLE ONE

32 POWER SWITCH（RED): 17810365 65 CONDENSER BAFFLE TWO

33 THERMOSTAT（PJEZ): 17815350

- Consult Factory - Only Units Manufactured Before 6/1/15.

1.4 SCL260 & SCLM260

SCL260

SCLM260

1 CABINET: N/A 35 PAN BRACKET-25mm: 17815874

2 RIGHT DOOR: 17819424 36 CASTER SUPPORT

3 GASKET: 178GSKT19722 37 4" CASTER WITH BRAKE: 17816412

4 SPRING HINGE CARTRIDGE 38 4" CASTER: 17819301

5 HINGE AXIS COVER: 17812251 39 INSTALLATION BOARD SUPPORT

6 BOTTOM RIGHT HINGE:

178HINGSCLBR 40 COMPRESSOR UNIT TRACK

7 UPPER RIGHT HINGE: 178HINGSCLTR 41 COMPRESSOR UNIT INSTALLATION BOARD

8 LEFT DOOR: 17814620 42 CONDENSER: 17813281

9 GASKET: 178GSKT19722 43 CONDENSER FAN MOTOR: 17810976

10 BOTTOM LEFT HINGE:

178HINGSCLBL 44 CONDENSER FAN MOTOR BLADE: 17814269

11 UPPER LEFT HINGE: 178HINGSCLTL 45 CONDENSER FAN MOTOR COVER: 17810515

12 TOP BOARD 46 FILTER FIXER

13 FIXER FOR CUTTING BOARD 47 FILTER

14 CUTTING BOARD:

178CBS1060/178CBSM760 48 OUTER DRAIN PAN: 17817738

15 BACK COVER: 17819580/17819796 49 COMPRESSOR: 17810635

16 LID: 17815722/17819831 50 SPLICE BOX

17 DOWEL: 17817446 51 START CAPACITOR

18 PLASTIC BOLT: 17817446 52 OVERLOAD PROTECTOR

19 NUT: 17817446 53 STARTER

20 SPLIT PIN: 17817446 54 K STRIP-2 HOLES: 17814517

21 AIR DUCT SUPPORT 55 K STRIP-3 HOLES: 17810635

22 EVAPORATOR COVER 56 K CLIP: 178CLIP

23 AIR RETURN COVER 57 SHELF:178SHELFSC26

24 INNER DRAIN PAN: 17812261 58 BACK GRILL

25 EVAPORATOR: 17816297 59 FAHR TEMP DISPLAY INSTALLATION BOARD

26 FAN MOTOR INSTALL PANEL 60 FOAMING HOLE COVER

27 LEFT CLAPBOARD OF EVAP 61 DRAIN TUBE(16mm): 17819999

28 RIGHT CLAPBOARD OF EVAP 62 POWER CORD: 17810175

29 EVAPORATOR FAN MOTOR: 17813407 63 TEMPERATURE SENSOR 1 (THERMOSTAT)

30 STAND OFF BRACKET 64 TEMP SENSOR 2(FAHRENHEIT TEMP DISP)

31 THERMOSTAT INSTALLATION BOX 65 FAHRENHEIT TEMP DISPLAY: 17817225

32 THERMOSTAT: 17815350 66 TRANSFORMER FOR FAHRENHEIT TEMP DISPLAY:

17813417

33 POWER SWITCH: Green- 17810364

Red-17810365 67 TRANSFORMER HOLDER

34 PAN BRACKET-15/108mm

- Consult Factory - Only Units Manufactured Before 6/1/15.
