AVer VC550 Bedienungsanleitung

VC550

Conference Camera

Quick Start Guide|安裝指南

安装指南|取扱説明書

빠른 가이드|Mode d'emploi

Manual de instrucciones|Краткое

руководство

English........................................................................................................1

繁體中文....................................................................................................14

简体中文....................................................................................................26

日本語 .......................................................................................................38

한국어 .......................................................................................................50

Français....................................................................................................62

Español.....................................................................................................74

Pусский.....................................................................................................86

English-1

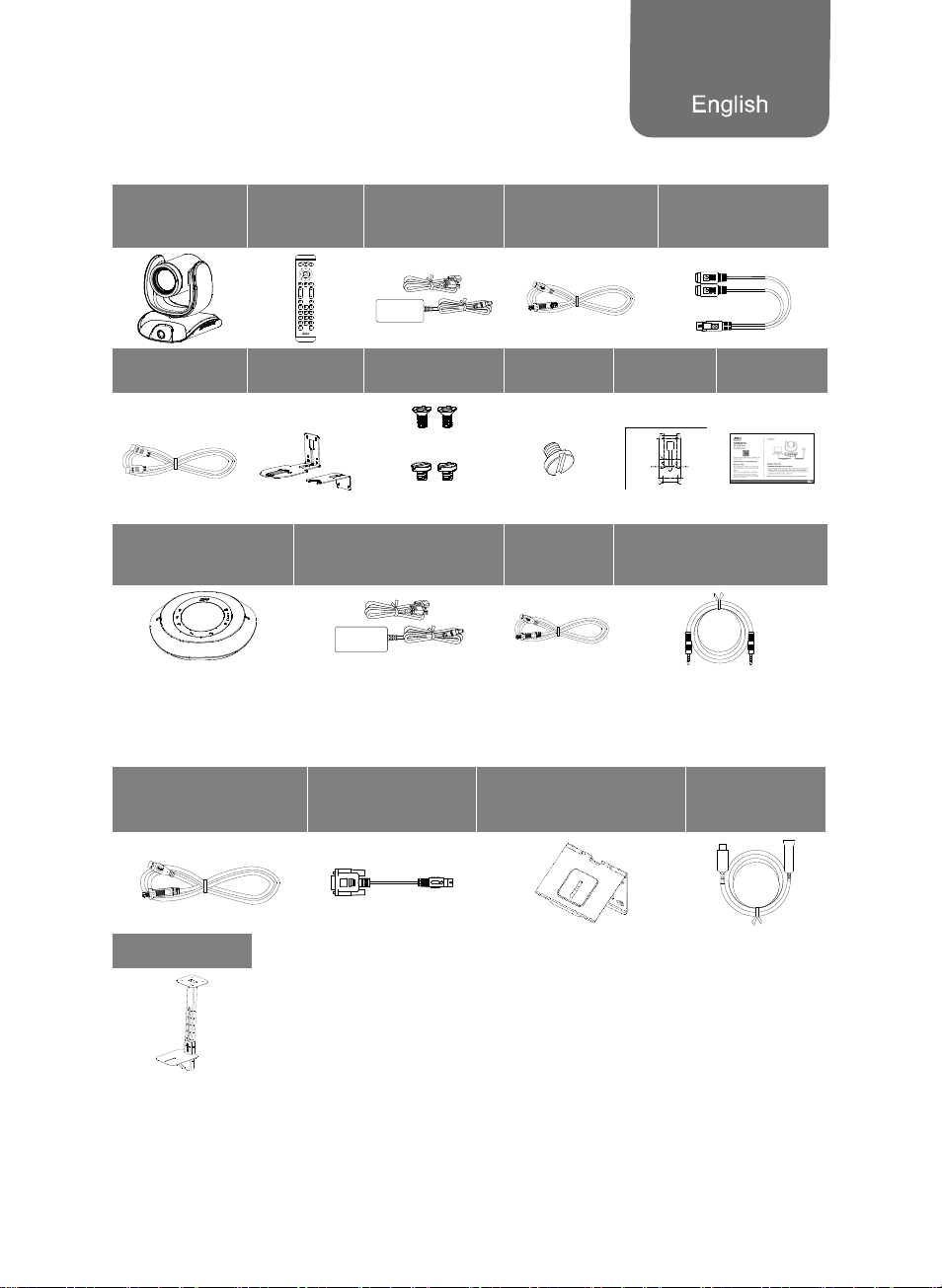

Package Contents

Camera Unit

Remote

Control

Power Adapter

& Power Cord*

USB 3.1 Type-B

to Type-A Cable

(3m)

Mini DIN9 to Mini

DIN8 RS232

Adapter Cable

HDMI Cable

(3m)

Wall Mount

Kit

Screws for

Mount

Tripod

Screw

Drilling

Paper

QR Code

Card

M4 x8mm (x2)

1/4”-20

L=7.5mm (x2)

P/N:303AU340-AGR

46.00[1.81]

51.00[2.01]

Ø 5.50[Ø 0.22]

Speakerphone Unit

Speakerphone

Power Adapter

Power Cord*

USB 2.0

Cable

3.5 mm Audio Cable

* The power cord will vary depending on the standard power outlet of the country where it is sold.

Optional Accessories

USB 2.0 Type-B to

Type-A Cable (5m)

Mini DIN8 to

D-Sub9 Cable

Foldable TV mount

USB 3.1

Extender

10m/20m/30m

Ceiling Mount**

* Optional Accessories will vary depending on the country where it is sold.

** This is a dual lens camera and doesn’t support upside down installation. To mount on ceiling, please

purchase ceiling mount from AVer.

English-2

Overview

Camera

25 6 7

348 9 10

Optical Zoom Lens

HDMI Port**

IR Sensor

USB 3.1 Type B Port

AI Lens*

RS232 In/Out Port

Status LED

PoE Port***

Kensington Lock

DC 12V Power Jack

* AI Lens:

Users can see AI lens preview image in PTZApp 2, IP webpage or HDMI out to check camera

installation location.

AI lens is used to detect participants within its 95 degree field of view to trigger optical zoom lens to

track people in the room. Please don’t put the camera on table because the AI lens view will be blocked.

The suggested installation height is at least 1.5m.

** HDMI out streaming supports picture in picture (PIP) function. For more details, please refer to user’s

manual.

*** Power over Ethernet (PoE), compatible with IEEE 802.3AT/802.3AF. Please use CAT 5e FTP cable

(not included.)

English-3

Camera LED Indicator

Solid blue: Power on

Solid red: Start-up

Solid orange: Only power cable connected

Solid blue: Video on

Solid white: USB cable is connected but camera doesn’t have any streaming out

Gesture control*

Blue light blinks for 2 seconds: Successfully wake up gesture control function by any

valid gesture command

Blue light blinks for 4 seconds: Camera recognizes a valid gesture command and

start to action.

*[Note]: The default of gesture control is off. Please enable it via PTZApp 2 or IP web

page.

Speakerphone

1 2 3 4 5 6 7

Phone in port

Line out port

USB port

Ethernet port

Power jack

Kensington Lock

Speakerphone port

(For extended speakerphone and

microphone / Red cable)

English-4

Speakerphone button

Volume Up

Volume Down

End Call

Answer Call

Phone In

Mute

Un-mute

Bluetooth

Blinking Blue: Activation and connection state

Solid Blue: Connection successful

Solid Blue: Connect with external device

Off: No device connected

Speakerphone LED Indicator

Button

LED Indicator

Status

White light

Adjust the volume up and down. When adjusting

the volume up and down, the volume LED indicator

will light up in blue.

White/Blue light

Touch to mute/un-mute the speakerphone volume.

In mute status, the LED indicator will light up in

red.

Red light

Touch to hang up the call.

Green light

Touch to answer the incoming call.

Blue light: Connects with

external device

Off: No connection with

external devices

When the Phone in port connects with the device,

the LED indicator will light up in blue.

Activate Bluetooth and

connect with laptop/PC.

When connection is successful, the Bluetooth

indicator will light up in Blue.

English-5

Installation

Camera

1. Connect the camera to power outlet.

2. Connect the necessary cables.

[Notes]

Secure the USB and RS232 cables with attached

screws.

Make sure the cable is well connected to the

connector on the camera before securing the cable.

English-6

3. Connect the camera to the computer/laptop.

[Notes]

Use the USB 3.1 cable included in the package.

VC550 has the USB 3.1 port which is USB 2.0

compatible.

Maximum resolution/fps for USB 2.0 and USB 3.1

port are shown below.

USB 2.0

USB 3.1

HDMI

YUV

M-JPEG

YUV

M-JPEG

- 640x480 or less

resolution, up to

30fps

- 720p, up to 10fps

- 1080p/60fps

- Up to

1080p/30fps

- 720p/60fps

- Up to 4k/30fps

- 1080p/60fps

1080p/60fps

1080p/30fps

4. AI lens is used to detect participants within its 95

degree field of view to trigger optical zoom lens

to track people in the room. Please don’t put the

camera on table because the AI lens view will be

blocked. The suggested installation height is at

least 1.5m.

5. Connect Ethernet cable for IP streaming and

remote camera control.

[Note]

To ensure stability of IP video streaming, please

use CAT 5e FTP cable (not included).

6. Connect an HDMI cable to a TV monitor to

have instant live video.

[Notes]

HDMI port only supports 1080p resolution.

If you select RTSP/RTMP resolution up to 4k

resolution, the HDMI out streaming will be

disabled.

English-7

Speakerphone

1. Connect the speakerphone to a power

outlet.

2. Connect the speakerphone to the

laptop/PC.

[Note]

Use the USB cable that is included in the

package.

Remove the back cover for cable installation.

Or, enable the Bluetooth function on the laptop/PC to make a wireless connection.

Laptop

[Note]

Press on the speakerphone to activate Bluetooth and connect with laptop/PC.

When connection is successful, the Bluetooth indicator will light up in Blue.

English-8

Remote Control

AAA Batteries (required)

* Need to install PTZApp2 to support.

Preset ( ): The Preset button on the

remote serves 2 functions.

To Save a Preset - Move camera to desired

position. Press and hold the preset button

until you receive the save message on the

screen. Select preset position button 0-9 to

store the current camera position. Repeat

steps if needed.

To Load a Preset - Press the preset button

and preset position button 0-9 to load a saved

camera position. Repeat steps if needed.

Press and hold the number button “ ” for 1

second to turn on or off the WDR function.

[Note] WDR function is suggested to be used

in high contrast background environment to

enhance the dark area. The frame rate will

drop to 30fps or lower. If the light condition is

normal, this function will cause image blur.

Press and hold the number button “ ” for 1

second to turn on or off the SmartFrame

function.

Press and hold the number button “ ”

for 1 second to enable or disable RTMP

streaming function.

Press and hold the number button “ ”

for 1 second to force camera to enter

sleep mode. This will end any video

streaming. To wake up the camera,

press the button or any directional button

for 1 second. This mode is not functional

while USB streaming is on.

Camera Select ( ): One

remote control can control up to three

AVer USB cameras. To bind cameras,

please use PTZApp 2 or access IP web

page to set it up.If you don’t’ do any

binding setting, no matter which number

you press, you can control all the AVer

USB camera around you.

SmartFrame ( ): Press for 1~2

second to switch the SmartFrame

function among Manual Framing/Auto

Framing/ Preset Framing modes. A

message (as figures shown) will display

on the screen to indicate the mode.

[Note] SmartFrame deploys face and

body detection technology. People

wearing masks and side facial profiles

can still be detected. The maximum

detection distance is 7-10 meters.

Set up preset points in advance (Only for

Preset point 1-9. Preset 0 is for home

position).
