TC0939IOI Rev. AJ 1/10

Operating Instructions

Monarch

™

939i Intelligent Keyboard

® ® ® ®, ™

, ,

9416 XL 9825 9855 9860

Each product and program carries a respective written warranty, the only warranty

on which the customer can rely. Avery Dennison Corp. reserves the right to make

changes in the product, the programs, and their availability at any time and without

notice. Although Avery Dennison Corp. has made every effort to provide complete

and accurate information in this manual, Avery Dennison Corp. shall not be liable

for any omissions or inaccuracies. Any update will be incorporated in a later edition

of this manual.

be reproduced, transmitted, stored in a retrieval system, or translated into any

language in any form by any means, without the prior written permission of Avery

Dennison Corp.

WARNING

This equipment has been tested and found to comply with the limits for a

Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference when

the equipment is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instruction manual, may cause harmful

interference to local radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference, in which case the user

will be required to correct the interference at his own expense.

CANADIAN D.O.C. WARNING

This digital apparatus does not exceed the Class A limits for radio noise

emissions from digital apparatus set out in the Radio Interference Regulations

of the Canadian Department of Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques

dépassant les limites applicables aux appareils numériques de la classe A

prescrites dans le Réglement sur le brouillage radioélectrique édicte par le

ministère des Communications du Canada.

Trademarks

Monarchâ, 938, 939, 939i, 9416®, 9416® XL®, 9800®, 9825®, 9855®, and 9860

are trademarks of Avery Dennison Retail Information Services LLC.

Avery Dennisonâis a trademark of Avery Dennison Corporation.

UFST, Monotype, the Monotype logo, and CG Triumvirate are trademarks of

Monotype Imaging, Inc.

Avery Dennison Printer Systems Division

170 Monarch Lane

Miamisburg, OH 45342

TABLE OF CONTENTS

GETTING STARTED ...................................................1-1

Overview......................................................1-1

Power-Up Modes ...............................................1-2

About This Manual ..............................................1-2

About Scripts ..................................................1-3

Unpacking the Keyboard..........................................1-3

Connecting the Cables to a 9416 XL Printer ...........................1-4

Connecting the Cables to a 9825 Printer .............................1-5

Connecting the Cables to a 9855/9860 Printer .........................1-6

Connecting the Scanner’s Cables...................................1-7

Using the Keyboard .............................................1-8

Control Keys ............................................1-9

SETTING BATCH OPTIONS .............................................2-1

Setting Prompts and Defaults ......................................2-2

Non-Knife Setup .........................................2-5

ENTERING BATCH DATA ...............................................3-1

Entering a Batch ................................................3-2

Printing Tags Without Cutting ...............................3-7

Using Print Multiple with Inc/Dec Fields .......................3-8

Examples ..............................................3-8

TROUBLESHOOTING ..................................................4-1

SPECIFICATIONS & ACCESSORIES ......................................A-1

Accessories & Options ...........................................A-1

Flat Surface Mount.......................................A-2

Wall Mount .............................................A-3

Table of Contents i

CHARACTER SETS....................................................B-1

Supported Symbol Sets and Code Pages ............................B-1

Internal (Standard and Reduced Font) ........................B-2

Bold ..................................................B-3

ANSI..................................................B-4

Code Page 437 .........................................B-5

Code Page 850 .........................................B-6

CONFIGURING THE SYSTEM ...........................................C-1

Accessing the Keyboard’s Main Menu ..............................C-1

Operating in Script Mode .........................................C-1

About the Scanner ..............................................C-2

Operating the Scanner ....................................C-2

Troubleshooting the Scanner ...............................C-3

Cleaning...............................................C-3

Configuring the Scanner..........................................C-4

Reset to Default Values ...................................C-4

Set the Communications Port Defaults .......................C-5

Set the Minimum Bar Code Width ...........................C-7

ii Table of Contents

GETTING STARTED 1

The Monarch® 939iäkeyboard allows you to easily configure the

printer and enter batch data. The keyboard works with the

Monarch® 9416®, 9416® XL®, 9825®, 9855® and 9860äprinters.

This keyboard also works with non-Monarch printers. However, an

auxiliary power supply is required for the keyboard. See Appendix

A, “Specifications and Accessories” for the part number.

This chapter includes information about

¨unpacking the keyboard.

¨connecting the cables.

¨power-up modes.

¨using the keyboard.

Overview

The 939i keyboard is an “intelligent” keyboard that can be

programmed to show user prompts and collect data. Using the

Application Development Kit II (ADK2), an application, or script,

can be written to program the keyboard. Refer to the ADK manual

for more information. Think of the intelligent keyboard like your

PC, where you can enter data using your PC’s keyboard or

connect an optional scanner to scan data.

With a script, you can

¨Create prompts for the user to enter data manually or using

a scanner. See Appendix C, “Configuring the System,” for

more information.

¨Use look-up tables, or files, to store data that will be

printed on labels.

¨Perform additional data tracking, data conversion, and data

manipulation.

Getting Started 1-1

Throughout this manual, you see references to the term “script.” The script

is the program that runs on the keyboard to perform a specific task, such as

scanning or collecting data. We offer custom script writing. Contact your

Sales Representative for information and pricing on custom scripts.

Power-Up Modes

Your 939i keyboard has the ability to operate in “terminal” mode or in

“intelligent” mode (using a custom ADK2 script). Terminal mode is only

available with the 9855 and 9860 printers.

If there is no ADK2 script loaded in the keyboard, the keyboard operates in

terminal mode. You can enter data and configure the printer. In terminal

mode, the keyboard does not access the intelligent functionality provided by

a script.

If an ADK2 script is loaded in the keyboard, the script automatically runs

when the keyboard and printer are turned on. The prompts you see and

what you do are controlled by the script.

About This Manual

This manual is arranged in several sections:

¨Use Chapters 2 through 4 when your keyboard is operating in terminal

mode.

¨Use Appendix A for keyboard specifications.

¨Use Appendix B for the available character sets.

¨Use Appendix C, with information for your System Administrator on

intelligent (script) mode and configuring the scanner.

The information in this document supersedes information in previous

versions. Check our Web site for any updates.

1-2Getting Started

About Scripts

This manual does not cover any specific information about what may be in

your script, because each script is different. Your script is written based on

jobs you need to perform. A script should contain several basics features:

¨A way to enter and exit the script.

¨A way to enter terminal mode (required for 9860 printer).

¨The prompts for entering the date and time each time you turn on the

printer if required by your script. The date and time are not saved when

the printer/keyboard are turned off.

¨The scanner’s configuration and setup (if you are using a scanner).

Contact your System Administrator for more information about these items.

Unpacking the Keyboard

After unpacking the keyboard, look through all packaging material for parts.

Keep the box and packaging material in case the keyboard ever needs

repair.

1. Pull the long, coiled cable out from the bottom of the base.

2. Slide the first loop in the cable slot as shown.

Getting Started 1-3

Cable

Slot

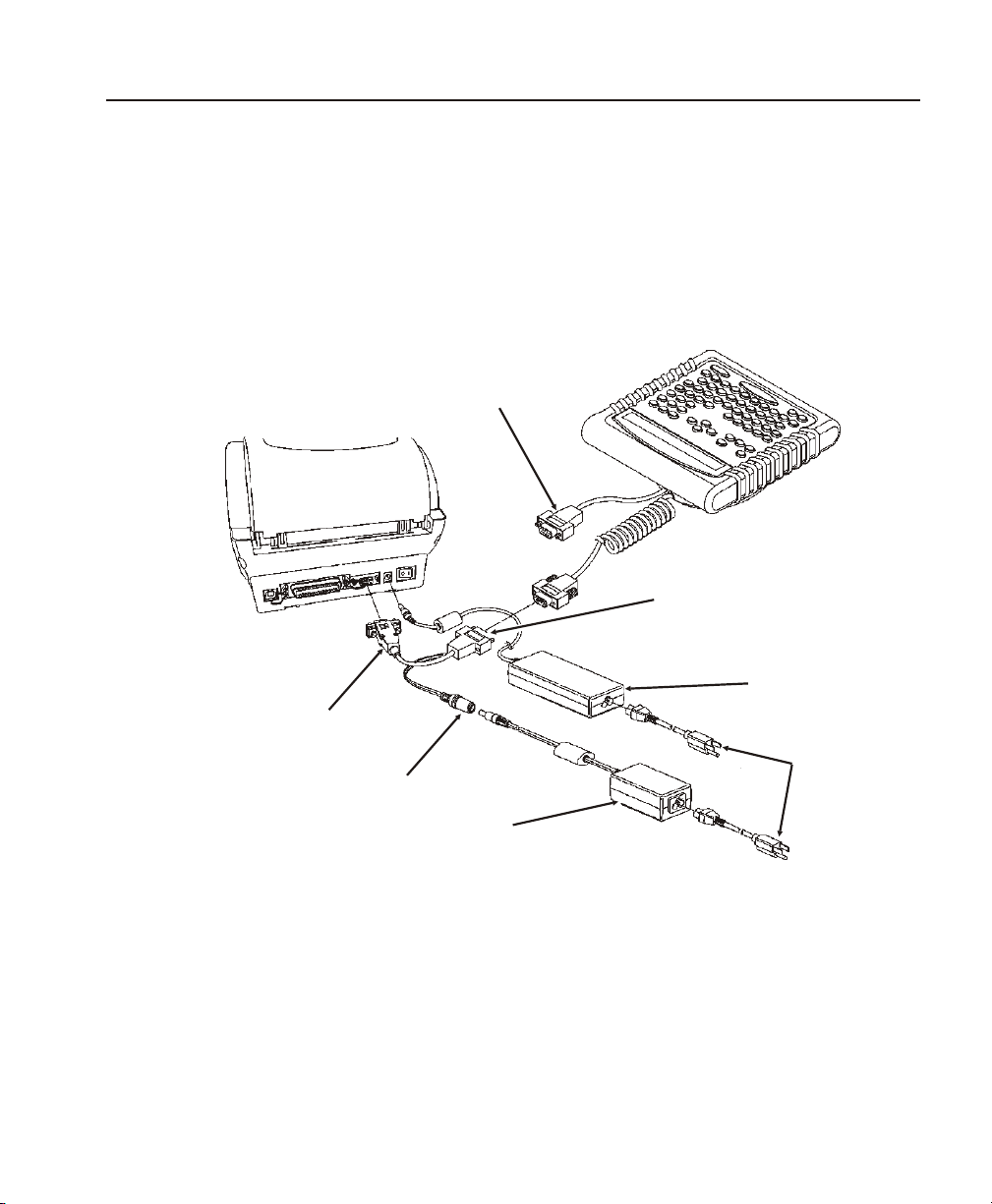

Connecting the Cables to a 9416 XL Printer

When using the keyboard with the 9416 or 9416 XL printer, the keyboard

receives power from the auxiliary power supply (5V).

1. Turn OFF the printer before you connect the keyboard’s cable.

2. Plug the 9-pin coiled keyboard cable into the end of the adaptor cable.

3. Secure the other end of the adaptor cable to the 9-pin port on the

printer. Tighten the screws on the cables.

4. Connect the power cord to both power supplies.

5. Connect the power supply (24V) to the printer.

6. Connect the auxiliary power supply (5V) to the adaptor cable’s power

connector.

7. Turn ON the printer.

1-4Getting Started

Adaptor

Cable

Power

Keyboard’s

PowerSupply

Power

Cords

Printer’sPower

Supply

Keyboardcable

goeshere

Optional

ScannerCable

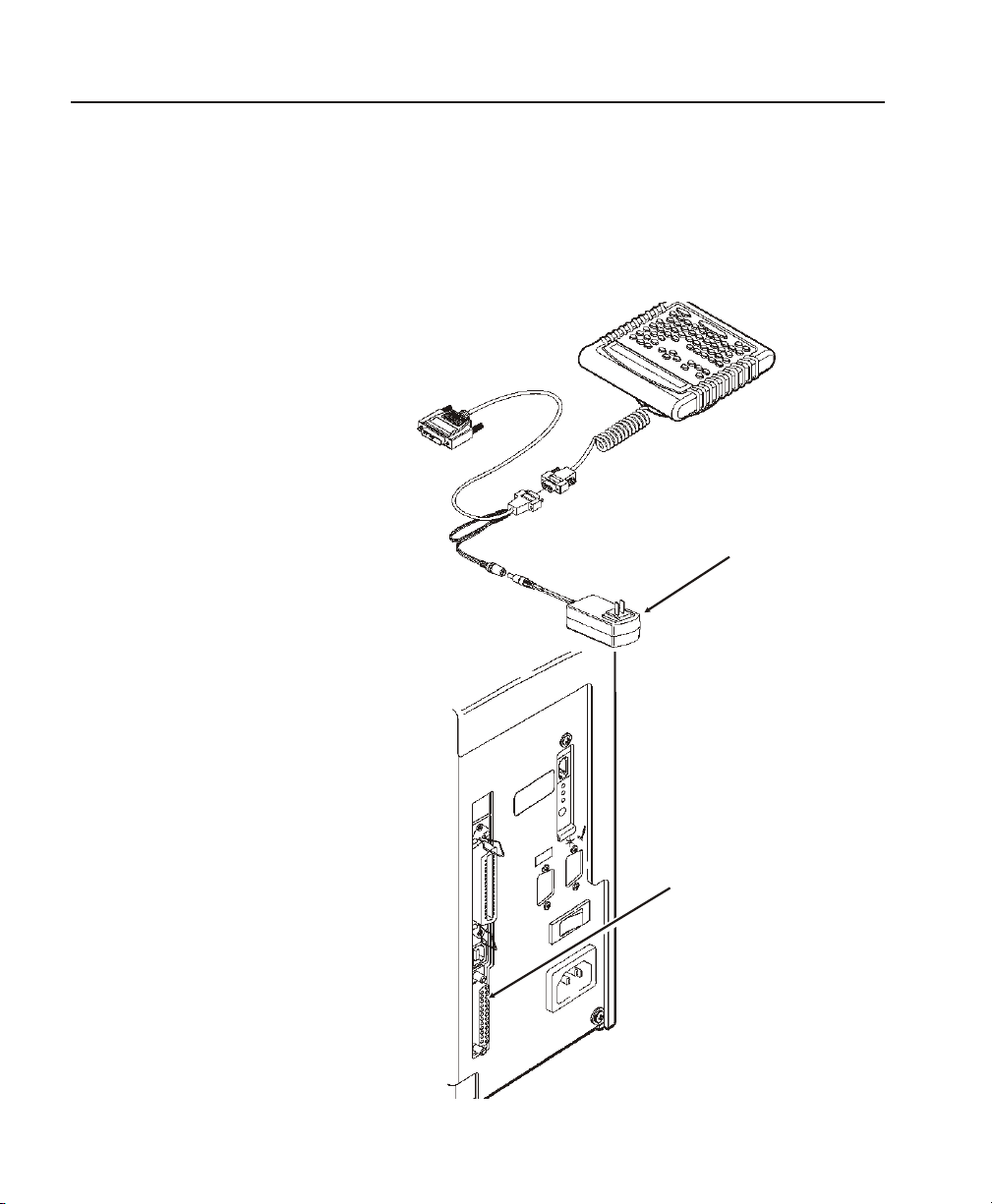

Connecting the 939I with a Script to a 9800âPrinter

When using the keyboard with a script and a 9825, 9855, or 9860 printer,

the keyboard receives power from the auxiliary power supply.

1. Turn OFF the printer before you connect the keyboard’s cable.

2. Plug the 9-pin coiled keyboard cable into the adaptor cable.

3. Plug the 25-pin serial cable into the back of the printer.

4. Tighten the screws on the

cables.

5. Plug the auxiliary power

supply into the adaptor

cable as shown.

6. Plug the power supply into

an electrical outlet.

7. Turn ON the printer. On

the back of the printer,

press (I) to turn on and (O)

to turn off the printer.

Getting Started 1-5

Auxiliary

Power

Supply

Keyboardcable

goeshere

Connecting the 939I in Terminal Mode to a

9855/9860 Printer

When using the keyboard in terminal mode (no script) with a 9855 or 9860

printer, the keyboard receives power from the printer.

1. Turn OFF the printer before you connect the keyboard’s cable.

2. Plug the 9-pin coiled keyboard cable into the back of the printer.

3. Tighten the screws on the cable to secure the cable to the printer.

4. Turn ON the printer. On the back of the printer, press (I) to turn on and

(O) to turn off the printer. You will see the prompts for your job. If a

script is not written for your job, the keyboard displays

PRINT MODE

Ready

See your System Administrator for information about your job.

1-6Getting Started

Keyboard

CableGoes

Here

ON/OFF

Switch

Andere Handbücher für MONARCH 939I

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Avery Dennison Tastatur Handbücher

Avery Dennison

Avery Dennison MONARCH 939I Bedienungsanleitung

Beliebte Tastatur Handbücher anderer Marken

Vortexgear

Vortexgear POK3R Bedienungsanleitung

Razer

Razer RZ03-0188 Bedienungsanleitung

Logitech

Logitech RUGGED LITE Bedienungsanleitung

Honeywell

Honeywell ADEMCO 5839 Montageanleitung

Hama

Hama AK-120 Bedienungsanleitung

Rodgers

Rodgers RK-76 Bedienungsanleitung

Logic Controls

Logic Controls KB5000 Series Bedienungsanleitung

Rapoo

Rapoo E9270P Bedienungsanleitung

iKey

iKey DP-88 Bedienungsanleitung

Logitech

Logitech G413 TKL SE Montageanleitung

Keychron

Keychron C1 Bedienungsanleitung

Dahua

Dahua NKB Bedienungsanleitung

Ultimate Technology

Ultimate Technology 500 POS Bedienungsanleitung

Ducky

Ducky Shine 5 Bedienungsanleitung

Mace

Mace MACALLY MERGOKEY Bedienungsanleitung

iKey

iKey KYB-42-KIOSK Bedienungsanleitung

Akko

Akko MX108 Bedienungsanleitung

Viper

Viper V770 Bedienungsanleitung
