USER MANUAL
Model: L780
Part No.: PR750NAL780
Portable Power Station
2
aviva Customer Service
Email: support@avivapower.com
Visit: www.avivapower.com
If in need of service, please contact aviva Customer
Service. Do not return this unit to the store.
3
WARNING
Keep away from water and fire
Only authorized personnel may service this product
Thank you for purchasing the aviva L780 portable
power station. The purpose of this manual is to help
you understand your product and its use. You can use
this product at home and away, wherever life takes you.
Many people will use the aviva L780 as a central power
source at home, or wherever they need portable power
such as off-grid, or for emergency back-up power. Save
this User Manual.
Long-Term Maintenance:
Fully charge the power station unit prior to long-term
storage. Check and charge the power station unit at least
once every three months.
4
TABLE OF CONTENTS
• Specifications
• Product tour & functions
• General information
• How to charge the product
• Lighting
• Recharging
• Warning states
• Disposal
• Troubleshooting
• Attention
• Safety and maintenance
• Warranty statement
5
SPECIFICATIONS
Model Number L780
Part Number PR750NAL780
Battery
Energy Storage Capacity 786 Wh (10.8V, 72.8 Ah), peak
capacity
Lithium-Ion,
18650-cell type, 2600mAh @ 3.6V
Equivalent Capacity 218Ah, 218,400mAh @ 3.6V
Lifecycles ≥1000 cycles up to 80% with full
charge/discharge
Shelf-life Up to 6 months after full charge;
re-charge once every 3-6 Months
Wattage Compatiblity 500 W continuous
Battery Management System
(BMS)
Over voltage protection, low-
voltage protection, over temperature
protection, short circuit protection,
over current protection
Input Ports
DC Charging 2-pin AC adaptor
Solar Port Anderson port (PA45); 14V - 25V /
maximum power up to 180W
Output Ports
USB-C Two (2) USB-C PD output ports, 65W
supports 5V, 9V, 12V, 15V, 20V up to
3A, regulated
USB-A Two (2) USB-A ports (output): 5V, 9V,
12V up to 2.4A regulated (18W max),
Qualcomm QuickCharge 3.0
6
DC Port (5525) Two (2) 12V 5A / 60W
(2@ DC5525 ports)
12V Auto Port 12.5V 10A / 125W, regulated
110V AC inverter Two (2) 110VAC, 60Hz, grounded
(3-prong), pure sine wave
Supports 500W continuous, 2500W
peak surge, pure sine wave
General
Flashlight High brightness 1W LED, multimode,
with SOS mode
Display Panel LED display - info relates watt input/
output, battery status
Color Two tone, gray + black
Cabinet Durable ABS polycarbonate shell
Unit Weight 16.5 lbs (7.5 kgs)
Unit Dimensions 13.7 × 6.3 × 11.2 in (35 × 16 × 29 cm)
Retail Box Weight 20 lbs (9.06 kgs)
Operating Use Temperature 14 ~ 113 F (-10 ~ 45 C)
Recharging Temperature 32 to 113 F (0 ~ 45 C)
AC Charger (Included) 110V / 60Hz; 13V, 250VA, includes
power cord
Certifications FCC, PSE, RoHS, UN38.3
Warranty 1 Year
7
Included in the Box:
Loading Time:
ChargerAviva L780 unit User Manual
How to recharge: Approximate recharge times:
AC Wall Outlet 10 hrs
12V Auto Port 10 hrs (with engine on)
Solar Panel, 100 W 17 hrs
Optional Accessories Portable solar panel
Included in the Box Power station, AC charger with
power cable, user manual
USER MANUAL
Model: L780
Part No.: PR750NAL780
Portable Power Station
12V 3W
Lighting Stereo PSP Camera
Smart
Phone Tablet Laptop
60W
Fan
32
TV
Mini
Bar
230h+ 500X+ 90X+ 160X+ 70X+ 17X+ 8X+ 12h+ 7h+ 15h+
8

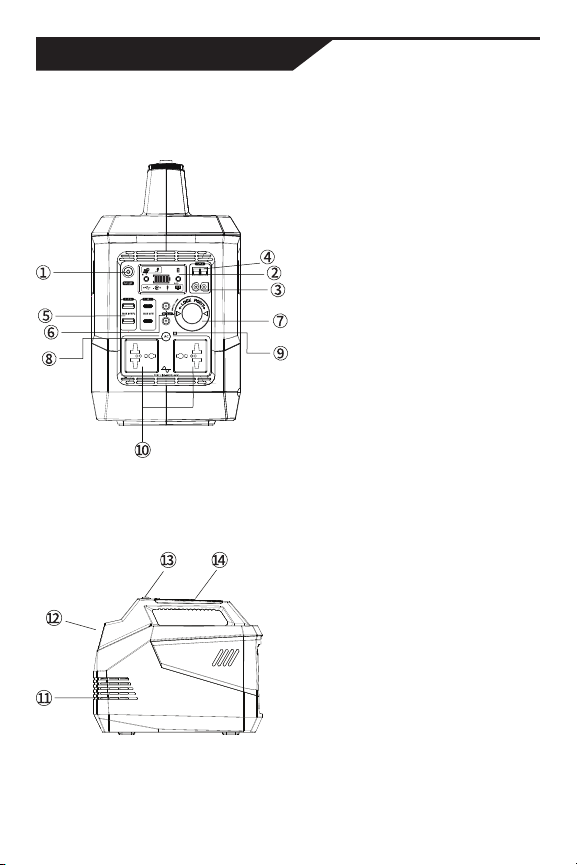

Front View
Left View
PRODUCT TOUR & FUNCTIONS
1. ON/OFF Power Switch
2. LCD Screen
3. AC Adapter Input
4. Solar Charging Input
5. USB Outputs
6. 12V DC Outputs
7. DC Auto Output
8. AC Output Button
9. AC Output Indicator
10. AC Outputs
11. Cooling Fan
12. Light
13. Light Button
14. Handle
9
Battery
Battery Level Indicator
Output
USB in use
12V DC in use
12V DC Auto Output in use
AC Power is on
Remain rotating when DC in use or AC is on
Input
In Solar Charging
In AC Charging
In the Charging Process
LCD Screen Guide
12V DC Auto Output
10
Using the aviva L780
When battery capacity is below 5%, all the outputs (including
AC, USB-A, Type-C, DC 12V, and DC Auto Output) will be
automatically disabled.
When DC is in use or AC is on, the discharging indicator on
the right side of LCD screen remains rotating ( ).
Power On
Long press for 3 seconds to switch on the aviva L780, it will
start initial self-checking. During the process, all the icons on
the LCD screen will be activated. The LCD screen will turn to
normal display if all functions are normal.
Power Off
When usage is complete, power off the unit by following these
steps:
1) Remove all the connected cables and loads;
2) Press to turn off the AC output, and the LED indicator will
be off;
3) Long press the AC button to turn off power. The LED
indicator light will then power off;
4) Low battery automatic shutdown.
