AVYCON NDAA Series Bedienungsanleitung
NDAA
QUICK START GUIDE
IP CAMERAS
SERIES
1. INTRODUCTION..................................................................................................................
2. SAFETY INSTRUCTIONS....................................................................................................
3. INSTALLATION....................................................................................................................
3.1 Installation of Bullet Cameras.........................................................................................
3.2 Installation of Mini Dome Cameras................................................................................
3.3 Installation of Vandal-Proof Dome Cameras.................................................................
TABLE OF CONTENT
2
2
4
4. CONNECTING CABLES......................................................................................................
5. I/O ALARM WIRING DIAGRAM........................................................................................
17
18
6. LOGIN SYSTEM....................................................................................................................19
4
3.4 Installation of Bullet Cameras......................................................................................... 14
6
10
Thanks for purchasing our product. For any question or need, welcome contact us at any time.
We will make every effort to ensure correctness of the information contained in this manual,
which may be subject to change from time to time without prior notice.
1. Introduction
2. Safety Instructions
1) Please comply with the power supply specifications as required for this equipment and
select the correct power supply.
2) In case that the equipment fails to operate properly, immediately contact the manufacturer
or the nearest service center, instead of disassembling or changing it in any way on your
own.
3) For cleaning of the lens, be sure to use an air blower or dedicated lens cleaner. For cleaning
of the plastic shield, use a soft and dry cloth to wipe it. Do not use any detergent containing
alcohol or benzene.
4) Do not drop any object onto the device or Knock heavy on the equipment.
5) Do not put the camera toward any strong light source (or lighting lamp or sun), which may
cause over-exposure or light leakage (not due to defect of the product) and impair useful
life of the camera.
6) Avoid use of the equipment in any environment other than suggest in this manual.
7) Prevent water or any other liquid from flowing into the equipment.
2 IP CAMERAS | NDAA SERIES
8) For replacement of any part, contact the distributor in advance and make replacement with
a new one , or similar components which have the same specification. Change any part in the
device without authorization is not permit.
Operating Environment
Power Supply
DC12V±10%
Temperature
-30°C~60°C
Humidity
10%~95%
Altitude
-60m~3000m
Atmosphere
86kpa~106kpa
3 IP CAMERAS | NDAA SERIES
3. Installation
a. Ceiling Mounting
3.1 Installation of Bullet Cameras
Expansion Bolt
Locking Screw
4 IP CAMERAS | NDAA SERIES
Insert three expansion bolts in place into the ceiling and fix the equipment with three locking
screws.
Completion of Installation

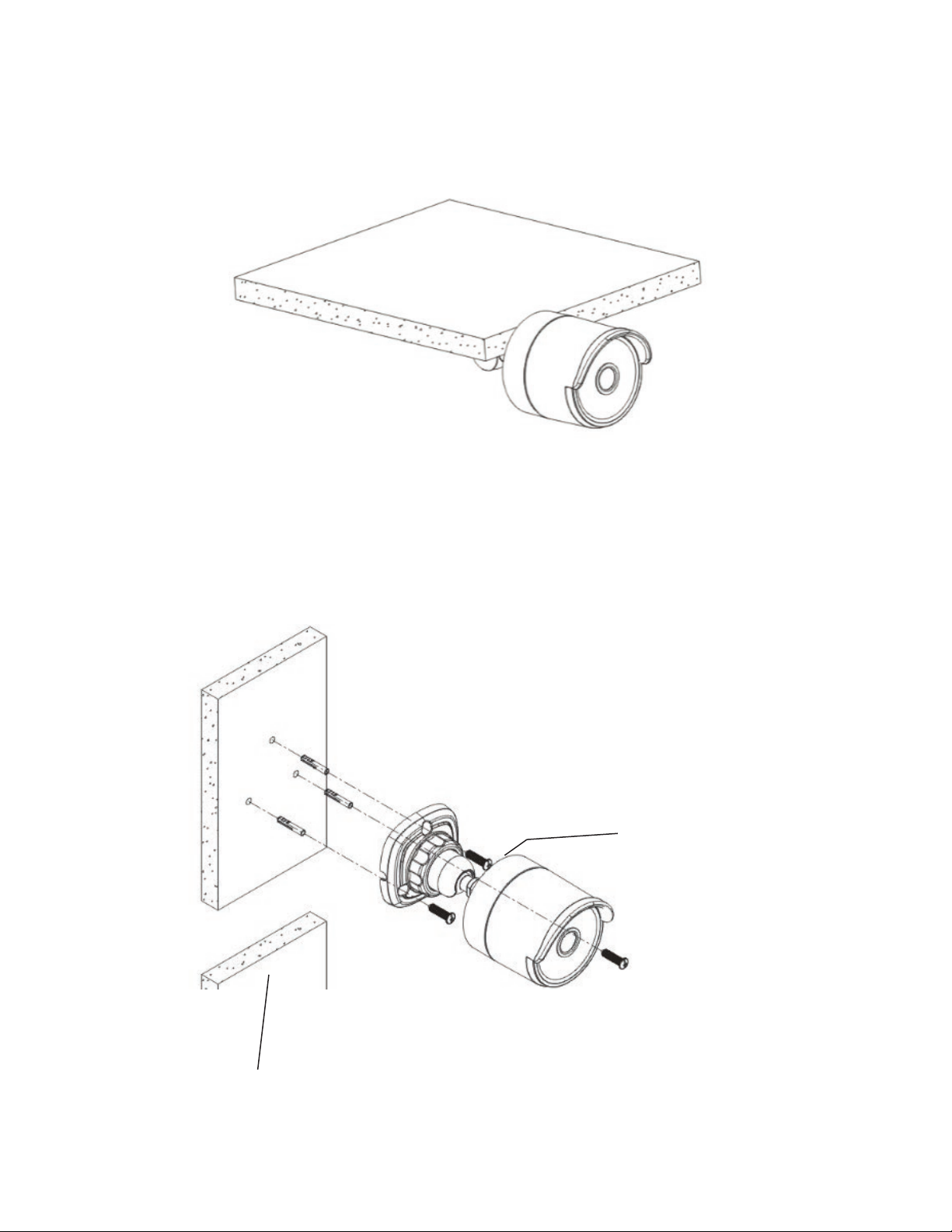

b. Wall Mounting
Expansion Bolt
Locking Screw
5 IP CAMERAS | NDAA SERIES
Insert three expansion bolts in place into the wall and fix the equipment with three locking
screws.
Ceiling Mounting
Completion of Installation
3.2 Installation of Mini Dome Cameras
6 IP CAMERAS | NDAA SERIES
7 IP CAMERAS | NDAA SERIES
Setup of Sticker
Paste the sticker in place at the proper position as selected.
Mini Dome Camera
8
IP CAMERAS | NDAA SERIES
Remove the collar off the camera by rotating it down
Collar
Expansion Bolt
Locking Screw
9 IP CAMERAS | NDAA SERIES
Fix the pedestal by drilling locking holes around the sticker and inserting three expansion
bolts into the holes and fastening it with three locking screws.
Adjust it to an appropriate angle.
Mount the collar back by rotating it up
