Quick Start

The basic procedures required to power on CEM880:

(1). Require DC +12V power at minimum 6.5A. Make sure the power is

OFF before connecting the CEM880.

(2). Check to ensure the onboard switch SW2-1 is set to default (OFF

position).

(3). Firmly install DDR3L memory module into connector SDIMM1 until

fully seated.

Note: It must be DDR3L memory module.

(4). Attach heatsink to the CEM880, refer to section Installing Heatsink.

(5). Install the CEM880 onto COM ExpressTM baseboard, for example,

CEB94006 baseboard.

(6). Properly install all necessary peripheral devices such as hard disk,

display, keyboard and etc. to the baseboard.

(7). Firmly attach power supply to the baseboard’s power connector.

(8). Turn on the system power.

CEM880 Quick Installation Guide

9418D880000E 1

Version A1 August 2014

Printed in Taiwan

Checklist

CEM880 Board x1 Product Information CD x1

Quick Installation Guide x1

Note: Please contact your local vendors if any damaged or missing items. DO

NOT apply power to the board if there is any damaged component.

Please refer to the product information CD for the complete user’s

manual, drivers and utilities. User’s manual and related documents are

in Acrobat PDF format.

Board Layout

Top View

CEM880 4th Generation Intel®CoreTM Processor COM ExpressTM Type 6 Basic Module

2 9418D880000E

Version A1 August 2014

Printed in Taiwan

Bottom View

Switch Settings

Before applying power to the CEM880, please make sure all of the switches

are in factory default positions.

Switch Description Setting

SW1 PCI-Express Bifurcation Setting

Default: One x16 PCI-Express SW1-1 OFF, SW1-2 OFF

Auto Power On

Default: Disable SW2-1 OFF

SW2 Restore BIOS Optimal Defaults

Default: Normal Operation SW2-2 OFF

Connectors

Connector Description

SDIMM1 DDR3L SO-DIMM Connector

SS5 COM ExpressTM Connector

SS6 COM ExpressTM Connector

9418D880000E 3

Version A1 August 2014

Printed in Taiwan

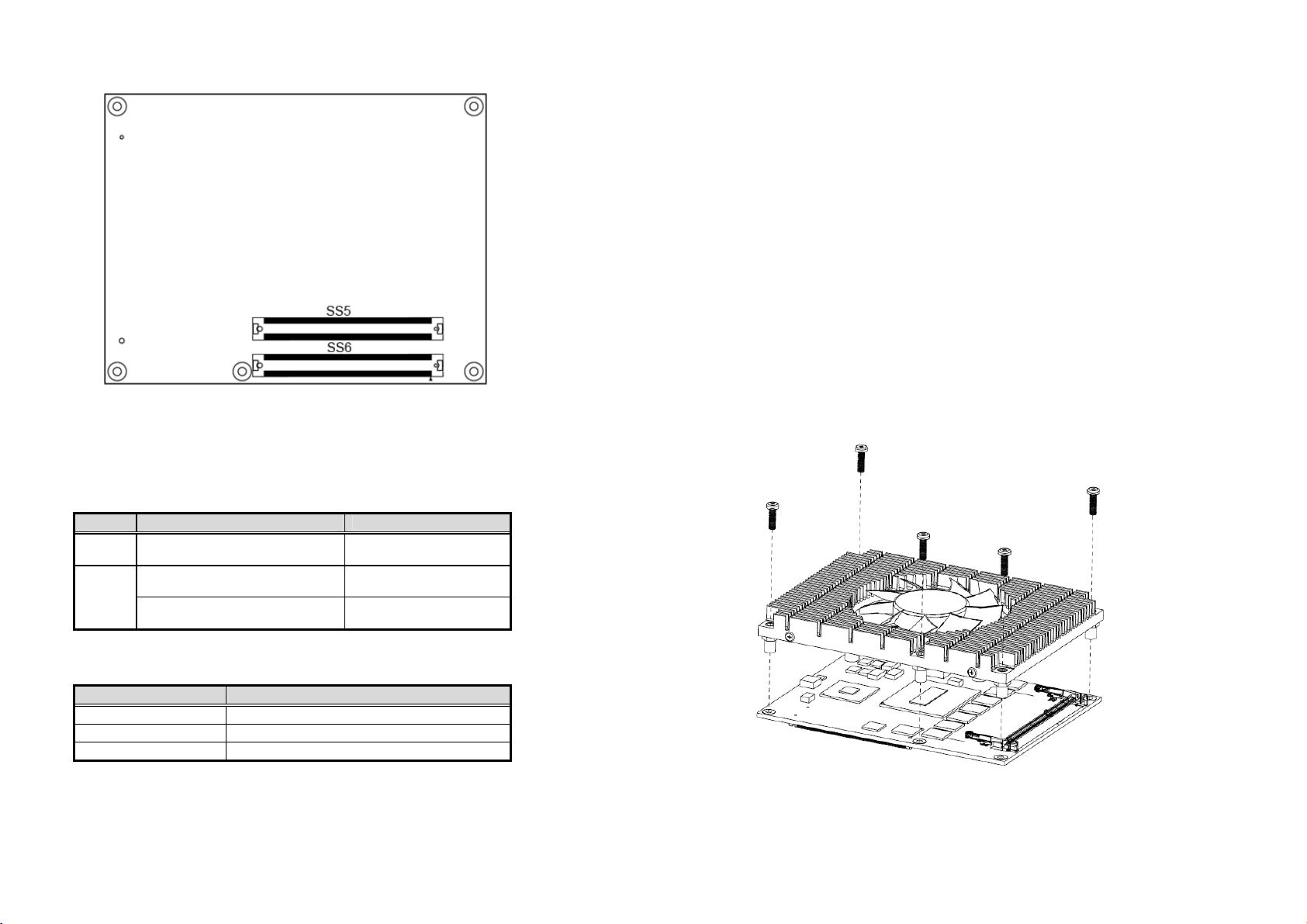

Installing Heatsink

For thermal dissipation, a heatsink enables the CEM880’s components to

dissipate heat efficiently. All heat generating components are thermally

conducted to the heatsink in order to avoid hot spots. Below images

illustrate how to install the heat spreader.

1. There is a protective plastic covering on the thermal pads. This must be

removed before the heatsink can be mounted.

2. Each heatsink is designed for a specific CEM module. The thermal

pads on the heatsink are designed to make contact with the necessary

components on the CEM module. When mounting the heatsink you

must make sure that the thermal pads on the heatsink make complete

contact (no space between thermal pad and component) with the

corresponding components on the CEM module. This is especially

critical for CEM modules that have higher CPU speeds (for example

1.0GHz or more) to ensure that the heatsink acts as a proper thermal

interface for cooling solutions.

3. This CPU module has five assembly holes for installing heat spreader

plate. Use the five screws to secure the heat spreader plate to the

CEM880. Be careful not to over-tighten the screws.
