AXIOMTEK CEM130 Bedienungsanleitung

4 9418D130000E

Versio A1 February 2020

Pri ted i Taiwa

Note: When installing CEM130 on CEB94011, please add stand-off and secure

with nut. Then, use the screws to secure the heatsink plate to the

CEM130.

Standoff

NUT

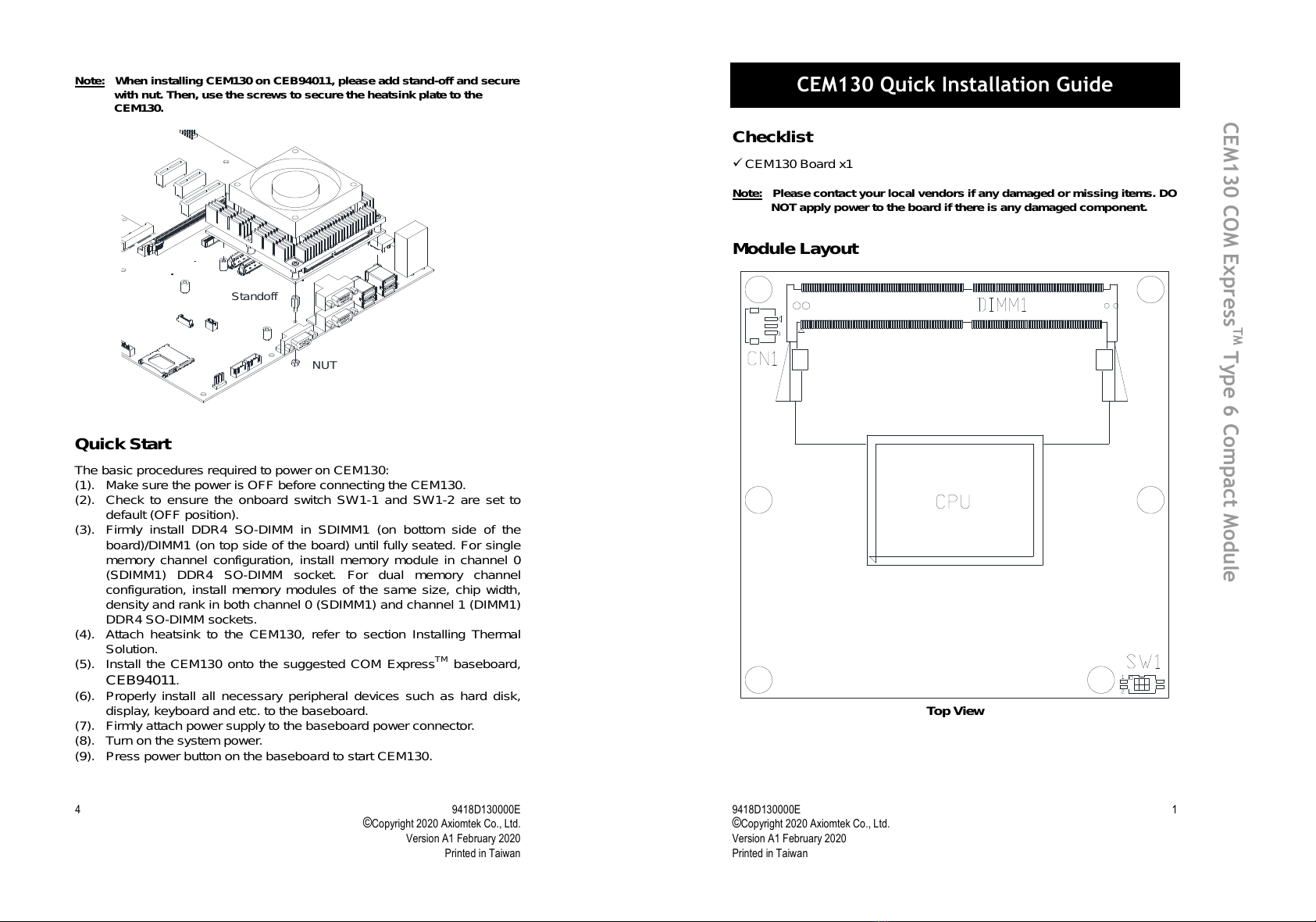

Quick Start

The basic procedures required to power on CEM130:

(1). Make sure the power is OFF before connecting the CEM130.

(2). Check to ensure the onboard switch SW1-1 and SW1-2 are set to

default (OFF position).

(3). Firmly install DDR4 SO-DIMM in SDIMM1 (on bottom side of the

board)/DIMM1 (on top side of the board) until fully seated. For single

memory channel configuration, install memory module in channel 0

(SDIMM1) DDR4 SO-DIMM socket. For dual memory channel

configuration, install memory modules of the same size, chip width,

density and rank in both channel 0 (SDIMM1) and channel 1 (DIMM1)

DDR4 SO-DIMM sockets.

(4). Attach heatsink to the CEM130, refer to section Installing Thermal

Solution.

(5). Install the CEM130 onto the suggested COM Express

baseboard,

CEB94011

(6). Properly install all necessary peripheral devices such as hard disk,

display, keyboard and etc. to the baseboard.

(7). Firmly attach power supply to the baseboard power connector.

(8). Turn on the system power.

(9). Press power button on the baseboard to start CEM130.

CEM130 Quick Installation Guide

9418D130000E 1

Versio A1 February 2020

Pri ted i Taiwa

Checklist



130

Board x1

Note: Please contact your local vendors if any damaged or missing items. DO

NOT apply power to the board if there is any damaged component.

Module Layout

Top View

CEM130 COM Express

Type 6 Compact Module

All manuals and user guides at all-guides.com

2 9418D130000E

Versio A1 February 2020

Pri ted i Taiwa

Bottom View

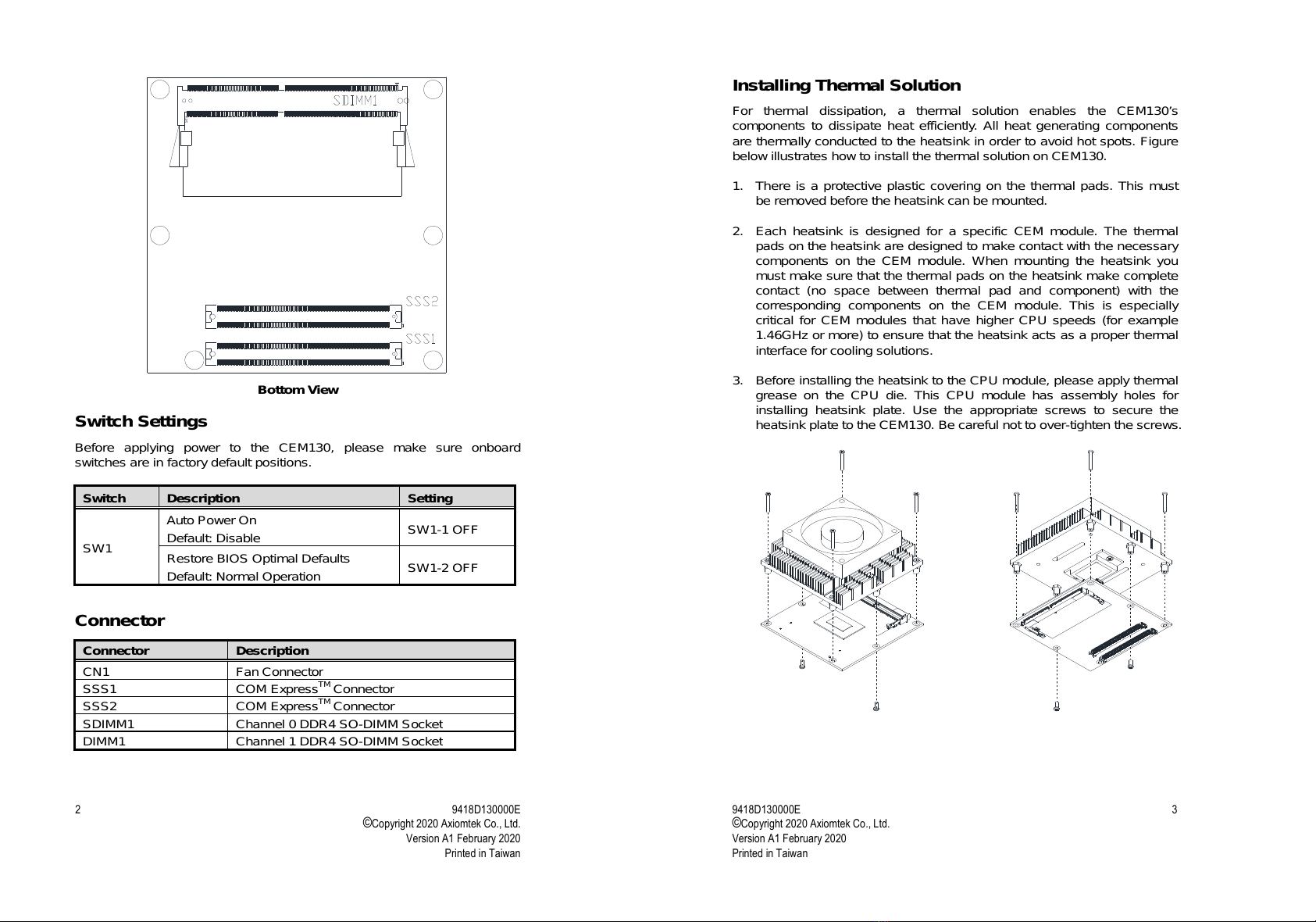

Switch Settings

Before applying power to the CEM130, please make sure onboard

switches are in factory default positions.

Switch Description Setting

SW1

Auto Power On

Default: Disable

SW1-1 OFF

Restore BIOS Optimal Defaults

Default: Normal Operation

SW1-2 OFF

Connector

Connector Description

CN1

Fan Connector

COM Express

onnector

COM Express

Connector

DIMM1

Channel

DDR

DIMM

Socket

DIMM

Channel

DDR

DIMM

Socket

9418D130000E 3

Versio A1 February 2020

Pri ted i Taiwa

Installing Thermal Solution

For thermal dissipation, a thermal solution enables the CEM130’s

components to dissipate heat efficiently. All heat generating components

are thermally conducted to the heatsink in order to avoid hot spots. Figure

below illustrates how to install the thermal solution on CEM130.

1. There is a protective plastic covering on the thermal pads. This must

be removed before the heatsink can be mounted.

2. Each heatsink is designed for a specific CEM module. The thermal

pads on the heatsink are designed to make contact with the necessary

components on the CEM module. When mounting the heatsink you

must make sure that the thermal pads on the heatsink make complete

contact (no space between thermal pad and component) with the

corresponding components on the CEM module. This is especially

critical for CEM modules that have higher CPU speeds (for example

1.46GHz or more) to ensure that the heatsink acts as a proper thermal

interface for cooling solutions.

3. Before installing the heatsink to the CPU module, please apply thermal

grease on the CPU die. This CPU module has assembly holes for

installing heatsink plate. Use the appropriate screws to secure the

heatsink plate to the CEM130. Be careful not to over-tighten the screws.

All manuals and user guides at all-guides.com
