AXIOMTEK CAPA313 Bedienungsanleitung

4 9418E313000E

Version A1 une 2018

Printed in Taiwan

Quick Start

CN12

The basic procedures required to power on CAPA313:

(1). Require power at minimum 12V/1.07A or 24V/0.63A. Check to

ensure that power supply is OFF before connecting to

CAPA313 and that all necessary peripheral devices are

plugged properly.

(2). Make sure all of the jumpers and switch are at default settings;

especially SSW1 (1-2 close).

(3). Firmly install DDR3L memory module into connector SDIMM1

until fully seated.

(4). Firmly insert power to ATX1.

(5). Install a momentary on/off button/switch onto CN12, pin 5 and

(6). Turn on the power supply.

(7). Press the on/off button/switch to power on CAPA313.

CAPA313 Series Quick Installation Guide

9418E313000E 1

Version A1 une 2018

Printed in Taiwan

Checklist



CPU

oard x1



Product information CD



Quick

nstallation

uide

Connectors

Connector Description

CN1

SMBus Connector

CN2

Audio

Connector

CN4

Digital I/O

Connector

CN5

C Connector

CN6

COM2 Wafer Connector

CN7 (Optional) COM1 Wafer Connector

CN8

Fan Connector

CN9

SATA Power Connector

CN10

USB 2.0 Wafer Port 5 and 6

CN11

SATA C

onnector

CN12

Front Panel Connector

CN13

LVDS Connector

CN1

Inverter Connector

CN16

Ethernet Port 1 and 2

CN17

~CN18

USB 3.0 Port

0~3

CN20

COM1 D

Sub Connector

CN21 HDMI Connector

CN22

(Optional)

VGA Connector

ATX1

ATX Power

Connector

SCN1

, SCN3

Full

size PCI

Express Mini Card Connectors

SCN2

ZIO Expansion

Connector

SDIMM1

DDR3L

DIMM Connector

CAPA

Intel

Pentium

/Celeron

Processor

3.5

”

Board

2 9418E313000E

Version A1 une 2018

Printed in Taiwan

Jumper and Switch Settings

Before applying power to the CAPA313, please make sure all of the

jumpers and switch are in factory default positions.

Jumper/Switc

h Description Setting

JP1

LVDS +3.3V/+5V/+12V Voltage Selection

Default: +3.3V Level 2-4 Close

Restore BIOS Optimal Defaults

Default: Normal Operation 3-5 Close

SSW1 Auto Power On

Default: Disable 1-2 Close

Note: Please contact your local vendors if any damaged or missing items. DO

NOT apply power to the board if there is any damaged component.

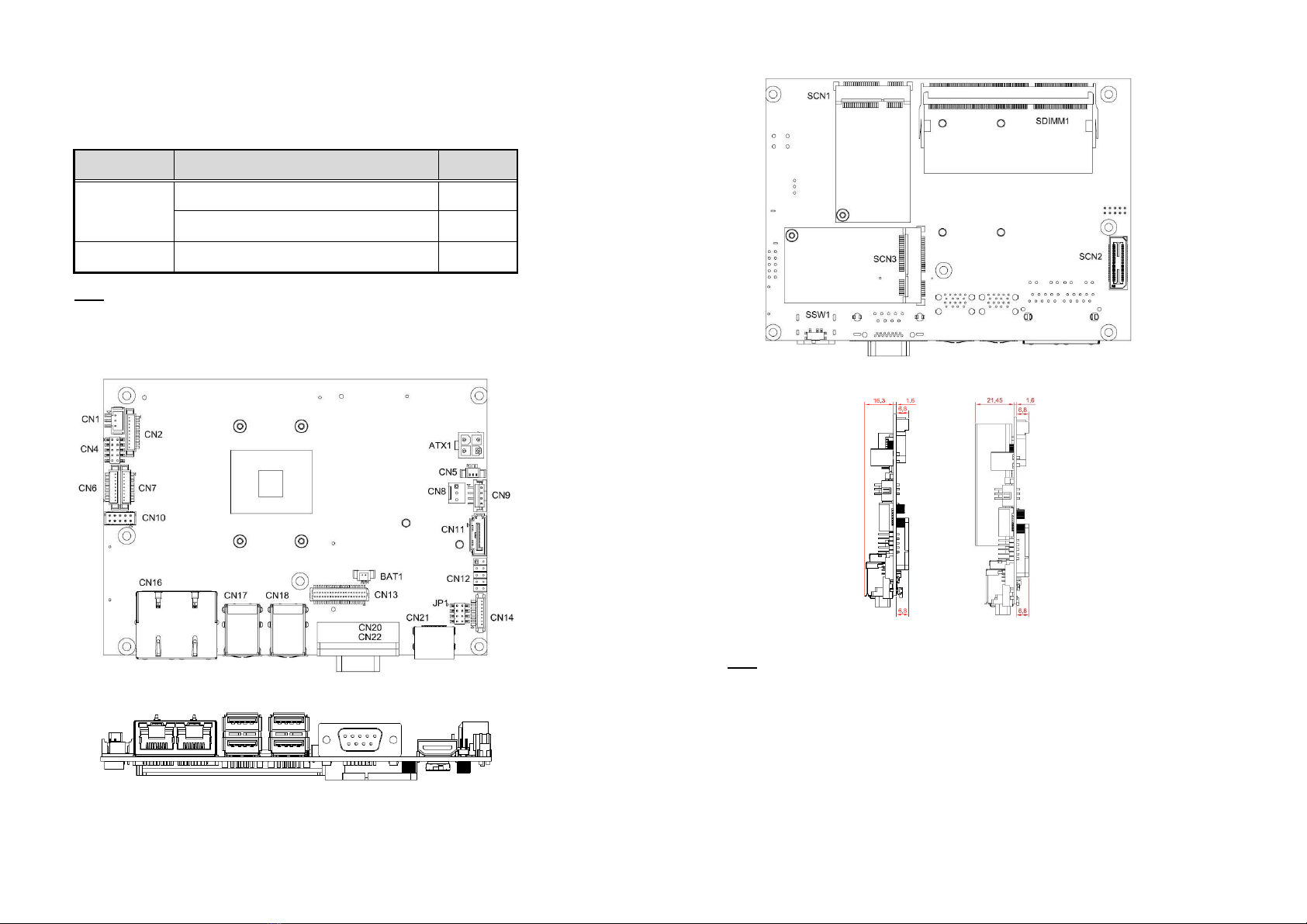

Board Layout

Top View

Side View

9418E313000E 3

Version A1 une 2018

Printed in Taiwan

Bottom View

Side View

Note: Please refer to the CAPA313 series product information CD for the

complete user’s manual, drivers and utilities. User’s manual and related

documents are in Acrobat PDF format.
