Axis 1650 Handbuch

ENGLISH FRANCAIS DEUTSCH ESPAÑOL

ITALIANO

AXIS 1650

Print Server

Set-up Instructions

ENGLISH FRANCAIS DEUTSCH ESPAÑOL

ITALIANO

AXIS 1650 Set-up Instructions Page3

ENGLISH

AXIS 1650 Set-up Instructions

Unpack box

Verify that you have all the items listed below:

Install Canon Printer Driver

Important: Please install the printer driver according to the manual that came with your Canon device. The

printer driver must be installed before continuing.

LPT1 Printer Connector

Ethernet Connector

External Power Supply

Connector Power Indicator USB Connector

Network

Indicator

•Network cable

•USB cable

•Mounting clip

•Power adapter

•AXIS 1650 CD

•AXIS 1650 Set-Up Instructions

Page 4 AXIS 1650 Set-up Instructions

Connect AXIS 1650

1. Make sure the Canon device is off and unplugged and that the AXIS 1650 external

power supply is disconnected.

2. Locate the serial number, found on the underside label of the AXIS 1650, and write it

down. You will need this number to configure the AXIS 1650.

3. Connect the AXIS 1650 to the Canon device. Please refer to the correct connection procedure below for

your Canon device.

Note: For Canon devices supporting both parallel and USB connections, select one of the

connection procedures below to connect the AXIS 1650.

Connect the AXIS 1650 to the USB port using the USB cable.

Product Name

Serial Number/MAC Address

Print Server Name

For CANON Devices with USB Port

AXIS 1650 Set-up Instructions Page5

ENGLISH

Connect the AXIS 1650 to the printer’s parallel port, the LPT port. Secure in place by pressing in

locking clips.

4. Connect AXIS 1650 to the Ethernet connector using a network cable.

5. Turn the Canon device on and wait for ready mode.

6. Connect AXIS 1650 to the external power supply connector using the power adapter.

The power indicator will light up. When the network indicator starts to flash, the AXIS

1650 is correctly connected to the network.

For CANON Devices with LPT Port

Page 6 AXIS 1650 Set-up Instructions

Mount the Print Server (USB only)

Important: Do not drill into the Canon device; the provided wall screw is an optional wall

mount. It is recommended that you do not leave the AXIS 1650 hanging from the Canon

device, please affix to the Canon device.

The mounting clip comes with 3 parts:

• Transparent plastic holder

• Transparent plastic clip

•Wallscrew

1. Peel off adhesive tape and fasten AXIS 1650 to the plastic holder. It is recommended

that the holder be affixed to the AXIS logo side of the AXIS 1650.

2. Peel off adhesive tape and fasten plastic clip to the Canon device.

It is recommended that the clip be affixed to the back side, upper right corner of the unit.

Wall Screw

Holder

Clip

For CANON MF-type Devices

AXIS 1650 Set-up Instructions Page7

ENGLISH

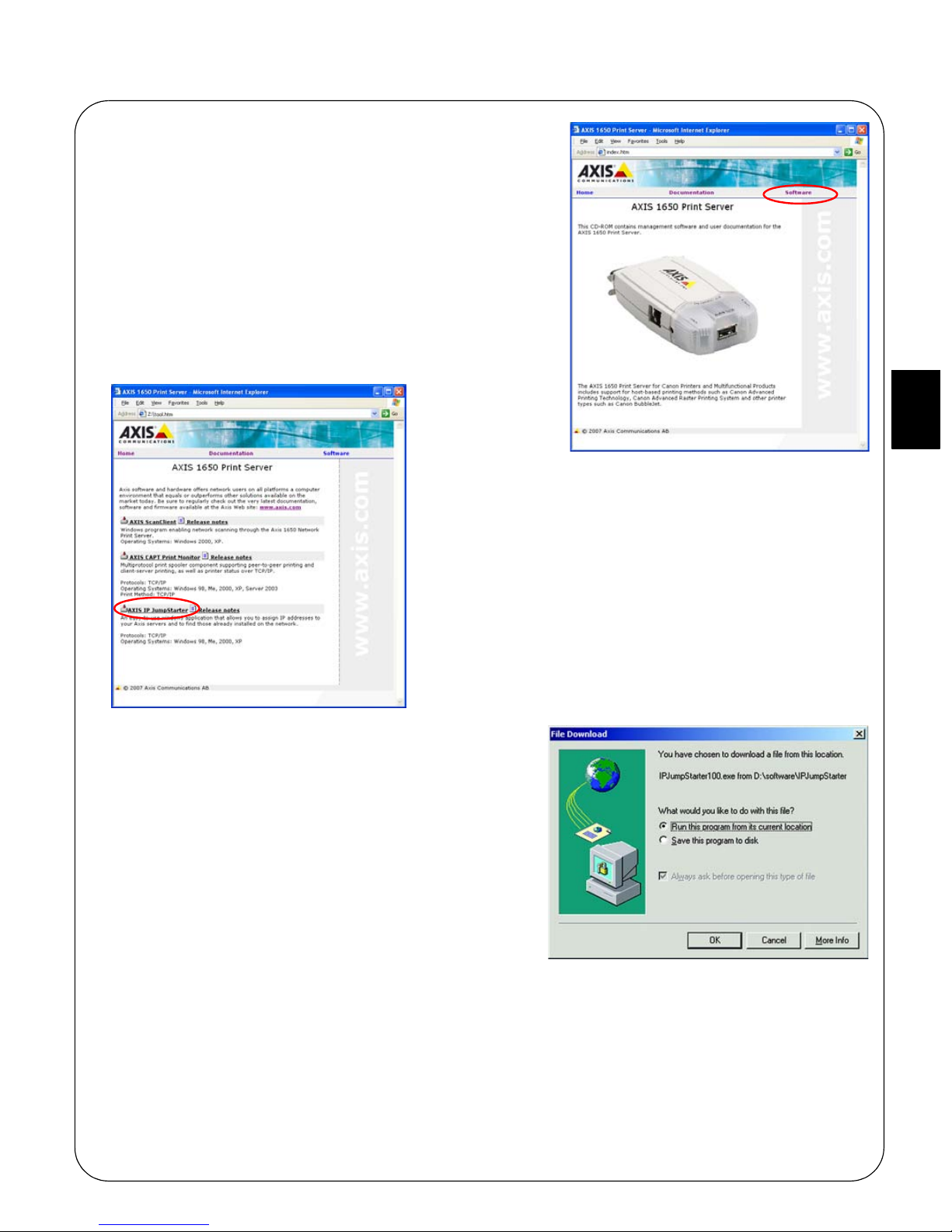

Assign IP Address

Install AXIS IP JumpStarter

1. Insert AXIS 1650 CD into CD drive.

2. An AXIS 1650 window will pop up. If auto-run is off, click on

My Computer and click on the AXIS 1650 CD and select

[Open].

3. Click the blue Software link on the upper right.

4. Click the blue AXIS IP JumpStarter link to install.

5. A File Download window will appear, select Run this

program from its current location radio-button and

click [OK].

6. AXIS IP JumpStarter Setup will appear, click

[Next].

7. To install in the default destination folder, click

[Next], otherwise select another destination

folder and continue.

8. A system requirement diagnostic will run to

ensure needs are sufficient, click [Next].

9. AXIS IP JumpStarter will install, once completed be sure to check the action Create a

shortcut to AXIS IP JumpStarter on your desktop. Click [Next], then [Finish].

Page 8 AXIS 1650 Set-up Instructions

Run AXIS IP JumpStarter

1. Open AXIS IP JumpStarter. Select the AXIS

1650 from the serial number list. All AXIS1650

appear with the default IP address 192.168.0.90.

If you are installing several AXIS 1650, check

the serial number to locate a specific AXIS

1650.

2. Select Server | Set IP Address and the Set IP

Address window appears.

3. Click the radio button that corresponds to your choice of IP setting method (static or

dynamic using DHCP). When assigning a static IP address you also have to define the

Subnet Mask and Default Gateway.

4. Click [OK] to save your settings.

5. You may be prompted to enter the server root password (by default set to <blank>), click

[OK] and the AXIS 1650 will appear in the list with the assigned IP address.

6. To verify that you have access to the AXIS 1650’s Web pages, highlight the AXIS 1650

in the list and select Server | Server Home Page.

AXIS 1650 Set-up Instructions Page9

ENGLISH

Install AXIS CAPT Print Monitor

Note: Prior to installing the latest version of AXIS CAPT Print Monitor, please uninstall any

previous versions of AXIS CAPT Print Monitor.

Note: CANON FAX-L400 can utilize Standard TCP/IP port in case of Windows 2000/XP/Server 2003. Refer to

the manual of the server regarding the installation.

1. Insert AXIS 1650 CD into CD drive.

2. An AXIS 1650 window will pop up. If auto-run is

off, click on My Computer and click on the AXIS

1650 CD and select [Open].

3. Click the Software link on the upper right.

4. Click the AXIS CAPT Print Monitor link to install.

5. A File Download window will appear, select Run this program from its current location and

click [OK].

6. CAPT Print Monitor will download. Once complete, click [Open]. If the dialog box closes,

locate the destination folder that CAPT Printer Monitor is saved to and open.

7. InstallShield Wizard will begin the CAPT Print Monitor Setup program. Click [Next].

8. Review the license agreement. If you agree and accept the terms, click [Yes].

Page 10 AXIS 1650 Set-up Instructions

9. For Windows XP/Server 2003/Vista:

Make sure that the block against the program is

removed in the Windows Firewall settings:

10. To start copying files, click [Next].

11. CAPT Print Monitor will be installed, once

completed click [Finish].

Set up port in Windows

This information applies to:

• Windows Vista

• Windows XP

• Windows Server 2003

• Windows 2000

1. Go to:

Windows Vista - Start | Control Panel | Hardware and

Sound | Printers.

Windows XP/2003 - Start | Settings | Printers and

Faxes.

Windows 2000 - Start | Settings | Printers.

Select the Canon device, right click and select Properties.

Select the Ports tab. Select [Add Port].

2. Select AXIS CAPT Port and click [New Port].
