AXIS 209FD/FD-R/FD-R M12

AXIS 209MFD/MFD-R/MFD-R M12

Installation Guide

AXIS 209FD/FD-R/FD-R M12/MFD/MFD-R/MFD-R M12 Installation Guide Page 3

ENGLISH

AXIS 209FD/FD-R/FD-R M12

AXIS 209MFD/MFD-R/MFD-R M12

Installation Guide

This installation guide provides instructions for installing the AXIS 209FD, AXIS 209FD-R,

AXIS 209FD-R M12, AXIS 209MFD, AXIS 209MFD-R and the AXIS 209MFD-R M12 on

your network. For all other aspects of using the product, please see the User’s Manual,

available on the CD included in this package, or from www.axis.com/techsup

Installation steps

1. Check the package contents against the list below.

2. Hardware overview. See page 4.

3. Install the hardware. See page 5.

4. Set an IP address. See page 7.

5. Set the password. See page 10.

6. Adjust the lens. See page 11.

7. Complete the installation. See page 12.

Package contents

Item Models/variants/notes

Fixed Dome Network camera AXIS 209FD

AXIS 209FD-R

AXIS 209FD-R M12

AXIS 209MFD

AXIS 209MFD 16MM

AXIS 209MFD-R

AXIS 209MFD-R M12

AXIS 209MFD-R M12/SPLIT

PoE Midspan Power over Ethernet midspan (1 port), including mains cable

(AXIS 209FD/AXIS 209FD-R/AXIS 209MFD/AXIS 209MFD-R)

(midspan not included in bulk pack)

Mounting kit Allen key (hex key) for tamper-proof cover screws

Silica gel sachet (AXIS 209FD-R/AXIS 209FD-R M12/AXIS 209MFD-R/AXIS

209MFD-R M12 only)

CD AXIS Network Video Product CD, including product documentation,

installation tools and other software

Printed Materials AXIS 209FD/FD-R/FD-R M12/MFD/MFD-R/MFD-R M12 Installation Guide (this

document)

Axis Warranty Document

Important!

This product must be used in

compliance with local laws

and regulations.

Page 4 AXIS 209FD/FD-R/FD-R M12/MFD/MFD-R/MFD-R M12 Installation Guide

Hardware overview

Dimensions

Diameter 1 = 102mm (4.02”), Diameter 2 = 100mm (3.94”)

Height = 39mm (1.54”)

Weight = 0.18 kg (0.40lb)

Front view

Rear view

Side view

Position of rear cable

exit (optional)

Base plate

Network cable with

model-specific

connector

Screw holes

∅102mm

∅100mm

39mm

AXIS 209FD/FD-R/FD-R M12/MFD/MFD-R/MFD-R M12 Installation Guide Page 5

ENGLISH

Install the hardware

Mount the camera

The AXIS 209FD/FD-R/FD-R M12/MFD/MFD-R/MFD-R M12 can be mounted with the cable

routed through the ceiling or from the side.

The AXIS 209FD/AXIS 209MFD is

supplied with a standard RJ-45 female

network connector, on a 2 meter cable.

The AXIS 209FD-R/AXIS 209MFD-R is

supplied with a 29mm female RJ-45

network connector on a 0.5 meter cable.

To protect the cabling against moisture

this connecter must be connected to a

suitable 29mm male connector.

The AXIS 209FD-R M12/AXIS 209MFD-

R M12 is supplied with a 21mm male

M12 D-code network connector on a 0.5

meter cable. To protect the cabling

against moisture this connecter must be

connected to a suitable 21mm female

connector.

1. Using the supplied allen/hex key,

loosen the 4 screws holding the

cover and remove it.

2. Use the base plate to mark out the positions for the mounting screws.

3. To route the cable through a ceiling, cut or drill the hole for the cable and connector.

For the AXIS 209FD/AXIS 209MFD - cut a 17mm hole.

For the AXIS 209FD-R/AXIS 209MFD-R - cut a 30mm hole.

For the AXIS 209FD-R M12/AXIS 209MFD-R M12 - cut a 22mm hole.

-or-

For a surface mounted cable, cut out the cable exit hole at the rear of the cover

!IMPORTANT! - The casing of the AXIS 209FD/AXIS 209MFD is not approved

for outdoor use and may only be installed in indoor environments.

The AXIS 209FD-R/AXIS 209FD-R M12/AXIS 209MFD-R/AXIS 209MFD-R

M12 is rugged and can be used in humid environments such as mass transit

vehicles.

Page 6 AXIS 209FD/FD-R/FD-R M12/MFD/MFD-R/MFD-R M12 Installation Guide

4. Connect the network cable. If

PoE is not supported by the

network switch, use the

supplied PoE midspan/power

injector to connect power to

the AXIS 209FD, AXIS 209FD-

R, AXIS 209MFD, AXIS

209MFD-R.

5. Check that the indicator LED:s

indicate the correct conditions.

See the table on page 14 for

further details.

6. Fasten the base plate to a flat

ceiling, using appropriate

screws/plugs.

Check that the base plate

completely covers the cable

hole, so that it is not visible

when the camera is in place.

Before replacing the cover, you should now make the final adjustment to the position of the

lens. This requires access to live images from the camera in your browser, so you should now

proceed as follows:

a) Assign an IP address - see step 4 on page 7.

b) Set the password - see step 5 on page 10.

c) Adjust the lens - see step 6 on page 11.

d) Complete the installation - see step 7 on page 12.

Network

cable with

connector

Indicator LEDs

Screw hole

Product ID & Serial

number (S/N) label

Screw hole

Control button

AXIS 209FD/FD-R/FD-R M12/MFD/MFD-R/MFD-R M12 Installation Guide Page 7

ENGLISH

Assign an IP address

To make it accessible on the network, the AXIS 209FD/FD-R/FD-R M12/MFD/MFD-R/MFD-

R M12 must be assigned an IP address.

Depending on the number of cameras you wish to install, the recommended method for

assigning IP addresses in Windows is either AXIS IP Utility or AXIS Camera Management.

Use the method that best suits your purpose.

Both of these free applications are available on the Axis Network Video Product CD supplied

with this product, or they can be downloaded from www.axis.com/techsup

Notes:

• If there is a DHCP server on your network the AXIS 209FD/FD-R/FD-R M12/MFD/MFD-R/MFD-R M12

will automatically receive a dynamic IP address, but this will not prevent manual setting of an

alternative address.

• The AXIS 209FD/FD-R/FD-R M12/MFD/MFD-R/MFD-R M12 has the default IP address 192.168.0.90

• If assigning the IP address fails, check that there is no firewall blocking the operation.

• For other methods of assigning or discovering the IP address, e.g. in other operating systems, see

page 13.

Method Recommended for Operating system

AXIS IP Utility

See page 8

Single camera

Small installations

Windows

AXIS Camera Management

See page 9

Multiple cameras

Large installations

Installation on a different subnet

Windows 2000

Windows XP Pro

Windows 2003 Server

Windows Vista

Page 8 AXIS 209FD/FD-R/FD-R M12/MFD/MFD-R/MFD-R M12 Installation Guide

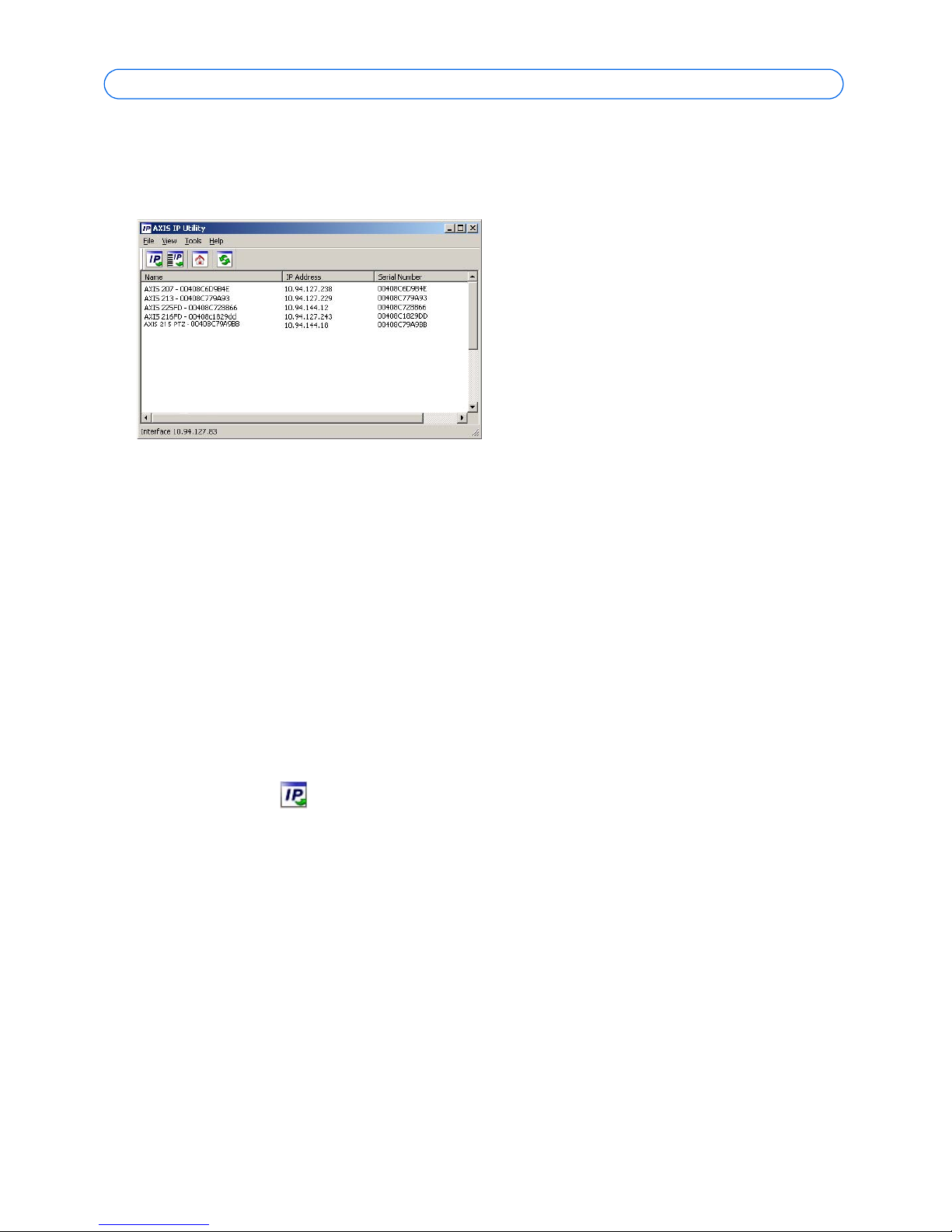

AXIS IP Utility - single camera/small installation

AXIS IP Utility automatically discovers and displays Axis devices on your network. The

application can also be used to manually assign a static IP address.

Note that the computer running AXIS IP Utility must be on the same network segment

(physical subnet) as the AXIS 209FD/FD-R/FD-R M12/MFD/MFD-R/MFD-R M12.

Automatic discovery

1. Check that the AXIS 209FD/FD-R/FD-R M12/MFD/MFD-R/MFD-R M12 is connected to

the network and that power has been applied.

2. Start AXIS IP Utility.

3. When the camera appears in the window, double-click it to open its home page.

4. See page 10 for instructions on how to assign the password.

Assign the IP address manually (optional)

1. Acquire an unused IP address on the same network segment as your computer.

2. Select the AXIS 209FD/FD-R/FD-R M12/MFD/MFD-R/MFD-R M12 in the list.

3. Click the button Assign new IP address to selected device and enter the IP address.

4. Click the Assign button and follow the instructions.

5. Click the Home Page button to access the camera’s web pages.

6. See page 10 for instructions on how to set the password.

AXIS 209FD/FD-R/FD-R M12/MFD/MFD-R/MFD-R M12 Installation Guide Page 9

ENGLISH

AXIS Camera Management - multiple cameras/large installations

AXIS Camera Management can automatically find and set IP addresses, show connection

status, and manage firmware upgrades for multiple Axis video products.

Set the IP address for a single device

1. Check that the camera is connected to the network and that power has been applied.

2. Start AXIS Camera Management. When the AXIS 209FD/FD-R/FD-R M12/MFD/MFD-R/

MFD-R M12 appears in the window, double-click it to open the camera’s home page.

3. See page 10 for instructions on how to set the password.

Set the IP address in multiple devices

AXIS Camera Management speeds up the process of assigning IP addresses to multiple

devices, by suggesting IP addresses from a specified range.

1. Select the devices you wish to configure (different models can be selected) and click the

Assign IP button.

2. Select Obtain IP addresses automatically (DHCP), click the Update button and the

program will search in the specified range and suggest an IP address for each device.

-or-

Enter the range of IP addresses, the subnet mask and default router that devices can use

and click the Update button.

Page 10 AXIS 209FD/FD-R/FD-R M12/MFD/MFD-R/MFD-R M12 Installation Guide

Set the password

When accessing the AXIS 209FD/FD-R/FD-R

M12/MFD/MFD-R/MFD-R M12 for the first

time, the ‘Configure Root Password’ dialog

will be displayed.

1. Enter a password and then re-enter it, to

confirm the spelling. Click OK.

2. Enter the user name root in the dialog as

requested.

Note: The default administrator user name root cannot be deleted.

3. Enter the password as set above, and click OK. If the password is lost, the

AXIS 209FD/FD-R/FD-R M12/MFD/MFD-R/MFD-R M12 must be reset to the factory

default settings. See page 14.

4. If required, click Yes to install AMC (AXIS Media Control), which allows viewing of the

video stream in Internet Explorer. You will need administrator rights on the computer to

do this.

The Live View page of the AXIS 209FD/FD-R/FD-R M12/MFD/MFD-R/MFD-R M12 is

displayed, with links to the Setup tools, which allow you to customize the camera.

Setup - Provides all the tools for configuring

the camera to requirements.

Help - Displays

online help on all

aspects of using

the camera.
