Axis Q60 Series Bedienungsanleitung

AXISQ60PTZNetworkCameraSeries

RepaintingInstructions

AXISQ60PTZNetworkCameraSeries

Impactonwarranty

ThisproductisapprovedforrepaintbyAxis,providedthatyoufollowtheinstructionsinthisdocumentandat

www.axis.com/warranty-implication-when-repainting

Riskswithrepainting

ThereareseveralriskswhendisassemblingorassemblinganAxisproduct.Thereisalwaysacertainyieldlossduringassembly.Training

ofoperatorsandtheuseofcorrecttoolsmediatessomeoftheproblemsbuttheycanneverbefullyavoided.Someoftherisksinclude:

ESDDamage-AlwayshandletheproductinanESDsafeenvironment.EvenifprecautionsaretakenthereisalwaysariskofESD

damage.Thedamagecanremainundetectedandcauseproblemsduringthelifetimeoftheeuipment.

Dustcontamination-Openingacameramayexposethelensandsensortodustorpaint.Dustwillaffecttheopticalperformance.

Lensesneedtobedisassembledinadust-freeenvironment,preferablyacleanroom.

Paintoverspray-Maskingthedifferentcomponentsoftheeuipmentiscritical.Failuretomasksensitiveareascancauseproblems

withassemblingtheeuipment.Anyareasthatarenotpaintedatfactoryorhaveadifferentsurfacetreatmentthantherestofthe

parts(threads,groundandelectricalcontactsurfaces)mustalsobemaskedtoensurefunction.

AXISQ60PTZNetworkCameraSeries

Repainttheproduct

Preparations

•Disassemblethedeviceaccordingtotheinstructionsinthisdocument.

•Cleanallpartstoberepaintedthoroughlytoremovegrease,dust,oroil.

•Toensurereassemblyandfunctionalityoftheproduct,maskanyopeningsbeforeyoupaint.

Pretreatmentofparts

Dependingonthepartmaterialandtypeofpaintappliedatfactory,differentpretreatmentshouldbedoneforthenewpaintto

adhereaswellaspossible.Cleanthepartsproperlytoremoveoil,greaseanddust.

Formoreinformationonthematerialsusedintheproduct,seeitsdatasheetatwww.axis.com

Powdercoatedparts-Useaprimer.Alternatively,removetheoriginalpowdercoatingdowntothebasematerial,usingne

sandpaper,andcleanthepartsbeforepainting.

Anodisedandchromatedparts-Useaprimer.

Uncoatedstainlesssteel-Nospecialpretreatmentisneeded,butmakesurethatthesurfaceiscleanbeforepainting.

Plastic-Useaprimer.

Disassemby

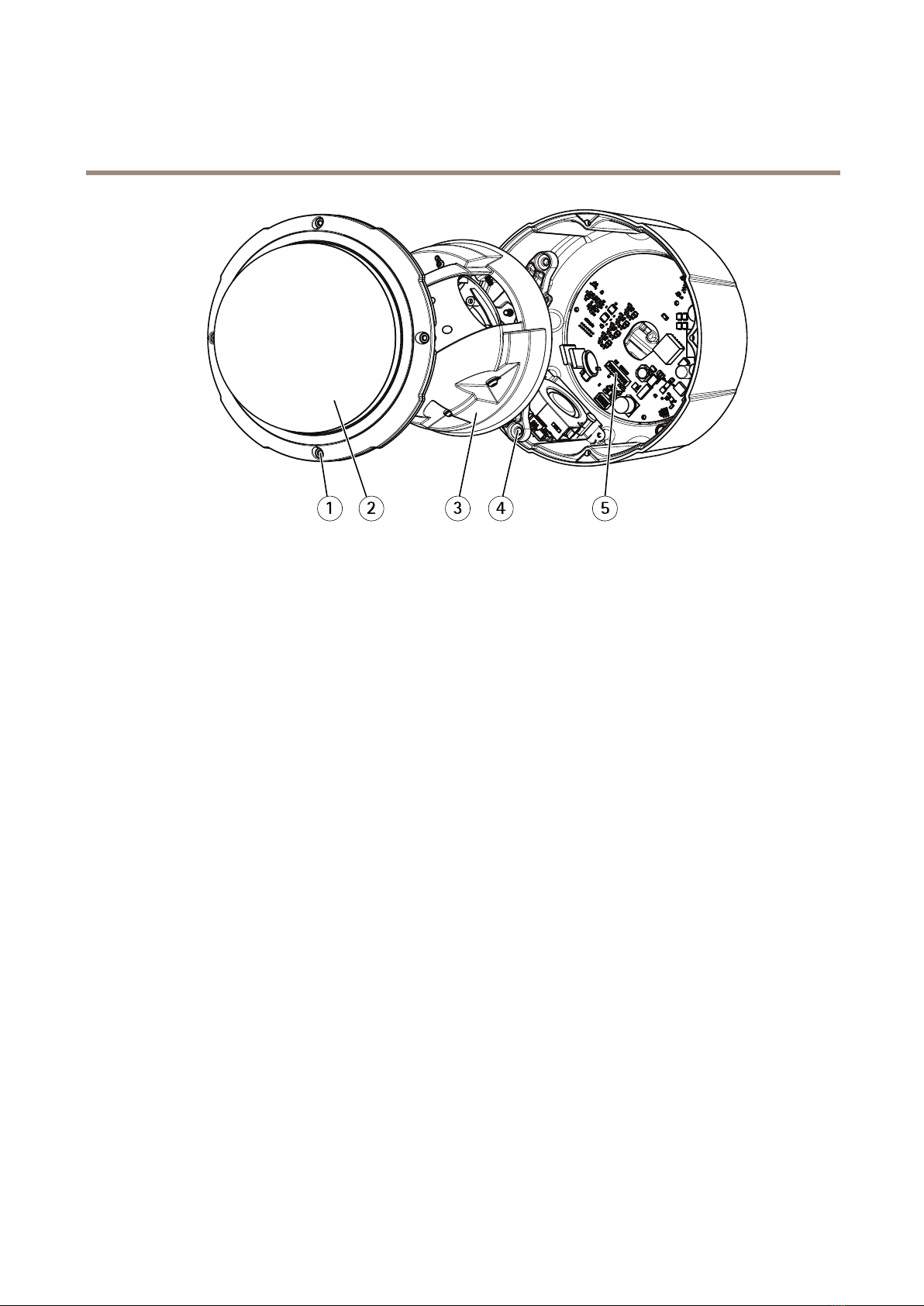

Chassis

1Antilossscrew

2Domeassembly

3Cameraassembly

4Screw

5Powerconnector

1.Loosenthefourantilossscrewsandremovethedomeassemblyfromthecamera.

AXISQ60PTZNetworkCameraSeries

Repainttheproduct

2.Loosenthethreescrewsthatholdthecameraassembly.

3.Liftupthecameraassemblyandremovetheconnectorfromthepowercircuitboard.

1avespring

2asher

3Bayonetscrew

4Spring

5Safetyhook

6Screw

7Cablegasket

8Cableholder

9Screw

10Gasket

11Lidassembly

12Antilossscrew

4.Removethetwobayonetscrewswithwashersandwavesprings.

5.Removethescrew,thesafetyhook,andthespring.

6.Removethescrewandthetwocableholders.

7.Loosenthethreeantilossscrewsandremovethelidassemblyandthegasket.

8.Removethecablegasket.

AXISQ60PTZNetworkCameraSeries

Repainttheproduct

Dome

1Screw

2Domebracket

3Dome

4Domering

5Antilossscrew

6Compassring

1.Removethefourantilossscrewsfromthedomering.

2.Removethefourscrews,thedomebracketandthedome.

3.Snapthecompassringofthedomering.

Lid

1Screw

2Lid

3Bayonetscrew

4asher

5avespring

1.Removethethreescrewsfromthelid.

2.Removethebayonetscrewwithwasherandwavespring.

AXISQ60PTZNetworkCameraSeries

Repainttheproduct

Masking

Chassis

1.Maskallscrewholes.

2.Masktheopeningthatwascoveredbythelidassembly.

3.Masktheentireopeninginthebottomofthechassis.Nopaintisallowedinsidethechassis.

Dome

1.Maskthedomegasket.

2.Maskallscrewholes.

Lid

1.Maskallscrewholes.

2.Maskthebottomsideofthelid.

Repainting

1.Makesureallnecessarypreparationsofthechassis,thedome,andthelidhavebeenmade,seePreparationsonpage3.

2.Applyathinandevenlayerofspraypaintaccordingtotheinstructionsofthepaintmanufacturer.

3.Letthepaintdry.

4.Togetabettercoverageandclearercolor,applyasecondlayerofspraypaint.

5.Whenthepaintisdry,removethemasking.

AXISQ60PTZNetworkCameraSeries

Repainttheproduct

Reassemby

Dome

1Screw

2Domebracket

3Dome

4Domering

5Antilossscrew

6Compassring

1.Orientthecompassringasshownbelowandsnapitontothedomering.

2.Orientthedomebracketasshownbelowandassemblethedomebracketandthedomewiththefourscrews.Tighten

thescrewswith0.5Nm(0.4lbft)torue.

3.Fitthefourantilossscrewsbackinthedomering.

Lid

1Screw

AXISQ60PTZNetworkCameraSeries

Repainttheproduct

2Lid

3Bayonetscrew

4asher

5avespring

1.Assemblethebayonetscrewwithwasherandwavespring.Tightenthescrewswith1.8Nm(1.3lbft)torue.

2.Fitthethreescrewsbackinthelidassembly.

Chassis

1avespring

2asher

3Bayonetscrew

4Spring

5Safetyhook

6Screw

7Cablegasket

8Cableholder

9Screw

10Gasket

11Lidassembly

12Antilossscrew

1.Pushthecablegasketintotheslot.

2.Putbackthecableholdersandthescrew.

3.Putbackthegasketandthelidassembly.Tightentheantilossscrewswith0.4Nm(0.3lbft)torue.

4.Putbackthespring,thesafetyhook,andthescrew.

5.Screwinthetwobayonetscrewswithwashersandwavesprings.Tightenthescrewswith1.8Nm(1.3lbft)torue.

AXISQ60PTZNetworkCameraSeries

Repainttheproduct

1Antilossscrew

2Domeassembly

3Cameraassembly

4Screw

5Powerconnector

6.Connectthecameraassemblytothepowercircuitboard.

7.Putbackthecameraassemblyandthethreescrews.Tightenthescrewswith4Nm(3lbft)torue.

8.Putbackthedomeassembly.Tightentheantilossscrewswith4Nm(3lbft)torue.

RepaintingInstructionsVer.M3.3

AXISQ60PTZNetworkCameraSeriesDate:October2019

©AxisCommunicationsAB,2017-2019PartNo.T10096845
