AXIS Q6045-E Mk II and Q6055-E

This Standard Operating Procedure is to provide a standard configuration for CCTV cameras in

District 5 for consistent operation in SunGuide, VLC and IVEDDS. Standard settings to check:

Network settings, Video/Encoder settings, SNTP (time server type), IP addresses, PTZ settings,

Date and Time, RTSP port, NTCIP (port and address), and On Screen Display (ODS).

CCTV cameras are shipped in an unknown state. In order to be uniform with a clean installation,

the camera has to be set to a factory default state. A reset to factory default will reset all

settings, including the IP address to the factory default values. Resetting a camera to factory

default should be used with caution.

The following SOP is for the AXIS Q6045-E Mk II and Q6055-E IP cameras.

To set the camera to a default state do the following.

1. Remove the protective dome on the camera. Take great caution when removing the

dome.

2. Gently place the camera on its side to expose the power button (#4) and the control

button (#7). See diagram of hardware below.

3. Connect the special shielded Ethernet cable from the midspan (PoE injector/ power

supply) DATA & Power OUT port to the camera.

4. Connect the AC power cord to the midspan.

5. Power up the camera with the appropriate power source (i.e. AC, DC, midspan PoE

injector/power supply).

6. Press and hold the control button (#7) and the power button (#4) for about 15-30

seconds until the status LED indicator flashes amber.

7. Release the control button (#7) but continue to hold down the power button (#4) until

the status LED indicator turns green.

8. Release the power button (#4) and turn OFF camera. Re-assemble the camera.

SOP for CCTVs in SunGuide

SOP for CCTVs in SunGuide

After reassembling the camera, use a laptop to configure the camera.

Connect an Ethernet cable from the laptop Ethernet port to the DATA IN port on the

midspan (PoE injector/ power supply) provided.

Connect the special shielded Ethernet cable from the midspan (PoE injector/ power

supply) DATA & Power OUT port to the camera.

Connect the AC power cord to the midspan.

Apply on Power to the camera.

Once the camera is powered and the camera is in factory default state. The default IP address

for the camera is 192.168.0.90.

Log into the camera, using Internet Explorer or Chrome to access the camera’s user interface.

Type in the default IP address.

SOP for CCTVs in SunGuide

Click on Setup.

Enter the following and Log in:

Default user name: <Call ITS staff>

Default password: <Call ITS staff>

SOP for CCTVs in SunGuide

Install Firmware.

Click on “System Options”.

Click on “Maintenance”.

Upgrade Firmware: <Choose File>

Click on “Upgrade”.

Click on “Restart”.

Look for this Firmware version or a newer version with NTCIP in the name description.

SOP for CCTVs in SunGuide

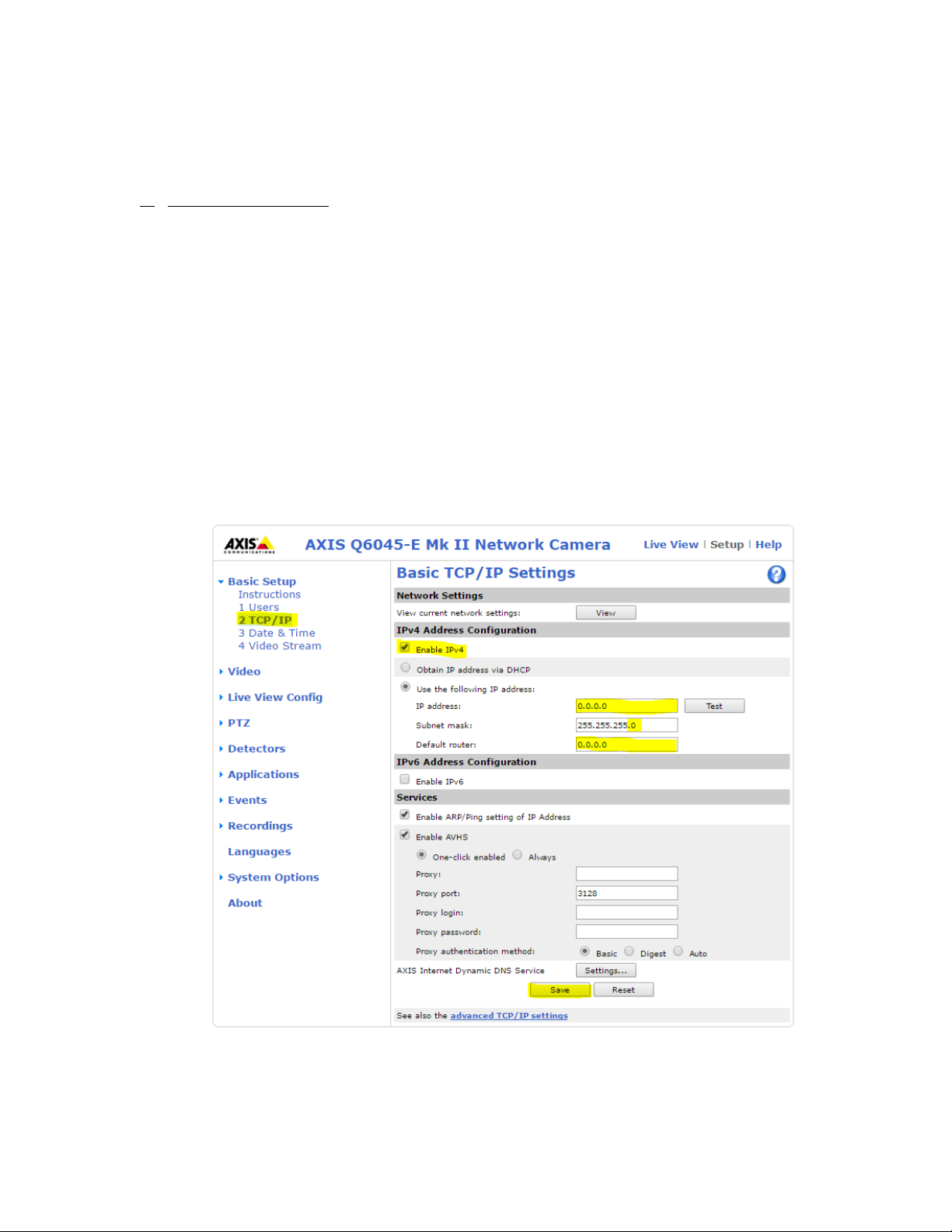

1. Basic TCP/IP settings:

Click on “2 TCP/IP”.

Set the following parameters for the Network.

IPv4 is enabled: <check box>

IP address: <10.32.X.X>

Subnet mask: <255.255.255.X>

Gateway (Default router): <10.32.X.X>

Click SAVE.

SOP for CCTVs in SunGuide

NOTE: Click SAVE after every configuration setting for that window before moving to the

next menu item.

2. System Options settings:

Click on “System Options”.

Click on the “Add…” button.

SOP for CCTVs in SunGuide

Set the following parameters for User Setup.

User name: <fdot>

Password: <Call ITS for password>

Confirm password: <Call ITS for password>

Enable PTZ control: <check the box>

Select User group: <Administrator>

Click “OK”.

SOP for CCTVs in SunGuide

Click on “System Options”.

Click on “Network”.

SOP for CCTVs in SunGuide

Click on “Advanced”.

Check the following settings.

NTP Configuration: < (Enter IP address of NTP server 10.32.0.22)>

FTP Enable: <check the box>

RTSP Enable: <check the box>

RTSP port: <554>
