Axis Q6225-LE Bedienungsanleitung
AXISQ6225-LEPTZCamera
RepaintingInstructions
AXISQ6225-LEPTZCamera
Impactonwarranty
Impactonwarranty
ThisproductisapprovedforrepaintbyAxis,providedthatyoufollowtheinstructionsinthisdocumentandat
axis.com/warranty-implication-when-repainting.
Riskswithrepainting
ThereareseveralriskswhendisassemblingorassemblinganAxisproduct.Thereisalwaysacertainyieldlossduringassembly.Training
ofoperatorsandtheuseofcorrecttoolsmediatessomeoftheproblemsbuttheycanneverbefullyavoided.Someoftherisksinclude:
ESDDamage-AlwayshandletheproductinanESDsafeenvironment.EvenifprecautionsaretakenthereisalwaysariskofESD
damage.Thedamagecanremainundetectedandcauseproblemsduringthelifetimeoftheeuipment.
Dustcontamination-Openingacameramayexposethelensandsensortodustorpaint.Dustwillaffecttheopticalperformance.
Lensesneedtobedisassembledinadust-freeenvironment,preferablyacleanroom.
Paintoverspray-Maskingthedifferentcomponentsoftheeuipmentiscritical.Failuretomasksensitiveareascancauseproblems
withassemblingtheeuipment.Anyareasthatarenotpaintedatfactoryorhaveadifferentsurfacetreatmentthantherestofthe
parts(threads,groundandelectricalcontactsurfaces)mustalsobemaskedtoensurefunction.
2
AXISQ6225-LEPTZCamera
Repaintteproduct
Repaintteproduct
Preparations
•Ifapplicable,disassemblethedeviceaccordingtotheinstructionsinthisdocument.
•Cleanallpartsthatwillberepaintedthoroughlytoremovegrease,dust,oroil.
•Toensurereassemblyandfunctionalityoftheproduct,maskanyopenings(forexampleforscrews,LEDindicators,
ormicrophones)beforeyoupaint.
Pretreatmentofparts
Dependingonthepartmaterialandtypeofpaintappliedatfactory,differentpretreatmentshouldbedoneforthenewpaintto
adhereaswellaspossible.Cleanthepartsproperlytoremoveoil,greaseanddust.
Powdercoatedparts-Useaprimer.Alternatively,removetheoriginalpowdercoatingdowntothebasematerial,usingne
sandpaper,andcleanthepartsbeforepainting.
Anodisedandchromatedparts-Useaprimer.
Uncoatedstainlesssteel-Nospecialpretreatmentisneeded,butmakesurethatthesurfaceiscleanbeforepainting.
Plastic-Useaprimer.
aterialusedinproduct
ThematerialusedintheproductisInterponD2015.
Disassembly

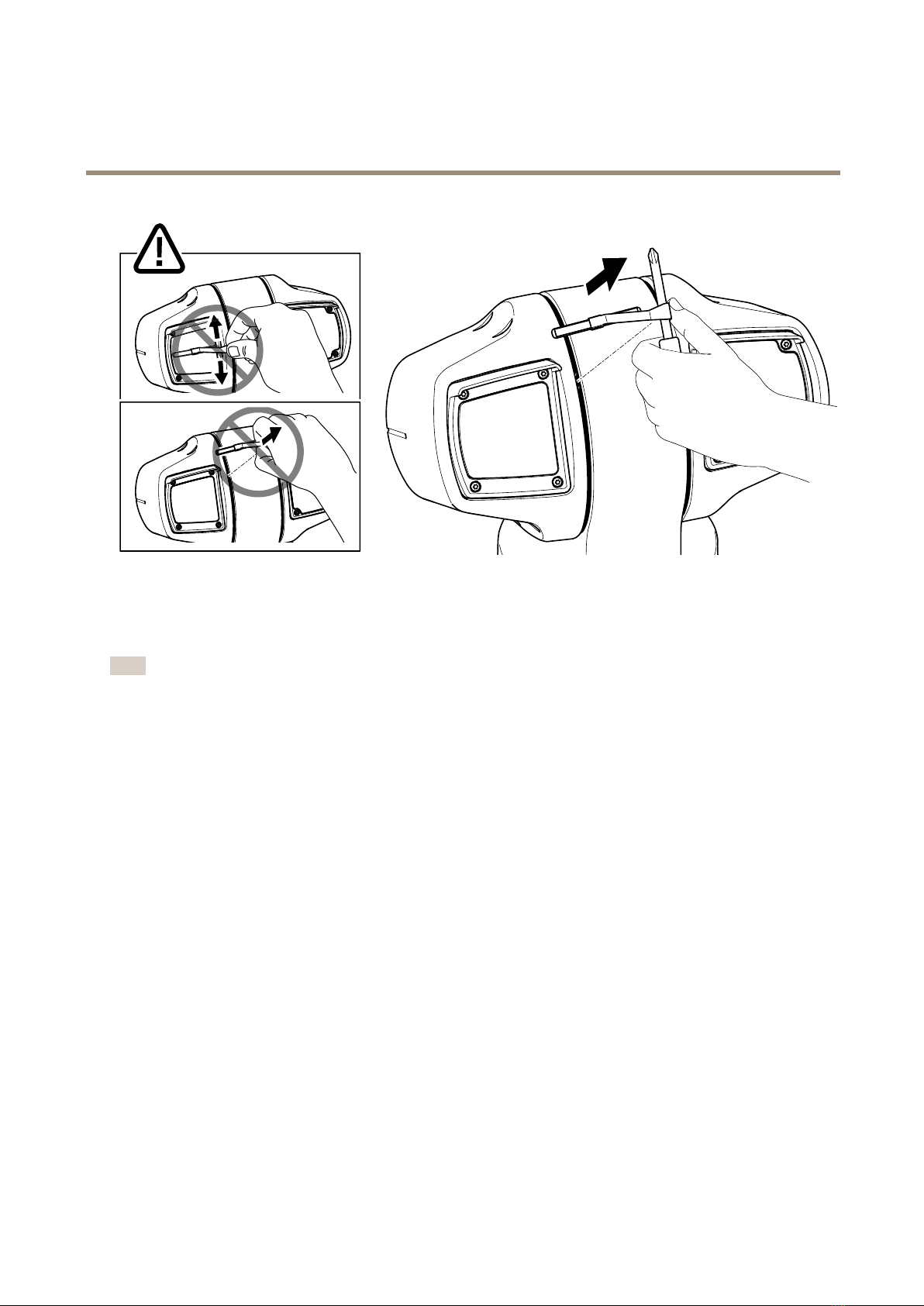

1.Insertascrewdriverunderthewiperandpushitasclosetothefasteningaspossible.Pullthewiperstraightout
toremoveit.
AUTION
•Pullingonthewiperarmwillbendthewiperarm.
•Pushingthewiperacrossthewindowwilldamagethewipermotor.
3
AXISQ6225-LEPTZCamera
Repaintteproduct
2.Unscrewthefourscrewsfromthemainwindow.
3.Disconnecttheheaterconnector.
Note
•Carefullyliftoutthemainwindowbeforedisconnectingtheheaterconnector.
•Donottouchthecircuitboardontheinsideofthewindow.
4
AXISQ6225-LEPTZCamera
Repaintteproduct
4.UnscrewthefourscrewsfromtheIRwindowandremovetheIRwindow.
5.Removethescrewsandwashersfromthefoot.
5
AXISQ6225-LEPTZCamera
Repaintteproduct
6.RemovetheSDcardcover.
Repainting
asking
Maskthefollowingparts:
•TheIRwindow
•Themainwindow
•Thecontrolbutton
•Thescrewholesinthefoot
•TheSDcardslot
•TheIRwarninglabel
•TheAxislogo
6
AXISQ6225-LEPTZCamera
Repaintteproduct
Repaintingtheparts
RepaintthecameraunitandtheSDcardcover.
1Cameraunit
2SDcardcover
1.Applyathinandevenlayerofspraypaintaccordingtotheinstructionsofthepaintmanufacturer.
2.Letthepaintdry.
3.Togetabettercoverageandclearercolor,applyasecondlayerofspraypaint.
4.Whenthepaintisdry,removethemasking.
7
AXISQ6225-LEPTZCamera
Repaintteproduct
Reassembly
1.Assemblethescrewsandthewasherswiththefoot.
2.PuttheSDcardcoverbackinitsplace.
3.Connecttheheaterandassemblethemainwindow.
4.AssembletheIRwindow.

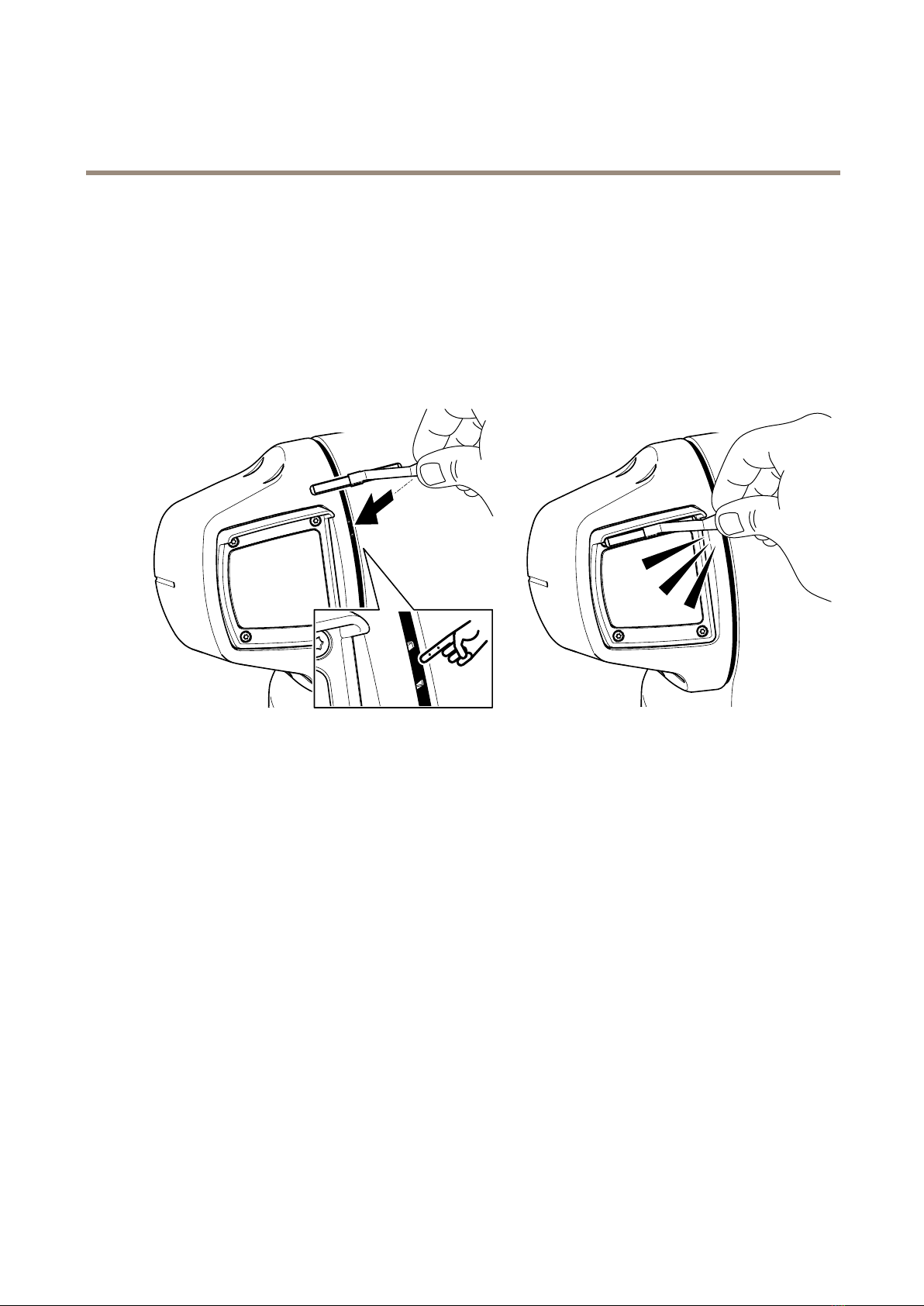

5.Pushthewiperintotheholder.
8
RepaintingInstructionsVer.M1.6
AXISQ6225-LEPTZCameraDate:July2022
©AxisCommunicationsAB,2022PartNo.T10180640
