Axor 46020007 Bedienungsanleitung

INSTALLATION

ZH / 用户手册  ⁄  组装说明  02

EN / Instructions for use ⁄ assembly instructions 03

Lesezeichen

中文 02

English 03

AXOR Edge

46020007 ⁄ 46021007

安装 (参见第页 04)

安全技巧

 装配时为避免挤压和切割受伤，必须戴上手套。

 本产品只允许作为洗浴、卫生和洁身之用。

 冷热水管间过大的压力差必须予以平衡。

安装提示

⁄ 安装前必须检查产品是否受到运输损害。 安装后

将不认可运输损害或表面损伤。

⁄ 管道和阀门必须根据通用标准进行安装、冲洗和

检查。

⁄ 请遵守当地国家现行的安装规定。

⁄ 只能按规定使用溢流阀。禁止将半露柱及其他部

件固定到溢流阀上。

⁄ 如果使用即热式热水器时出现问题，或要求更大

的水流量，可以把位于水波器后面的 EcoSmart®（

流量限制器）拆除。

技术参数

本龙头配有 EcoSmart®（流量限制器）

工作压强：  最大 1 MPa 

推荐工作压强：  0,1 - 0,5 MPa 

测试压强：  1,6 MPa 

(1 MPa = 10 bar = 147 PSI) 

热水温度：  最大 70°C 

推荐热水温度：  65°C 

热力消毒:  最大 70°C ⁄ 4 分钟

该产品专为饮用水设计！

符号说明

请勿使用含有乙酸的硅胶！

调节 (参见第页 05)

热水温度调节。如果使用即热式喷头，则不

建议安装热水阀门。

大小 (参见第页 07)

流量示意图 (参见第页 07)

 带有 EcoSmart®

 无 EcoSmart®

备用零件 (参见第页 10)

清洗 (参见第页 10)

操作 (参见第页 06)

汉斯格雅建议，清晨或在水流长时间停滞

后，前半升水不作饮用水使用。

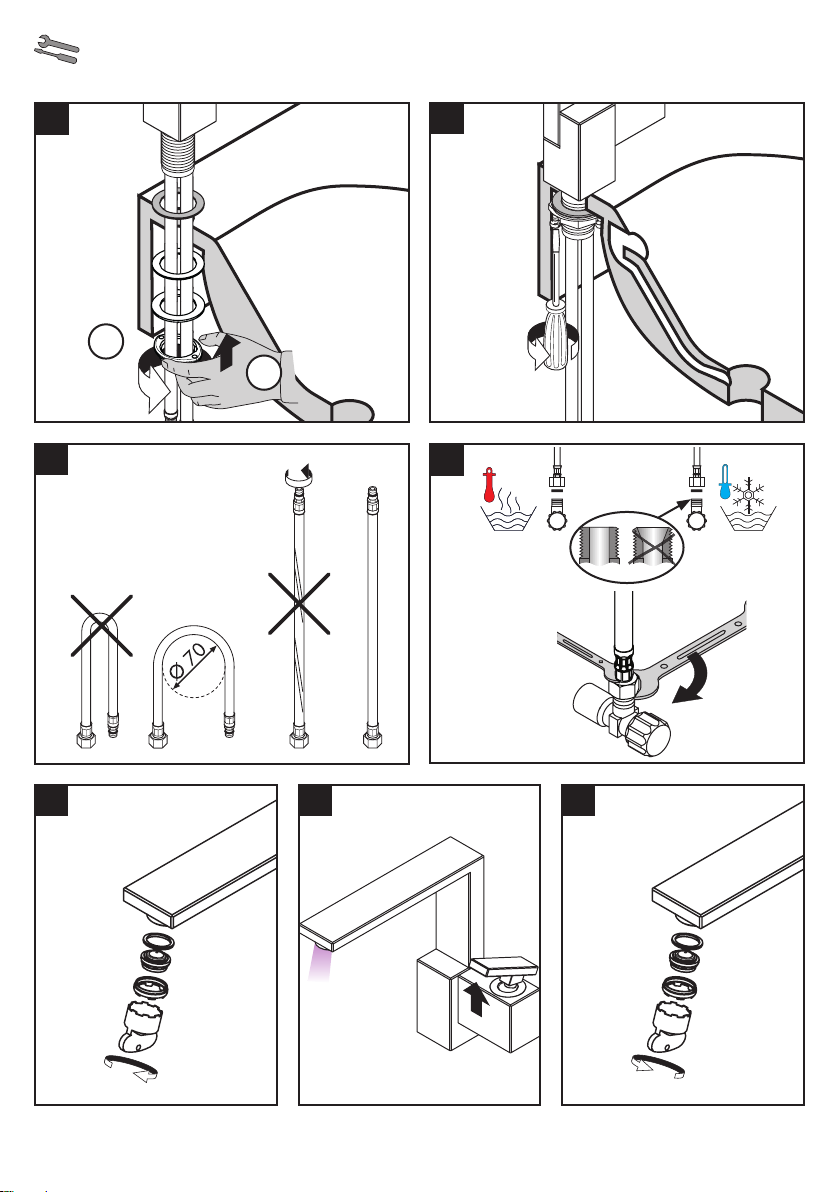

ASSEMBLY (see page 04)

SAFETY NOTES

Gloves should be worn during installation to prevent

crushing and cutting injuries.

The product may only be used for bathing, hygienic

and body cleaning purposes.

The hot and cold supplies must be of equal pressures.

INSTALLATION INSTRUCTIONS

⁄ Prior to installation, inspect the product for transport

damages. After it has been installed, no transport or

surface damage will be honoured.

⁄ The pipes and the ﬁxture must be installed, ﬂushed and

tested as per the applicable standards.

⁄ The plumbing codes applicable in the respective

countries must be observed.

⁄ The drain valve must only be used as intended. It is not

allowed to attach other objects to the drain valve, for

example a semi-pedestal.

⁄ If the instantaneous water heater causes problems or if

you wish to increase the water ﬂow, the EcoSmart®

(ﬂow limiter) located behind the aerator can be

removed.

TECHNICAL DATA

This mixer series-produced with EcoSmart® (ﬂow limiter)

Operating pressure: max. 1 MPa

Recommended operating pressure: 0,1 - 0,5 MPa

Test pressure: 1,6 MPa

(1 MPa = 10 bar = 147 PSI)

Hot water temperature: max. 70°C

Recommended hot water temp.: 65°C

Thermal disinfection: max. 70°C ⁄ 4 min

The product is exclusively designed for drinking water!

SYMBOL DESCRIPTION

Do not use silicone containing acetic acid!

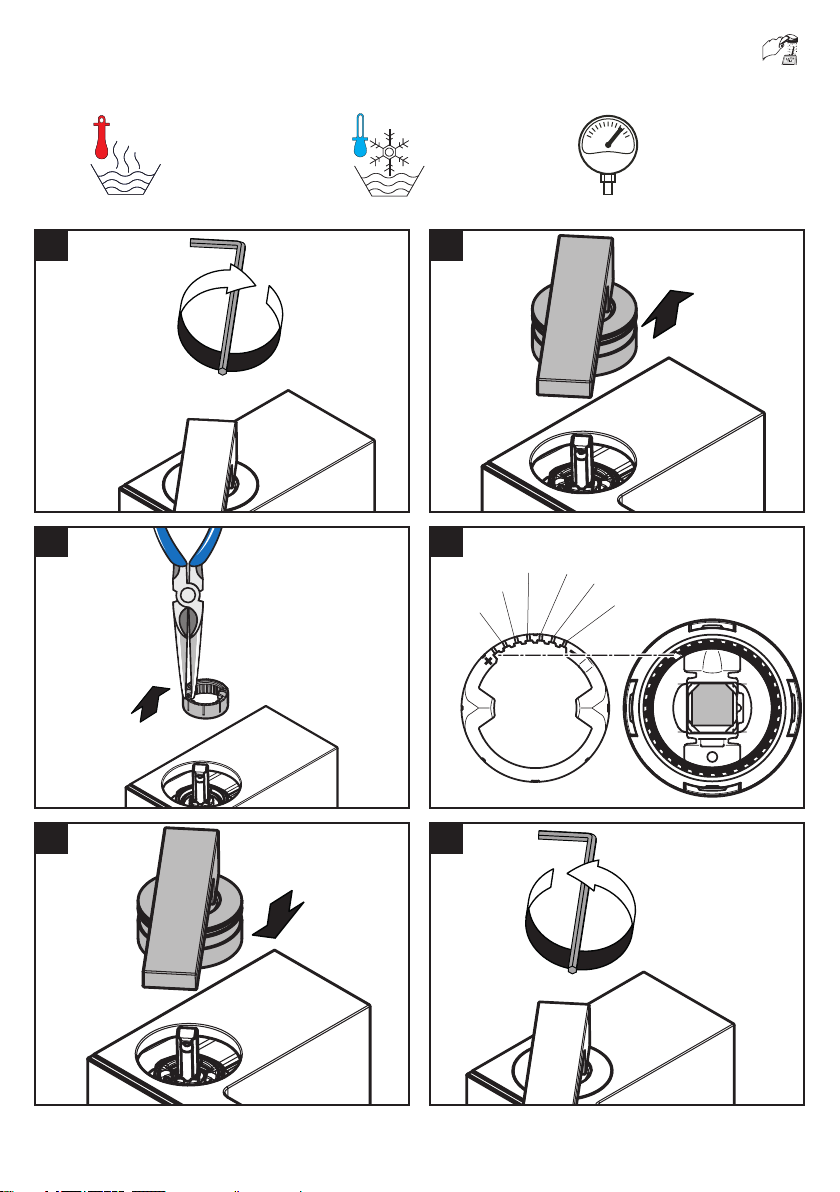

ADJUSTMENT (see page 05)

To adjust the hot water limiter. Using a hot water

limiter in combination with a continuous ﬂow

water heater is not recommended.

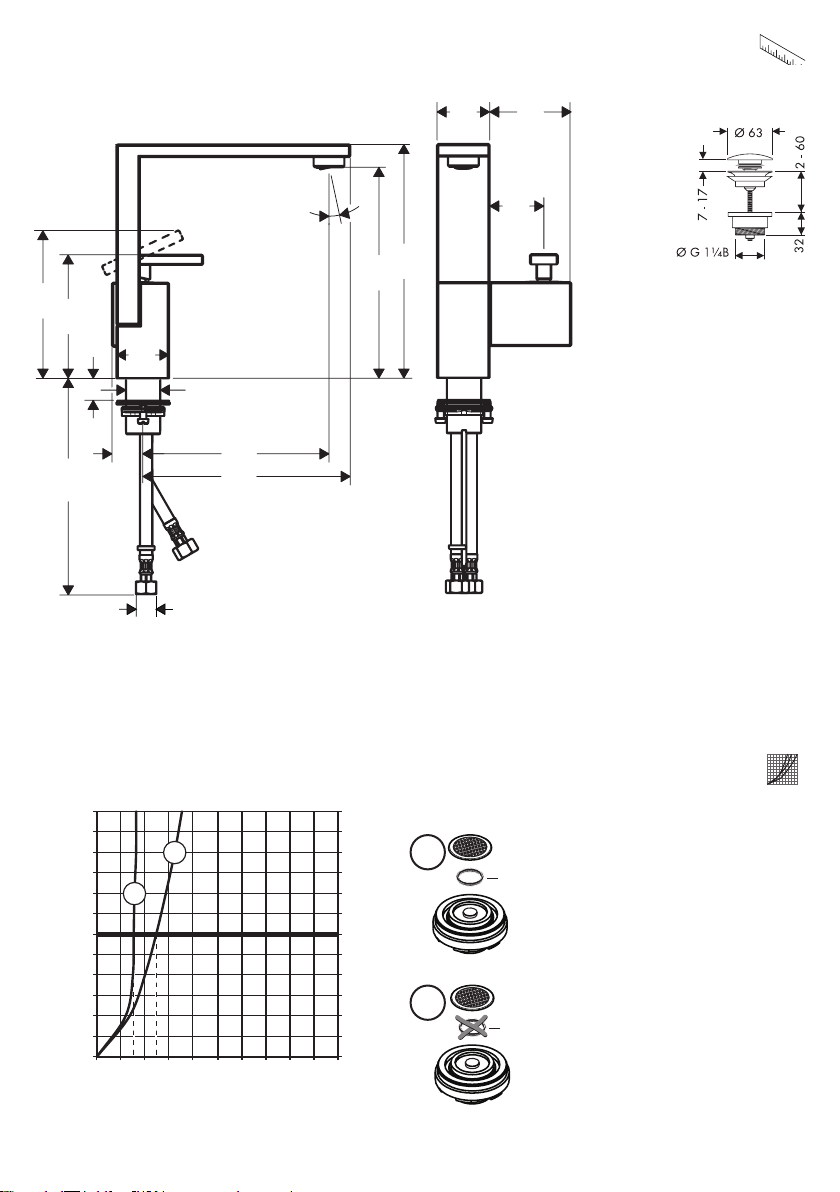

DIMENSIONS (see page 07)

FLOW DIAGRAM (see page 07)

with EcoSmart®

without EcoSmart®

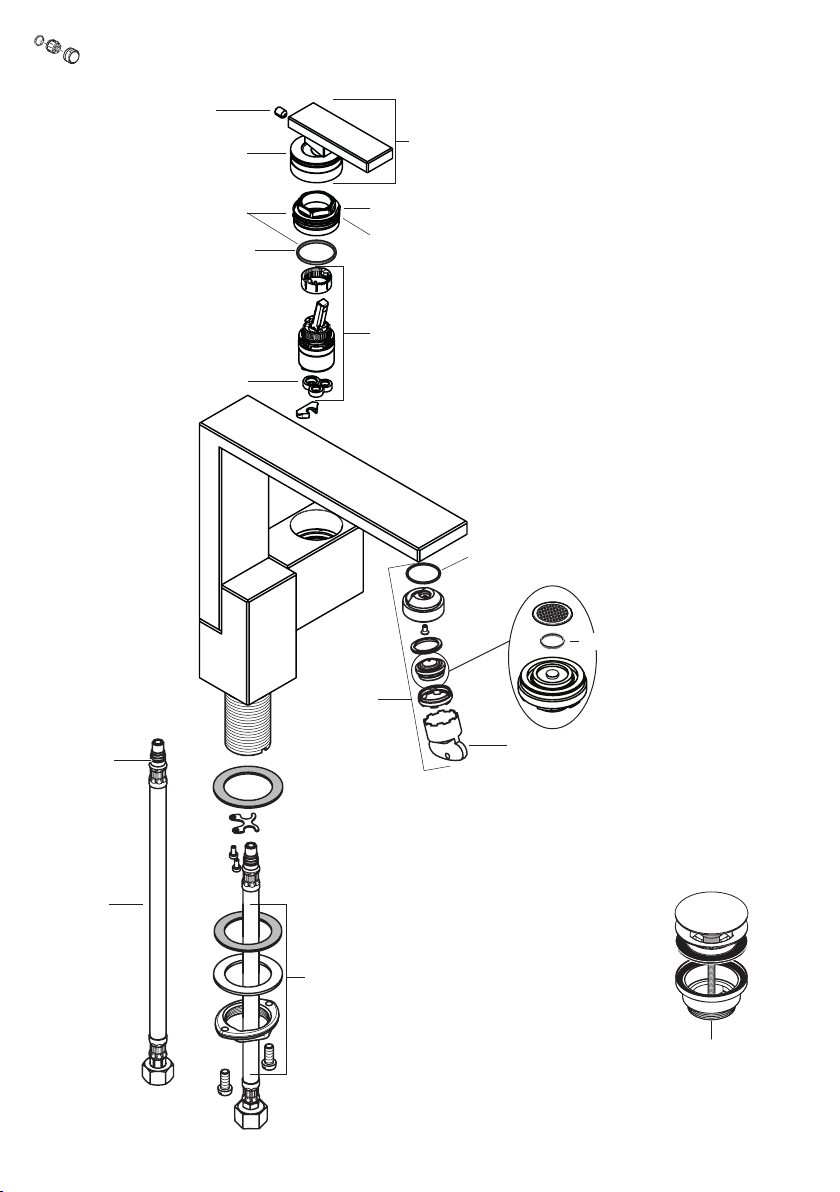

SPARE PARTS (see page 10)

CLEANING (see page 10)

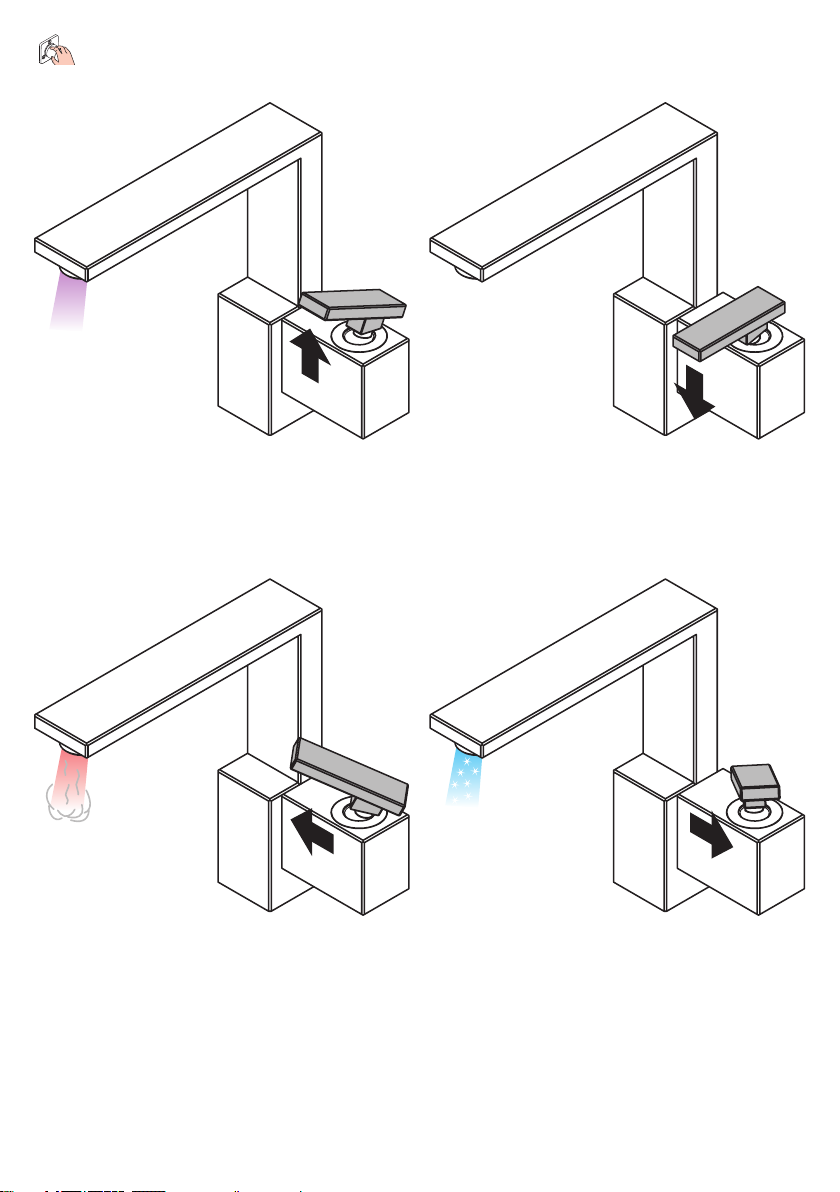

OPERATION (see page 06)

Hansgrohe recommends not to use as drinking

water the ﬁrst half liter of water drawn in the

morning or after a prolonged period of non-use.

SW 10 mm SW 24 mm

(4 Nm)

567

(3 Nm)

Montage Montage

60 °C 10 °C 0,3 MPa

36°C

38°C

43°C

60°C

55°C

50°C

1 2

SW 3 mm

4 x

SW 3 mm

(5 Nm)

JustierungJustierung

关 ⁄ close开 ⁄ open

热 ⁄ hot 冷 ⁄ cold

Bedienung Bedienung

51300000

bar

4,5

0,0

0,5

1,0

1,5

2,0

2,5

3,0

3,5

4,0

5,0

0,45

0,00

0,05

0,10

0,15

0,20

0,25

0,30

0,35

0,40

0,50

5,50,55

6,00,60

036912151821242730

MPa

00,1 0,2 0,3 0,4 0,5

Q = l/min

Q = l/sec

EcoSmart®

Ø32

max. 40

371

G 1/2

175

195

116

220

199

50 77

142

Maße ⁄ Durchﬂussdiagramm

0808

⁄

Hansgrohe

www.hansgrohe-int.com/guarantee

QUICKCLEAN

QuickClean

ReinigungReinigung

0909

CLEANING RECOMMENDATION FOR

HANSGR

OHE PRODUCTS

oday, modern sanitary and kitchen tapware, showers,

accessories,

washstands, tubs and radiators consist of very

diﬀer

ent materials to comply with the needs of the market

ith regard to design and functionality.

o avoid damage and reclamations, it is necessary to

consider

certain criteria when cleaning.

ITH REGARD TO CARING FOR THE

HANSGR

OHE PRODUCTS, THE FOL-

WING MUST IN PRINCIPLE BE

EDED:

⁄ Only use cleaning material which is explicitly provided

for this type of application.

⁄ Never use cleaning materials, which contain hydrochlo-

ric acid, formic acid, chlorine pale lye or acetic acid, as

they cause considerable damage.

⁄ Phosphorus acidic cleaners are only conditionally

applicable.

⁄ Mixing cleaning agents is not permitted, generally.

⁄ Never use cleaning materials or appliances with an

abrasive eﬀect, such as unsuitable cleaning powders,

sponge pads or micro ﬁbre cloths.

⁄ The instructions of the cleaning agent manufacturers

have to be followed absolutely.

⁄ Cleaning has to be carried out with a speciﬁed cleaner

dosage, contact time, object-related and adapted to the

needs.

⁄ The building up of calciﬁcations has to be removed by

cleaning regulary.

⁄ When using spray cleaners, spray the cleaning solution

onto a soft cloth or sponge, never directly onto the

Hansgrohe products, as the atomised spray could enter

openings and gaps in the Hansgrohe products and

cause damage.

⁄ After cleaning rinse thoroughly with clean water to

remove any cleaner residue.

⁄ The use of steam cleaners is not permitted. The high

temperatures can damage the products.

Important

Residues of toiletries such as liquid soaps, shampoos and

shower gels, hair dyes, perfumes, aftershave and nail

varnish can also cause damage.

Here too: Carefully rinse with water after use to remove

residues.

Likewise, do not store any cleaning agents or chemicals

under the products, for example in a vanity unit, as the

vapours may damage the products.

The damage of already damaged surfaces will deteriorate

under the eﬀect of the cleansers.

Components with damaged surfaces must be

exchanged, otherwise there could be an injury

danger.

Damage caused by improper treatment will not be covered

by our guarantee.

WARRANTY

Hansgrohe guarantees to the consumer that this product is

free of production faults. If evertheless any defect is

detected within 5 years from date of purchase, Hansgrohe

will remedy this defect free of charge. You will ﬁnd the

conditions and details of this guarantee at

www.hansgrohe-int.com/guarantee. Please contact your

contracting party to claim your rights under this guarantee.

This guarantee does not aﬀect the customer‘s rights under

the respective national legislation.

QUICKCLEAN

The QuickClean cleaning function only needs a small

manual rub over to remove the lime scale from the spray

channels.

51300000

EcoSmart®

M6x8

93424000

98164000

(33x1, 5)

98146000

(25x1,5)

98433000

(30x1,5)

98391000

(29x2)

92926000

92900000

93383000

93426000

95661000

98397000

(22x1,2)

13961000

92482000

(600 mm)

98422000

(7x1, 5)

Serviceteile
