Aybey Elektronik ALYA Series Bedienungsanleitung

APPENDIX-3 LANDING OPERATION PANEL INSTALLATION

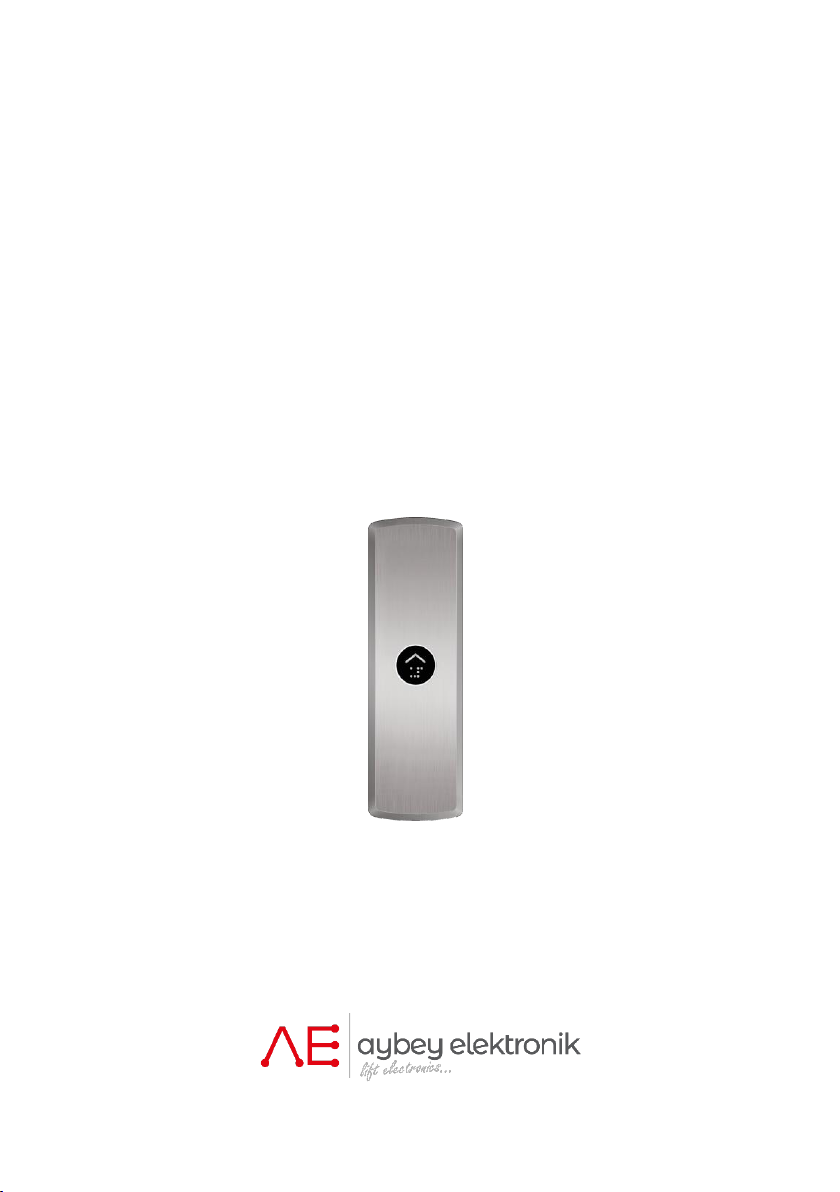

ALYA

ALYA SERIES

SERIAL COMMUNICATION LOP

INSTALLATION MANUAL

Document Name : ALYA User and Installation Manual

Display Type :

Document Code : --

Document Version : 1.05

F/7.5.5.02.127 R:0 1 ALYA

Contents

Chapter 1: General Features....................................................................2

Chapter 2: Mechanical Installation .........................................................3

Chapter 3: Electrical Connections............................................................4

Chapter 4: Operation and Adjustment Operations ...............................5

Chapter 5: Caution ...................................................................................6

F/7.5.5.02.127 R:0 2 ALYA

Chapter 1: General Features

1.1. Product Descprition

•It is a surface mounted landing operating panel.

•It corresponds with EN81-70.

•Used with Aybey T-Series button model.

•Single and double button options are available.

•Compatible with Aybey AE-MAESTRO and ALC series control panels.

•Button LEDs are double colors (white / red or white / blue).

1.2. ALYA LOP Contents

The products included in the package for each lop are specified in the table

below.

Table1: Package Includings

Product

Pieces

ALYA Serial Communication LOP

Number of Floors

M7 Mounting Dowels

4 x Number of Floors

M4x35 Mounting Screws

4 x Number of Floors

User Manual and Installation Manual

Terminating Resistor for systems without a pit

board with CAN interface.

F/7.5.5.02.127 R:0 3 ALYA

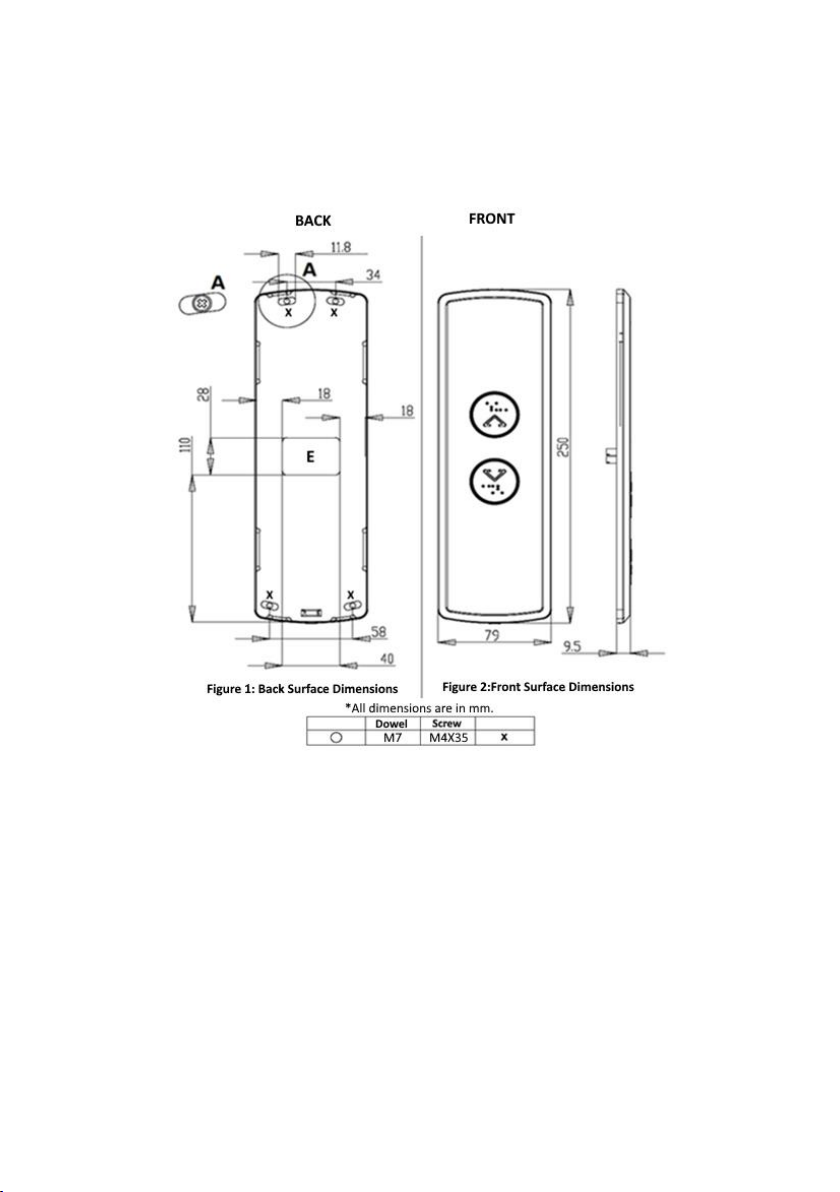

1.3. Mechanical Measurements

Chapter 2: Mechanical Installation

1. Open the front cover by pressing the spring mechanism at the bottom

center of the ALYA LOP with a screwdriver.

2. Mark the holes of screws and cable by placing the rear plate onto wall

you want to install.

3. Drill the holes (shown on Figure 1 by X) for M7 dowels.

4. make a hole into the wall for the lop connection cable coming from the

control panel, in the dimensions indicated by E in Figure 1.

5. Dowels are placed in the holes .

F/7.5.5.02.127 R:0 4 ALYA

6. In order to completed the mechanical installation of the lop, the back

cover is fixed to the wall using M4x35 screws and electrical connections

are made.

7. After the settings related to the configuration are complete, close the

front cover.

Chapter 3: Electrical Connections

1. Canbus cables of LOPs are connected to the related terminals inside the

control panel. (100-1000-CL-CH).

2. Cable from the control panel are connected to the nearest LOP through

hole as shown figure 1 E.

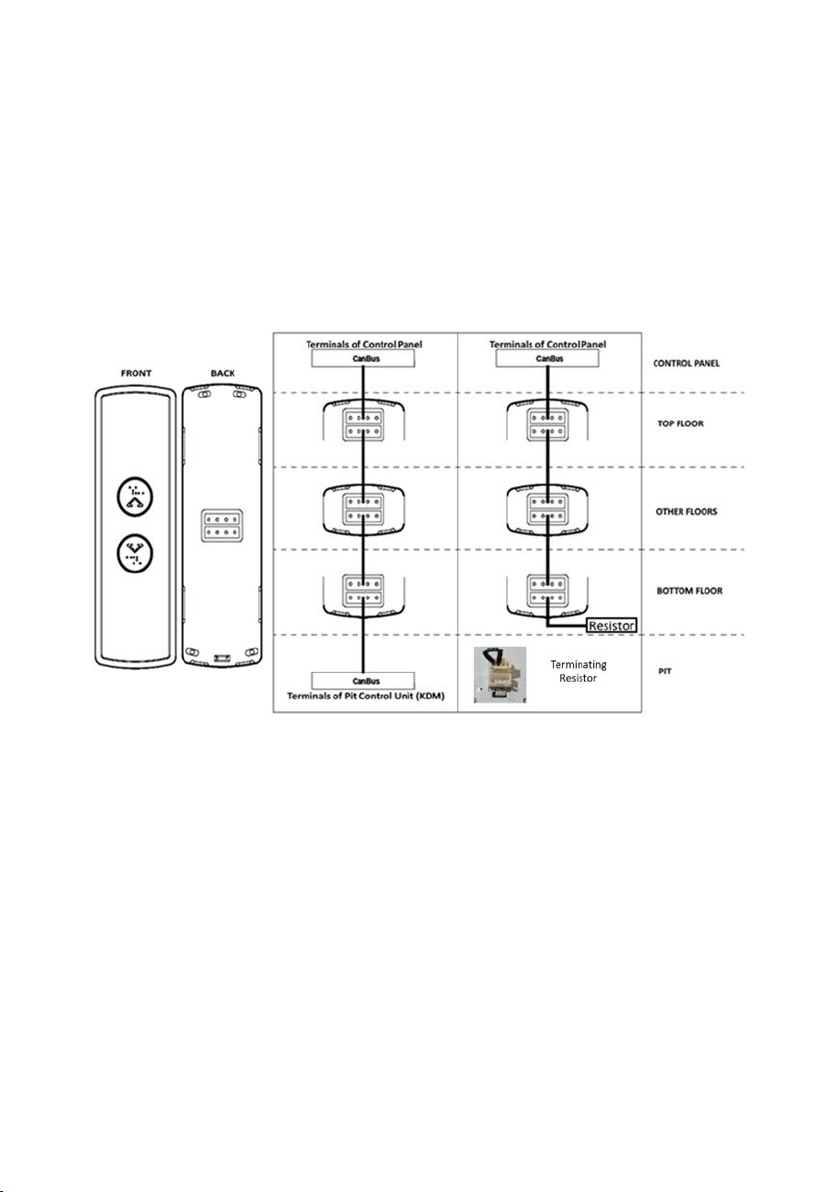

3. As shown in Figure 3, it is continued to be applied in a way that each LOP

is connected in series with the LOP of the next floor.

4. If there is no other CANBus serial communication unit to be connected to

the end of the line after the last LOP, a termination resistor is connected

to the white rectangular socket of the LOP.

Figure 3: Electrical Connection Diagram

F/7.5.5.02.127 R:0 5 ALYA

Chapter 4: Operation and Adjustment Operations

The only setting made on the board is the floor ID number. This setting is made

with the help of the switches on the board. ID can be set from the 0th floor to the

63rd floor with the BINARY number system.It is done with switches starting from

ID5 to ID0.

Figure 4 : Example of 0th floor ID Setting

Table 2: ID (Floor Number) Settings

ID5

ID4

ID3

ID2

ID1

ID0

Off

F/7.5.5.02.127 R:0 6 ALYA

Chapter 5: Caution

1. Stainless steel cleaner should be used for cleaning the panel.

2. No detergent or acid should be used to clean the panel.

3. LOPs should not come into contact with any liquid.

4. In case of any malfunction,LOP should be de-energized and Aybey

Electronic Technical Service should be contacted.



AYBEY ELEKTRONİK SAN.TİC.A.Ş.

Sanayi Mah. Hızır Reis Cad. No:26/2 Pendik-İstanbul / Türkiye

Tel: (90) (216) 394 50 55 Fax: (90) (216) 394 50 58

e-mail: [email protected]m

www.aybey.com
