B-Tech BT8385-CTW Bedienungsanleitung

www.btechavmounts.com

B-TECH AV mounts

BT8385-CTW

COLUMN-TO-WALL MOUNTING KIT

Use with a bt8385 column

PARTS LIST

ITEM

DESCRIPTION

QTY

4AF x L55mm HEX KEY

M6 x 12mm SCREW

WALL PLATE

BASE PLATE

M8 x 50mm COACH SCREW

N°.10 x 50mm WALL PLUG

M8 T1.5mm METAL WASHER

Installation Instructions

INSTALLATION SAFETY INSTRUCTIONS

B-Tech AV Mounts, it’s distributors and dealers are not responsible for damage or injury caused by improper installation,

improper use, modications, installations over the specied weight capacity and/or failure to observe these safety

instructions. In such cases, any warranty will expire.

It is recommended that this product should only be installed by a qualied professional / installer.

B-Tech AV Mounts does not claim any liability for any diculties that may arise from the interpretation contained

in these instructions. Failure to mount this product correctly may lead to serious injury and/or death.

Please check carefully to make sure there are no missing or defective parts - defective parts must never be used.

In the event of missing and/or defective parts, or technical questions, please contact an authorised dealer.

Pay careful attention to where this product is located, some locations are not suitable for installation.

For indoor use only.

It is recommended that periodic inspections of the product are made as frequently as possible to ensure that safety is maintained.

Please keep these instructions for future reference.

CAUTION:

This product is intended for use only with the

maximum weights indicated. Use with equipment heavier than the

maximum indicated may result in instability causing possible injury.

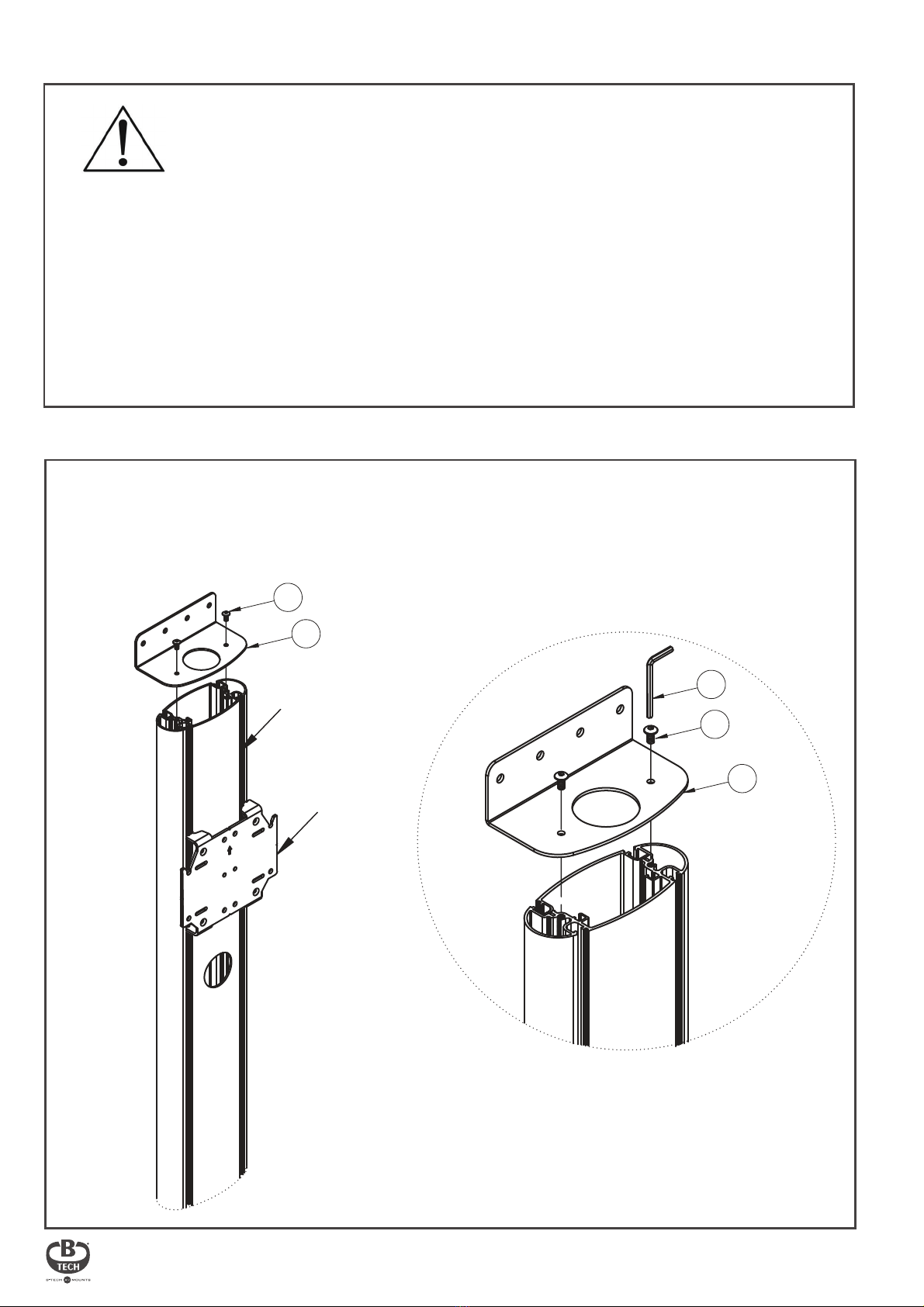

ATTACH WALL PLATE

Attach item 1 to the top of a BT8385 column using item 3.

BT8385

COLUMN

BT8385-RTC

6.5mm

150mm

60mm

WALL

TOP VIEW

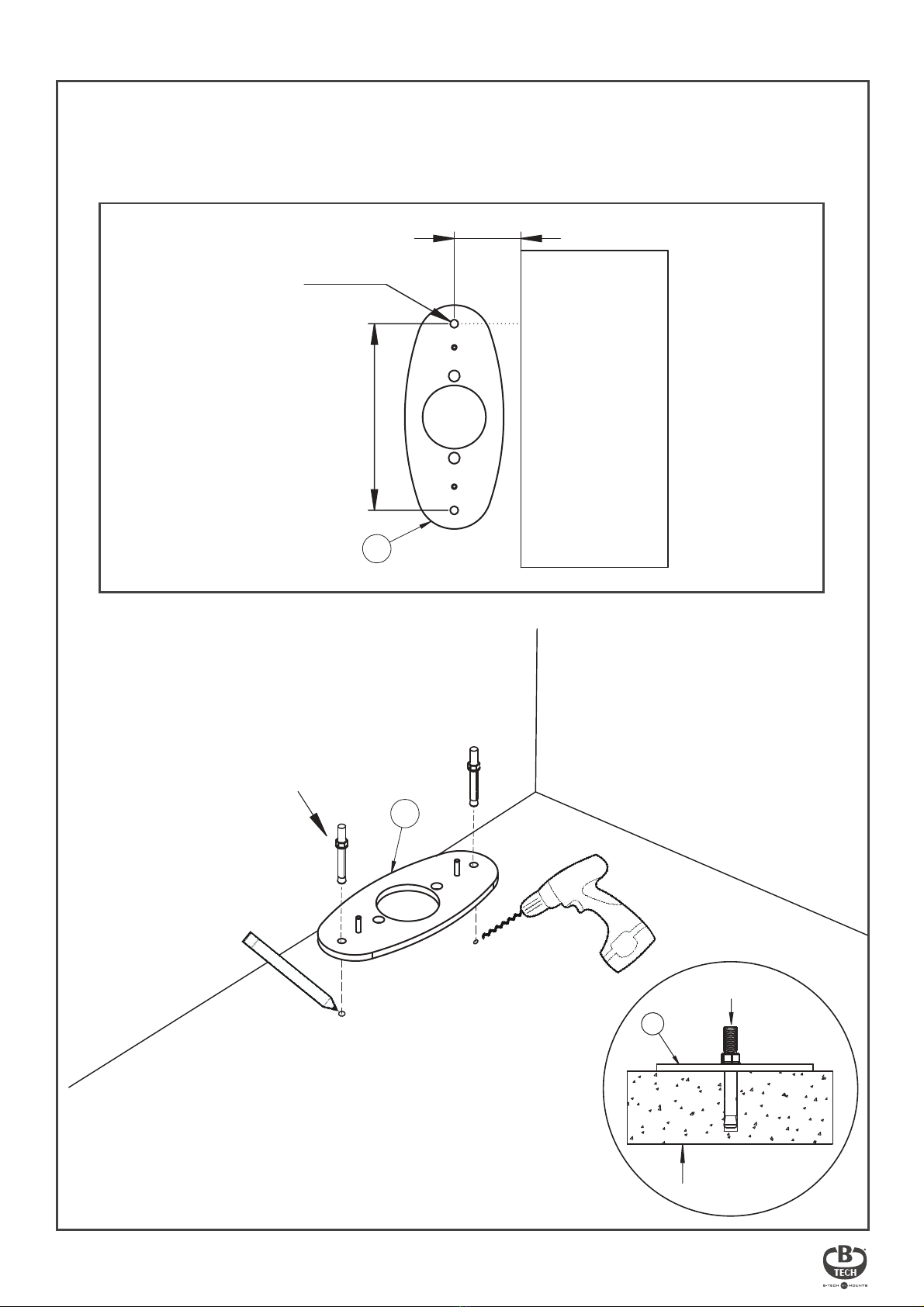

FIX FLOOR PLATE TO FLOOR

Fix item 2 to oor (xings not included).

Note: Fixing points are 60mm away from wall.

CONCRETE FLOOR

GROUND ANCHOR

GROUND ANCHORS

(not supplied)

FLOOR

GUIDE PINS

COLUMN

WALL

MARK WALL FIXING HOLES

Using the guide pins, place the column onto item 2.

Mark the 4 xing holes from item 1 onto the wall.

DRILL HOLES AND INSERT WALL PLUGS

Remove column and drill marked holes.

Insert 4 x item 6 (Not required for stud/wood walls).

WALL

MASONARY WALL

Use a

10mm Masonary Drill Bit

or a

6mm Wood Drill Bit

WALL

MOUNTING RAIL

Place the column onto item 2 and x item 1 to the wall using items 4 & 5.

Note: For ease of installation, the mounting rail can be assembled to the

rail mounting plate before xing the column to the wall.

FIX COLUMN TO WALL

PRODUCT DIMENSIONS

PLEASE KEEP THIS FOR FUTURE REFERENCE

BT8385-CTW

THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO

LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.

TOP VIEW

WALL PLATE

BASE PLATE

SIDE VIEW

FRONT VIEW

BACK VIEW

112mm

60.3mm

6.5mm

60mm

3mm

180mm

15mm

50mm 50mm 50mm

20mm

8.5mm

43mm

6.5mm

9mm

51mm

66mm

150mm

6mm

20mm

180mm

100mm

63mm

79.4mm

www.btechavmounts.com

B-TECH AV mounts

AMA-BT8385-CTW-V1-1119-110 MADE IN VIETNAM

B-Tech AV Mounts is a division of B-Tech International Design & Manufacturing Ltd.

B-Tech AV Mounts, the B-Tech logo and Mode-AL are registered trade marks.

All other brands and product names are trademarks of their respective owners.

Photographs are for illustrative purposes only. E&OE.

CONTACT:

[email protected]
