B-TEK Scales DuraShield Bedienungsanleitung
Instruction
Manual
DuraShield
Bench Scales
3/15/23
V2023.1
B-TEK DuraShield Series Bench Scale Instruction Manual
- 2 -
Table of Contents
1. Safety First…………………………………………………………………………………. 3
2. Introduction………………………………………………………………………………… 4
3. Specifications……………………………………………………………………………… 5
4. DuraShield Bench Scale Assembly…………………………….……………………….6-8
5. Indicator Installation………………………………………………………………………..9
6. Load Cell Replacement………………………………………….………………………..10
7. Exploded View……………………………………………………………………………. 11
8. Replacement Part Numbers……………………………………………………………...12
9. B-TEK Contact Information………………………………………………………………..13
B-TEK DuraShield Series Bench Scale Instruction Manual
- 3 -
Safety First
Please call a B-TEK-authorized service provider for service or repairs.
•Ensure that the area used for this equipment is safe for this equipment.
•Allow only qualified personnel to work on electric/electronic components.
•Do not use this equipment for anything other than its intended use.
•Ensure equipment is plugged into stable power sources.
•Keep equipment away from high voltage, vibration, and high draft areas.
•Keep equipment cords and cables secured and protected.
•Perform periodic inspections to keep equipment in good working order.
•Never apply a load over the capacity of your scale.
•Keep the area around your scale free of debris.
SAFETY WARNING
Always unplug or remove power source from equipment before cleaning with water
unless it has been installed by professionals that determine otherwise.
After cleaning is done always ensure equipment is completely dry before returning to
or plugging into power source unless it has been installed by professionals that determine
otherwise.
B-TEK DuraShield Series Bench Scale Instruction Manual
- 4 -
Introduction
The information provided in this manual is a guide to installing the B-TEK, LLC. DuraShield
series single-point bench scale. This document is intended as a guide only, and the actual
installation should be performed by qualified personnel only.
All sales of goods are subject to the standard warranty and the standard terms and conditions
published by B-TEK, LLC.
Should you have any questions regarding the DuraShield series single-point bench scale,
contact your local B-TEK, LLC. scale representative.
oAvailable in 12” X 12” and 18” X 18” sizes.
oThe DuraShield bench scale has a hardened powder coated surface that will
provide years of protection.
oAvailable in 50lb/25kg, 100lb/50kg, 200lb/100kg and capacities.
oStructure powder coated carbon steel.
oSingle point aluminum load cell.

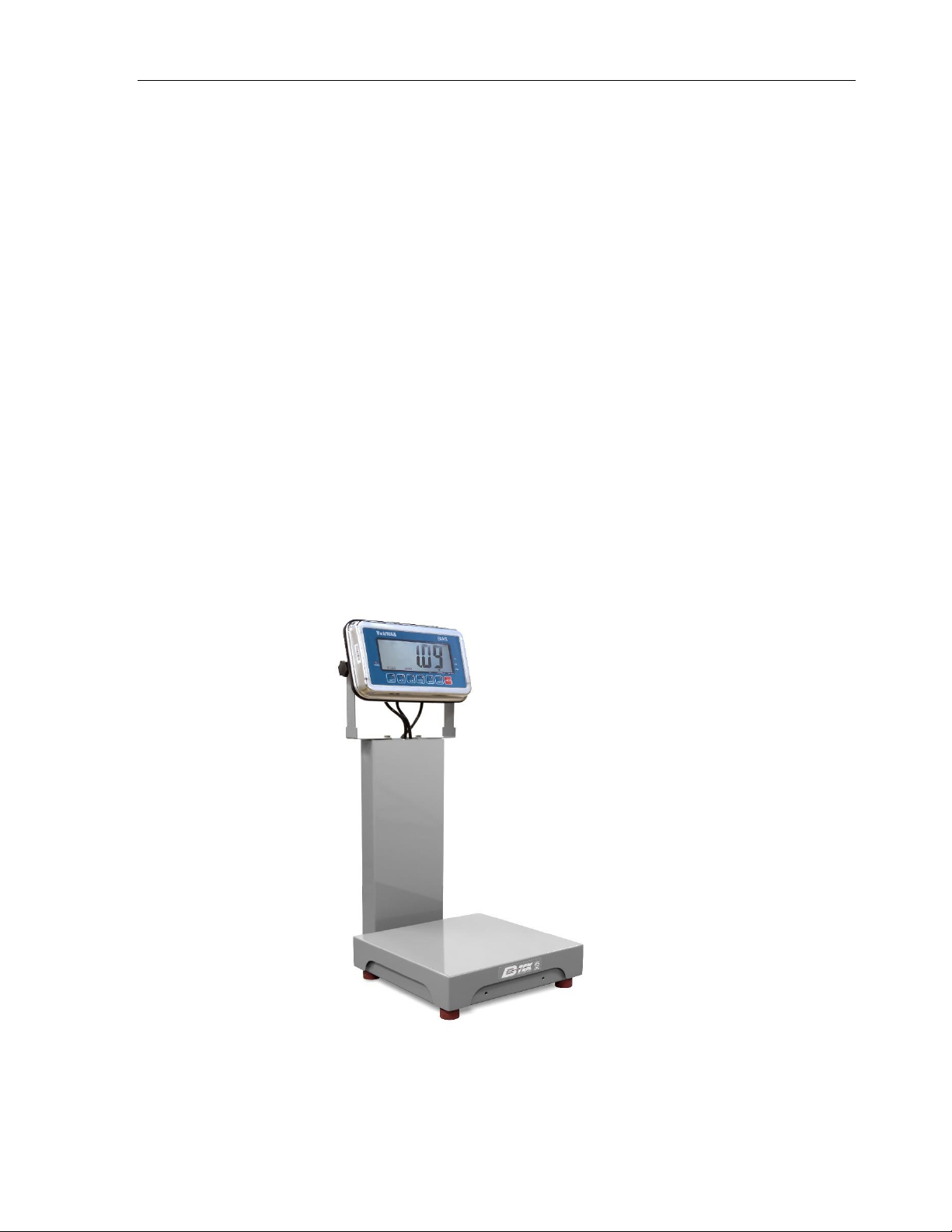

B-TEK DuraShield Bench Scale Shown with BWS Indicator.
Indicator
B-TEK DuraShield Series Bench Scale Instruction Manual
- 5 -
Specifications
MODEL
DuraShield 12”x12”
DuraShield 18”x18”
Capacities
50lb/25kg,
100lb/50kg,
200lb/100kg
50lb/25kg,
100lb/50kg,
200lb/100kg
Readability
.01lb/.005kg,
.02lb/.01kg,
.05lb/.02kg
.01lb/.005kg,
.02lb/.01kg,
.05lb/.02kg
Max. Divisions
5000e
Weighing Units
lb, kg
Platter sizes
12” x 12”, 18” x 18”
Construction
Powder Coated Carbon Steel
Load Cell Operating
Temperature
14°F - 104°F / -10°C - + 40°C
Weight Base
15.5lbs.
44.5lbs.
Weight Indicator
Works with industry-standard indicators
Works with industry-standard indicators
DIMENSIONS
A
12.0 inches
18.0 inches
B
12.0 inches
18.0 inches
C
3.75 -4.25
4.0 –4.5 in.
C
A
B
B-TEK DuraShield Series Bench Scale Instruction Manual
- 6 -
Assembly
Unpacking
Carefully remove the bench scale from its box, ensure that it is not damaged, and all
parts are included.
•Bench scale with load cell and spider assembly.
•Column (Optional)
•Platter
Installing the Column
Assemble the bench scale and the column by inserting bolts spacers as shown in image
below. Put lock washers and nuts on the bolts and tighten until lock washer snaps in its
lock position.
Spacers
Bolts
B-TEK DuraShield Series Bench Scale Instruction Manual
- 7 -
After fastening the column to the base install all the bench scale and column leveling
feet as shown in the image below.
Place the bench scale on an environmentally sound level surface and adjust the feet on
the bench base only.
(Do not adjust the column feet at this point) until the bullseye level shows that it is
level as shown in the image below. Once the scale is positioned and level adjust the
column feet until they sit firm to the surface (It is important to make sure that the
column feet are taking the pressure off the column only). Finally, tighten all lock
nuts.
Leveling Foot
Leveling Foot Lock Nut
B-TEK DuraShield Series Bench Scale Instruction Manual
- 8 -
Bullseye Level Adjusting
Overload Stop
The overload stop is a set crew placed on the underside of the base and is designed so
that the load cell bottoms out when more weight is applied than the scales capacity. To
adjust this screw simply apply the weight that matches the capacity of the scale plus 5%
and adjust the screw in until it hits the cell. The overload stop is now set to stop at
anything over 105% of the scale’s capacity. Use blue Loctite when setting screw.
Unlevel
Level
Overload Screw
B-TEK DuraShield Series Bench Scale Instruction Manual
- 9 -
Indicator Installation
Mount the indicator on the column mounting bracket. Tighten the wing nuts to secure
the indicator to the column.
Terminate the load cell wires to the load cell terminal located on the main board of the
indicator. Reference the indicator manual that is being connected to the DuraShield
bench scale for load cell termination points.
See the diagram below for load cell wire color code.
Calibrate the scale using certified calibration weights and to the scale’s capacity when
possible.
After calibrating the scale, test it at the low end, middle and high end to insure it is
working properly. Once the scale is confirmed working, the scale is now ready for use.
B-TEK BT-ASP-1 Load
Cell
+ Input
RED
- Input
BLACK
+ Sense
BLUE
- Sense
BROWN
+ Output
GREEN
- Output
WHITE
Shield
CLEAR
B-TEK DuraShield Series Bench Scale Instruction Manual
- 10 -
Load Cell Replacement
Install the load cell using supplied B-TEK ASP-1 load cell and shims. Torque the B-TEK
ASP-1 load cells to 76 in. lbs.
Spider assembly to
load cell mounting
bolts.
Bullseye bubble level
glued in this position.
using only Loctite 401
Spider assembly to
Platter leveling Feet.
Lower base load cell
mounting bolts.
