ENGLISH

Additional Features of BND9

The following features have been added with version 2 and 3. Before using the machine,

carefully read both this manual and the Instruction and Reference Guide (which provides

descriptions of Ver. 1) included with your BND9 machine.

■Ten embroidery patterns ( ) have been added.

In addition to ten embroidery patterns being added, the pattern type selection screen was changed. (p. 2)

■The brightness of your LCD screen can be adjusted. (p. 2)

■The thread color settings for previously stitched designs can be canceled. (p. 3)

■The stitching can be moved forward or backward 500 stitches. (p. 4)

■Combined patterns can be grouped. (p. 4-p. 6)

This function allows you to sew the repeated pattern without sorting colors.

■The settings screen now has a total of six pages.

For page illustrations and content, refer to the "Quick Reference Guide" for the BND9. (p.9)

■The Link function has been added. (p. 6)

This function allows embroidery patterns edited in embroidery editing software provided with the Link

function, such as Palette 9 or later, to be transferred from a computer to multiple embroidery machines.

Please consult with your authorized retailer for exact machine specifications for linking.

■The manufacturer specified thread numbers can be displayed on the machine if the "PES" thread code is

"ON". (p. 11)

■The length of time until the embroidery machine will stop can be viewed in the embroidering screen.

(p. 12)

■If the temporary needle bar setting has been applied, the icon ( ) indicating the selected needle bar

in the embroidering screen can now be viewed. (p. 12)

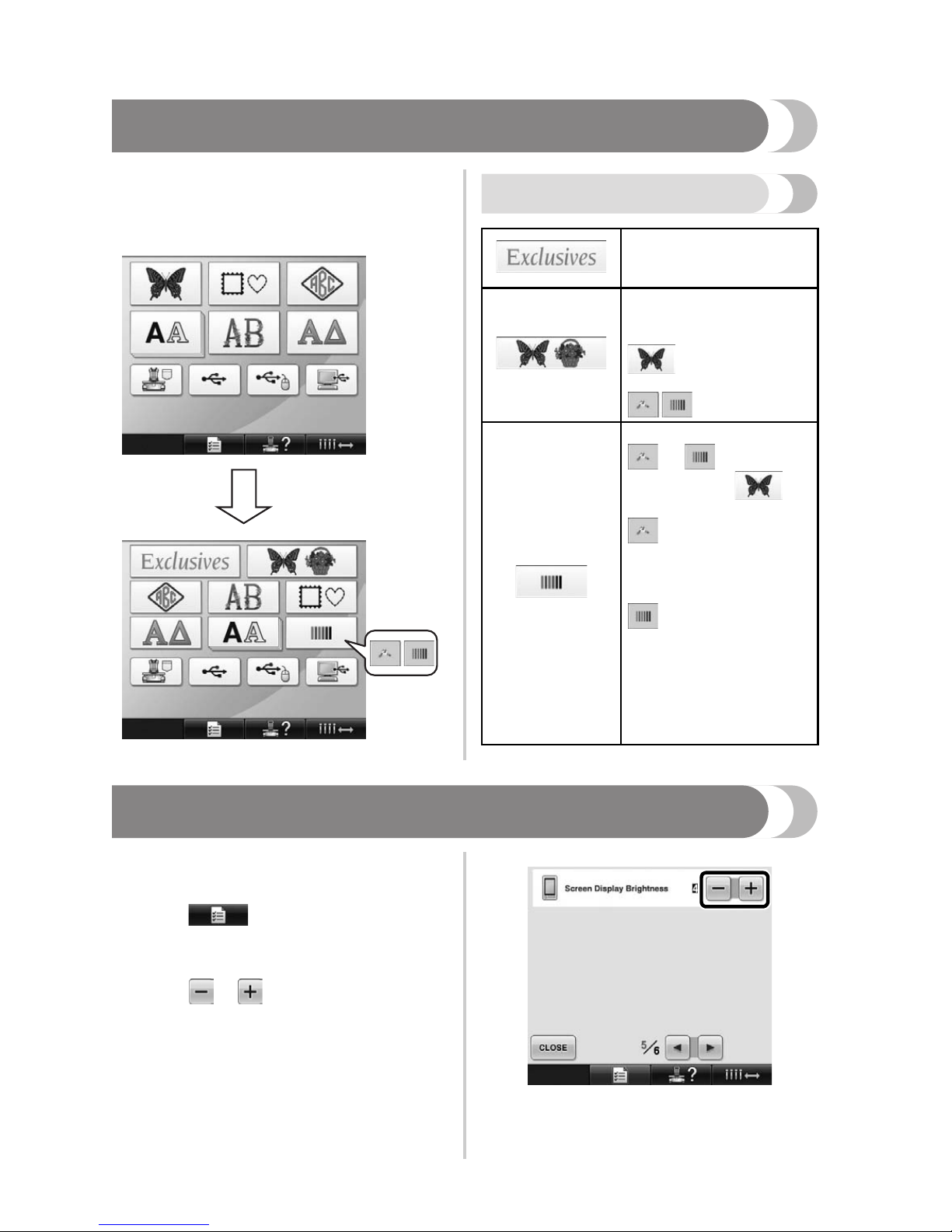

Pattern Type Selection Screen

With ten embroidery patterns added, the pattern

type selection screen has changed. For details on

the patterns displayed when each key is pressed,

refer to the Quick Reference Guide.

New keys

Adjusting the Brightness of the Screen Display

If the LCD screen is too dark or too light, you can

now adjust the brightness of the screen display.

1Press .

2Display page 5 of the settings screen.

3Press or to adjust the brightness of

the screen display.

* The screen will appear dimmer if the number on the

settings screen decreases. The screen will appear

brighter as the number increases.

Press this key to select

one of the ten patterns

that were added.

Press this key to select

one of the patterns that

was available with

in the previous

version (excluding

Press this key to select

or , which were

available with in

the previous version.

provides patterns used

with examples in the

Instruction and Reference

Guide.

provides patterns used

for checking the thread

tension. For details on

checking the thread tension,

refer to page 67 in the

Instruction and Reference

Guide.

ENGLISH

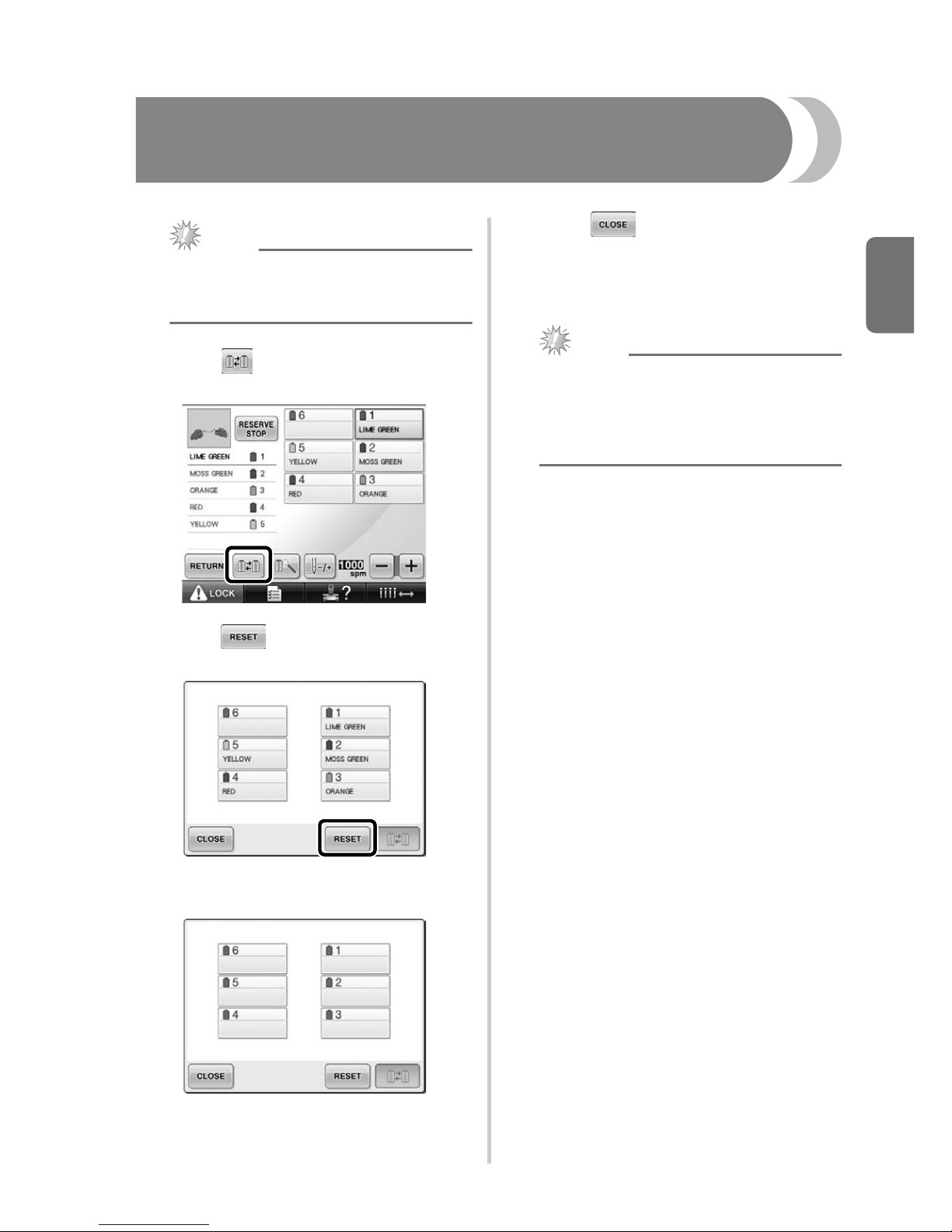

Cancelling the Thread Color Settings for All Previously

Stitched Design

Note

●The color settings will be completely

canceled even if the machine is in the

middle of the embroidery.

1Touch .

2Touch .

XThe thread color setting is canceled.

3Touch .

XThread colors are assigned by the machine

again, regardless of the previous spool

setting.

Note

●This function will not clear anchor settings

of any of the needles which have been

assigned a thread color (Refer to “Reserved

Needle Bar Settings” on page 132 in the

BND9 Instruction and Reference Guide).

Moving Five Hundred Stitches Forward/Back

and have been added to the stitch

navigation screen. For details on moving forward or

backward through the stitching, refer to

“Embroidering From the Beginning or Middle of the

Pattern” on page 108 of the BND9 Instruction and

Reference Guide.

Each touch of this key moves five hundred

stitches back through the stitching.

Each touch of this key moves five hundred

stitches forward through the stitching.

Editing Patterns as a Group

Combined patterns can be grouped and can all be

edited (rotated, resized, etc.) at the same time.

1Touch so that it changes to .

XAll patterns displayed in the pattern

display area are grouped.

* Touch to ungroup the patterns. If there are

multiple grouped patterns, the selected pattern group

is ungrouped.

ENGLISH

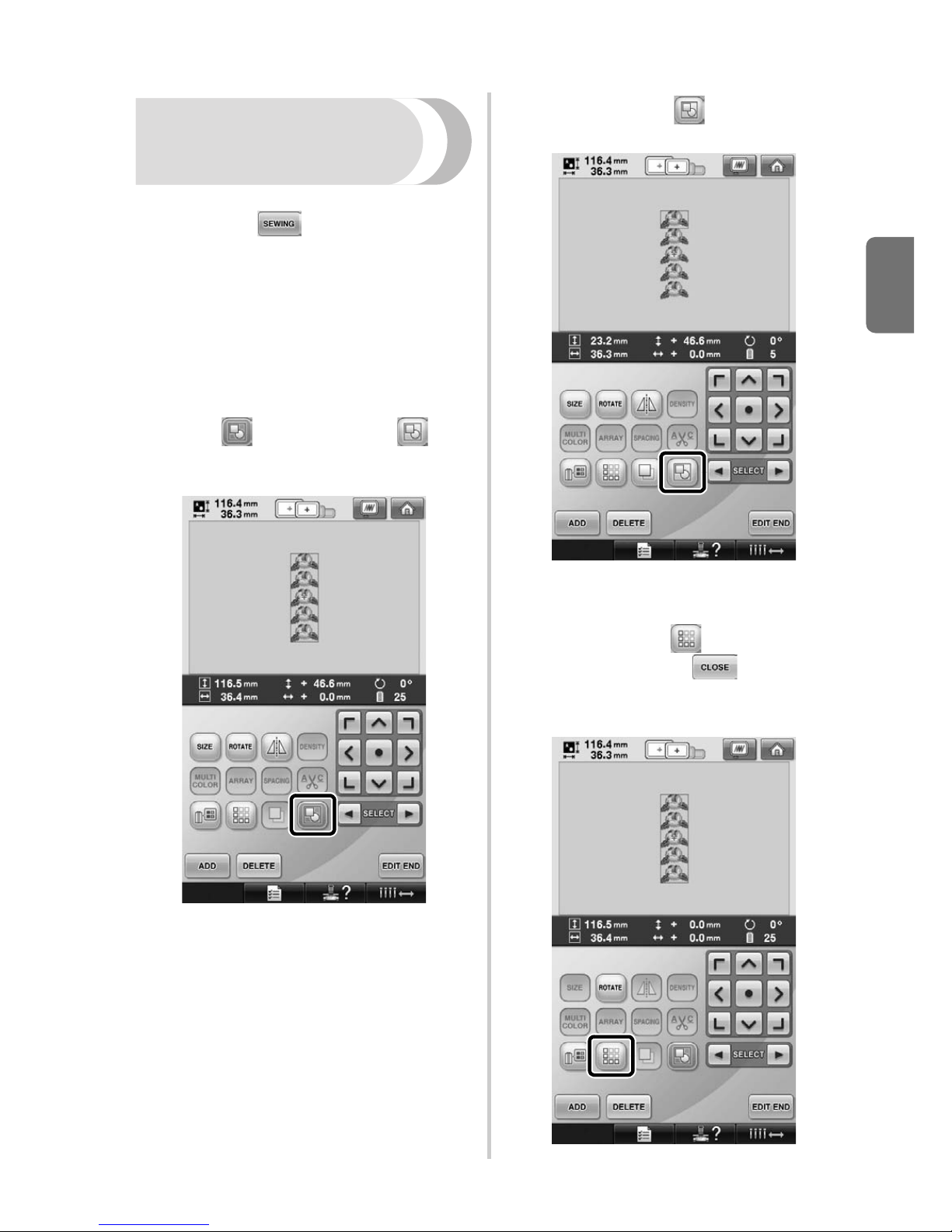

Sewing the repeated

pattern without sorting

colors

With repeated patterns created using the border

function, pressing automatically changes

the sewing order of the colors so that the same

color can be continuously sewn. You can edit the

pattern according to the procedure below to sew

the repeated pattern without sorting the colors.

1Create the combined border embroidery

pattern (Refer to “Designing repeated

patterns” on page 170 in the BND9

Instruction and Reference Guide).

2Touch so that it changes to .

XThe border function is canceled.

3If necessary, touch so that the patterns

are regrouped.

XAll patterns displayed in the pattern

display area are grouped.

4If necessary touch to sew the thread

mark, and then touch .

(Refer to page 173 in the BND9 Instruction

and Reference Guide)

5Touch , then .

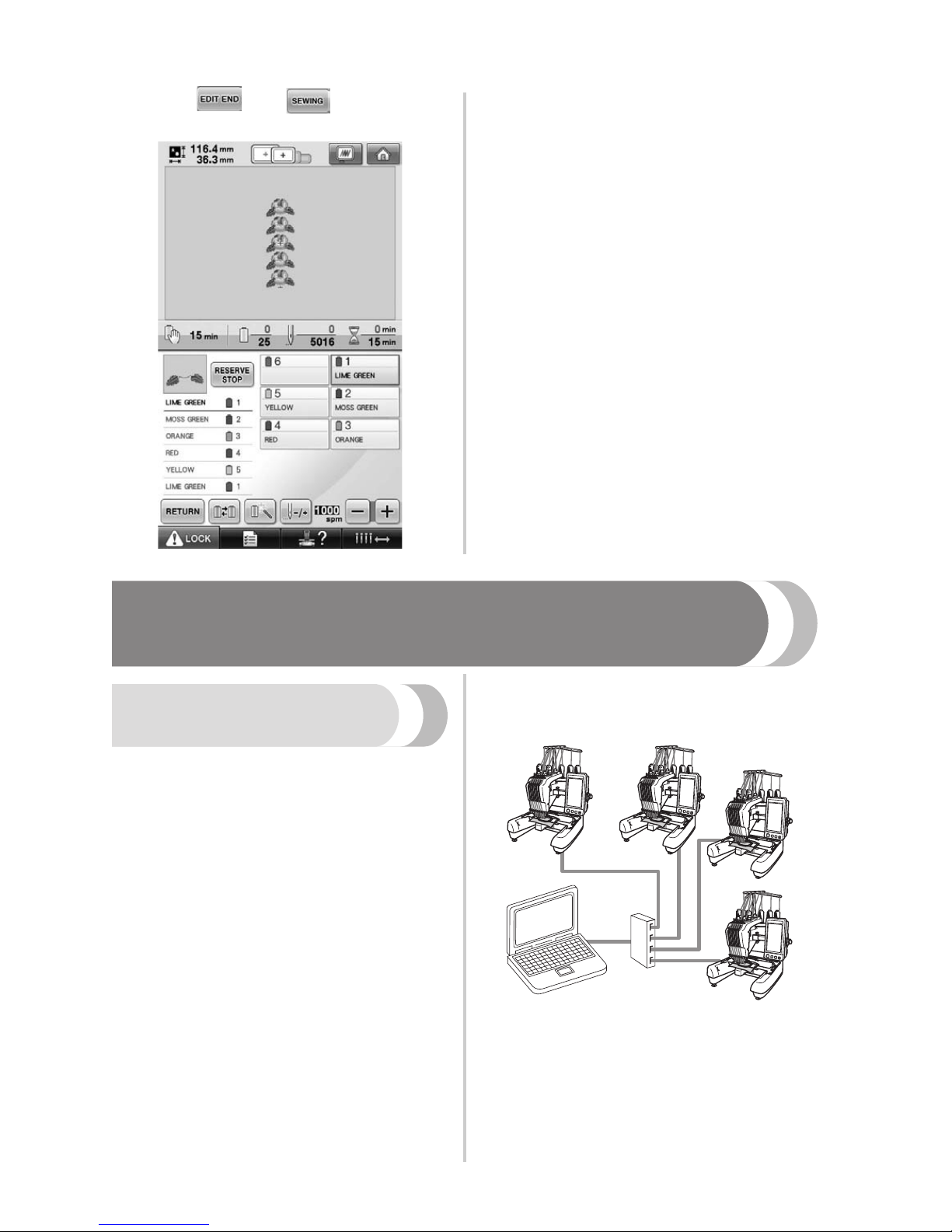

Sending Embroidery Patterns From a Computer to the

Machine (Link Function)

Operations available with

the Link function

■Send multiple embroidery patterns to

connected embroidery machines

As many as 100 embroidery patterns can be

transferred to an embroidery machine, and the

embroidering status of the patterns being

transferred can be viewed from the computer

monitor.

Use the included USB cable to connect the

embroidery machine to a computer.

■Check the sewing status of the embroidery

machine (this model) from the computer

(Example of multiple machines connected)

ENGLISH

Memo

●When connecting multiple embroidery

machines to the computer, use a

commercially available USB hub.

Please note that we recommend using a

self-powered USB hub. Do not use USB

extension cables or repeater cables. For

details on using the USB hub, refer to its

operating instructions.

Embroidering using

the Link function

First, use the embroidery editing software to create

the embroidery pattern to be sent to the embroidery

machine.

Note

●Only embroidery data in the PES format

(.pes) can be embroidered using the Link

function.

●You cannot select .dst data to send from a

computer using the Link function.

●The Link function cannot be used with

large-size (split) embroidery patterns.

●Attach to the embroidery machine the

embroidery frame for the size of the

pattern to be sent.

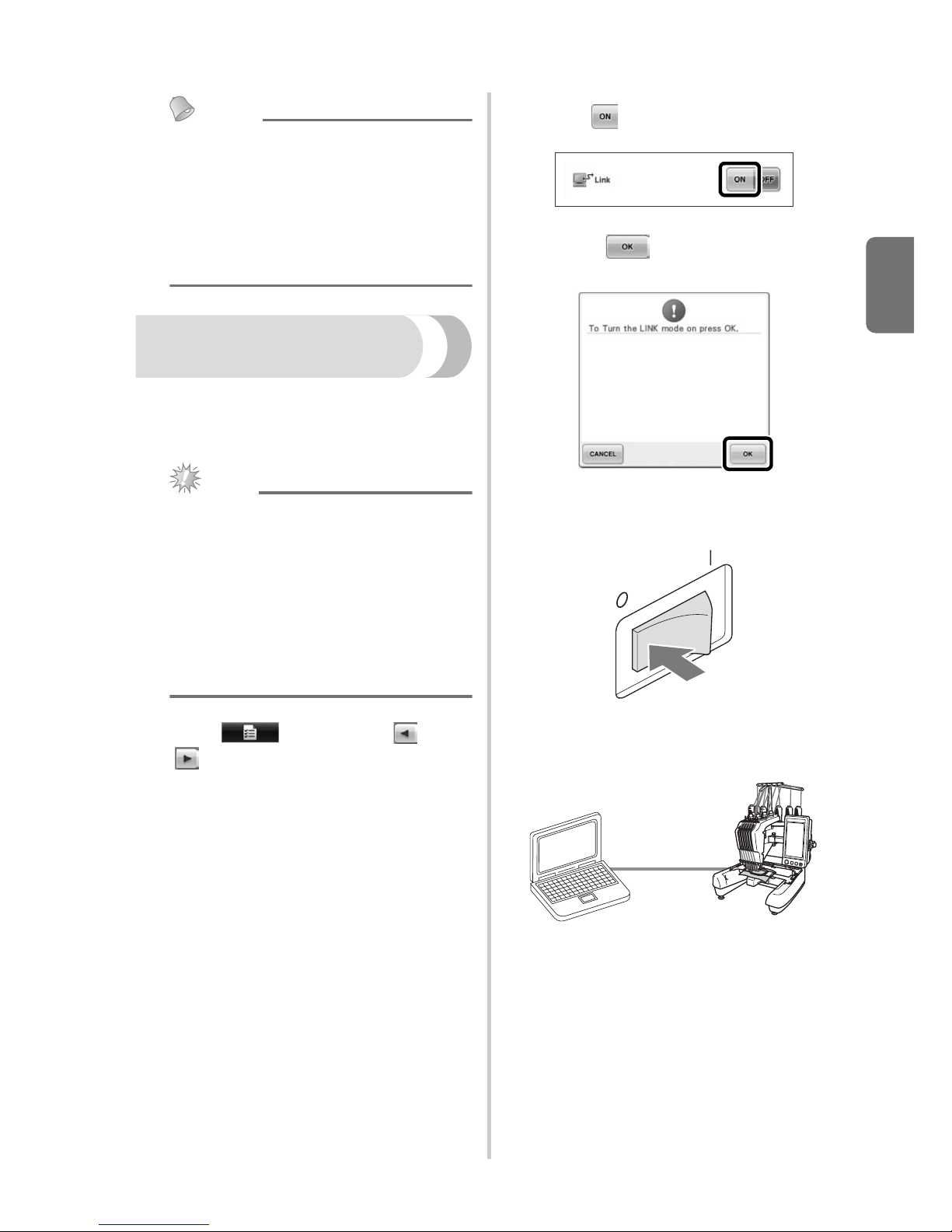

1Touch , and then touch and

to display page 5 of the machine settings

screen.

2Touch to enable the Link function.

XWhen the following message appears,

touch .

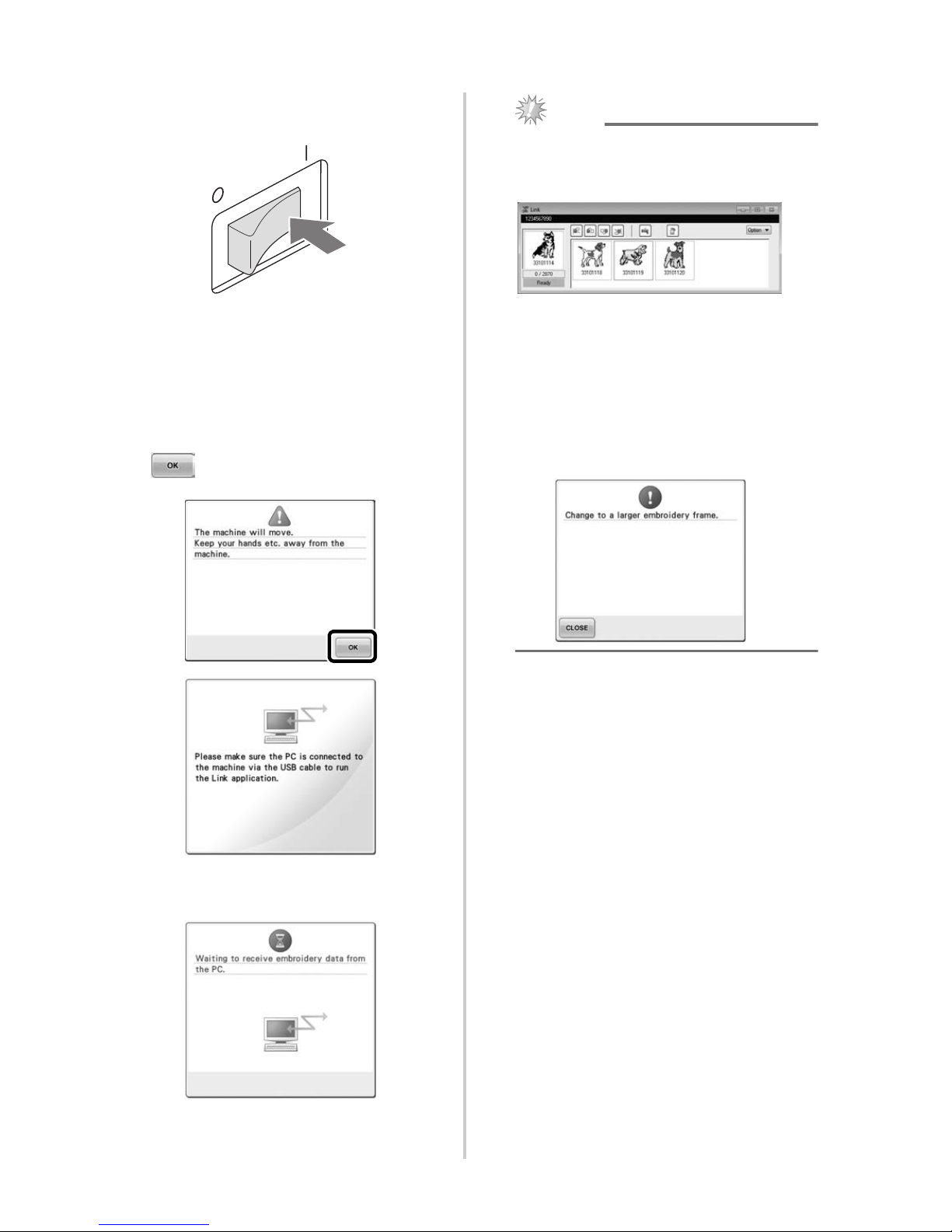

3Turn off the machine.

4Use the included USB cable to connect the

embroidery machine to the computer.

5Turn on the machine.

6Using embroidery editing software provided

with the Link function, such as Palette 9, or

later, will allow you to send the embroidery

pattern(s) to the machine in the Link mode

from your computer.

7When the following message appears, touch

XA message appears in the machine’s LCD

while the machine is connecting to PC.

Note

●For details on using the embroidery editing

software, refer to the Instruction Manual

included with the software.

* This Link dialog box is found in Palette 9

software.

●If the following error message appears, the

type of embroidery frame installed on the

machine is not compatible with the size of

the pattern. Replace the embroidery frame

with one compatible with the size of the

pattern.
