BEFORE YOU BEGIN

IMPORTANT!

READ INSTRUCTIONS THOROUGHLY PRIOR TO BEGINNING ASSEMBLY.

09-22-2022

KEEP THIS MANUAL FOR FUTURE REFERENCE

ACTUAL FLOOR SIZE IS 120" x 90" (304,8 x 228,6 cm)

16572-A

STUDIO SHED 10' x 7'-6" (304,8 x 228,6 cm)

ASSEMBLY MANUAL



Be sure to check local building department and homeowners association for specic restrictions and/ or requirements before building.



Contact our Customer Service Team if engineered drawings are needed to pull local permits.



To ensure proper assembly you must build your shed on a level surface.

Recommended methods and materials to level your shed are listed on page 7.



Inventory all parts listed on pages 4-6.



You will need additional materials to complete your shed. See page 3 for required and optional materials and quantities.

***CONTACT OUR CUSTOMER SERVICE TEAM

IF ANY PARTS ARE MISSING OR DAMAGED***

- Order form and warranty at back of manual -

Call: 1-877-743-3400 email: customerservice@backyardproductsllc.com

Two options for door trim.

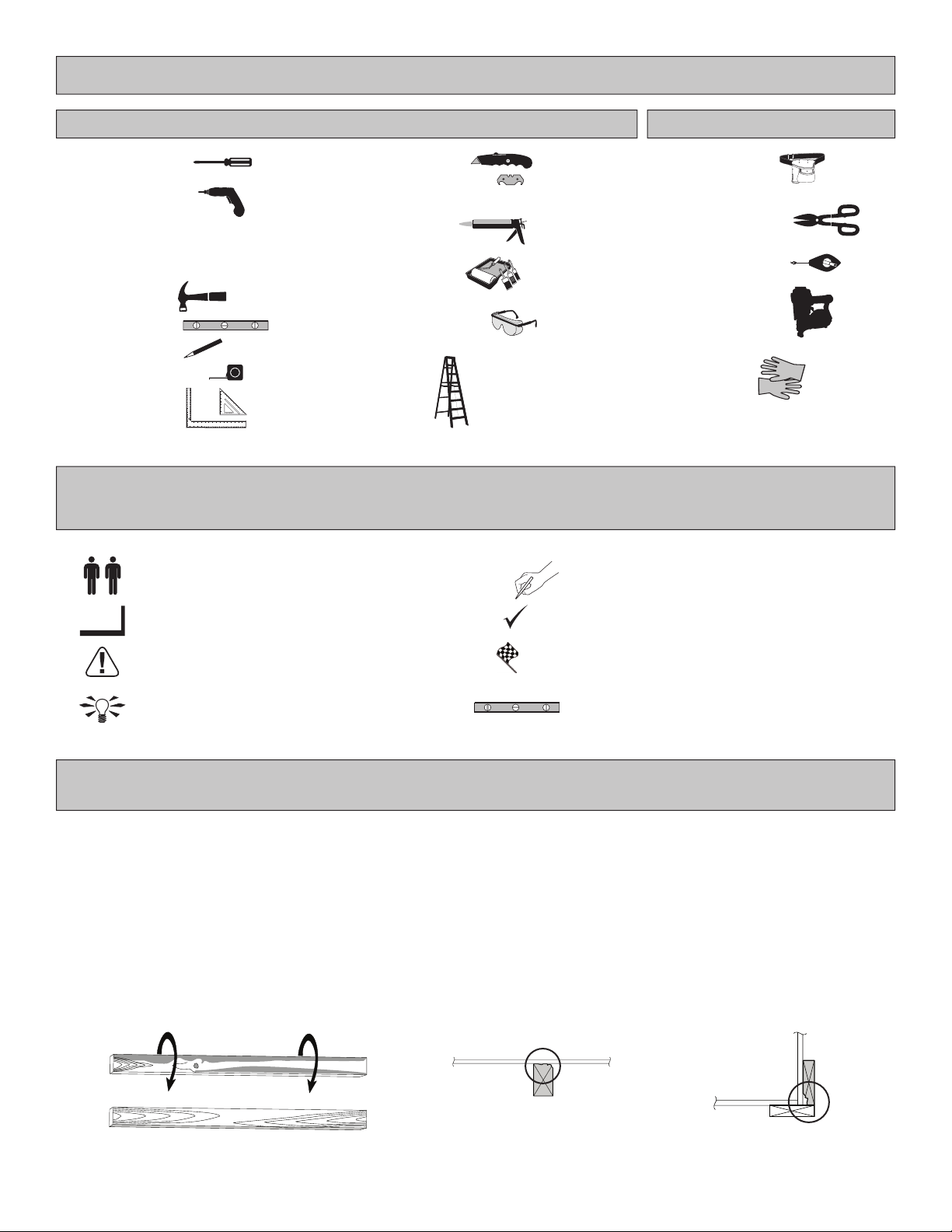

TOOLS

Safety! Always use approved safety glasses during assembly.

OptionalRequired

HELPFUL REMINDER SYMBOLS

Look for these symbols for helpful reminders throughout this manual.

ORIENT LUMBER AND TRIM FOR BEST APPEARANCE

= Assistance Required; two or more people.

= Ensure squareness.

= Important required step or operation.

= Helpful assembly hint.

= Mark part with pencil.

= Beginning of steps for assembly or installation.

= You have  nished the assembly or installation.

= Level

❑Gloves

Framing lumber is graded for structural strength and not appearance. Exterior trim is graded for one good side.

Always install the material leaving the best edge and best surface visible. Please remember that these blemishes in no way

negatively affect the strength or integrity of our product. (See Fig. A, B, C.)

❑Safety Glasses

❑Tape Measure

❑Paint Tools

❑Ladder

❑Caulk Gun

❑Hammer

❑Level

FINISH

BEGIN

❑Pencil

❑Phillips

Screwdriver

❑Drill / Driver

❑1/4" Drill Bit

❑3/8" Drill Bit

❑1/2" Drill Bit

❑#2 Philips Drive Bit

❑Tool Belt/

Nail Pouch

❑Chalk Line

❑Nail Gun

• gun nails

❑Tin Snips

(for drip edge)

❑Square or

❑Utility Knife

❑Shingle Blades

B C

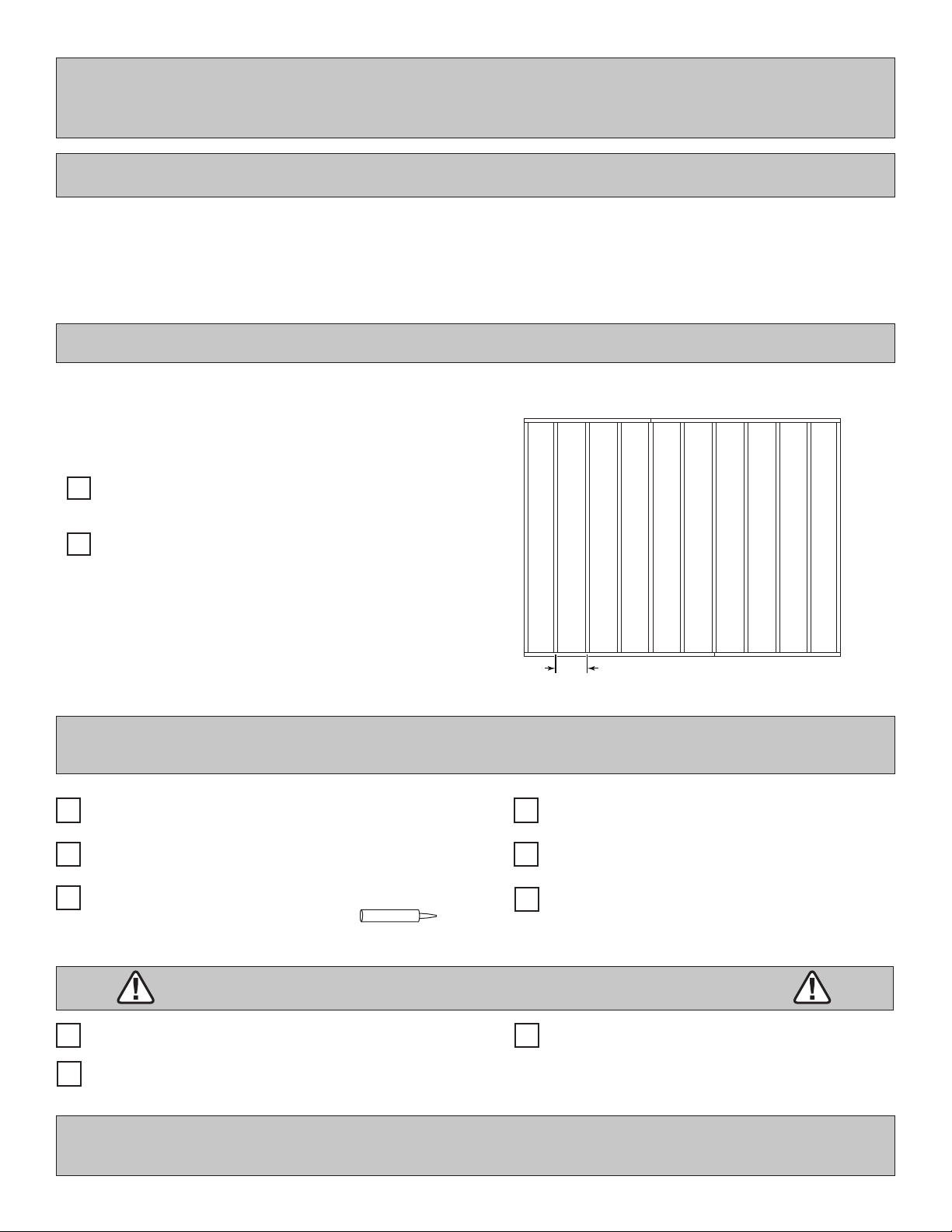

COMPLETING YOUR SHED

You will need these additional materials:



FOUNDATION OR FLOOR MATERIALS

ADDITIONAL MATERIALS

DRIP EDGE ..................... 50 Feet #15 ROOFING FELT

To cover 99 Sq. Ft. of roof area.

REFER TO THE BACK OF THIS MANUAL AND THE MANUFACTURER’S INSTRUCTIONS FOR

INSTALLATION OF SHINGLES, DRIP EDGE AND FELT.

3-TAB SHINGLES ............................ 4 Bundles

PAINT FOR SIDING .......................... 2 Gallons

Use 100% acrylic latex exterior paint. (2) coats recommended.

CAULK ................................................. 3 Tubes

Use acrylic latex exterior caulk that is paintable.



For shingles.

PAINT FOR TRIM .............................1 Quart

Use 100% acrylic latex exterior paint.

REINFORCED WOOD FLOOR FRAME (OPTIONAL)

IMPORTANT! The included oor has been designed for general use. Depending on your specic use you may want to construct a

heavy duty oor frame by adding additional oor joists (shown below). Below is a list of additional materials (not included):

2 x 4 x 87" (5 x 10 x 221 cm) Treated Lumber

ea. 3" (7,6 cm) Hot Dipped Galvanized Nails



For roong felt.

CAULK ................................................. 1 Tube

For windows use acrylic latex exterior caulk that is paintable.

• This shed kit includes a complete wood oor system.

• This shed kit does not include ANY leveling materials.

•



Optional 12" (30,1 cm) spacing.

• Standard spacing is 16" (40,7 cm).



Nominal Board Size Actual Size

1 x 4.................3/4" x 3-1/2" (1,9 x 8,9 cm)

2 x 4..............1-1/2" x 3-1/2" (3,8 x 8,9 cm)

2 x 3..............1-1/2" x 2-1/2" (3,8 x 6,3 cm)

1 x 3................3/4" x 2-1/2" (3,8 x 6,3 cm)

PARTS IDENTIFICATION AND SIZES

RS RS

Part identication

letters are stamped on some parts.

Check these locations for

part stamp.

Treated lumber is stamped:

All treated lumber

is stamped:

WALLS

x4 2 x 4 x 86" (5,1 x 10,2 x 218,4 cm)

BLA

x2 2 x 4 x 79-1/8" (5,1 x 10,2 x 201,3 cm)

BJA

x2 2 x 4 x 74-1/4" (5,1 x 10,2 x 188,6 cm)

BNA

x2 2 x 4 x 72-5/8" (5,1 x 10,2 x 184,5 cm)

BFA

x3 2 x 4 x 72" (5,1 x 10,2 x 91,4 cm)

x2 2 x 4 x 68" (5,1 x 10,2 x 172,7 cm)

PARTS LIST



We suggest sorting parts by the category they are listed in.

RAFTERS

x2 1 x 3 x 72" (2,5 x 7,6 x 182,8 cm)

x1 1 x 3 x 5" (2,5 x 7,6 x 12,7 cm)

TRIM

x2 19/32 x 3-1/2 x 48" (1,5 x 8,8 x 121,9 cm)

x1 19/32 x 3-1/2 x 52 - 3/8" (1,5 x 8,8 x 133 cm)

x2 2 x 3 x 33-1/8" (5,1 x 7,6 x 84,1 cm)

x4 19/32 x 2 - 1/2 x 9" (1,5 x 6,3 x 22,9 cm)

x9 2 x 3 x 10-1/2" (5,1 x 7,6 x 26,7 cm)

x2 1 x 3 x 33 - 1/8" (2,5 x 7,6 x 84,1 cm)

BPA

x1 19/32 x 3-1/2 x 35-1/4" (1,5 x 8,8 x 89,5 cm)

BYA

2 x 4 x 64" (5,1 x 10,2 x 162,5 cm)

2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)

2 x 4 x 28" (5,1 x 10,2 x 71,1 cm)

2 x 4 x 45 - 5/8" (5,1 x 10,2 x 115,8 cm)

BUA

BQA

x2 2 x 4 x 85-1/2" (5,1 x 10,2 x 217,2 cm)

BKA

2 x 4 x 16 - 1/2" (5,1 x 10,2 x 41,9 cm)

3/4"

(1,9 cm)

BMA

GAA

BRA

x9 2 x 4 x 93-3/16" (1,5 x 10,2 x 236,7 cm)

BOA

2 x 3 x 35-1/4" (5,1 x 7,6 x 89,5 cm)



x1 19/32 x 3 - 1/2 x 59 - 1/4" (1,5 x 8,8 x 150,4 cm)

BXR

x1 19/32 x 3 - 1/2 x 59 - 1/4" (1,5 x 8,8 x 150,4 cm)

BXL

x1 UN 2 x 4 x 94-1/2" (5,1 x 10,2 x 240 cm)

FLOOR

2 x 4 x 87" (5,1 x 10,2 x 220,9 cm)

x2 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)

2 x 4 x 72" (5,1 x 10,2 x 182,8 cm)

SOFFIT

DOOR

PARTS LIST continued...

TRIM

CORNER/FREIZE TRIM

OY 2 x 3 x 72" (5,1 x 7,6 x 182,8 cm)

19/32 x 3-1/2 x 96" (1,5 x 8,8 x 243,8 cm)

19/32 x 3-1/2 x 80" (1,5 x 8,8 x 203,2 cm)

19/32 x 2-1/2 x 91" (1,5 x 6,3 x 231,1 cm)

BTA

BSA



x1 PT 2 x 3 x 96" (5,1 x 7,6 x 243,8 cm)

35-3/4 x 10-3/8 x 3/8" (90,8 x 26,3 x 1 cm)

95-3/8 x 10-3/8 x 3/8" (242,2 x 26,3 x 1 cm)

95-1/2 x 5-1/4 x 3/8" (242,5 x 13,3 x 1 cm)

19/32 x 2-1/2 x 26-5/8" (1,5 x 6,3 x 67,6 cm)

x8 AH

x2 OO 69" Door Stiffener (175,2 cm)

x1 3/8 x 2 x 25-3/8" (0,9 x 5,1 x 64,4 cm)

x2 3/8 x 2 x 68-3/4" (0,9 x 5,1 x 174,6 cm)

x1 3/8 x 2 x 69-1/4" (0,9 x 5,1 x 175,8 cm)

x2 3/8 x 2 x 91-1/4" (0,9 x 5,1 x 231,7 cm)

x1 3/8 x 2 x 93-1/4" (0,9 x 5,1 x 236,8 cm)

x1 3/8 x 2 x 96" (0,9 x 5,1 x 243,8 cm)

EHT

19/32" x 3-1/2" x 11-3/8"

(1,5 x 8,9 x 28,9 cm)

PANEL PARTS LIST

ROOF PANELS

FLOOR

NOTE: Panel parts are not stamped.





7/16 x 11-7/8 x 96"

(1,1 x 30,2 x 243,8 cm)

7/16 x 11-7/8 x 35-7/8"

(1,1 x 30,2 x 91,1 cm)

7/16 x 35-7/8 x 96"

(1,1 x 91,1 x 243,8 cm)

7/16 x 48 x 96"

(1,1 x 121,9 x 243,8 cm)

5/8 x 23-7/8 x 90"

(1,5 x 60,6 x 228,6 cm)

5/8 x 42 x 96"

(1,5 x 106,6 x 243,8 cm)

5/8 x 48 x 96"

(1,5 x 121,9 x 243,8 cm)

3/8 x 11-7/8 x 96"

(1 x 30,1 x 243,8 cm)

WALL PANEL & DOORS PARTS LIST

LEFT DOOR

RIGHT DOOR

x2 BOXES

x3 BOXES

x210

x180

NAIL BOXES

VENT, DOOR HARDWARE, AND WINDOW

FASTENER/HARDWARE BAG

3/8 x 48 x 72"

(1 x 113,3 x 121,9 cm)

3/8 x 42 x 83-1/8"

(1 x 106,6x 211,1 cm)

3/8 x 48 x 96"

(1 x 121,9x 243,8 cm)

3/8 x 48 x 96"

(1 x 121,9x 243,8 cm)

3/8 x 42 x 83-1/8"

(1 x 106,6x 211,1 cm)

3/8 x 23-7/8 x 72"

(1 x 60,6 x 182,9 cm)

3/8 x 48 x 96"

(1 x 121,9x 243,8 cm)

3/8 x 48 x 96"

(1 x 121,9x 243,8 cm)

2" (5,1 cm)

3" (7,6 cm)

x75

x56

x88

x2 1-1/4" (3,2 cm)

3/4" (1,9 cm)

2" (5,0 cm)

3" (7,6 cm)

2" (5,1 cm)

1-1/2" (3,8 cm)

8 x 16"

(20,3 x 35,6 cm)

1/2" (1,2 cm)

x12

1" (2,5 cm)

1-1/2" (3,8 cm)

NOTE:

If you are using a nail gun, nails

may be used where screws are

shown for quicker assembly.

Length of nail must match screw length.

9 X 27" (22,8 x 68,5 cm)

DOOR

FLOOR LEVELING OPTIONS

There are multiple ways to level your oor frame. Our recommended leveling method is shown below.

Leveling materials are not included in this kit.

PREFERRED METHOD - 4x4 TREATED RUNNERS

Measurements to



• 3" Screws angled into 4x4.

• (2) at each point frame

•and 4x4 touch.

• Level under 4x4 runners only.

• Locate leveling material 12" from ends of runners and no more than 48" apart.

• Asphalt shingles should be used between 4x4 runners and blocks or treated lumber. Never use

shingles in direct contact with ground.

• For best results and aiding in water drainage use gravel under each concrete block.



• If you are building your shed on a concrete foundation see the following page.

CONCRETE

MATERIAL REQUIRED

x2 4 x 4 x 10' (10 x 10 x 304,8 cm)Treated Lumber



(3" Screws shown as one option.) Minimum (40) 3" screws / exterior grade.









Gravel

2x4 Treated Lumber

Solid Masonry Blocks in 1", 2", 4" or 8" thickness

Asphalt Shingles

8" Block

4" Block

Gravel

Do not exceed 16".

4x4 Runner

Shingle

Maximum between leveling

material locations.

48"

12"

2x4 Treated Lumber

2" Block

Level

12"

(30,5 cm)

12"

(30,5 cm)

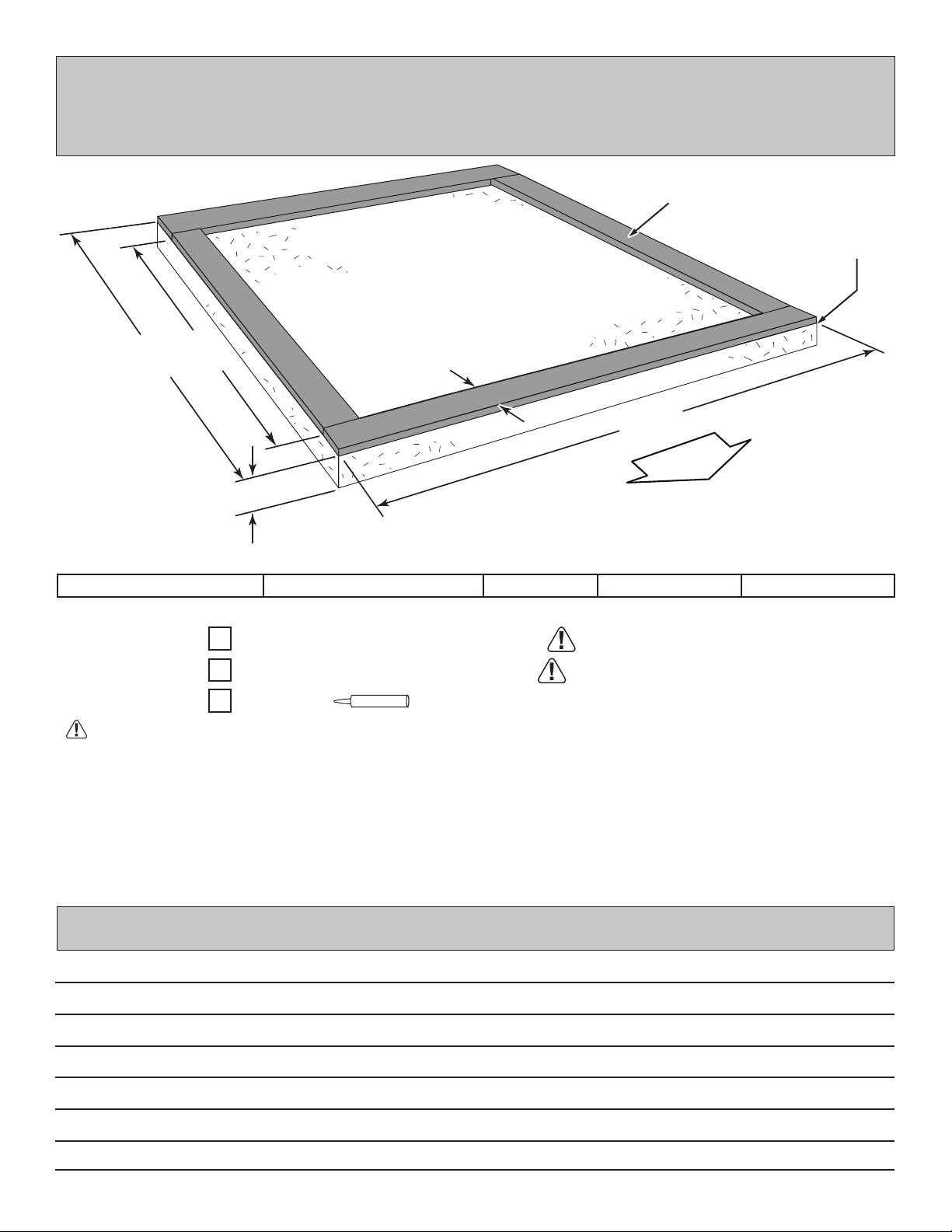

CONCRETE FOUNDATION

Your kit contains all materials to construct a wooden oor. If you choose to install your kit

on a concrete slab refer to the diagram below.

• A treated 2 x 4 (5,1 x 10,2 cm) sill plate is required when installing your shed on concrete. Hint: Use treated lumber in your kit or



• Use a high quality exterior grade caulk beneath all sill plates.

• Fasten 2 x 4 (5,1 x 10,2 cm) sill plates to slab using approved concrete anchors .

• Check local code for concrete foundation requirements.

NOTES

Allow new concrete slabs to cure for at least seven (7) days.

2 x 4 x 10'-0" (5,1 x 10,2 x 304,8 cm)

2 x 4 x 7'-6" (5,1 x 10,2 x 229,6 cm)

Caulk

Requires:

MUST be treated lumber.



 

 

AActual Size B C

(10,2 cm)

3-1/2"

(8,9 cm)

DOOR

Treated Sill Plate

Caulk between sill

plate and concrete.

Inhaltsverzeichnis

Andere Backyard Products Außenlagerung Handbücher

Backyard Products

Backyard Products YardLine SOMERFIELD GABLE Bedienungsanleitung

Backyard Products

Backyard Products GRILL SHACK Bedienungsanleitung

Backyard Products

Backyard Products Heartland VALUE Series Bedienungsanleitung

Backyard Products

Backyard Products Yardline BRAMPTON 10 x 8 Bedienungsanleitung

Backyard Products

Backyard Products HANDY HOME PRODUCTS MARCO Series Bedienungsanleitung

Backyard Products

Backyard Products HEARTLAND CORONADO 12x8 Bedienungsanleitung

Backyard Products

Backyard Products HANDY HOME PRODUCTS MAJESTIC Bedienungsanleitung

Backyard Products

Backyard Products ShedMaster Gable Bedienungsanleitung

Backyard Products

Backyard Products SHEDMASTER HOMESTEAD Bedienungsanleitung

Backyard Products

Backyard Products GABLE Bedienungsanleitung

Backyard Products

Backyard Products GARDEN SHED Bedienungsanleitung

Backyard Products

Backyard Products GAMBREL 12' x 12' Bedienungsanleitung

Beliebte Außenlagerung Handbücher anderer Marken

USP

USP DURAMAX 10 Ft x 8 Ft StoreMax Plus Bedienungsanleitung

TYGO

TYGO Nyland Bedienungsanleitung

Duratuf

Duratuf GL105 Bedienungsanleitung

Viking

Viking SD5300SS Technisches Handbuch

USP

USP DURAMAX Apex Pro 10.5 Ft x 8 Ft 40116 Bedienungsanleitung

ModuLaro

ModuLaro Lojo WC202200 Bedienungsanleitung

Lifetime

Lifetime 6418 Bedienungsanleitung

rollaway container

rollaway container ARPCA24 Bedienungsanleitung

Duratuf

Duratuf Havelock Bedienungsanleitung

X-METAL

X-METAL 4065 Bedienungsanleitung

Outdoor Life Products

Outdoor Life Products FP2030 F Bedienungsanleitung

Royalcraft

Royalcraft Faro 295L Storage Box Bedienungsanleitung

Riverlea

Riverlea Duratuf KIWI KS3 Bedienungsanleitung

OLT

OLT GS84D-FJ-Plywood Bedienungsanleitung

Rubbermaid

Rubbermaid 5L45 Bedienungsanleitung

garofalo

garofalo TUSCANY EVO Bedienungsanleitung

Duratuf

Duratuf Kiwi MK1 Bedienungsanleitung

Eden

Eden CA2988 Bedienungsanleitung
