Bakers Pride Dante FLB-24GS Bedienungsanleitung

6/00 Note: When ordering, ALWAYS specify Part #, Model #, Serial #, Voltage/Phase & type of Gas. Page 1 of 4

FLB-24R/GS

Gas Char Broiler

PARTS LIST

Serial Number Natural L.P. Other

Model Number: FLB-24R/GS Type of Gas

30 Pine Street • New Rochelle • New York • 10801

914 / 576 - 0200

914 / 576 - 0605

1 - 800 - 431 - 2745

www.bakerspride.com

fax

US & Canada

web address

BAKERS

PRIDE

Dante

SERIES

(FLB-72 Shown)

GB (w/Standard Valves) RB (w/Standard Valves)

GB (w/Opt. Auto. Safety Valves) RB (w/Opt. Auto. Safety Valves)

RATING

PLATE

(FLB-60 Shown)

FLB-24R/GS

Gas Char Broiler

30 Pine Street • New Rochelle • New York • 10801

914 / 576 - 0200

914 / 576 - 0605

1 - 800 - 431 - 2745

www.bakerspride.com

fax

US & Canada

web address BAKERS

PRIDE

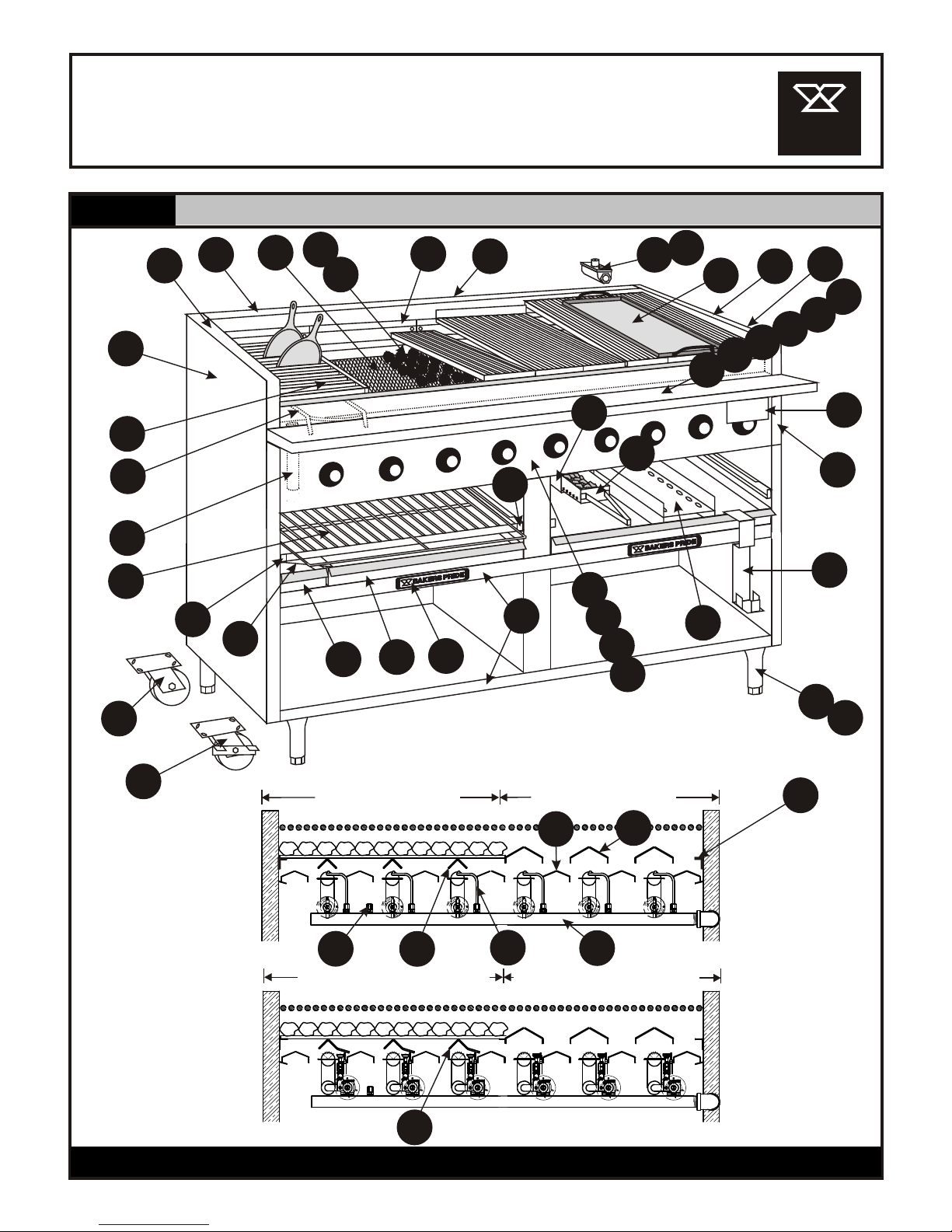

Figure A Exterior / Interior

Page 2 of 4 Note: When ordering, ALWAYS specify Part #, Model #, Serial #, Voltage/Phase & type of Gas. 6/00

910

27 28

35 36 37

41 42

45 46 47 48 49 50

1514

51 50

43 42

30 Pine Street • New Rochelle • New York • 10801

914 / 576 - 0200

914 / 576 - 0605

1 - 800 - 431 - 2745

www.bakerspride.com

fax

US & Canada

web address

BAKERS

PRIDE

Exterior / Interior

6/00 Note: When ordering, ALWAYS specify Part #, Model #, Serial #, Voltage/Phase & type of Gas. Page 3 of 4

Item Part # Description Item Part # Description

FLB-24R/GS

Gas Char Broiler

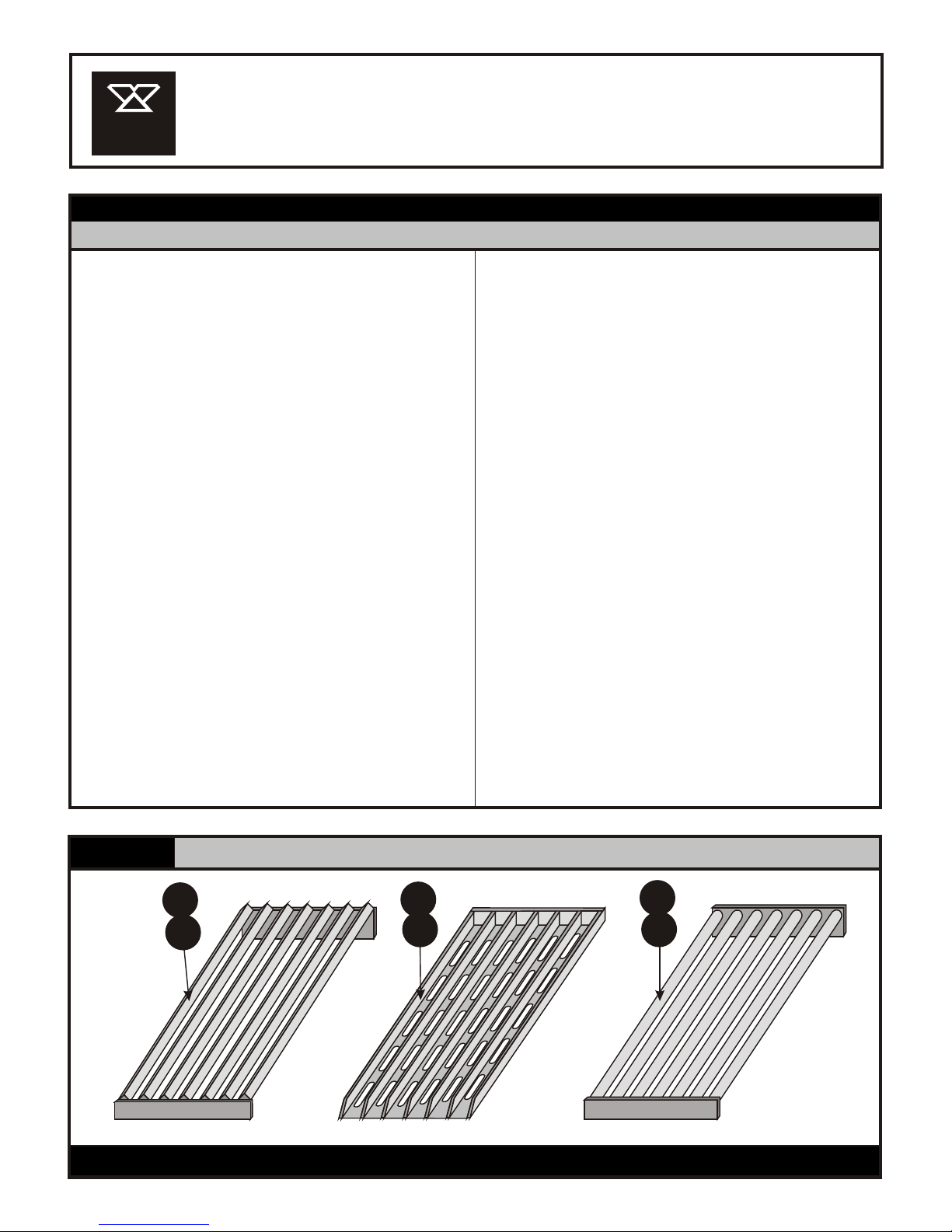

Figure B Grates

1 R3042X Pilot Tube, 5" w/Nut & Ferrule 30 G5066K Control Panel, CE-24

2 N3068P Pressure Tap Nozzle 31 U1320A Control Panel Overlay-24

3 G5073X Radiant S/S (Standard) 32 U1325A Control Panel Overlay, CE-24

4 G5069K Grease Drawer 33 R1119A Manifold-24

5 G5070U Grease Shield Assy 34 G5058K Front Trim-24

6 G5072K Heat Shield 35 G5059K Back Trim-24

7 G5032U Grease Drain Assy-24 36 G5042X Top Grate Support, 20 1/2" /1

8 G5212K Manifold Cover 37 G5049K Outer Back-FLB 24

9 G5060K Side Trim, Left 38 G5052K Outer Side, Left-FLB

10 G5061K Side Trim, Right 39 G5053K Outer Side, Right-FLB

11 G5205K Rating/Instruction Plate Mount 40 G5067K Drip Pan, 16 1/2" /1

12 U1044X Bakers Pride Name Plate, 8" 41 S1049A Legs, 6" (Standard) each

13 G5039K Bottom Grate Support, L or R Side 42 S1049Y Legs, 6" (Standard) Set/4

14 T1047X Glo-Stones, 1/2 Lot (20#) 43 S1022X Casters, 4" No/Lock (Optional) each

15 T1048X Glo-Stones, Full Lot (40#) 44 S1023X Casters, 4" W/Lock (Optional) each

16 T1197X Top Roll-A-Grate, 9" (Standard) /1 45 G5035K Work Deck-24

17 T1198X Top Roll-A-Grate, 6" (Standard) /2 46 G5031U Front Brace Assy-24

18 T1212A Top Grate, 6", Cast Iron (Optional) 47 G5286K Work Deck-24, 10"

19 T1216A Top Grate, 4 1/2", Cast Iron (Optional) 48 G5289U Front Brace Assy-24, 10"

20 T1210X Meat Grate, 6" (Optional) 49 G5306K Work Deck-24, 12"

21 T1211X Meat Grate, 9" (Optional) 50 G5307K Front Brace Assy-24, 12"

22 T1213T Fajita Top Grate (Optional) 51 T1209U Breakfast Griddle, 11"W (Optional)

23 T1214T Fajita Bottom Grate (Optional) 52 T1206U Wire Rack Assy, 21" /1

24 T1201A Bottom Grate, S/S, 20" /1 53 G5131U Left Wire Rack Guide Assy

25 G5040U Bottom Grate Support /3 54 G5132U Right Wire Rack Guide Assy

26 G5041U Bottom Grate Support (CE) /3 55 G5180U Smoker Box Assy (No Drawer)

27 M1009X Pressure Regulator 3/4",10"WC (LP) 56 G5187U Drawer, Smoker Box

28 M1184X Pressure Regulator 3/4",3.5"WC(Nat) 57 G5182U Log Support (Optional)

29 G5065K Control Panel-24 58 G5186K Bottle Holder, RH (Optional)

20 19

18 17

FLB-24R/GS

Gas Char Broiler

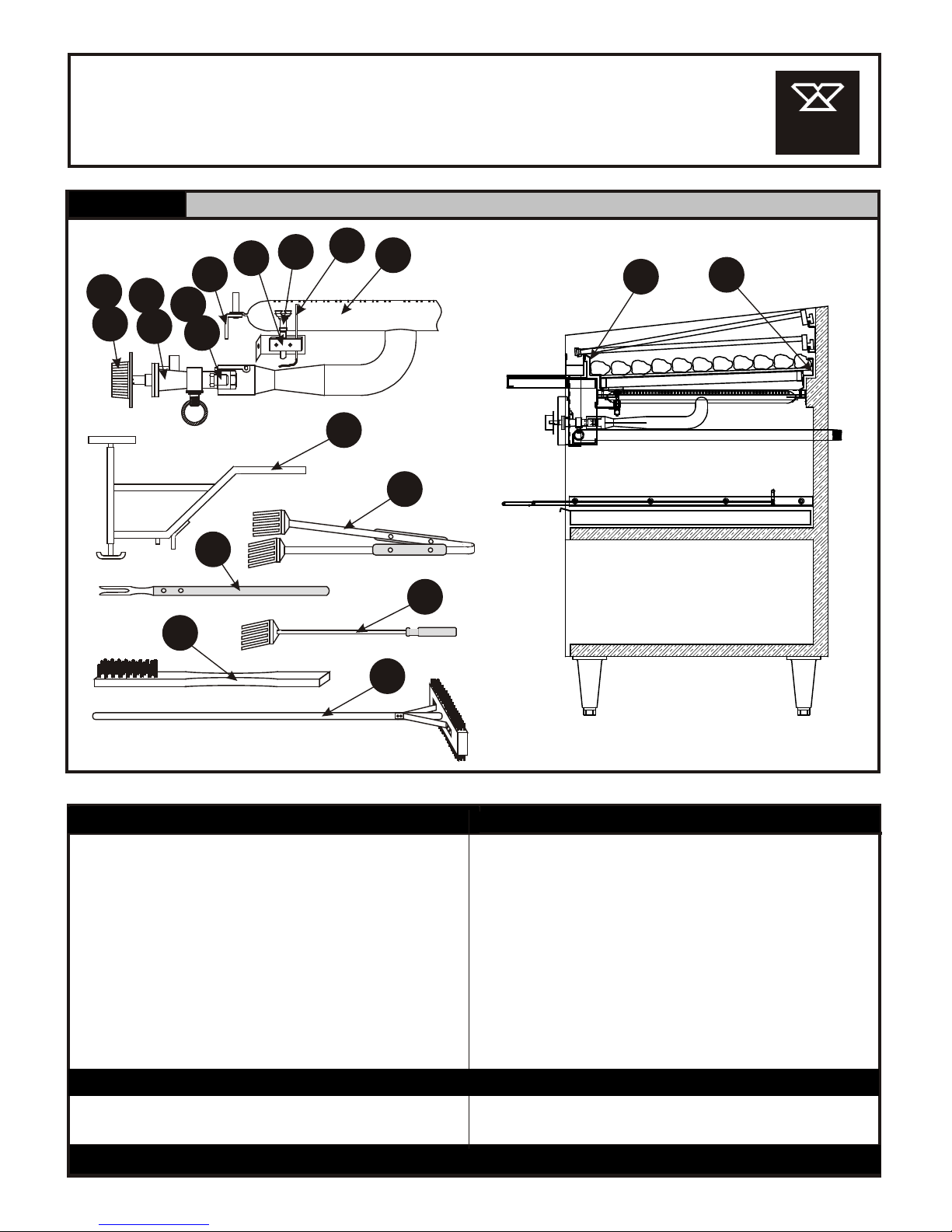

Figure C

Burner / Accessories / Supports

Page 4 of 4 Note: When ordering, ALWAYS specify Part #, Model #, Serial #, Voltage/Phase & type of Gas. 6/00

Item Part # Description

30 Pine Street • New Rochelle • New York • 10801

914 / 576 - 0200

914 / 576 - 0605

1 - 800 - 431 - 2745

www.bakerspride.com

fax

US & Canada

web address BAKERS

PRIDE

8910

11 12

Conversion Kit (LP to Nat) Conversion Kit (Nat to LP)

3 R3130X Hood Orifice #44 (Nat) 3 R3136X Hood Orifice #54 (LP)

1 M1184X Pressure Regulator 3/4", 3.5"WC (Nat) 1 M1009X Pressure Regulator 3/4", 10"WC (LP)

1 R3136X Hood Orifice #54 (LP) 11 G5028U Burner Support Assy, 17" /2

2 R3130X Hood Orifice #44 (Nat) 12 G5044U Radiant Support Assy, Rear 18"/3

3 L5077X Burner, Center Feed 13 G5046U Radiant Support Assy, Front 18" /1

4 R3032X Gas Valve 14 T5018V Spatula, Chef-Aide, 20" Single

5 S1094X Knob, Gas Valve 15 T5017X Wire Brush, Chef-Aide, 18"

6 R3128X Gas Valve (used w/Pilot Safety) 16 G5221U Grate Lifter

7 S1301X Knob, Gas Valve, CE (used w/Pilot Safety) 17 T5016A Meat Fork

8 G5064K Pilot Bracket (used w/Pilot Safety) 18 T5019V Steak Turner

9 M1359X Pilot Burner (used w/Pilot Safety) 19 T5104V Twin Head Grate Brush

10 M1358X Thermocouple, 10" (used w/Pilot Safety)

15 14

5641

211 8910 3
