Model XX-4BG

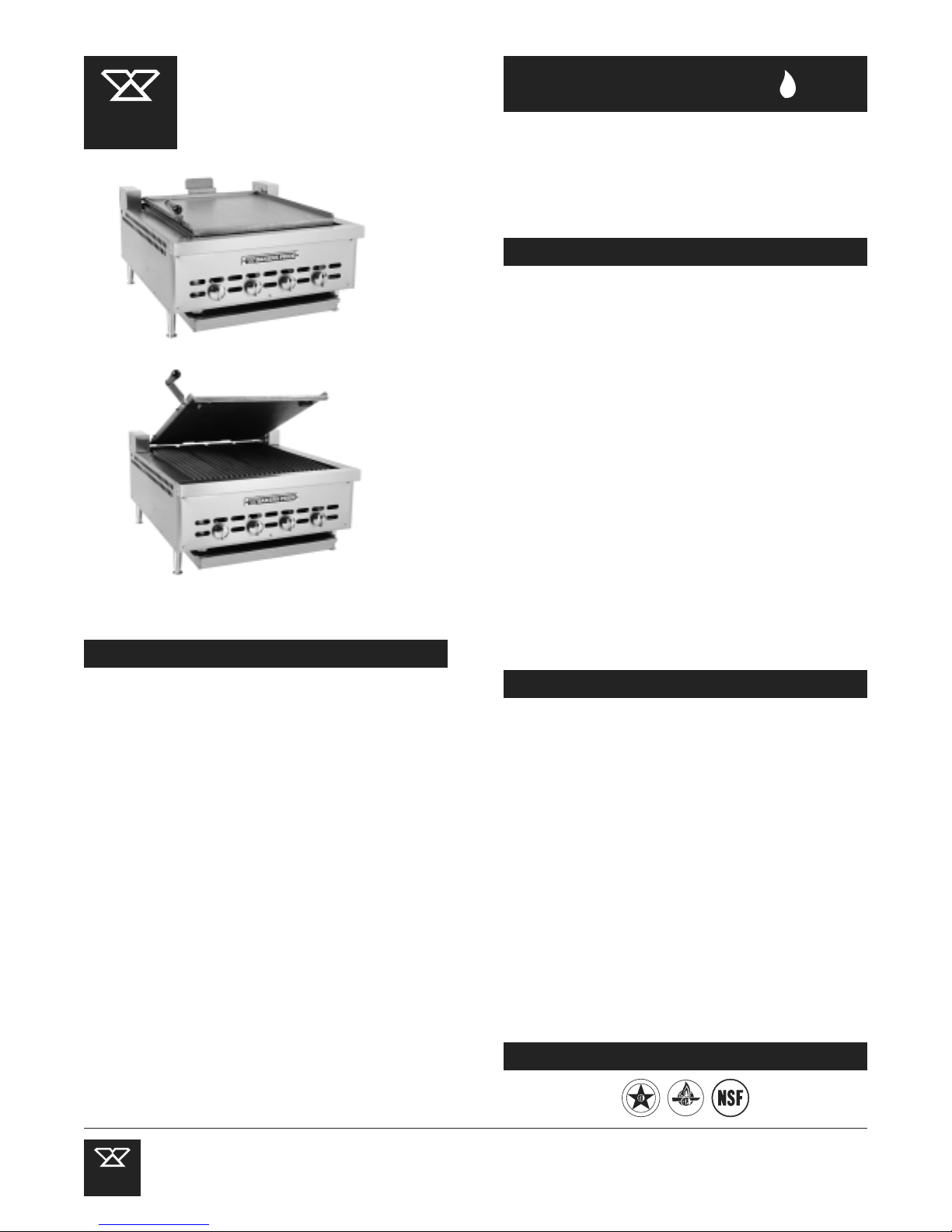

()Grilling Position

Model XX-4BG

()Griddle tilts up 90° for Char Broiling

SPECIFICATIONS

STANDARD FEATURES

CERTIFICATIONS

Countertop gas radiant char broiler with spring balanced, feather-

touch, heavy duty tilting breakfast griddle designed for broiling or

grilling in one unit.

Exterior is all stainless steel. Front grease trough, slide out

stainless steel water pan/grease drawer and 4” (102mm) chrome

plated adjustable legs are standard. The tilting breakfast griddle is

1/4” (7mm) cold rolled steel. Interior combustion chamber is

fabricated of 11 gauge and 16 gauge HRS and hand welded to

form a single unit.

The XX-4BG features four 24” long, 18,000 BTU/HR, independently

controlled, clog-proof, high efficiency burners.

14 Gauge, 300-series stainless steel radiant heat deflectors are

placed directly above each burner for even heat transfer to the

broiling surface and breakfast griddle. Cast iron radiants are

optional.

Flame guards are attached to the underside of each burner to

prevent direct contact of grease and flames.

Top grates are cast iron with channels to direct grease to front

trough. Grates are 6” (152mm) wide by 23 3/4” (603mm) long

with 3/4” (19mm) rib spacing, while several grate types are

optional and may be mixed and matched.

Spring balanced, feather-touch, heavy duty tilting breakfast

griddle

Cast iron top grates for broiling

18,000 BTU/HR per burner with independently operated

control valves

72,000 BTU/HR natural or propane gas — model XX-4BG

All stainless exterior finish

Low profile, countertop design — only 13 1/4” to

broiling/grilling surface

Stainless steel slide-out grease drawer/water pans and 4”

legs

Stainless steel radiant heat deflectors with flame guards

3/4” (19mm) NPT rear gas connection and pressure regulator

Limited one year parts and labor warranty

OPTIONS & ACCESSORIES

Stainless steel front-mounted work deck with or without

sauce pan cut-outs

Richlite front mounted work deck with or without sauce pan

cut-outs

Cast iron radiants

Cast iron burners

Stainless steel equipment stand with or without casters

Meat grates, fish grates and/or floating rod grates

Char broiler and grilling utensils

Gas connector hoses

Removable splash guards

BAKERS

PRIDE qModel XX-4BG

COUNTERTOP GAS

GRIDDLE AND

RADIANT

CHAR BROILER

BAKERS

PRIDE

Continuous product improvement is a policy of Bakers Pride Oven Company.

Therefore, specifications and design are subject to change without notification

BAKERS PRIDE OVEN COMPANY, INC.

30 Pine Street, New Rochelle, NY 10801

914/576-0200 • 1-800-431-2745 • fax 914/576-0605

GAS CHAR BROILERS G

CERTIFIED

BAKERS

PRIDE

Continuous product improvement is a policy of Bakers Pride Oven Company.

Therefore, specifications and design are subject to change without notification

TS:03/03

BAKERS PRIDE OVEN COMPANY, INC.

30 Pine Street, New Rochelle, NY 10801

914/576-0200 • 1-800-431-2745 • fax 914/576-0605

SHIPPING INFORMATION

SPECIFICATIONS

GAS SUPPLY

Model

XX-4BG

XX-4BG378

21x24

72,00032 36 28171

533x610 4 4

21.09813 914 711

Shipping Weight

Broiling Area # Top

Grates

#of

Burners

Carton Dimensions

Overall Dimensions*

Lbs.

in.

BTUH

Inches

Width Depth Height

Inches Inches

Kilos

mm mm mm

MINIMUM CLEARANCES

Right

Left

Rear

• From non-combustable construction

• Install only with non-combustable material above grate level

Inches mm

Inches

Width Depth Height

Inches Inchesmm mm mm

131/430261/4 337762667

*Height includes 4" (102 mm) standard legs

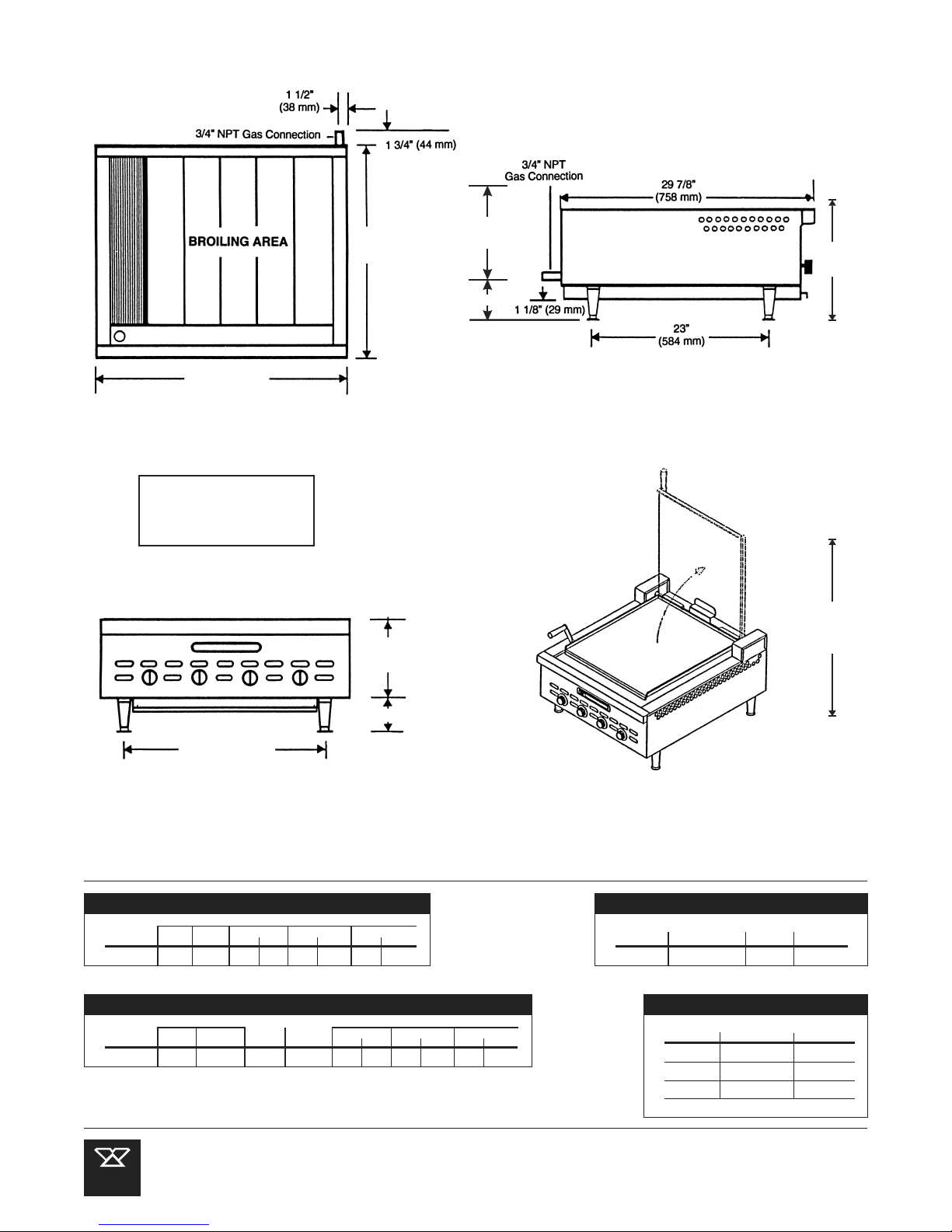

TOP VIEW

26 1/4"

(667 mm)

29 7/8"

(759 mm)

24"

(610 mm)

(203 mm)

5 1/4" (133 mm)

9 1/4"

(235 mm)

4" (102 mm)

GRIDDLE AREA

19 3/4" (502 mm) Wide

23 1/4" (591 mm) Deep

35 1/2"

(876 mm)

13 1/4"

(337 mm)

FRONT VIEW

SIDE VIEW

REAR & SIDE VIEW

ALL DIMENSIONS NOMINAL

3/4”

CONNECTION
