Bakers Pride P-22BL Bedienungsanleitung

7/01 Note: When ordering, ALWAYS specify Part #, Model #, Serial # and Voltage/Phase. Page 1 of 4

Electric Countertop Oven

PARTS LIST

Serial Number

Model Number

30 Pine Street • New Rochelle • New York • 10801

914 / 576 - 0200

914 / 576 - 0605

1 - 800 - 431 - 2745

www.bakerspride.com

fax

US & Canada

web address

BAKERS

PRIDE

Voltage

200V 208V

220/240V

230V

230/400V

THIS PARTS LIST PERTAINS TO THE FOLLOWING UNITS:

Model # Voltage Starting Serial # Date

P-22BL All All

P-22S 208VAC #7131 11/2/99

P-22S 230VAC #4160 11/2/99

P-24S All #17288 2/29/00

STYLE

NEW STYLE

NEW

P-22BL / P-22S / P-24S

P-22S P-22BL

P-24S

Phase

Electric OvenCountertop

30 Pine Street • New Rochelle • New York • 10801

914 / 576 - 0200

914 / 576 - 0605

1 - 800 - 431 - 2745

www.bakerspride.com

fax

US & Canada

web address BAKERS

PRIDE

Page 2 of 4 Note: When ordering, ALWAYS specify Part #, Model #, Serial # and Voltage/Phase. 7/01

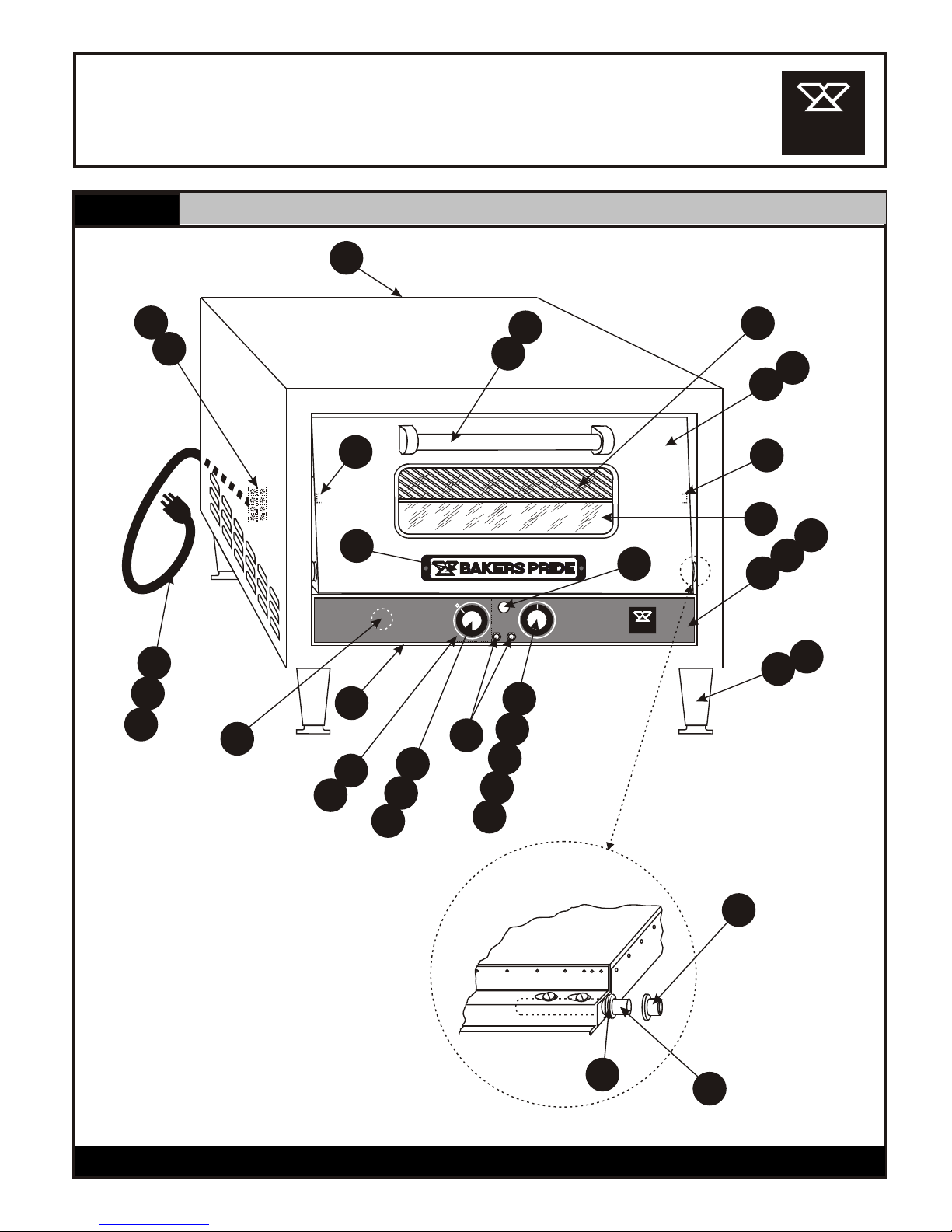

Figure A EXTERIOR / DOOR / CONTROLS (ROTARYTIMERS)

P-22BL / P-22S / P-24S

300

450

650

300

450

650

BAKERSBAKERS

PRIDEPRIDE

BAKERSBAKERS

PRIDEPRIDE

300

450

650

20 21 22

26 28

35 36

38 39

16 3233 37

27 22

35 36

54321

2423

Electric Countertop Oven

30 Pine Street • New Rochelle • New York • 10801

914 / 576 - 0200

914 / 576 - 0605

1 - 800 - 431 - 2745

www.bakerspride.com

fax

US & Canada

web address

BAKERS

PRIDE

7/01 Note: When ordering, ALWAYS specify Part #, Model #, Serial # and Voltage/Phase. Page 3 of 4

Item Part # Description Item Part # Description

Figure C DECK ARRANGEMENT BY MODEL

Figure B CONTROL PANEL WITH DIGITAL TIMER (OPTIONAL)

P-22BL / P-22S / P-24S

300

450

650

BAKERSBAKERS

PRIDEPRIDE

START-STOP

MIN. SEC.

- +

09 : 15

DIEHL micro

P-22BL P-22S P-24S

PIZZA

2 3/4”

BAKERSBAKERS

PRIDEPRIDE

300

450

650

PIZZA

3 1/4”

BAKERSBAKERS

PRIDEPRIDE

300

450

650

BAKE

7 1/2”

BAKERSBAKERS

PRIDEPRIDE

300

450

650

1235

11 12

20 21 22

1 M1098X Thermostat w/Knob, 650F (EGO) 21 U1307A Control PanelOverlay, Hi Heat, 22S & 22BL

2 M1192X Thermostat w/Knob, CE "430C" (High Heat) 22 U1314A Control PanelOverlay, P-24S

3 M1110X Thermostat w/Knob, 550F, KA-72 (P-24S) 23 U1297A 18 Minute Timer Overlay(50 cycle)

4 M1342X Thermostat Kit w/Knob, 250F (Special) 24 U1296A 72 Minute Timer Overlay(50 cycle)

5 S1311X Knob (T-stat "F", 15 Min Timer: Rot-Elec) 25 S3019X Door Bushing

6 M1345X Timer, Rotary-Elec, 15 Min, (P-22S & P-22BL) 26 D1106X Door Assy (No Window)

7 M1346X Timer, Rotary-Elec, 60 Min (P-24S) 27 S1020X Window Assy (Door)

8 M1275X Timer, Electronic (Digital Readout) 60 cycle 28 D1143U Door Assy (w/Window)

9 M1274X Timer, Electronic (Digital Readout) 50 cycle 29 S3001X Door Rod

10 D1157K Control Panel (Rot/Elect Timer) 30 Q3021X Door Rod Spacer Kit (1 Kit per Door)

11 D1156K Control Panel (Electronic Timer) 31 D1105K Outer Back

12 M1330A Circuit Breaker, 3A 32 S1316U Door Handle

13 M1335X Audio Alarm 33 Q2041A Screws, 1/4-20 x 1/2 RH (Door Handle)

14 P1127X Pilot Light, Amber 34 U1044X Bakers Pride Nameplate, 8"

15 P1003X Terminal Block, 3 Pole, 1 Phase 35 S1014X 4" Adjustable Leg (Set/4)

16 P1004X Terminal Block, 4 Pole, 3 Phase 36 S1014Y 4" Adjustable Leg (each)

17 P6009X Line Cord, 250V/20A (USA & Canada) 37 T3139X Intermediate Wire Rack (Option, P-24)

18 P6385A Line Cord, 250V/30A (Can. 208V only)P22S/BL 38 D1162U Wire Rack Support Assy, Left (Option)

19 P6005X Line Cord, 250V/15A (P-24S) 39 D1163U Wire Rack Support Assy, Right (Option)

20 U1302X Control PanelOverlay, 22S & 22BL

11 98

21 22

Electric Countertop Oven

Figure D

Interior Components & Accessories

Page 4 of 4 Note: When ordering, ALWAYS specify Part #, Model #, Serial # and Voltage/Phase. 7/01

Item Part # Description

30 Pine Street • New Rochelle • New York • 10801

914 / 576 - 0200

914 / 576 - 0605

1 - 800 - 431 - 2745

www.bakerspride.com

fax

US & Canada

web address BAKERS

PRIDE

Brick Lined

Models Only

P-22BL / P-22S / P-24S

12 13

20 21

1 L1072X Element, 208V/1075W, Top & Bottom 14 T1121Y Deck, 20 13/16 x 20 13/16 x 1/2 (each)

2 L1071X Element, 208V/1450W, Center 15 T1121X Deck, 20 13/16 x 20 13/16 x 1/2 (set/2)

3 L1035X Element, 230V/1075W, Top & Bottom 16 D4040X Fresh Dough Baffle

4 L1034X Element, 230V/1450W, Center 17 D1152T Hearth Frame Assy (No Element)

5 L1116X Element, 200V/1075W, Top & Bottom (Japan) 18 D4039K Deck Support

6 L1117X Element, 200V/1450W, Center (Japan) 19 D4031X Baffle Trim

7 P1019A Porcelain Spacer 20 D1142K Hearth Trim

8 Q3016A Washer, Star, #6 21 D1134K Capillary Cover

9 Q1002A Nut, 6-32 22 Q4021X Clip, 3/16"

10 S1061X Terminal Cap, 6-32 23 T1222K Steel Bake Deck (Optional)

11 K1355X Element Clip 24 T5118X StainlessSteel Cleaner (2 16oz Bottles w/pads)

12 D1158U Ceramic Top Frame Assy (B/L Only) 25 T5107Y Deck Scraper Brush

13 T1120Y Deck, ea 17 3/4 x 17 1/2 x 1/2 (P-22BL Only)

231514

25 18 1

246

20 21
