Bakers Pride VH-1620-E1 Bedienungsanleitung

1620E 1828E

1 S3255A S3255A Hanger Pin (For Item #2) 4

2 B6539K B6051K Adjustable Baffle 2

3 Q1499A Q1499A Lock Nut (For Item #1) 4

4 B6535U B6037U Outer Lower Cover, Right 1

5 Q4043A Q4043A 1/4 Turn Fastener 8

6 B6536U B6038U Outer Upper Cover, Right 1

7 Q4044A Q4044A Retaining Ring (For Item #5) 8

8 B6538U B6038U Outer Upper Cover, Left 1

9 B6537U B6037U Outer Lower Cover, Left 1

10 B6533T B6216T Removable Door Assy 1

11 S3256A S3256A Door Handle 2

Item Part Number Description Quan

1620E 1828E

Item Part Number Description Quan

1 B6546U B6227T Complete conveyor assy with wire belt 1

2 S3268U S3266U Idler shaft assy (complete w/sprockets) 2

3 B6068U B6068U Bearing clip assy 6

4 S3254A S3254A Plastic bearing 6

5 Q4045A Q4045A Drive pin in drive shaft 1

6 S3269U S3267U Drive shaft assy (complete w/sprockets) 1

7 S3252A S3253A Complete wire belt assembly 1

8 S3258A S3259A Wire belt master link (not shown) 2

9 S3270A S3270A Drive sprocket (metal) 6

10 S3250A S3250A Idler sprocket (plastic) 12

11 B6569U B6087U Discharge Extension Tray 1

12 B6571U B6089U Infeed Extension Tray 1

Figure A External Covers Figure B Conveyor Assembly

BAKERS

PRIDE

30 Pine Street • New Rochelle • New York • 10801

914 / 576 - 0200

914 / 576 - 0605

1 - 800 - 431 - 2745

www.bakerspride.com

fax

US & Canada

web address

Electric Countertop Conveyor Ovens- Parts Lists & Exploded Views

VH1620E, VHVA1620E, VH1828E & VHVA1828E

Page 1 of 5

Rev: 5/04

Figure E VH Series Ovens Only

Figure C Blower Motor Cover Assembly

Figure F Plenum Finger Assembly

Figure D Blower Assembly

1 B6086U B6086U Mount Bracket Assy 1

2 P1150A P1150A DN Rail 1

3 M1378A M1378A Contactor 1

4 M1379A M1379A Overload Relay 1

1 B6529T B6221T Complete Plenum "Finger" Assy (Items 2, 3 & 4) 4

2 B6531K B6225K Outer "Perforated" Panel 4

3 B6532K B6226K Inner Perforated Panel 4

4 B6530U B6222U Main Body Panel 4

1620E 1828E

Item Part Number Description Quan

1620E 1828E

Item Part Number Description Quan

1620E 1828E

Item Part Number Description Quan 1620E 1828E

Item Part Number Description Quan

1 M1541U M1537U Complete Blower Assy, VH, 1 or 3 Ph 1

M1542U M1511U Complete Blower Assy, VHVA, 1 or 3 Ph 1

M1515A M1510A Main Blower Wheel 1

S3260A S3260A Minor Wheel (Heat Slinger) 2

M1537A M1537A Blower Motor, 1/4 HP, VH, 1 or 3 Ph 2

M1511A M1511A Blower Motor, 1/4 HP, VHVA, 1 or 3 Ph 2

1 B6565U B6219U Rear Blower Motor Cover 1

2 M1504A Q1504A Fan Guard 4

3 M1532A M1532A Large Axial Fan 220/240V 4

4 P6470A P6471A Fan Cord Assy 2

5 S1392A S1392A Rubber Bumper (Rear Exterior) 4

All Components Shown

Page 2 of 5

1620E 1828E

Item Part Number Description Quan

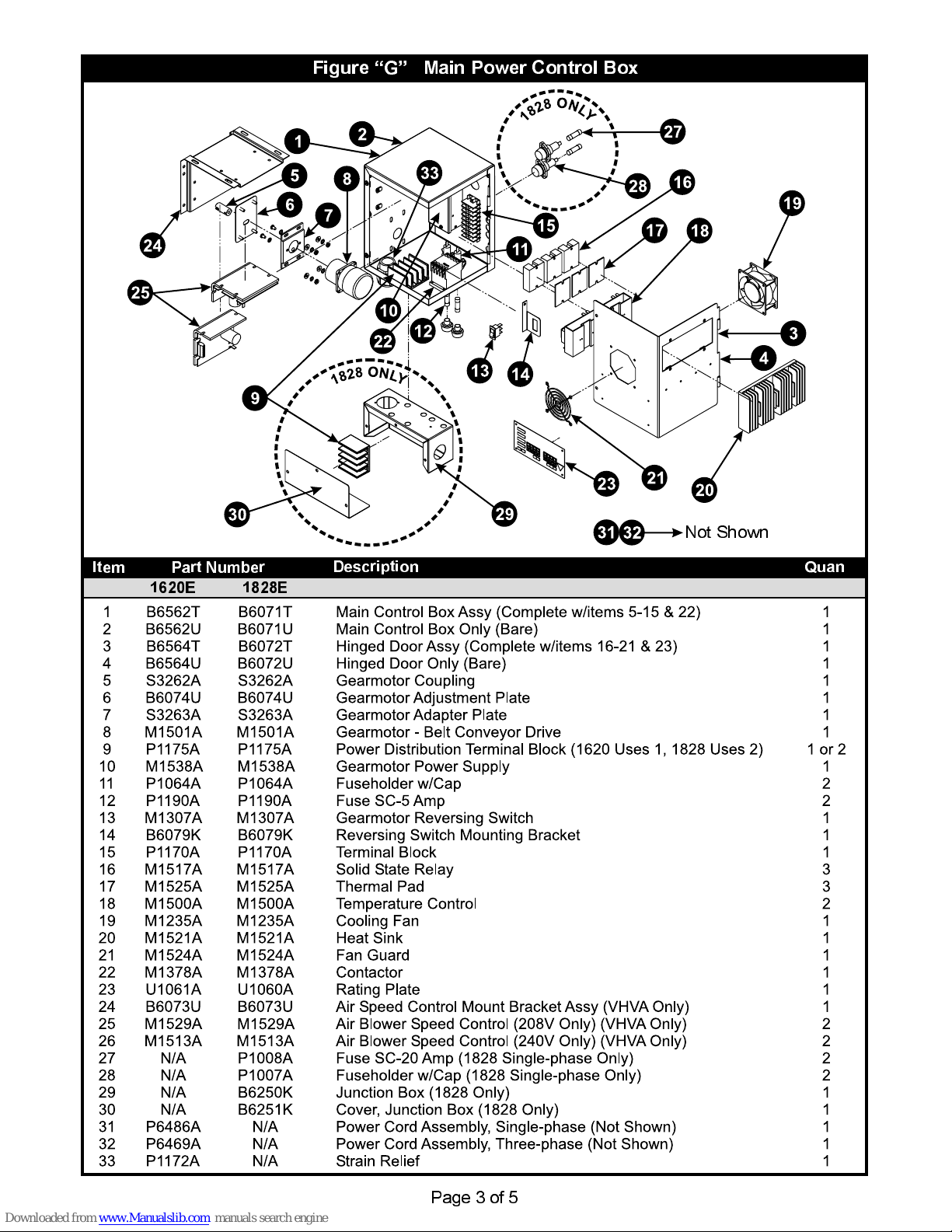

Figure G Main Power Control Box

Not Shown

Page 3 of 5

208 Volt 240 Volt VH VHVA

Item Part Number Description Quan

Figure H Electric Control Box

10 11

1 M1352A

2 P1171A

3 S1205A

4 M1519A

5 M1531A

6 M1505A

7 M1533A

8 P1170A

9 M1524A

10 M1235A

11 B6237T

12 B6237U

13 B6236U

14 U1370A

15 U1366A

16 U1369A

17 U1365A

18 N/A

19 N/A

M1352A

P1171A

S1205A

M1519A

M1531A

M1505A

M1535A

P1170A

M1524A

M1235A

B6237T

B6237U

B6236U

U1370A

U1366A

U1369A

U1365A

P1008A

P1007A

Main Switch

Indicator Light (On for Heat Demand)

Knob

Potentiometer (Conveyor Belt Speed Adjust)

Potentiometer (Air Blower Speed Adjust)

Potentiometer (Air Temperature Control)

Relay

Terminal Block

Fan Guard

Cooling Fan

Electric Control Box (w/items 8, 9, 11, & 12)

Electric Control Box Only

Hinged Door Assy

Door Label (VH1620E)

Door Label (VH1828E)

Door Label (VHVA1620E)

Door Label (VHVA1828E)

Fuse SC-20A (1828 Single-phase Only)

Fuseholder w/Cap (1828 Single-phase Only)

Page 4 of 5

Page 5 of 5

Model 1620E Model 1828E

Part Number Description Quan

Figure I Cool-Down Thermostat, Elements, Switch & Probe

208V 220V 240V 208V 220V 240V

1 M1518A M1518A M1518A M1518A M1518A M1518A Temperature Sensor Probe 2

2 M1520A M1520A M1520A M1520A M1520A M1520A High-Limit Switch 4

3 L1181A L1189A L1183A L1185A L1191A L1187A Heating Element, Left Hand 2

4 L1182A L1190A L1184A L1186A L1192A L1188A Heating Element, Right Hand 2

5 M1534A M1534A M1534A M1534A M1534A M1534A Cool-Down Thermostat 2

6 B6245K B6245K B6245K B6245K B6245K B6245K Spacer 4

Item
