Parallel Port Input/Output Converter

Model PPIO

Document No. PPIO2899

B&B Electronics Mfg. Co. Inc.

707 Dayton Road -- P.O. Box 1040 -- Ottawa, IL 61350 USA

Phone (815) 433-5100 -- General Fax (815) 433-5105

Home Page: www.bb-elec.com

Sales e-mail: orders@bb-elec.com -- Fax (815) 433-5109

Technical Support e-mail: [email protected] -- Fax (815) 433-5104

Not Recommended for New Installations.

Please contact Technical Support for more information.

PPIO2899 Manual Table of Contents i

B&B Electronics Mfg Co Inc –707 Dayton Rd -PO Box 1040 -Ottawa IL 61350 -Ph 815-433-5100 -Fax 815-433-5104

TABLE OF CONTENTS

INTRODUCTION .............................................................................1

PACKING LIST.................................................................................2

PC PARALLEL PORT DESCRIPTION ...........................................3

PPIO DESCRIPTION & CONNECTION..........................................7

CONTROLLING THE PPIO USING GWBASIC..............................9

CONTROLLING THE PPIO USING PASCAL...............................12

CONTROLLING THE PPIO USING C...........................................18

INTERFACING TO THE PPIO.......................................................27

EXAMPLE USE OF THE PPIO .....................................................29

APPENDIX.....................................................................................33

HEXADECIMAL NUMBERS ..............................................................33

BINARY NUMBERS ........................................................................34

PPIO2899 Manual

B&B Electronics Mfg Co Inc –707 Dayton Rd -PO Box 1040 -Ottawa IL 61350 -Ph 815-433-5100 -Fax 815-433-5104

INTRODUCTION

The PPIO allows you to connect your IBM PC (or clone)

computer to the outside world using the computer’s parallel port.

The eight I/O points can be used as either inputs or outputs. As an

output they can control voltages as high as 50 Volts DC and can

handle currents as high as 500 mA DC. As an input they can handle

voltages from 0 to 50 volts with a threshold of 2.5 Volts DC.

CAUTION: Each output of the PPIO can dissipate 1 Watt when

used alone, however, all eight outputs together cannot

dissipate more than 2.25 Watts.

NOTE: The PPIO connects to the parallel port of your computer and

uses most of the available pins on that port. You MUST use a cable

that connects pins 1 through 17 of the DB-25 connector to the PPIO

for it to work properly. To be safe you should use a cable that

connects all 25 pins from connector to connector.

NOTE: The PPIO can only be used with parallel ports that are in

“compatible” or “normal” mode. It will not function properly with

parallel ports in ECP or EPP modes. The mode of the parallel port

can be changed in the BIOS setup by pressing either the F2 key or

DEL key just after the computer begins the boot procedure.

The PPIO comes with sample DOS programs written in

GWBASIC, QuickBASIC, Pascal, and C. These sample programs

can be used "as is" to test the PPIO and to control and display the

status of its I/O pins. Parts of these programs can be used in other

programs to make it easier to interface to the PPIO. Also, by

studying these programs a programmer can learn how to write code

in any language to do a similar job.

2PPIO2899 Manual

B&B Electronics Mfg Co Inc –707 Dayton Rd -PO Box 1040 -Ottawa IL 61350 -Ph 815-433-5100 -Fax 815-433-5104

Packing List

Examine the shipping carton and contents for physical damage.

If there is damage, contact B&B Electronics immediately. The

following items should be in the shipping carton:

1) PPIO unit

2) This Instruction Manual

3) PPIO Sample/Test Disk

If any of the above items is missing contact B&B Electronics

immediately.

PPIO2899 Manual

B&B Electronics Mfg Co Inc –707 Dayton Rd -PO Box 1040 -Ottawa IL 61350 -Ph 815-433-5100 -Fax 815-433-5104

PC PARALLEL PORT DESCRIPTION

To understand how the PPIO can be controlled you must

first understand how the parallel port works inside the computer. The

parallel port is designed to connect the computer with the outside

world. It can have up to 12 TTL compatible outputs and up to 9 TTL

compatible inputs. It cannot have both at the same time since some

inputs and outputs share pins. Eight of the outputs and five of the

inputs are dedicated. Four of the lines can be either inputs or

outputs.

The main use for the parallel port is to send data to a

printer. The port uses the eight dedicated outputs for data and the

other lines for handshakes. Under normal printer operation, the

computer will put an eight-bit byte on the eight lines (pins 2-9) and

then use the Strobe output (pin 1) to tell the printer to read the data.

Upon receipt of an Acknowledge (pin 10) from the printer the

computer knows that the eight bit word was received. It can then

send the next word. Other lines are used for busy, off line, etc.

All the control of the parallel port is done through software. If

you look at the hardware you find that the parallel port is connected

directly to the computer bus. This means that we can address these

inputs and outputs in any way we want if we do not use the port to

drive a printer.

Each PC has port addresses where the parallel ports, serial

ports, hard disk, etc. can be addressed. These are located in the

address range from 0000H to 03FFH (the H indicates the use of the

hexadecimal numbering system). Each parallel port has one main

port address for outputting data. The next two addresses above that

address are used for handshaking control. For instance, on a typical

computer a parallel port could be located at address 0378H. The

handshaking lines will then be located at 0379H and 037AH. Table 1

shows the correspondence between the bits of the port and the pins

of the DB-25 female connector.

Referring to Table 1, if you output a 01H (which is 00000001

in binary) to your computer’s port 0378H, then pin 2 of the parallel

port’s DB-25 connector will be HIGH and pins 3 through 9 will be

LOW. To do this using GWBASIC you would use the command:

OUT &H378,&H01. Using this method you can output any pattern

you wish on pins 2 through 9 of the parallel port. To turn ON pins 2,

4, 6, and 8 use: OUT &H378,&H55. 55H is the same as 01010101

binary. This port (0378H) can be read as an input, but mostly it is

4PPIO2899 Manual

B&B Electronics Mfg Co Inc –707 Dayton Rd -PO Box 1040 -Ottawa IL 61350 -Ph 815-433-5100 -Fax 815-433-5104

used to read the status of the port. The PPIO does not need to use

this port as an input port.

Again, referring to Table 1, if you input the data on port

0379H, then whatever TTL level pins 15, 13, 12, 10, and 11 are will

show up as bits 3 through 7. The state of bits 0, 1, and 2 will be

unknown since they are not hooked to anything, but they probably

will be HIGH (ONE). Note that the data on pin 11 will be inverted, if

pin 11 is LOW you will get a HIGH on bit 7. The pins with the “bars”

over them are all inverted. This is done by the hardware in the

parallel port over which we have no control. A way to read these pins

using GWBASIC is: A1=INP(&H379). A1 will then have the results of

the input from port address 0379H. Bit 3 of A1 will have the status of

pin 15, bit 4 the status of pin 13, etc.

Note that on the third address (037AH) the pins can be

either inputs or outputs. If you use the GWBASIC command OUT

&H37A,&H01 (00000001 BINARY) then pin 1 will be LOW (because

it is inverted), pins 14 and 17 will be HIGH (they also are inverted),

and pin 16 will be LOW (it is not inverted).

PPIO2899 Manual

B&B Electronics Mfg Co Inc –707 Dayton Rd -PO Box 1040 -Ottawa IL 61350 -Ph 815-433-5100 -Fax 815-433-5104

Table 1

Note 1: X means no connection to any DB-25 pin.

Note 2: Bit 4 of 37AH as an output is used to control the interrupt IRQ7.

When this bit is HIGH, IRQ7 is enabled and when this bit is LOW, IRQ7 is

disabled. As an input, this reads the status of the IRQ7 interrupt to see if it

is enabled or not.

Note 3: The “bars” over the top of some pin numbers indicate that those

signals are inverted (in hardware) from PC's bus to DB-25 pin.

You can also read pins 1, 14, 16, and 17 using the INP(&H37A)

command. For this to work properly, you must first force all the

outputs HIGH. The way the parallel port is wired, if you do not force

the outputs HIGH they will interfere with the inputs. To do this, use

the command OUT &H37A,&H04 (04H is the same as 00000100

binary). Pins 1, 14, and 17 are inverting so a ZERO written to them

forces them HIGH. Pin 16 is non-inverting so the ONE written to it

forces it HIGH. After issuing the OUT command you can then do a

A2=INP(&H37A) that will read the TTL levels on those pins. In this

case the four upper bits (bits 4-7) will be unknown, but will probably

be HIGH.

378H 379H 37AH

BIT Output Input Output Input Output Input

14 _

15 _

17 _

13 See

Note 2 See

Note 2

6PPIO2899 Manual

B&B Electronics Mfg Co Inc –707 Dayton Rd -PO Box 1040 -Ottawa IL 61350 -Ph 815-433-5100 -Fax 815-433-5104

There are three port addresses that are normally used on a PC

for parallel ports: 3BCH, 378H, and 278H. When your PC is reset or

turned on these three addresses are scanned by the BIOS in the

order shown above. The first one that the BIOS finds with a parallel

port installed is assigned the logical name LPT1. The second, LPT2,

etc. You can connect the PPIO to a port located at any of these

three addresses. During power up the computer will assign that port

a logical name but we will ignore it and communicate to the port

directly.

If you are using a base address of 0278H the I/O port addresses

in Table 1 would change to 0278H, 0279H, and 027AH. With a base

address of 03BCH the addresses are 03BCH, 03BDH, and 03BEH.

Check your computer manual to find out which address your parallel

port has. It is also possible to purchase a special parallel port from

B&B Electronics that can be set at any address in the I/O port

address space from 0000H to 03FFH.

The above parallel port information is true for the vast majority of

the PC compatible ports. However, a few computer manufacturers

have chosen to make their parallel ports non-standard. On some

battery powered computers pins are disabled to save power. Some

ports may also have extra “direction control” bits. If you have

problems where one or more bits are always on or off you should

check your owner's manual. You may have to enable the port or set

the “direction bit” correctly to get the port to work with the PPIO. If a

pin is missing you may have to install a different parallel port card to

get the PPIO to work properly.

PPIO2899 Manual

B&B Electronics Mfg Co Inc –707 Dayton Rd -PO Box 1040 -Ottawa IL 61350 -Ph 815-433-5100 -Fax 815-433-5104

PPIO DESCRIPTION & CONNECTION

The PPIO makes use of the eight output pins (pins 2 through 9)

at address 378H to drive its eight outputs. It uses the upper four bits

of address 379H (pins 13, 12, 10, and 11) for the upper four input

bits of the PPIO. It uses the lower four input bits of address 37AH

(pins 1, 14, 16, and 17) for the lower four input bits of the PPIO. This

assumes you are using the same port addresses as in Table 1. In

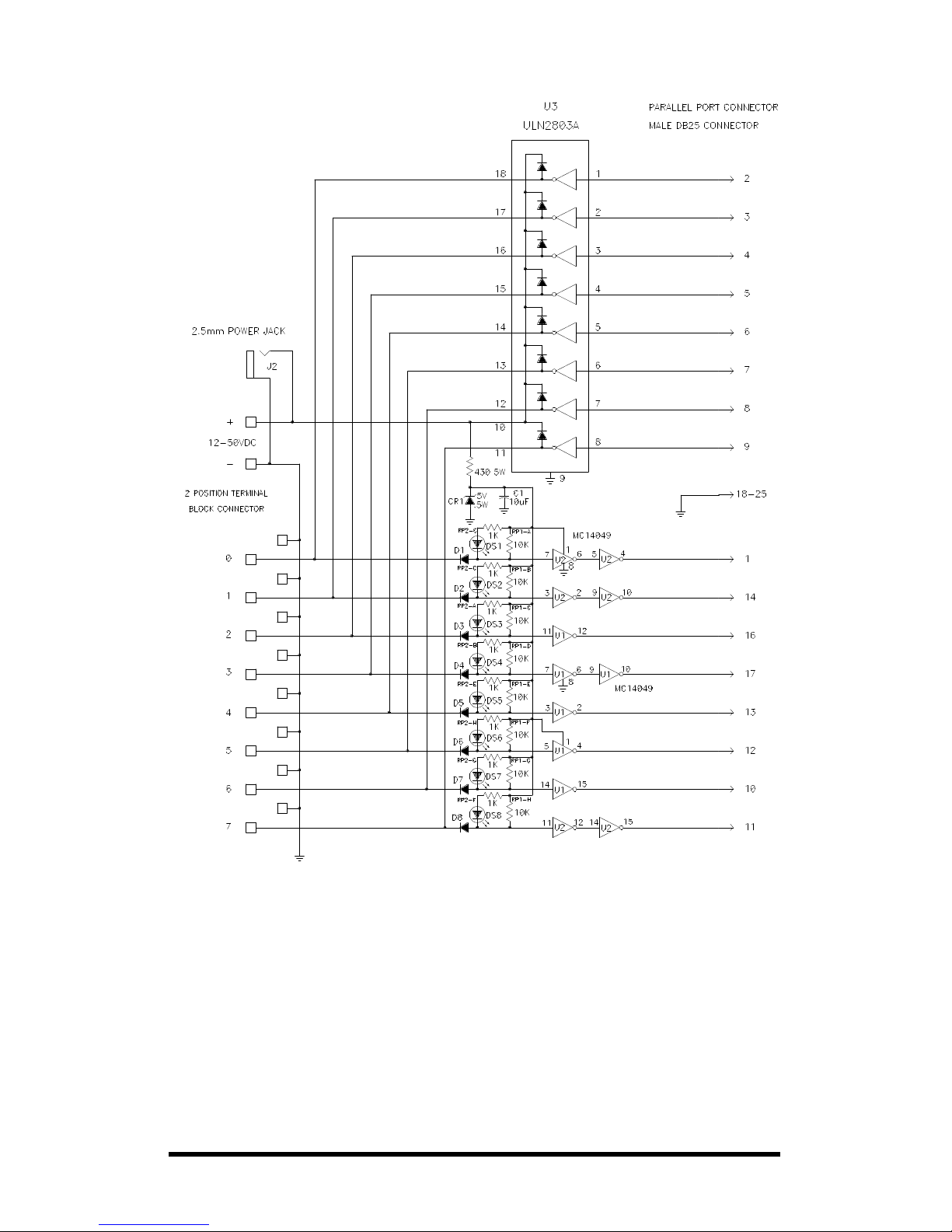

this way the PPIO can have eight inputs or eight outputs. Refer to

Figure 1 for the PPIO schematic.

Each pin of the PPIO is bi-directional. It can be used as either an

input or an output. Referring to Figure 1 you will see that PPIO bit 0

can be driven by pin 2 of the parallel port or it can be read by pin 1 of

the parallel port. The drivers are open collector Darlington

transistors that can sink up to 500 mA and are protected by “kick

back” diodes that are connected to the positive power supply. These

outputs can handle voltages as high as 50 Volts DC. If bit 0 of port

0378H is HIGH, pin 2 of the parallel port is HIGH and the PPIO

output pin will be LOW and can sink 500 ma. If bit 0 goes LOW, pin

2 will go LOW and the PPIO transistor will go OFF.

To use PPIO I/O bit 0 as an input you first set bit 0 of port 378H

LOW to turn OFF the driver transistor. From then on, if you force the

PPIO bit 0 to ground, a LOW will show up on pin 1 of the DB-25

connector. If you look at Table 1 you will note that pin 1 is inverting

in the computer parallel port. This means that a LOW on pin 1 will

show up as a HIGH in the computer. This is called negative true

logic. The PPIO receivers are set up as inverters or non-inverters to

compensate for the inverting and non-inverting inputs of the parallel

port.

All you have to remember is that if you force one of the PPIO I/O

bits to ground, it will be a ONE when you read it in the computer. If

you leave the PPIO I/O pin open or force it HIGH (above 2.5 volts), it

will be a ZERO when you read it in the computer.

PPIO I/O bits 0 through 3 are connected to bits 0 through 3 of

port 037AH and PPIO I/O bits 4 through 7 are connected to bits 4

through 7 of port 0379H. (This assumes that you are using a parallel

port at 0378H in your computer.) A LOW on any PPIO I/O pin will

show up as a HIGH on the corresponding bit in the computer.

8PPIO2899 Manual

B&B Electronics Mfg Co Inc –707 Dayton Rd -PO Box 1040 -Ottawa IL 61350 -Ph 815-433-5100 -Fax 815-433-5104

Figure 1

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere B&B Electronics Medienkonverter Handbücher

B&B Electronics

B&B Electronics EIR*-S series Bedienungsanleitung

B&B Electronics

B&B Electronics MES1A Bedienungsanleitung

B&B Electronics

B&B Electronics PES1A Bedienungsanleitung

B&B Electronics

B&B Electronics McPC MediaLinX Bedienungsanleitung

B&B Electronics

B&B Electronics RS-232 Baud Rate Converter CE 232BRC Bedienungsanleitung

B&B Electronics

B&B Electronics Command Response Protocol HVD100A3 Bedienungsanleitung

B&B Electronics

B&B Electronics ES1AE Bedienungsanleitung

B&B Electronics

B&B Electronics 2IQEC2 Bedienungsanleitung

B&B Electronics

B&B Electronics 485SD9TB Bedienungsanleitung

B&B Electronics

B&B Electronics McPC-Gigabit Bedienungsanleitung

B&B Electronics

B&B Electronics iMcV-LIM 10/100 Bedienungsanleitung

B&B Electronics

B&B Electronics 485DRCI-PH Bedienungsanleitung

B&B Electronics

B&B Electronics 232SPS2 Bedienungsanleitung

B&B Electronics

B&B Electronics Giga-MiniMC 856-10730-RX Bedienungsanleitung

B&B Electronics

B&B Electronics PES1A Bedienungsanleitung

B&B Electronics

B&B Electronics EIS Series Bedienungsanleitung

B&B Electronics

B&B Electronics MES1A Bedienungsanleitung

B&B Electronics

B&B Electronics 485LDRC9 Bedienungsanleitung

B&B Electronics

B&B Electronics High Speed Asynchronous to Synchronous Converter... Bedienungsanleitung

B&B Electronics

B&B Electronics McLIM TP-TX/FX Bedienungsanleitung

B&B Electronics

B&B Electronics McBasic-Gigabit Bedienungsanleitung

B&B Electronics

B&B Electronics 422LPCOR Bedienungsanleitung

B&B Electronics

B&B Electronics Giga-McBasic-II Bedienungsanleitung

B&B Electronics

B&B Electronics Industrial Media Converter EIR102 Bedienungsanleitung

Beliebte Medienkonverter Handbücher anderer Marken

SoundTraxx

SoundTraxx Blunami BLU-2200 Bedienungsanleitung

SPROLINK

SPROLINK VA1 Bedienungsanleitung

Acclaim Lighting

Acclaim Lighting DDC-1-AC Bedienungsanleitung

Nikon

Nikon AF-S TC-20E III Bedienungsanleitung

Axis

Axis AXIS Q7406 Bedienungsanleitung

Omega

Omega TAC80B-J Bedienungsanleitung

Zoom

Zoom Thunderbolt TAC-2R Bedienungsanleitung

OST

OST iConverter 10/100M Bedienungsanleitung

Vertiv

Vertiv Netsure Bedienungsanleitung

birddog

birddog MINI Bedienungsanleitung

Roland

Roland GI-10 Bedienungsanleitung

Wallenstein

Wallenstein WX310 Bedienungsanleitung

Pace

Pace MSS 200-1 Bedienungsanleitung

Solar Converters

Solar Converters EQ 12/24-50 Bedienungsanleitung

CYP

CYP EL-7400V Bedienungsanleitung

TIE

TIE MIDI 1i1o Bedienungsanleitung

DCS

DCS Vivaldi Upsampler Bedienungsanleitung

Westermo

Westermo MCW-211 SERIES Bedienungsanleitung
