B&B Electronics EIR41x-2SFP Series Bedienungsanleitung

EIR41x-2SFP Series-1012qsg

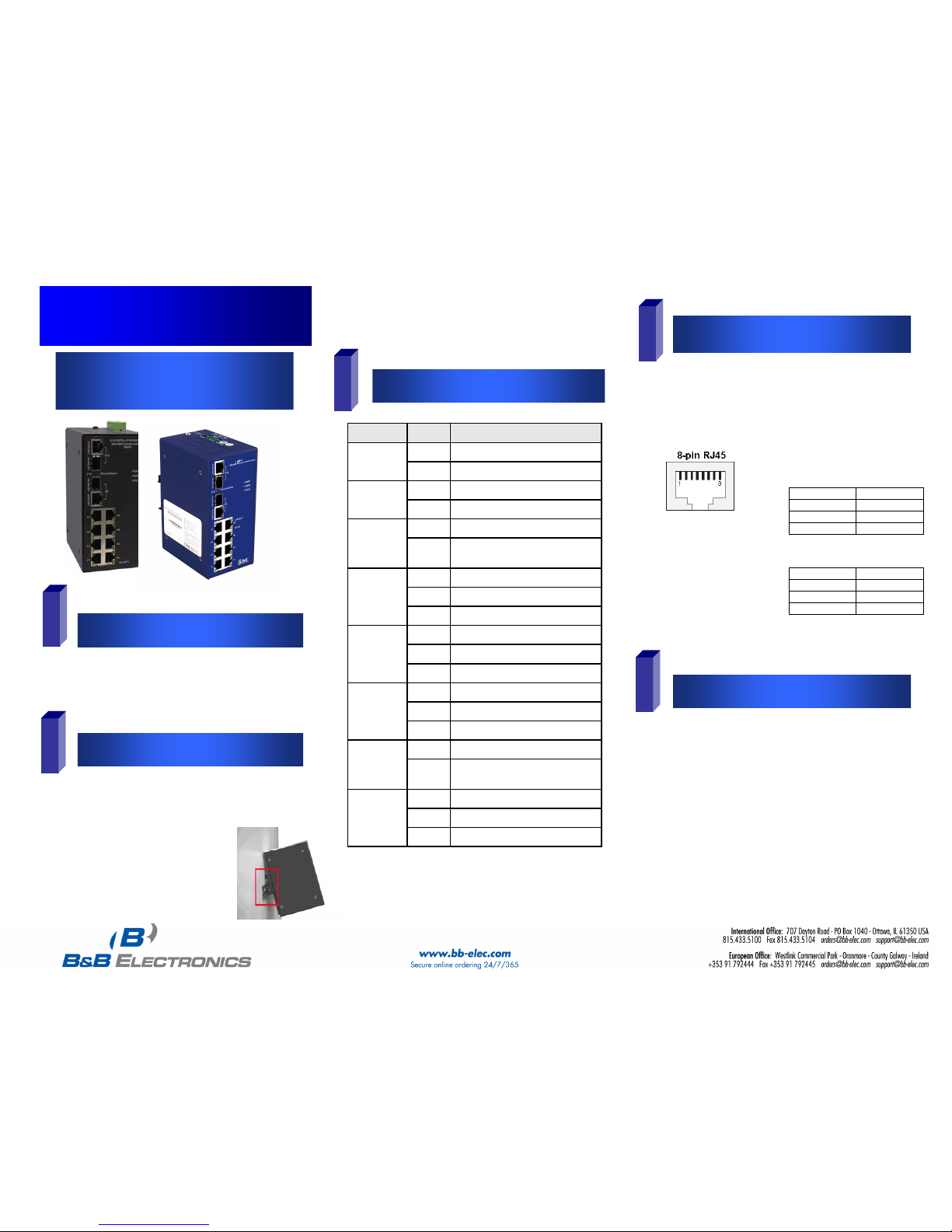

Quick Start Guide

Elinx Gigabit Ethernet Switch

EIR41x-2SFP Series

Items Included

Hardware Installation

LED Chart

Ports

Installation Complete

oEthernet Switch

oCD with Support Manual

oThis Quick Start Guide

oPanel Mount Bracket

1. Select a mounting location and install the

switch onto a piece of DIN rail or use the

included panel mount brackets for wall or

panel mounting

2. Connect power to the switch

12 to 48 VDC

If redundancy is desired be sure to

connect two separate power supplies by

using the two DC inputs on the terminal

blocks

If only one power input is used the Fault

LED will light (this is normal)

RJ-45 ports: The RJ-45 ports auto-sense for 10, 100 or 1000

Mbps devices connections. The auto MDI/MDIX feature

allows connections to switches, workstation and other

equipment without changing straight through or crossover

cabling. The charts below show the cable pin assignments

for straight through and crossover cables.

LED Status Description

Green Power 1 is active

PWR1 Off No power at input 1

Green Power 2 is active

PWR2 Off No power at input 2

Red PWR1 or PWR2 has failed

Fault Off PWR1 & PWR2 are both active

or no power is applied

Green Connected to network

Blinking Networking is active

10/100

Copper

Upper LED Off Not connected to network

Yellow Full duplex operation

Blinking Collision of packets occurs

10/100

Copper

Lower LED Off Half duplex or no connection

Green Connected to network

Blinking Networking is active

Gigabit

Copper

Upper LED Off Not connected to network

Green Operating at 1000M

Gigabit

Copper

Lower LED Off

Operating at 10/100M or

disconnected

Green SFP port is connected to network

Blinking Networking is active

SFP

Link/Active

(100/1000) Off Not connected to network

MDI Cable Pinout

Pin Signal

1 Tx+

2 Tx-

3 Rx+

6 Rx-

MDI-X Cable Pinout

Pin Signal

1 Rx+

2 Rx-

3 Tx+

6 Tx-

1. Auto MDI/MDI-x is

supported. A straight

through or cross-over

cable may be used.

2. 10/100/1000 auto

negotiation and full/half-

lex are su

orted.

1. When the network cables are attached and power

is applied, installation is complete.

2. The switch will automatically discover network

devices, populate its MAC address table, and

pass traffic to the appropriate ports.
