PW-100 V5.1

PLEASE READ BEFORE USING THE EQUIPMENT

EN 1.6

INSTALLATION AND OPERATION MANUAL

English

INTERCOM SYSTEM FOR PUBLIC SAFETY AND STEALTH

ARMORED VEHICLES.

PW-100 V5.1 2

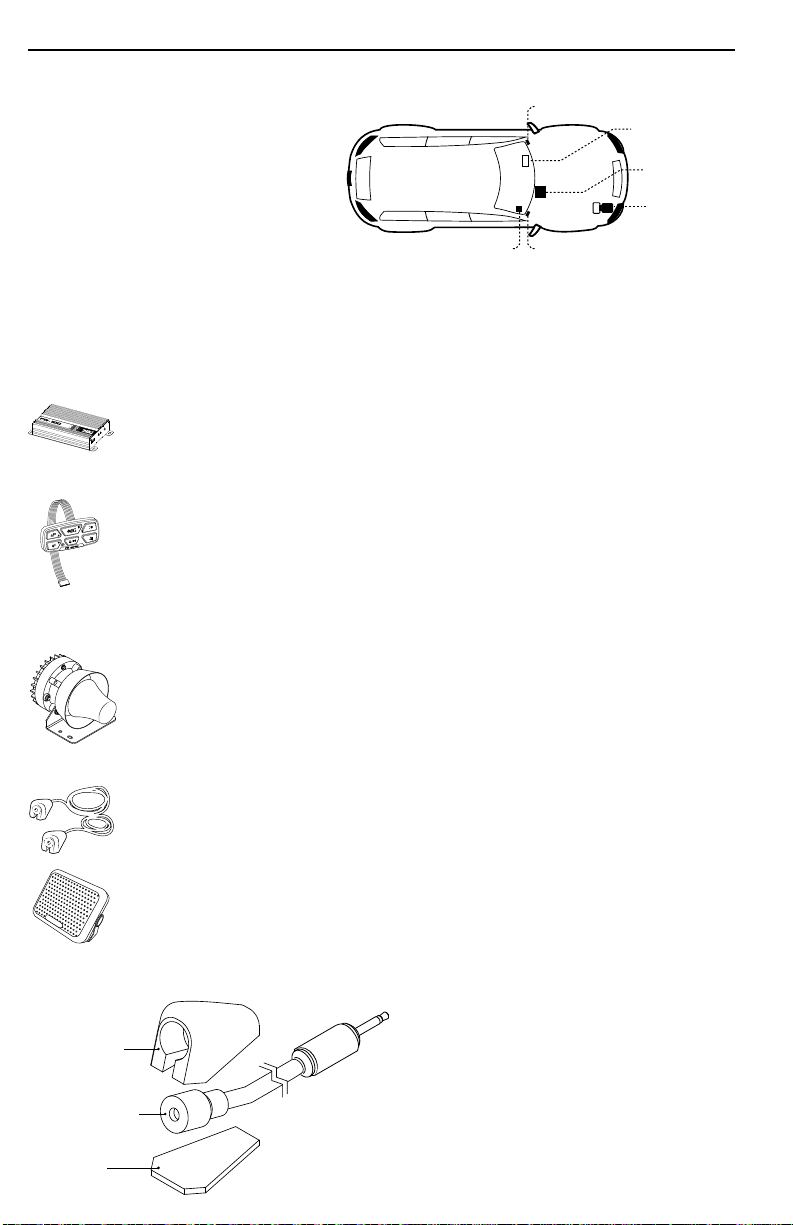

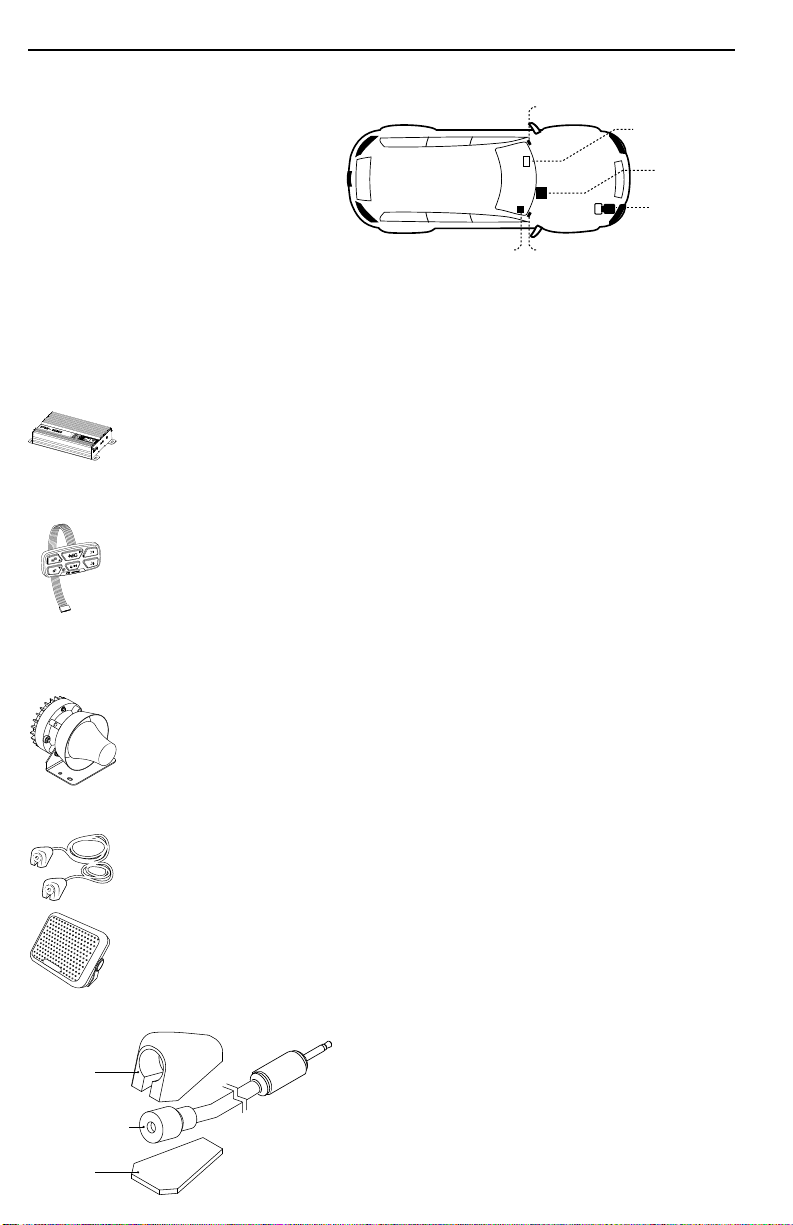

COMPONENTS AND RECOMMENDED LOCATIONS IN THE VEHICLE

(1) Electronic unit

(1) Digital keyboard & internal microphone

(1) 100W loudspeaker

(2) External microphones

(1) Internal speaker

(1) Keyboard harness

(1) Power cable (battery)

(1) Fuse 15A

(1) Speaker extension cables

(1) Loudspeaker and auxiliary load harness

DIGITAL KEYBOARD

& INTERNAL MIC

ELECTRONIC UNIT

PW-100

EXTERNAL MIC

EXTERNAL MICINTERNAL SPEAKER

100W

LOUDSPEAKER

INSTALLATION AND ELECTRIC DIAGRAM

To install the equipment, see the wiring diagram shown further on.

Avoid leaving visible cables in the cabin to leave the vehicle’s aesthetics unaffected.

If there are any cables left disconnected, insulate them with tape; disconnected cables

making an undesired contact can cause a malfunction.

Electronic Unit

Place it on a hidden location for aesthetic purposes. Make sure that the

location allows some ventilation into the unit to avoid overheating.

Digital Keyboard

To facilitate the handling of the equipment, place the keyboard on a location

within the driver’s reach, such as the console of the vehicle. To ensure an

adequate adherence, clean the surface where the keyboard is to be sticked.

Remove the protective liner from the adhesive pad in the back side and stick

it to the surface.

To clean the keyboard, gently wipe it with a dry cloth. Do not use water or any

solvent.

Loudspeaker

When selecting the location for the loudspeaker, keep in mind that

this component is weather resistant but it is not immersion-proof. The

loudspeaker must be placed as far as possible from the keyboard (where the

internal microphone is) to prevent feedback.

Splice and tape the loudspeaker wires to the output wires (they have no

polarity).

External Microphones

Two locations are recommended for installation, as explained on the next

page.

Internal Speaker

Place the speaker out of view, without affecting the sound.

EXTERNAL MICROPHONES INSTALLATION INSTRUCTIONS

Each microphone includes a shell to hold it in

place and protect it from outdoor. Depending

on the installation procedure, it can be more

convenient to assemble microphone and shell

either before or after the wiring.

For instance, if the wiring requires to pull

the cable through a narrow space, it is

recommended to assemble after wiring.

Shell

Microphone

Mounting

tape

PW-100 V5.1 3

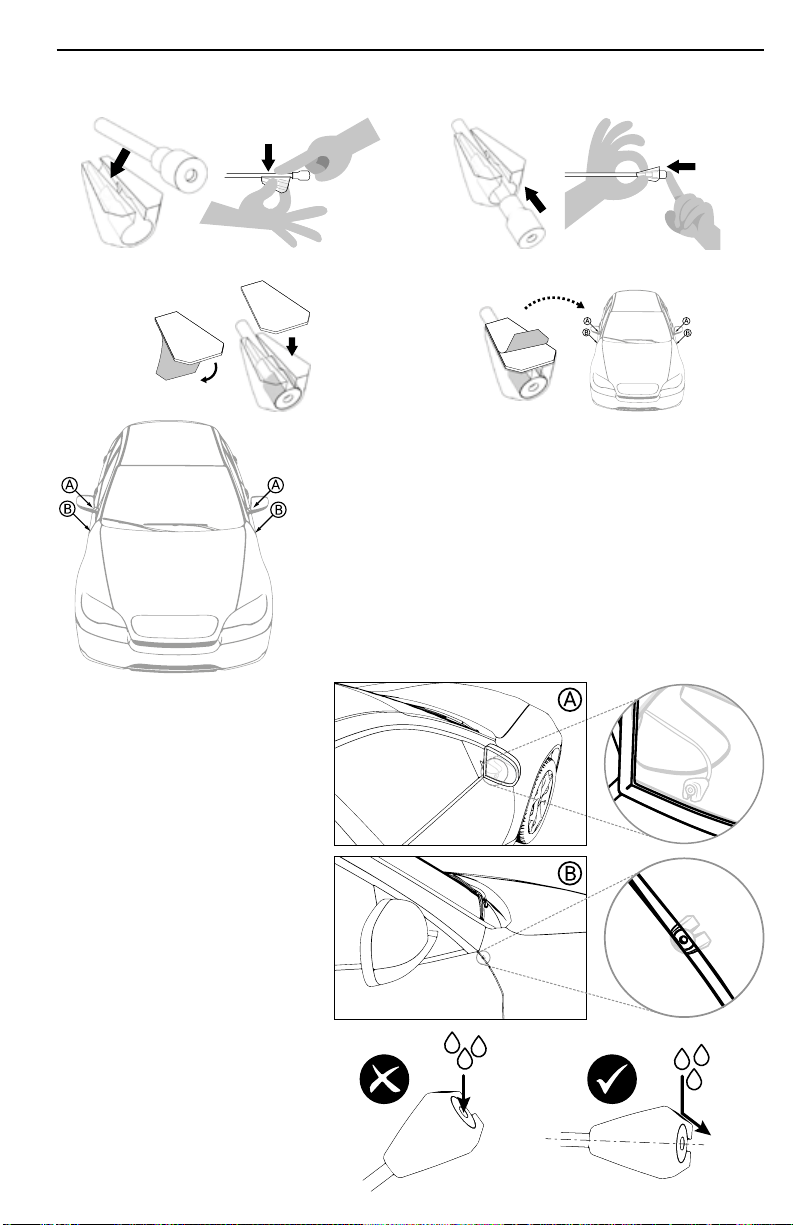

Microphone + shell assembly procedure

1.Insert the cable in the shell by pressing it with your ﬁ nger. 2.Push the microphone into the shell (do not pull the cable!).

3.Remove the liner from the tape and stick it to the shell. 4.Stick the shell on the selected surface, previously cleaned

with alcohol.

Recommended locations to install the microphones

There are two recommended locations in the vehicle

(see ﬁ gure to the left), they differ with regard to ease

of installation and audio reception volume.

You can select a location according to your

preferences.

Location A

Inside the rearview mirror.

This location offers the highest

volume yet the most time

consuming installation, as it

requires to take parts of the

vehicle apart.

Location B*

In the gap of the front doors.

Select a surface to place the

microphone, so that it faces to

the exterior from inside the gap.

Once the surface is selected,

the installation is fairly easy.

* WARNING!

On location B, place the

microphone slightly

downward to prevent

damage from water

clogging.

Red

Black

Grey

White

EXTERNAL MIC

(L - R)

EXTERNAL

LOUDSPEAKER

BATTERY

+ 12 V

Grey

INTERNAL SPEAKER

DIGITAL

KEYBOARD

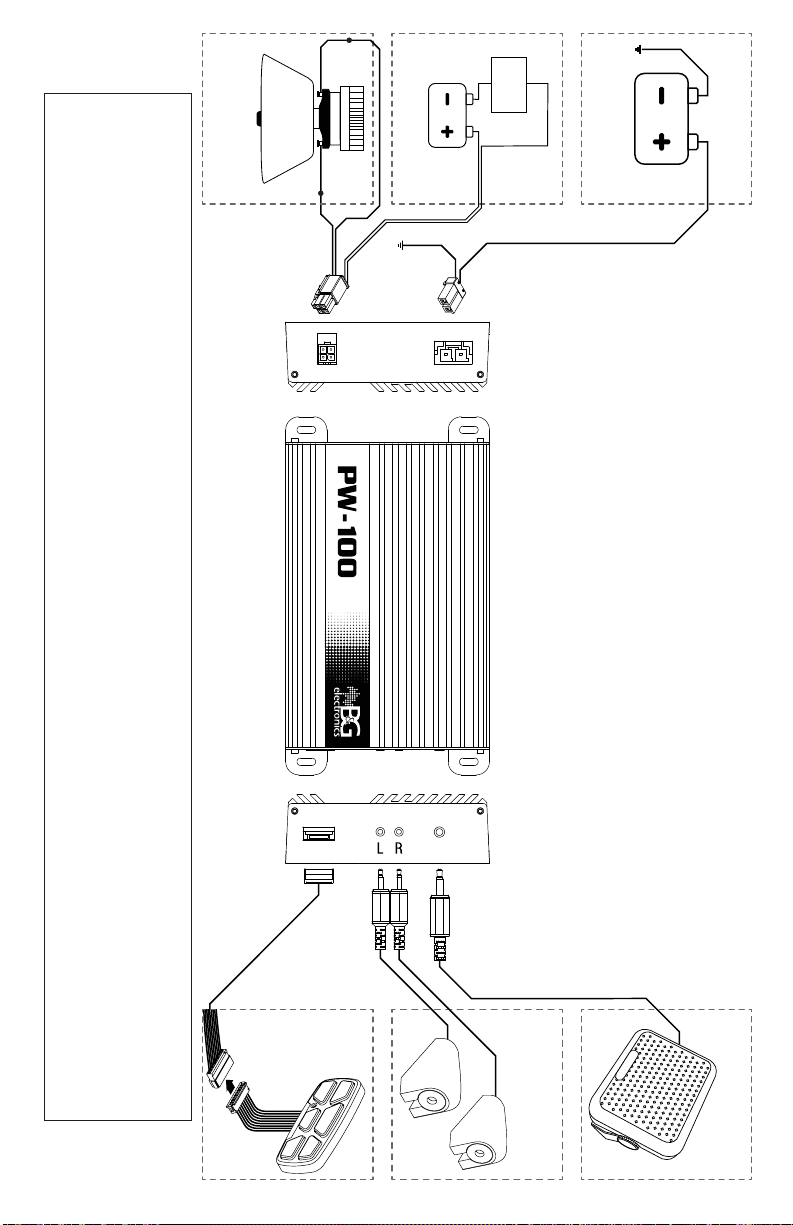

WIRING DIAGRAM

PW-100

WARNING!

Gently handle the wires during the installation; pressing or forced bending of the wires can cause internal damage and subsequent malfunction.

Avoid placing the wires near from noise sources such as alternators, high tension wires, etc.

If there are any cables left disconnected, insulate them with tape; disconnected cables making an undesired contact can cause malfunction.

Do not manipulate the loudspeaker terminals.

Splice and tape the loudspeaker wires to the output wires (they have no polarity).

AUXILIARY

LOAD

BATTERY

+ 12 V

PW-100 V5.1 5

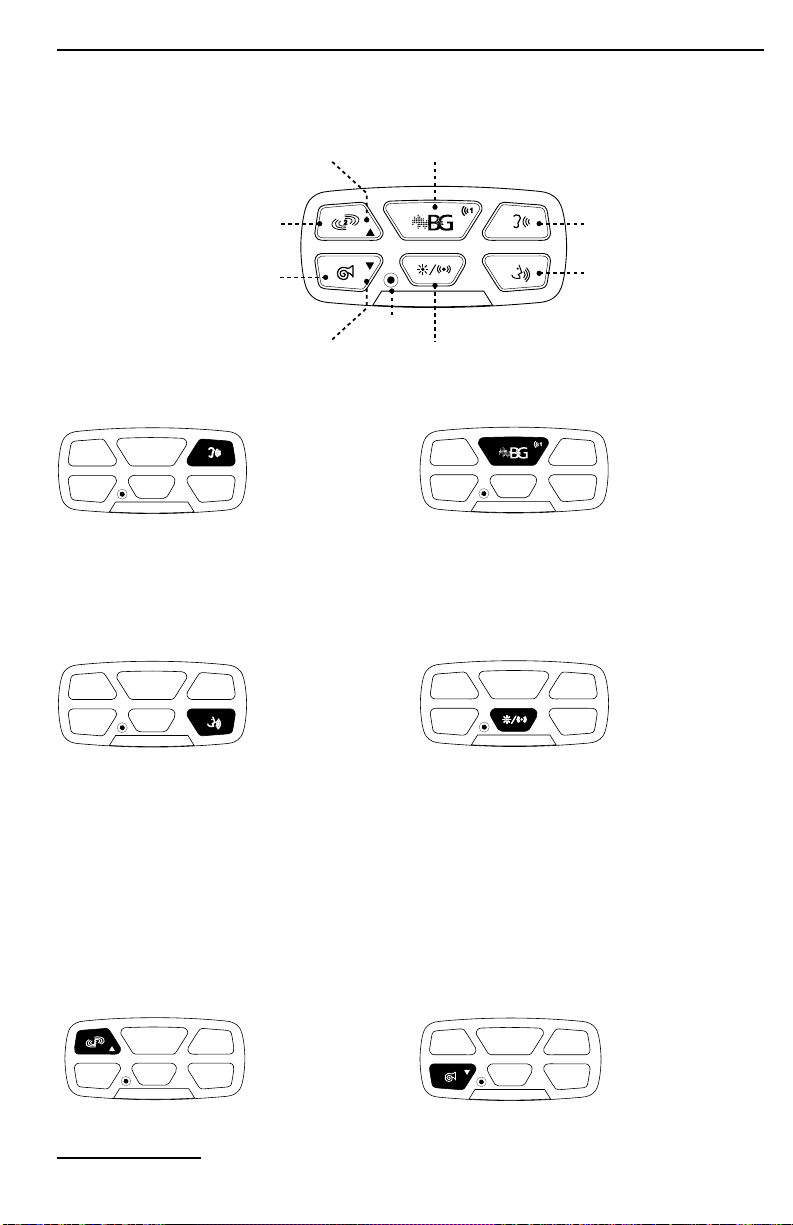

OPERATING PROCEDURES

All of the equipment’s functions are managed through a six button keyboard (see ﬁ gure

below). Press the buttons with your ﬁ ngertips, do not use objects to press them.

MIC

Volume DOWN

PTT

HORN

Manual WAIL INTER

SIRENVolume UP

AUX

ACTIVATING FUNCTIONS

Intercom* Siren - SIREN tone

ON: press & release

OFF: press &

release

ON: press & release

OFF: press & release

INTER enables the hearing exterior sounds

through the internal speaker.

If during 5 minutes the equipment does

not detect any activity, INTER function

turns off (Automatic Shut Down, ASD).

Activates the reproduction of the tone

selected for SIREN.

Public Address “PA”* Auxiliary

ON: press & hold

OFF: release

ON: press & release

OFF: press & release

PTT allows the driver to communicate

to the exterior through the keypad

microphone.

For a more private communication (lower

exterior volume: PTT/INTER), press PTT

while in INTER mode. For a more public

communication (louder exterior volume:

PTT/PA), press PTT while in SIREN, AUX

SIREN or stand-by (with INTER off) mode.

Both volumes are set following the same

keypad procedure.

AUX function either turns on an auxiliary

siren tone “AUX SIREN” or activates an

auxiliary load “AUX LOAD”, depending on

the subfunction assigned to it.

Siren - WAIL tone Siren - HORN tone

ON: press & hold

OFF: release

ON: press & hold

OFF: release

Activates the reproduction of the WAIL

siren tone.

Activates the reproduction of the HORN

tone.

If acoustic feedback occurs while INTER or PTT are on, AFC (Automatic Feedback Control) will trigger to prevent

feedback. AFC is further explained ahead in this manual.

PW-100 V5.1 6

SIREN tone selection

SIREN function allows to choose among 5 different tones: WAIL, Hi-Lo, PHASER, CHIRP,

and YELP.

1.Activate SIREN. 2.While SIREN is sounding press WAIL repeatedly to switch to the

available tones (WAIL, Hi-Lo, Phaser, CHIRP and YELP).

AUX SIREN tone selection

With AUX set to AUX SIREN, it is possible to select the AUX SIREN tone to one of the

available tones (WAIL, Hi-Lo, PHASER, CHIRP or YELP).

It is not possible to set the same tone for both SIREN and AUX SIREN, meaning that while

setting AUX SIREN, the SIREN tone in use will be unavailable; also, if the AUX SIREN tone is

selected for SIREN, AUX SIREN’s tone will automatically change.

1.Activate AUX SIREN. 2.While AUX SIREN is sounding press WAIL repeatedly to switch

to the available tones (WAIL, Hi-Lo, Phaser, CHIRP and YELP).

NOTE: WAIL does not sound when SIREN/AUX SIREN is on.

SETTING UP FUNCTIONS

Setting up HORN tone

The default tone is Standard HORN, although the equipment allows to choose between

Standard HORN and B&G HORN, as explained below.

1.Press and hold HORN. 2.While HORN is held, press and hold

SIREN until the tone changes.

3.To change tone again, repeat steps

1 & 2.

Setting up AUX

AUX allows to either play an auxiliary siren tone, or change the activation state of an

auxiliary load up to 15 A (useful to control a light set or other devices). If AUX LOAD is

active, the keypad starts to ﬂ ash once per 8 sec.

1.Press and hold AUX.

If it beeps once or twice, it’s set to AUX

LOAD.If siren stops & restarts, it’s set

to AUX SIREN.

2.Press SIREN to switch among AUX LOAD and

AUX SIREN.

If it beeps once or twice, it’s set to AUX LOAD.If

siren stops & restarts, it’s set to AUX SIREN.

3.Press AUX to ﬁ nish setup.

Upon ﬁ nishing beeps twice.

Setting up AUX LOAD

With AUX set to AUX LOAD, it is possible to set AUX LOAD in a way that it gets activated

together with SIREN (for instance, that when SIREN sounds, a light set associated to AUX

LOAD turns on)*, in addition to the activation by pressing AUX.

1.Press and hold AUX until you hear

1 beep.

2.Press HORN to switch AUX LOAD mode.

If it beeps once, it’s set to independent.

It it beeps twice, it turns on with SIREN.

3.Press AUX to ﬁ nish setup.

*By default, AUX LOAD is set to activate independently from SIREN.

PW-100 V5.1 7

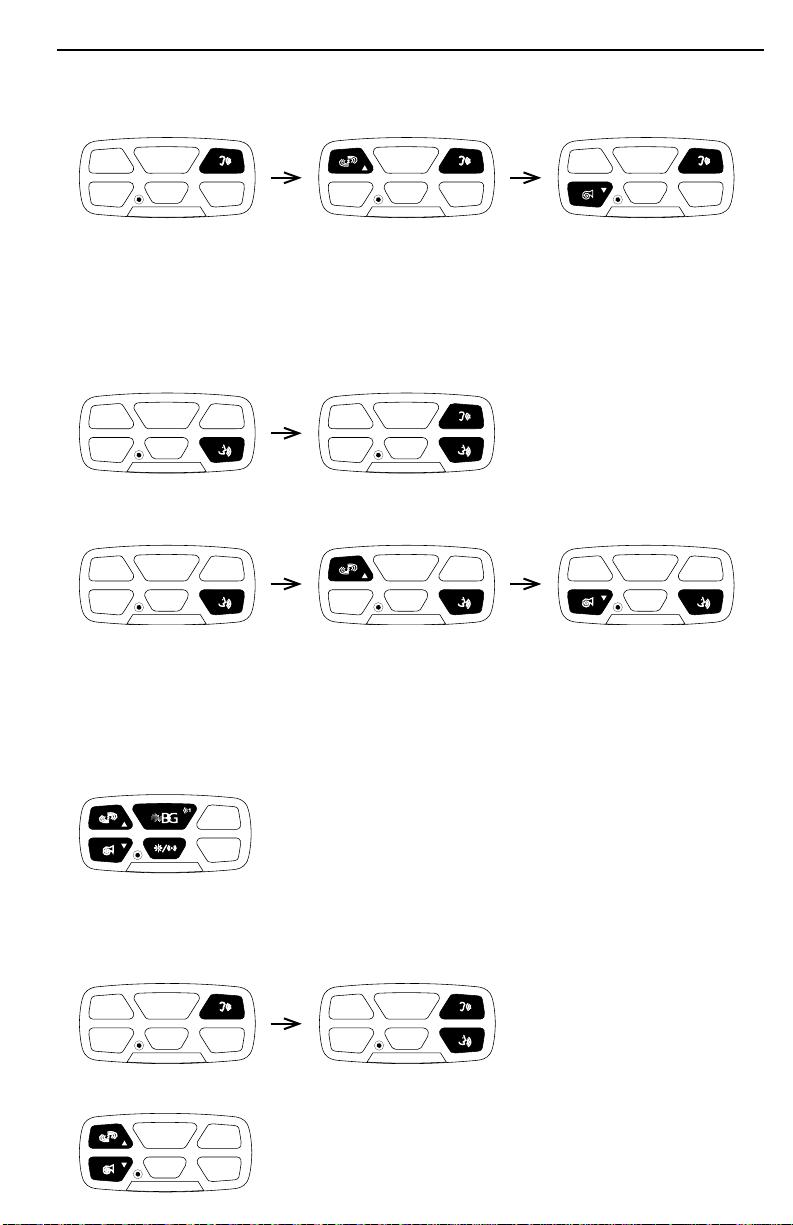

Setting the volume of the internal speaker, “internal volume”

1.While INTER is on, press and hold

INTER.

2.While INTER is held, press WAIL to

increase volume.

3.While INTER is held, press HORN to

decrease volume.

External Volume Auto-Adjustment (VAA)

In addition to the manual adjustment, the equipment is capable of detecting the vehicle’s

level of acoustic isolation and adjust the maximum external volume accordingly.

To perform this procedure, close all of the vehicle’s doors and windows, and follow the

steps explained below.

To cancel the procedure, press PTT.

1.Press and hold PPT.

Remain silent during the procedure.

2.While PTT is held, press INTER.

Release both upon hearing a beep.

3.Wait up to 30 s, the equipment will

beep 2 times when VAA has ﬁ nalized.

Setting the volume of the external loudspeaker, “external volume”

1.Press and hold PTT. 2.While PTT is held, press WAIL to

increase volume.

3.While PTT is held, press HORN to

decrease volume.

NOTE: If INTER is on, PTT/INTER volume will adjust. If INTER is off, PTT/PA volume will

adjust.

Enabling Hidden Siren Function

The equipment allows to silence the siren sounds, meaning that when this function has

been enabled and activated, the pressing of any of the siren buttons (SIREN, WAIL, HORN,

AUX SIREN) will not yield a response.

1.To switch between both states, press simultaneously

WAIL, HORN, AUX, SIREN, and hold for 5 s.

2.If it beeps 1 time, Hidden Siren is enabled.

If it beeps 2 times, Hidden Siren is disabled.

Activating / Deactivating Hidden Siren

Once Hidden Siren has been enabled, it is possible to activate it to effectively silent all

sirens, and deactivate to return all sirens to normal function.

1.To activate Hidden Siren, press and

hold INTER.

2.While INTER is held, press and hold

PTT until keyboard’s backlights blink.

3.Sirens will now be silenced.

1.To deactivate Hidden Siren, simultaneously press and hold

WAIL and HORN until keyboard’s backlights blink.

2.Sirens will now sound.

PW-100 V5.1 8

AUTOMATIC FEEDBACK CONTROL (AFC)

If acoustic feedback would occur while PTT or INTER are on (caused, for instance, by the

opening of a door or window), the equipment will detect and automatically ﬁ x the issue by

decreasing the volume. After the event takes place, the equipment will attempt to rise the

volume back to the level deﬁ ned by the user, as long as AFC is not triggered again.

ENERGY SAVING FEATURES (Automatic Shut Down, ASD)

Partial Shut Down (PSD)

The equipment constantly tracks the incoming voltage status. If the incoming voltage

is below 13Vdc, after 20 seconds of inactivity the equipment activates PSD mode. This

change is indicated by the turning off the keyboard’s backlights. While on PSD mode, upon

pressing any key the respective function will execute normally and the equipment will

return to normal energy consumption mode.

Total Shut Down (TSD)

If the incoming voltage is below 11 Vdc, after 60 seconds the equipment will automatically

shut down any function and auxiliary load. While on TSD, upon pressing any key the

backlights will blink 3 times and the function controlled by the pressed key will not execute.

Once the equipment detects that the incoming voltage exceeds 13VDC again, the

equipment will return to its normal operation.

TECHNICAL SPECIFICATIONS

DIMENSIONS

Electronic Unit 37 x 109 x 198 mm 1.5’’ x 4.3’’ x 7.8’’

Loudspeaker 133 x 204 x 155 mm 5.2’’ x 8.0’’ x 6.1’’

Digital Keyboard 25 x 7 x 5.4 mm 1.0’’ x 0.3’’ x 2.1’’

Internal Speaker 80 x 56 x 95 mm 3.2’’ x 2.2’’ x 3.7’’

INPUT VOLTAGE 11.5 - 14.8 Vdc

INPUT CURRENT 6.8 Amps @ 13.6 Vdc (100W Loudspeaker)

STAND BY CURRENT <25 mA

AUDIO FREQUENCY 330Hz - 5600 kHz

OUTPUT POWER 93W RMS - 8 Ohm

SIREN FREQUENCY 440 - 1750 Hz

LOW VOLTAGE

SHUTDOWN If voltage drops below 11 V for 60 seconds or longer, the equipment will

cease to work and resume operation when system voltage exceeds 13V

MAX. LOAD 10 A

B&G ELECTRONICS

ONE YEAR LIMITED WARRANTY

B&G Electronics guarantees that this product leaves the factory free from defects related to materials

and manufacturing. If for any reason a failure related to materials and manufacturing were to occur

during the period of one year after the date of purchase, B&G Electronics would repair or replace the

failing equipment free of charge.

This warranty shall be voided if the product is modiﬁ ed, tampered with, misused, or subjected to

abnormal working conditions. This warranty does not cover physical damage to the product surface.

This warranty does not apply when the malfunction results from the use of this product in conjunction

with accessories, other products, or peripheral equipment not designed by B&G Electronics.

PW-100 V5.1

FAVOR LEER ESTE MANUAL ANTES DE USAR EL EQUIPO

ES 1.6

MANUAL DE INSTALACIÓN Y OPERACIÓN

Español

SISTEMA DE INTERCOMUNICADOR Y SIRENAS PARA

VEHÍCULOS BLINDADOS.

PW-100 V5.1 10

PW-100 V5.1 2

COMPONENTES Y UBICACIÓN DENTRO DEL VEHÍCULO

(1) Unidad electrónica

(1) Teclado digital de control y micrófono interno

(1) Bocina de 100W

(2) Micrófonos externos

(1) Parlante interno

(1) Arnés de teclado

(1) Arnés de potencia (batería)

(1) Fusible 15A

(1) Cable de salida del parlante

(1) Arnés de bocina y carga auxiliar

TECLADO DIGITAL

Y MICRÓFONO INTERNO

UNIDAD ELECTRÓNICA

PW-100

MICRÓFONO EXTERNO

MICRÓFONO EXTERNOPARLANTE INTERNO

BOCINA

100W

INSTALACIÓN Y DIAGRAMA ELÉCTRICO

Para instalar el equipo consulte el diagrama de conexiones mostrado más adelante.

Evite dejar cables visibles dentro de la cabina que afecten la estética del vehículo.

En caso de que queden cables desconectados, aísle los cables con cinta eléctrica; cables

desconectados que hagan contactos no deseados podrían provocar fallas en el equipo.

Unidad Electrónica

Debe ubicarse en un sitio oculto por motivos estéticos. Asegúrese de elegir

una ubicación con suﬁ ciente ventilación para evitar sobrecalentamiento.

Teclado Digital

Para facilitar el manejo del equipo, ubique el teclado en un sitio al alcance

de la mano del conductor. Limpie la superﬁ cie donde se ubicará el teclado

para asegurar una adecuada adherencia. Retire la película de protección de

la cinta adhesiva ubicada al respaldo y ﬁ je a la superﬁ cie elegida.

Para realizar la limpieza del teclado, frote suavemente con un paño seco. No

utilice agua ni solventes sobre el teclado.

Bocina

Al elegir la ubicación para la bocina tenga en cuenta que este componente

resiste a la intemperie pero no a la inmersión. La bocina debe ubicarse lo

más lejos posible del teclado (donde se encuentra el micrófono interno)

para evitar la realimentación.

Empalme y encinte los cables de la bocina con los cables de salida (no

tienen polaridad).

Micrófonos externos

Se recomiendan dos ubicaciones para su instalación, en la siguiente página

se explican en detalle.

Parlante Interno

Procure ubicar el parlante fuera de la vista sin que se afecte el sonido.

INSTRUCCIONES DE INSTALACIÓN PARA LOS MICRÓFONOS EXTERNOS

Cada micrófono incluye una carcasa

para sujetarlo en su sitio y protegerlo

de la intemperie. Dependiendo del

proceso de instalación, puede ser más

conveniente ensamblar micrófono y

carcasa antes o después de cablear.

Por ejemplo, si el cableado requiere

pasar el cable por un espacio estrecho,

se recomienda ensamblar después

del cableado.

Carcasa

Micrófono

Cinta

adhesiva

Andere Handbücher für PW-100

Inhaltsverzeichnis

Sprachen:

Andere B&G electronics Automobilelektronik Handbücher

B&G electronics

B&G electronics PW-100 Bedienungsanleitung

Beliebte Automobilelektronik Handbücher anderer Marken

GoldCruise

GoldCruise GC90Ci Bedienungsanleitung

DRG

DRG LC 120 Bedienungsanleitung

Blue Ox

Blue Ox BX8848 Bedienungsanleitung

Dometic

Dometic MAGICWATCH MWE890K Bedienungsanleitung

Perfect Power

Perfect Power SMT8-T5 Bedienungsanleitung

Honeywell

Honeywell Thor VM3A Bedienungsanleitung

Waeco

Waeco MagicWatch MWE250 Bedienungsanleitung

Rydeen

Rydeen BKM091 Bedienungsanleitung

Skoda

Skoda 5E0 054 630 Bedienungsanleitung

VDO

VDO SENDER UNIT 2159-0 Bedienungsanleitung

iDataLink

iDataLink maestro Rr Bedienungsanleitung

Audiovox

Audiovox PRO-PDA15 Bedienungsanleitung

Movon

Movon MDAS-3LFFHD Bedienungsanleitung

Pioneer

Pioneer Comfort adapter CA-D-PI.150 Bedienungsanleitung

Dietz

Dietz 1110 Bedienungsanleitung

Crux

Crux RVCFD-79 Bedienungsanleitung

Nonda

Nonda ZUS Bedienungsanleitung

iDataLink

iDataLink Maestro Bedienungsanleitung
