BandLuxe E5812P Series Bedienungsanleitung

User

Manual

BandLuxe

E5812P Series

LTE Outdoor CPE

P/N: 65021100021 Rev.A

Table of Contents

Features..................................................................................................................3

Package Contents...................................................................................................3

Hardware Overview.................................................................................................4

Notice before installation.........................................................................................5

Important Installation Considerations ......................................................................6

Install the SIM card .................................................................................................8

Mounting and Installation ........................................................................................9

Mount Assembly package ...................................................................................... 9

Wall-mount Assembly........................................................................................... 10

Pole-mount Assembly .......................................................................................... 11

Insert the Ethernet Cable ......................................................................................13

Assemble the Optional Water-Proof RJ-45 Jack ...................................................14

Ground the CPE....................................................................................................15

Connect to Computers ..........................................................................................15

Adjust the CPE position ........................................................................................16

Horizontal angle adjustment ................................................................................. 17

Vertical angle adjustment ..................................................................................... 17

Status ....................................................................................................................19

System Log .......................................................................................................... 20

Traffic Monitor ...................................................................................................... 21

Mobile Network .................................................................................................... 22

System ..................................................................................................................24

System ................................................................................................................. 24

General Settings .......................................................................................................... 24

Language and Style ..................................................................................................... 25

Administration ...................................................................................................... 26

Signal LED ........................................................................................................... 27

Backup / Flash Firmware...................................................................................... 28

Download backup ........................................................................................................ 28

Reset to defaults.......................................................................................................... 29

Restore backup............................................................................................................ 29

Reboot ................................................................................................................. 30

Services ................................................................................................................31

Dynamic DNS....................................................................................................... 31

Network.................................................................................................................32

Interfaces ............................................................................................................. 32

Mobile Internet ..................................................................................................... 33

Network Settings.......................................................................................................... 34

Auto APN Information .................................................................................................. 34

APN Profile Settings .................................................................................................... 34

Reset Modem .............................................................................................................. 34

Scenario 1: No mobile internet service........................................................................ 35

Scenario 2: Mobile internet service pending ............................................................... 35

Scenario 3: Mobile internet service enabled ............................................................... 36

SIM Management ........................................................................................................ 38

Scenario 1: SIM lock absent ........................................................................................ 38

Scenario 2: SIM lock present....................................................................................... 38

Router .................................................................................................................. 39

Router IP ...................................................................................................................... 39

DHCP Service .............................................................................................................. 40

Active DHCP Leases.................................................................................................... 41

Static Leases................................................................................................................ 41

Static Routing ............................................................................................................... 42

Routing and Redirection Service ................................................................................. 43

VPN Passthrough......................................................................................................... 43

Firewall................................................................................................................. 44

Single Port Forward ..................................................................................................... 44

Port Trigger .................................................................................................................. 46

Firewall......................................................................................................................... 49

Internet Filter ................................................................................................................ 49

Web Filters ................................................................................................................... 49

Network Filter ............................................................................................................... 51

Port Range Forward..................................................................................................... 53

UPNP ................................................................................................................... 55

Help ...................................................................................................................... 55

Logout .................................................................................................................. 56

Europe –EU Declaration of Conformity................................................................ 62

Federal Communication Commission Interference Statement.............................. 63

Product Overview

Congratulations on your purchase of this LTE outdoor CPE. With this LTE

(Long Term Evolution) CPE (which is also known as 4G CPE), you can

share high speed mobile broadband connectivity in a wide range of

computing environment. Before you begin using the LTE outdoor CPE,

read this chapter to familiarize yourself with the device.

Features

Embedded high gain directional antenna

IP66 protection against dust and water

Easy configuration based on Web Interface

Provide 10 –30dB more coverage gain compared to indoor CPE

Support Passive Power over Ethernet.

Easy installation and use

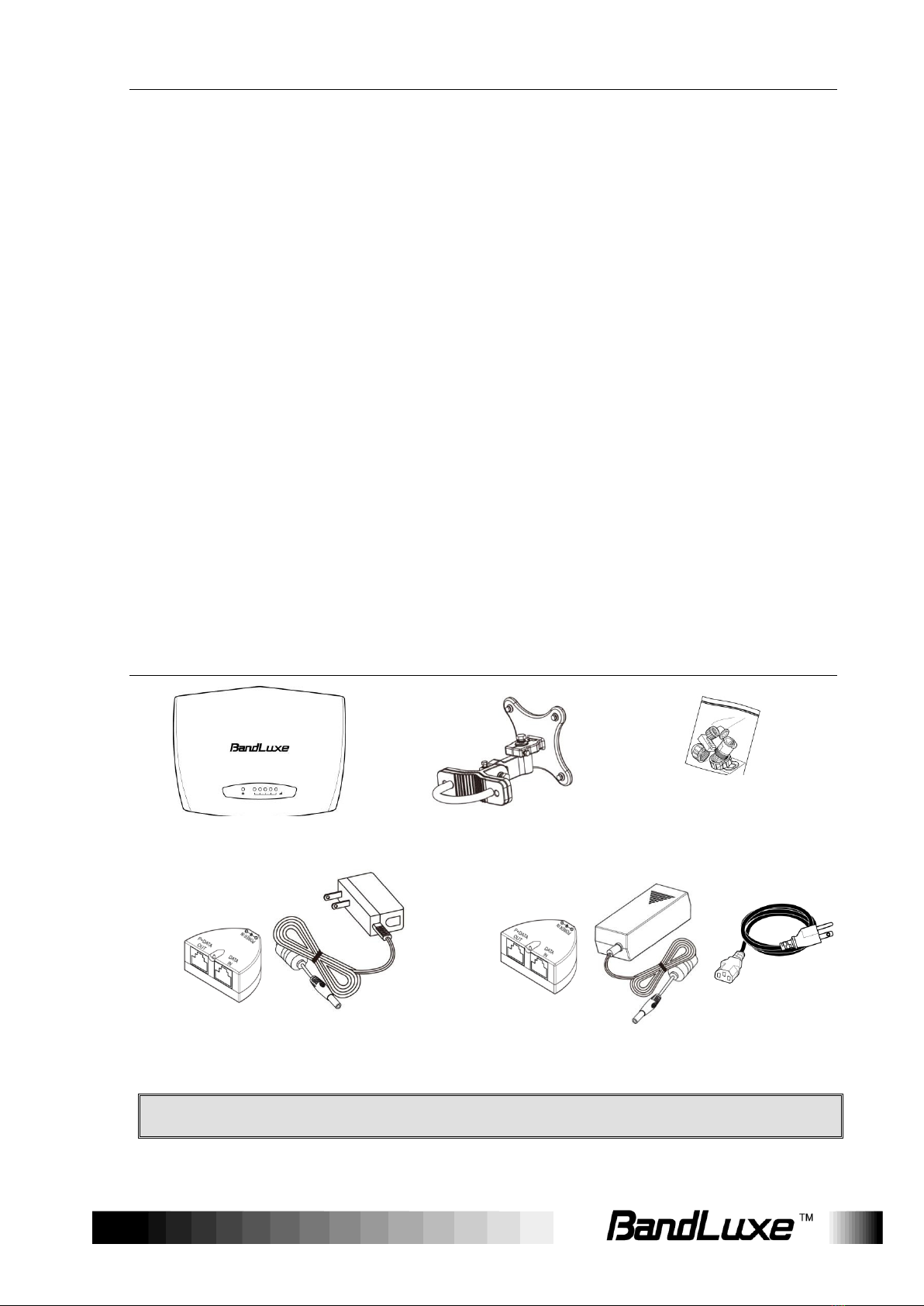

Package Contents

The following items come with your package. If any of them is damaged or missing,

please contact your retailer.

LTE Outdoor CPE

Mounting bracket

Optional:

Plug head water

resistant kits (RJ-45)

Passive PoE adapter

(12V, E5812A series)

Passive PoE adapter

(48V, E5812P series)

Note:

The pictures are for reference only, actual items may slightly differ.

Product Overview

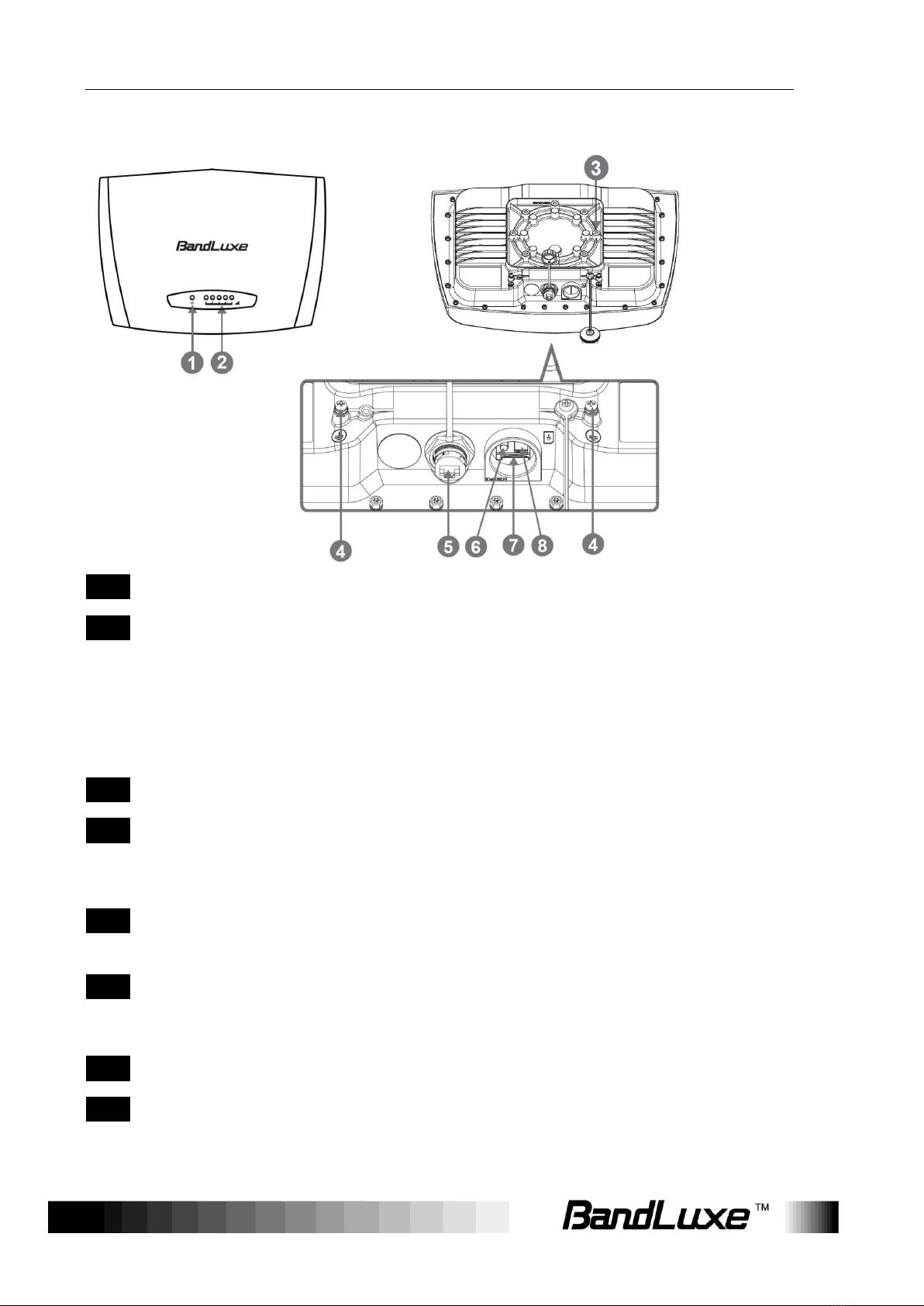

Hardware Overview

Power

Power LED will remain lit while power is applied.

Signal strength

Indicate receive signal strength. The Signal

Strength LEDs are only used at the power on to

assist the installation.

The CPE will turn off all the Signal Strength LEDs after a timer

expires from power on. Such design is to prevent the outdoor CPE

becoming a potential target particularly at night. The default time is

60 minutes however, is user settable in the web GUI.

Mount base

Attach the mount bracket.

Earth ground

terminal

Use a spring washer and an M4x8L screw to

ground and protect CPE from lightning. See

“Ground the CPE” on page 16 for more details.

Ethernet port

Connect to a computer/ Passive PoE using an

Ethernet cable.

Reset button

Short press to restart the device.

Long press for 10 seconds to reset the

settings to the factory default settings.

SIM card slot

Insert the SIM card.

USB port

For use by technicians use only.

Installation

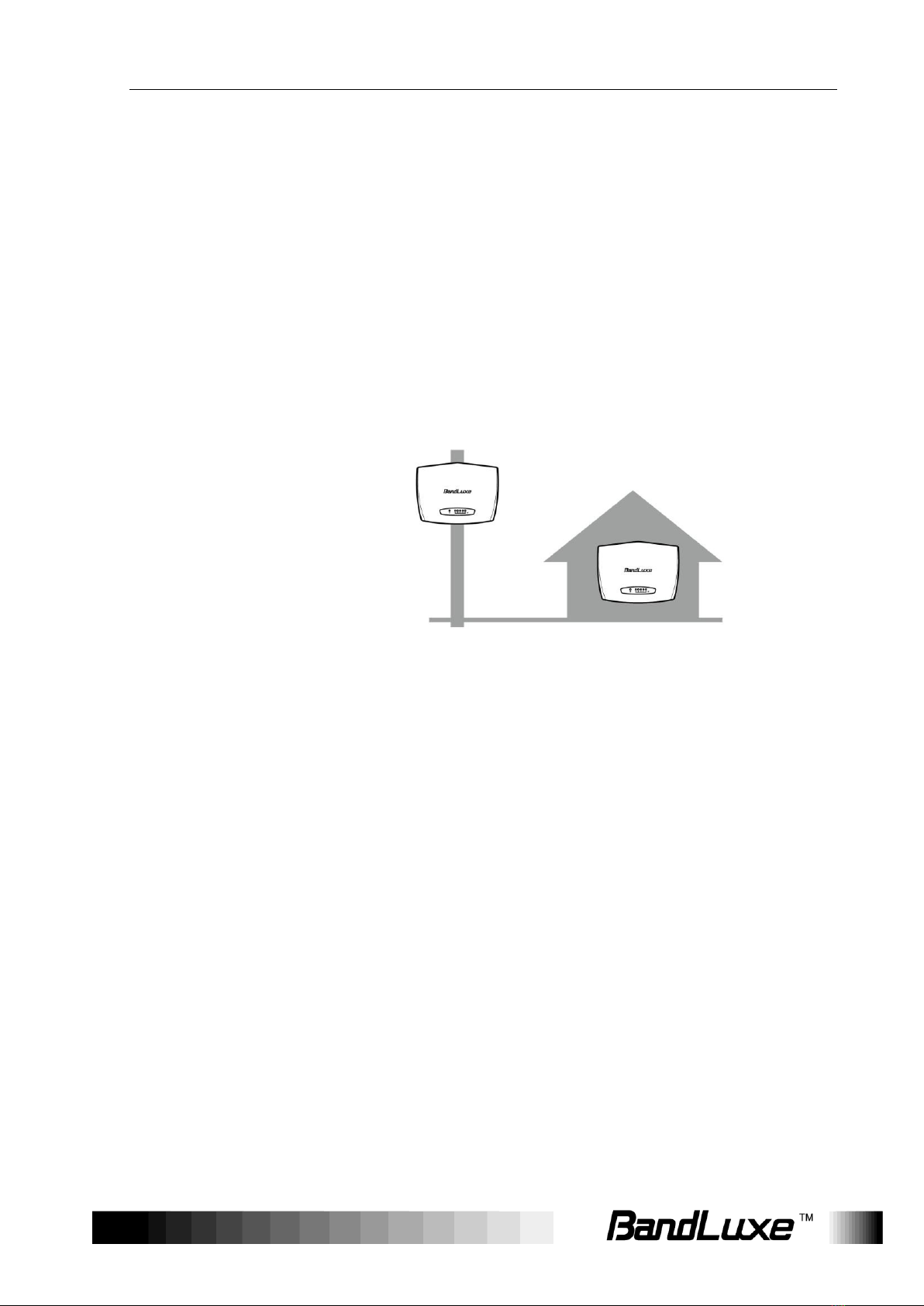

Notice before installation

Choose a solid and safe place (Wall or Pole) for CPE installation

1. Choose the best location of the house and the orientation of the CPE

to get the strongest signal reception from base station.

2. The ambient temperature for E5812A and E5812P series must be

within:

E5812A series: -10°C to 55°C

E5812P series: -40°C to 55°C

NOTE

For lightning protection ground the CPE via Earth Ground Terminal and optimum

reception, there are a few things you should consider before installation. Please see

“Important Installation Considerations” on page 7 for more details.

Prepare two Ethernet cables

Be sure that one of the cables used is an outdoor grade CAT 5e (or above)

Ethernet cable type and the length of the cables are adequate to reach

the location of the CPE and indoor PPoE are.

Prepare wrenches

Prepare two adjustable wrenches or four combination wrenches. (size:

13mm x 2, 8mm x 1, and 19mm x 1)

Warning:

Do NOT start any traffic test (ex: throughput test and internet browsing)

before the installer returns to the ground.

Installation

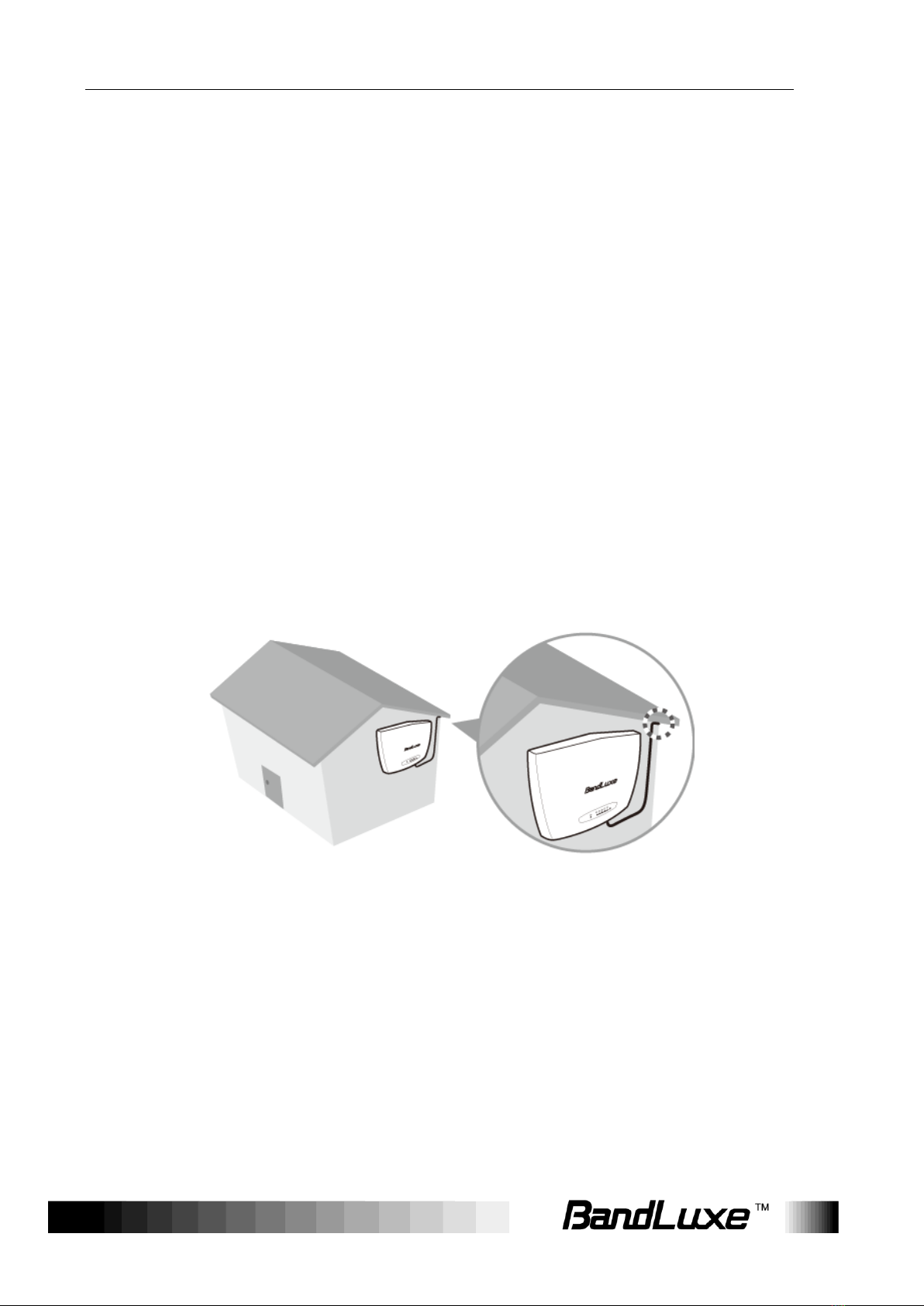

Important Installation Considerations

Before installing the outdoor CPE, consider the appropriate location,

clearance, and device orientation.

Location and Cable wiring

1. Consult your Service Provider to find the best location and angle for getting the

strongest signal from the base station.

2. Do a walking test around the house to find the best spot with the strongest signal

if you don’t obtain related information from Service Provider.

3. Mount the CPE at the highest possible location with a clear view of the base

station signal source. Buildings or other obstructions will affect the quality of the

signal you receive.

4. Keep the best distance as possible from other devices that may cause

interference.

5. Check if you can route the cable through the available ventilation holes to avoid

unnecessary drilling and waterproofing the wall.

6. Disconnect the power cord first before mounting the CPE. Otherwise this may

result in personal injury due to electric shock.

Installation

Mounting

1. Choose a solid wall/ground to mount the CPE.

2. Mount on a wall/pole that can sustain the CPE dimensions and weight.

3. Mount upright on a vertical surface.

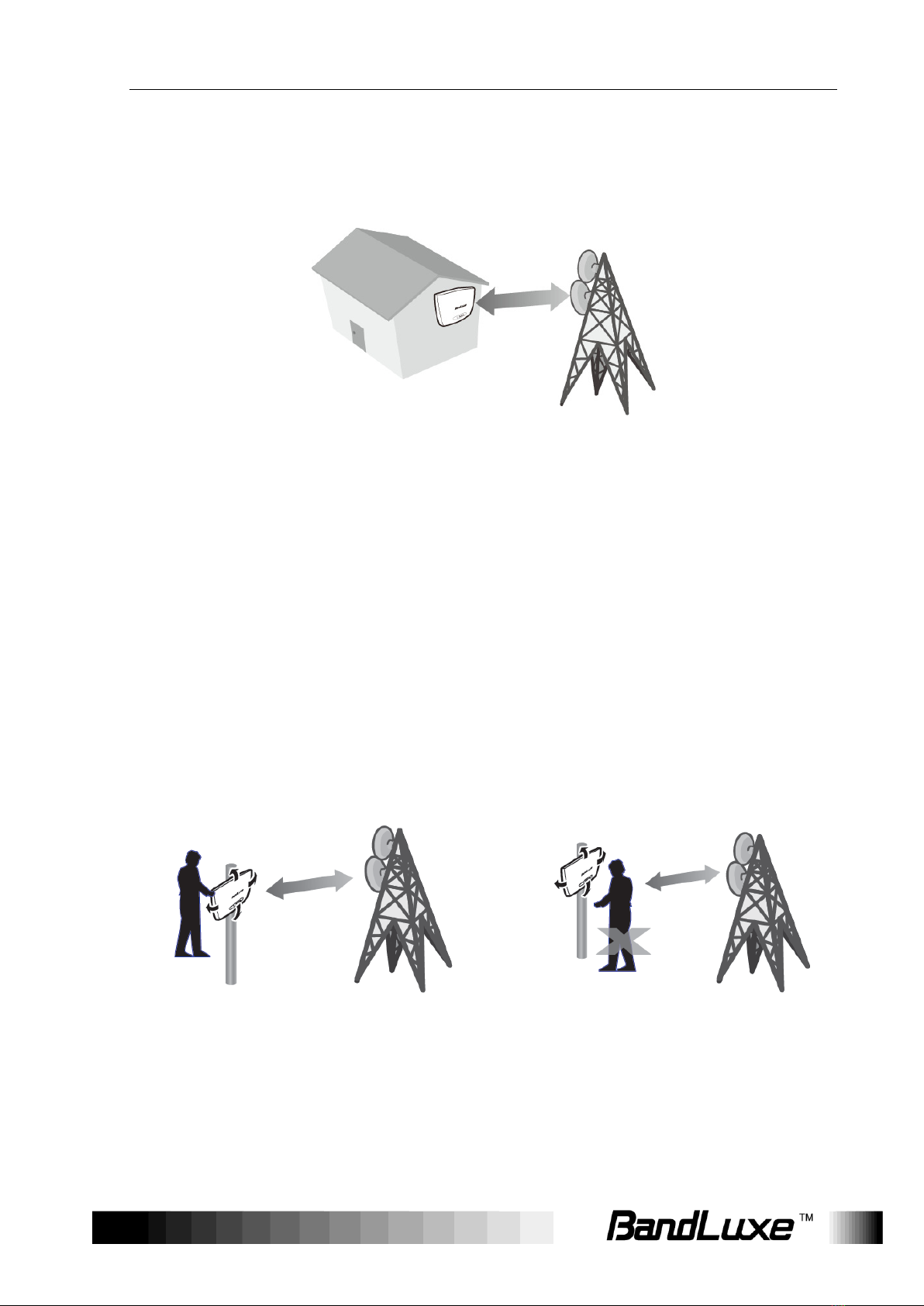

Position Adjustment

1. The CPE must be directed towards the nearest base station. By pointing the CPE

in the proper direction ensures that you receive the strongest signal.

2. Fine tune the signal by adjusting the orientation horizontally or vertically to

increase the CPE signal strength.

3. To verify the signal strength level:

Check the LEDs on the front panel - more lighted LEDs indicates stronger

signal.

Access the web management and go to Basic Mode > Status > Mobile

Internet > Signal Quality to view the Rx signal strength.

Warning:

To receive stronger signal and to avoid possible RF radiation, please

do NOT place your head or body in front of the CPE while you are

positioning the CPE or checking the signal strength LEDs on the front

panel.

Installation

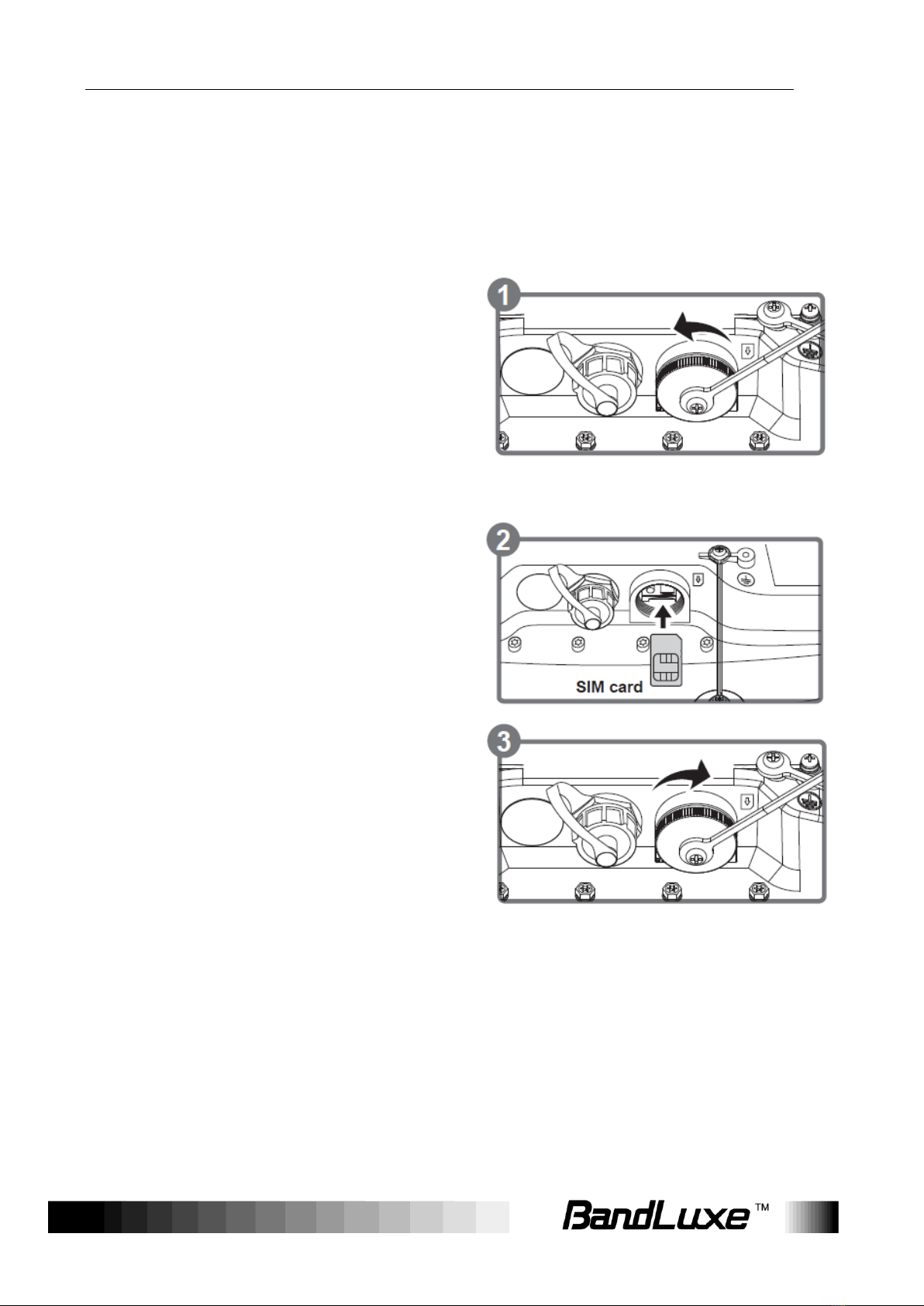

Install the SIM card

This CPE is specially designed for the 4G LTE network.

NOTE

Check the availability of service and plan rates of data connections with

your network service provider.

1. Unscrew the SIM card slot.

2. Insert a valid SIM card into the SIM card slot.

Push it fully until it clicks into place.

3. Screw the cap back on tightly.

Remove the SIM card

Push to eject the SIM card from the

slot.

NOTE

Once the SIM is reinserted, you must restart the CPE to read the SIM

card properly.

Inhaltsverzeichnis

Andere BandLuxe Drahtloser Zugangspunkt Handbücher

BandLuxe

BandLuxe E600 Series Bedienungsanleitung

Beliebte Drahtloser Zugangspunkt Handbücher anderer Marken

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Bedienungsanleitung

Ubiquiti

Ubiquiti NanoStation NSM2 Bedienungsanleitung

Cisco

Cisco Aironet 1550 Series Bedienungsanleitung

Aruba

Aruba IAP-335 Bedienungsanleitung

Advantek Networks

Advantek Networks AWN-AP-54MR Bedienungsanleitung

IP-COM

IP-COM AP355 Bedienungsanleitung

Buffalo

Buffalo AirStation WLA-L11G Bedienungsanleitung

EnGenius

EnGenius EnStationACv2 Bedienungsanleitung

D-Link

D-Link DAP-3662 Bedienungsanleitung

xG Technology

xG Technology xMax CN1300 Bedienungsanleitung

Widelink

Widelink ezWave WAP-1100 Series Bedienungsanleitung

Edimax

Edimax CAP1200 Bedienungsanleitung

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Bedienungsanleitung

Aruba

Aruba AP-203R Bedienungsanleitung

LuXout Shades

LuXout Shades LUXSHADE MOTION Bedienungsanleitung

CreatComm

CreatComm TB5F Bedienungsanleitung

SineDigital

SineDigital MW-1500AP(H) Bedienungsanleitung

TP-Link

TP-Link AP9650 V1 Bedienungsanleitung
