NX Series

The new visual standard

Experience the new visual standard in indoor LED displays Barco's all-new NX

series. With its revolutionary black LED, the NX delivers more contrast and deeper

black levels than any other product on the market. Key advances in base materials,

mechanical design and color processing set NX ahead of the competition for years

to come. No other indoor LED screen comes close.

The true black LED display

NX series:

Phenomenal black levels

4,000+:1 contrast ratio

2,000 NIT brightness

16-bit color processing

Replaceable shaders

Consistent uniformity

High Definition-ready

Modular creativity

Black and bright an elegant contradiction

The striking visual difference of the NX series true black LED is noticeable even before

the screen is turned on: black silicon resin (instead of traditional white epoxy) pro-

duces a sheer black surface; replaceable light trap shaders eliminate ambient

reflection; and ultra black exterior casting blends components into a single, uniform

color. Turn the screen on, however, and discover the real brilliance of the NX series

true black at 2,000 NIT brightness, with a contrast ratio of over 4,000:1.

16-bit color processing

In addition to true black, the NX series

produces 281 trillion other colors as well,

delivering breathtaking new levels of

depth and detail, with a color gamut wider

than HDTV. One look at a Barco NX series

display and you'll know you're experienc-

ing a world-class product at the height of

technological achievement.

NX series maintains 75%

brightness 10,000 hours

after other LED screens

have expired.

New visual standard in

NX color gamut exceeds HDTV

Typical NX series

Black case with

white epoxy

Black case with

black silicon resin

Consistent uniformity over time

While most indoor LED systems expire at

50% brightness at 50,000 hours, Barco's

NX series retains 75% brightness at 60,000

hours. Three key advancements pre-empt

the LED aging process:

Advanced LED coloration achieves

higher brightness at lower temperatures,

resulting in less stress and longer life.

Black silicon resin (instead of tradi

tional white epoxy) maintains con

sistency under heat and humidity.

Advanced tri-color calibration and

stricter measuring standards achieve

precision uniformity and extended

endurance.

High Definition-ready

Each NX tile features an 8x9 aspect ratio.

Place two tiles side-by-side and you're

spot-on 16x9. Expand 10 tiles by 20 and

your precise pixel resolution is 1920x1080

the original HD resolution.

DX-700 processor makes NX series shine

Purpose-built as a no compromise system for the NX series, Barco's new DX-700 is

a multi-window processor and versatile digitizer for all current (DVI) and next genera-

tion (NNI) Barco LED platforms. Universal inputs accept DVI (RGB or YCbCr), Dual-DVI

(RGB), Component Analog (RGB or YPbPr), SD-SDI, HD-SDI, and Dual HD-SDI formats.

DX-700 also supports creative configurations and is stackable for larger, complex setups.

Features include:

16-bit processing

10-bit color depth (4:4:4/4:2:2)

Seamless input transition

Preset storage/recall

Comprehensive setup wizards

Motion-adaptive de-interlacing

Digital video effects (freeze, strobe, etc.)

Dynamic contrast enhancement (all inputs)

Input adjustment (saturation, balance, sharpness)

And much, much more!

Connect two tiles for instant 16x9

aspect ratio.

Connect 10 tiles by 20 for perfect

HD resolution.

Nine blocks per tile enable endless

creative set-ups.

4-way data cables link tiles on all

sides for greater reliability, faster

start-up and rapid hot-swap.

Creativity, 4-way data connection, front/back service

Each NX tile separates into nine blocks, enabling endless creative designs. Revolution-

ary 4-way data connection links tiles from all directions (instead of traditional

snaking ) for more robust reliability, faster start-up of large displays, and rapid hot-

swap of tiles (front and back serviceable).

Max-1m

LED displays

1920 px (20 tiles wide)

1080 px (10 tiles high)

HD 1920 x 1080

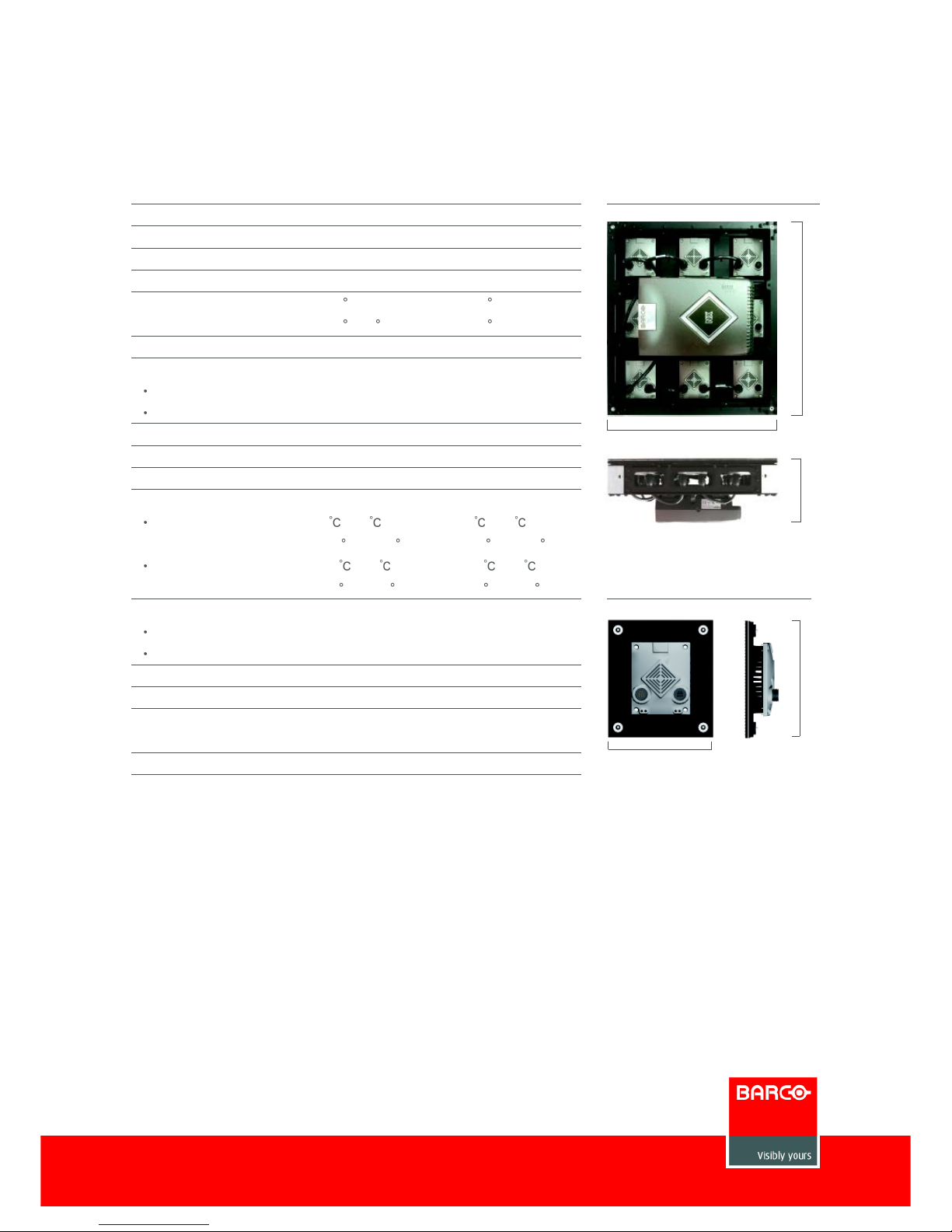

NX Series specifications

Ref. No.: R599304 - March 2008

While the information and data given are typical for the

equipment described, product specifications are subject to

change without notice. The latest version of this product

sheet can be found at www.barco.com.

APAC

No.16 Changsheng Road

Changping Dist., Beijing, PRC,102200

Tel: +86 10 8010 1166

Fax: +86 10 8970 9812

Email: [email protected]

www.barco.com

United States

11101 Trade Center Drive

Rancho Cordova, CA

95670

Tel: +1 888 414-7226

Email: [email protected]

Belgium

Noordlaan 5

8520 Kuurne

Tel: +32 56 36 80 22

Fax: +32 56 36 88 62

Email: [email protected]

NX-4 NX-6

Pixel pitch 4.6mm 6.2mm

Brightness (calibrated) 2,000 NIT 2,000 NIT

LED configuration 3-in-1 SMD 3-in-1 SMD

Pixel density 10,368/tile (96x108) 5,832/tile (72x81)

Viewing angle (horizontal) 120 120

Viewing angle (vertical) +48 , -55 120

Contrast ratio 4,000:1 4,200:1

Power consumption/tile

max 300 watts 335 watts

average 100 watts 156 watts

Color processing 16-bit/color 16-bit/color

Colors 281 trillion 281 trillion

Refresh rate 3,200 Hz 3,200 Hz

Temperature

operating 0to 40 0to 40

(32 F to 104 F) (32 F to 104 F)

storage -20 to 60 -20 to 60

(-4 F to 140 F) (-4 F to 140 F)

Humidity

operating 35 to 85% 35 to 85%

storage 10 to 90% 10 to 90%

Weight/tile (structure, cable) 13.8 kg (30.1 lbs) 13.8 kg (30.1 lbs)

Lifetime (75% brightness) 60,000 hours 60,000 hours

Source compatibility CVBS, YC, YUV, RGB, DVI (Single and Dual Link,

up to 2048x1536),SDI, HD-SDI, Dual link HD-SDI

Certification CE class A, TUV, FCC Class A, ETL, CEBEC

448mm

504mm

228mm

168mm

149.33mm

Dimensions

Tile

Module
