XDS-1000

The powerful XDS-1000 manages multi-channel, high-resolution display walls easily

with keyboard and mouse. On its integrated Windows XP desktop, it

seamlessly and flexibly integrates data and video sources in multiple windows.

In this way, the XDS-1000 provides for the ultimate immersive, collaborative working

environment, in monoscopic, stereoscopic or hybrid displaying.

Multi-windowing display management system

XDS-1000 brochure Mar07e:iCon H600 leaflet2i 4/18/07 9:38 AM Page 3

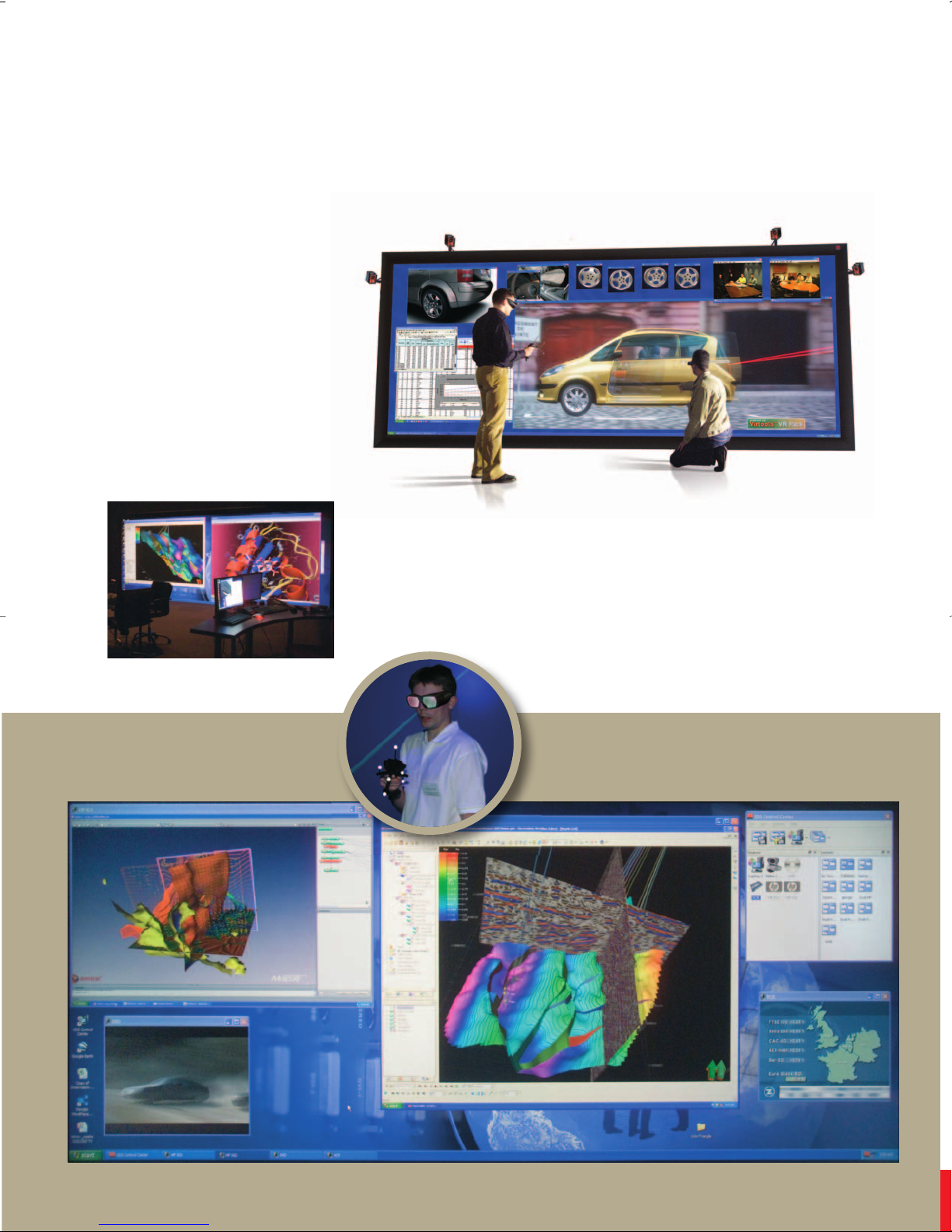

The XDS-1000’s stereoscopic capabilities

allow in depth display of complicated

data, such as car models in the auto-

motive industry, or seismic data in the

oil and gas industry. Hidden details or

correlations that would otherwise

take a considerable amount of time to

find and analyze, become clear

immediately in a virtual, immersive

work environment.

Total immersion:

powerful display of stereoscopic sources

The XDS-1000 can display up to six

stereoscopic sources simultaneously.

It can even display mono and stereo

sources at the same time, making it

unique in the market. You can interact

with and edit the 3D images with

tracking devices, eliminating the need

for expensive remote controls, matrix

switchers or touch panels.

XDS-1000 brochure Mar07e:iCon H600 leaflet2i 4/18/07 9:38 AM Page 1

An integrated, user-friendly

desktop

The XDS-1000 is the latest in Barco’s line

of desktop integrated projection systems.

It features an embedded Windows XP

interface on which you can share, dis-

play and edit any number of application

or source windows, whether locally

stored or networked. There is no need

for a remote control; you can easily

operate the system with a mouse and

keyboard.

Business-critical visualization technology for impro

Interacting with large

amounts of data

Today’s information systems provide

data of such size, diversity and complex-

ity that they require greatly detailed

representation. To gain an edge over

their competitors, leading organizations

of the future need user-friendly technol-

ogy that helps them analyze and

explore this content simultaneously and

in depth, rendering the decision-making

and collaborative processes more

efficient and productive.

Easy operation

with mouse and keyboard

Visual excellence,

tens of millions of pixels

The XDS-1000 is ideal for driving large

display walls that provide the user with

a large, immersive viewing area. Its

power to show tens of millions of pixels

in bright colors becomes clear when you

zoom in on details on the screen, with-

out loss of image quality. Barco’s

renowned edge blending technology

eliminates seams where windows and

images overlap, thus creating one large,

seamless display wall.

XDS-1000 brochure Mar07e:iCon H600 leaflet2i 4/18/07 9:38 AM Page 4

roved data and resource management

Easy selection of sources

and lay-outs

To improve large-screen operations, the

built-in XDS Control Center software

allows you to choose any connected

hardware device and open it in a win-

dow that can be resized and positioned

anywhere on the screen. Similar options

can be found through the “My Sources”

option in the Start Menu. The adjacent

“My Layouts” option even enables you

to save any user-created configuration

of sources and applications, and recall

them instantaneously for later use.

Unlimited, uncompromising

display flexibility

The XDS-1000 effortlessly teams up with

other hardware, such as DVD, satellite

TV, videoconferencing systems, laptops

or even multi-channel stereoscopic

workstations, and displays these sources

in native resolution, in multiple windows.

Thanks to Barco patented technology,

each source is displayed synchronously,

in its own native resolution and

frequency. No matter how many sources

you display, the XDS-1000 will keep

running at the same impressive speeds.

PARIS

XDS-1000 brochure Mar07e:iCon H600 leaflet2i 4/18/07 9:39 AM Page 5

Real-time, multi-site collaboration

LAN/WAN

NEW YORK

LONDON

Crystal clear collaboration

through advanced

videoconferencing

With the XDS-1000, it is possible to

share, distribute and even update

content in real-time over the network.

Remote teams as far apart as Los

Angeles and Moscow can sit on the

same collaborative meeting and see

each other in videoconferencing in

such quality and resolution, that it

seems as though the remote partici-

pants would be physically present.

Facial expressions and body language

become crystal clear thanks to the

XDS-1000’s ultra-high bandwidth

capacities, fast image update rate and

its powerful visual output.

• Oil and gas industry - analysis of complex seismic data

• Corporate AV - cross-team conferences, points of information

• Automotive industry - 3D modeling for cars

• Government collaboration - videoconferencing

• Aerospace industry - detailed technical models

• Medical and scientific research - analyzing graphical data

Successful industry applications

XDS-1000 brochure Mar07e:iCon H600 leaflet2i 4/18/07 9:39 AM Page 6

www.barco.com

Ref.no. R599100 April 2007

Barco’s Presentation & Simulation Division is

ISO 9001 certified.

The information and data given are typical for the equipment

described. However any individual item is subject to change without

any notice.

DESIGNED UNDER

ISO

Technical specifications

For the latest, most detailed product information, visit www.barco.com

EMEA & ROW

Noordlaan 5

8520 Kuurne - Belgium

Tel. +32 56 36 82 11

Fax +32 56 36 85 26

Barco

Presentation & Simulation Division

contact.bps@barco.com

USA

3600 Bellbrook Avenue

Xenia, OH 45385-4053

Tel. +1 (937) 372-7579

Fax +1 (937) 372-8645

APAC

7F, FenYang Road 138

200 031 Shanghai - China

Tel. +86 21 5465 5501

Fax +86 21 5465 5502

XDS-100

DESKTOP DRIVER

Microsoft Windows XP Professional operating system

Patented Barco software that allows user-friendly source handling

High-end processor

LAN connectivity

Support for resolutions of up to dozens of megapixels

INPUT SOURCE HANDLING

Video, RGB analog, RGB digital, RGB active stereo

All connected mono and/or stereo sources can run asynchronously

All connected sources are processed simultaneously

All connected sources retain their original color depth and frame rate

(no dropped frames).

OUTPUT

Support for a near-limitless number of display channels

Digital and analog outputs

Optimized for Barco display systems

Full support for active stereo display

DIMENSIONS

Dependent on the configuration.

19' rack mount housing for each unit

IMPORTANT REMARK

Each XDS-1000 system requires configuration by an accredited Barco

project manager to guarantee an optimum set-up of as many sources,

channels and inputs as you require.

3D workstations

DVD player

laptop

PC’s on the network

HD player

XDS-1000

videoconference
