1. General information

1. GENERAL INFORMATION

1.1 Content of the kit

Overview

The kit contains 4 different lamp cables, one for each lamp unit

Article number Description Quantity

Z34720315 Lamp info cable for lamp 1 1

Z34720325 Lamp info cable for lamp 2 1

Z34720325 Lamp info cable for lamp 3 1

Z34720335 Lamp info cable for lamp 4 1

Table 1 - 1

R59770193 LAMP INFO CABLES CLM 22/05/2008 1

1. General information

2R59770193 LAMP INFO CABLES CLM 22/05/2008

2. Removal of the covers

2. REMOVAL OF THE COVERS

Removal of the front cover and lamp door.

To remove the front cover and the lamp door, consult the user guide of the projector, chapter “Projector covers, removal and instal-

lation”.

2.1 Removal of the back cover

Necessary tools

Flat screwdriver

How to remove the back cover

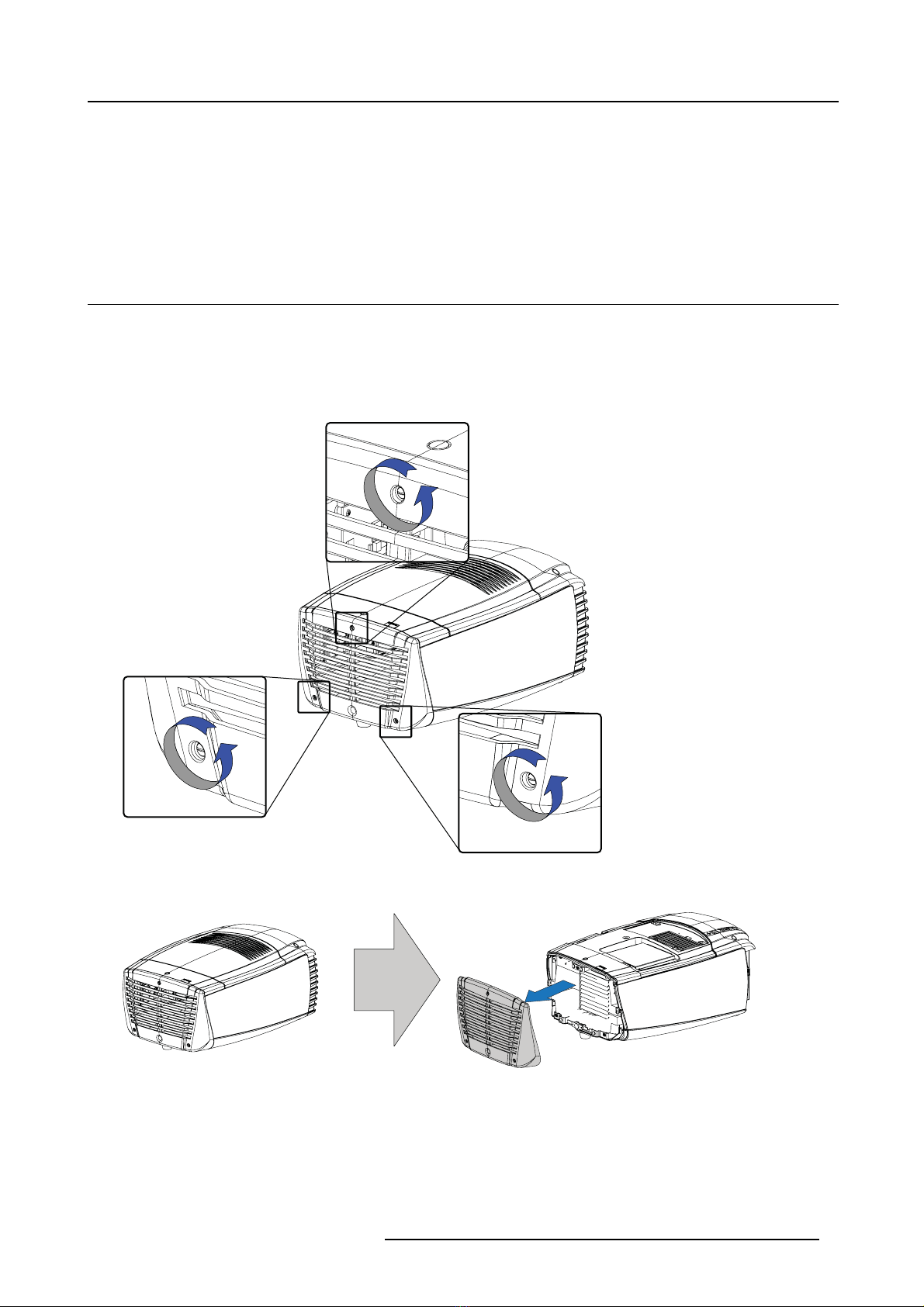

1. Release the 3 captive screws in the back cover.

Image 2-1

Release captive screws

2. Pull off the back cover.

Image 2-2

Remove back cover

R59770193 LAMP INFO CABLES CLM 22/05/2008 3

2. Removal of the covers

2.2 Removal of the top cover

To remove the top cover, ﬁrst remove the front and back cover and the lamp door.

Necessary tools

Flat screwdriver

How to remove the top cover

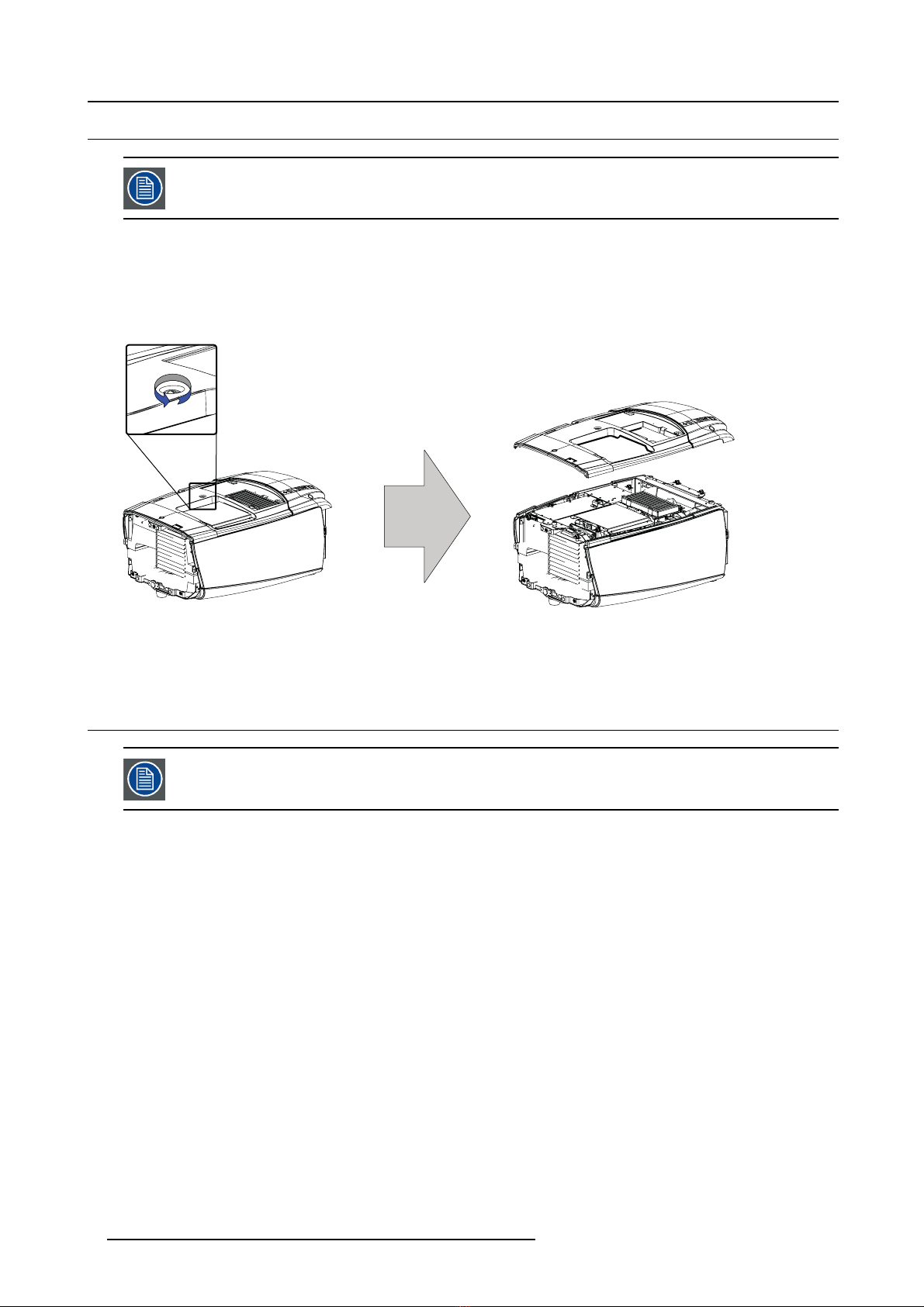

1. Release the captive screw in the middle of the top cover.

Image 2-3

Remove top cover

2. Pull the cover out of its locks and take it off.

2.3 Removal of the side cover on the input side

To remove the side cover, ﬁrst remove the front, back and top cover.

Necessary tools

Allen wrench 3 mm

How to remove the side cover

1. Loosen both screws at the side of the cover.

4R59770193 LAMP INFO CABLES CLM 22/05/2008

2. Removal of the covers

Image 2-4

Release the ﬁxation

2. Lift up the side cover and pull them forward to take off.

Image 2-5

Removethesidecover

2.4 Removal of the bottom cover

To remove the bottom cover, ﬁrst remove all other covers.

Necessary tools

• Flat screwdriver

• Allenwrench8mm

How to remove the bottom cover

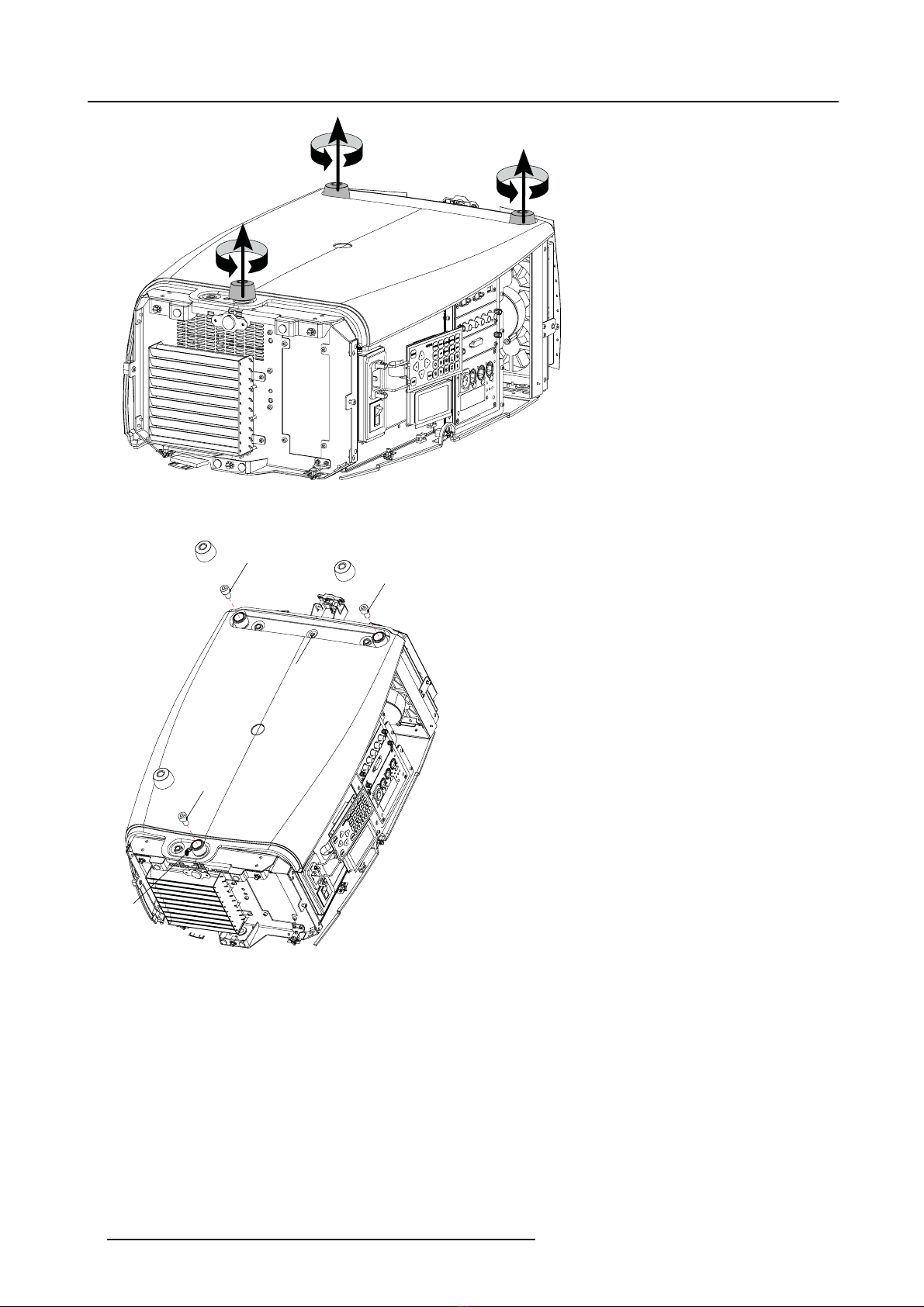

1. Remove the 3 plastic legs by turning them off.

R59770193 LAMP INFO CABLES CLM 22/05/2008 5

2. Removal of the covers

Image 2-6

Remove plastic legs

2. Turn out the 3 bolts (A).

Image 2-7

Remove the bottom cover

3. Release both screws (B).

4. Take off the bottom cover.

6R59770193 LAMP INFO CABLES CLM 22/05/2008

3. Installation procedures

3. INSTALLATION PROCEDURES

Before starting

To make it easy to replace the cables, place the projector on its back side.

3.1 Removal of the cables

Necessary tools

a pair of wire cutters

How to remove

1. Unplug the cable of the lamps.

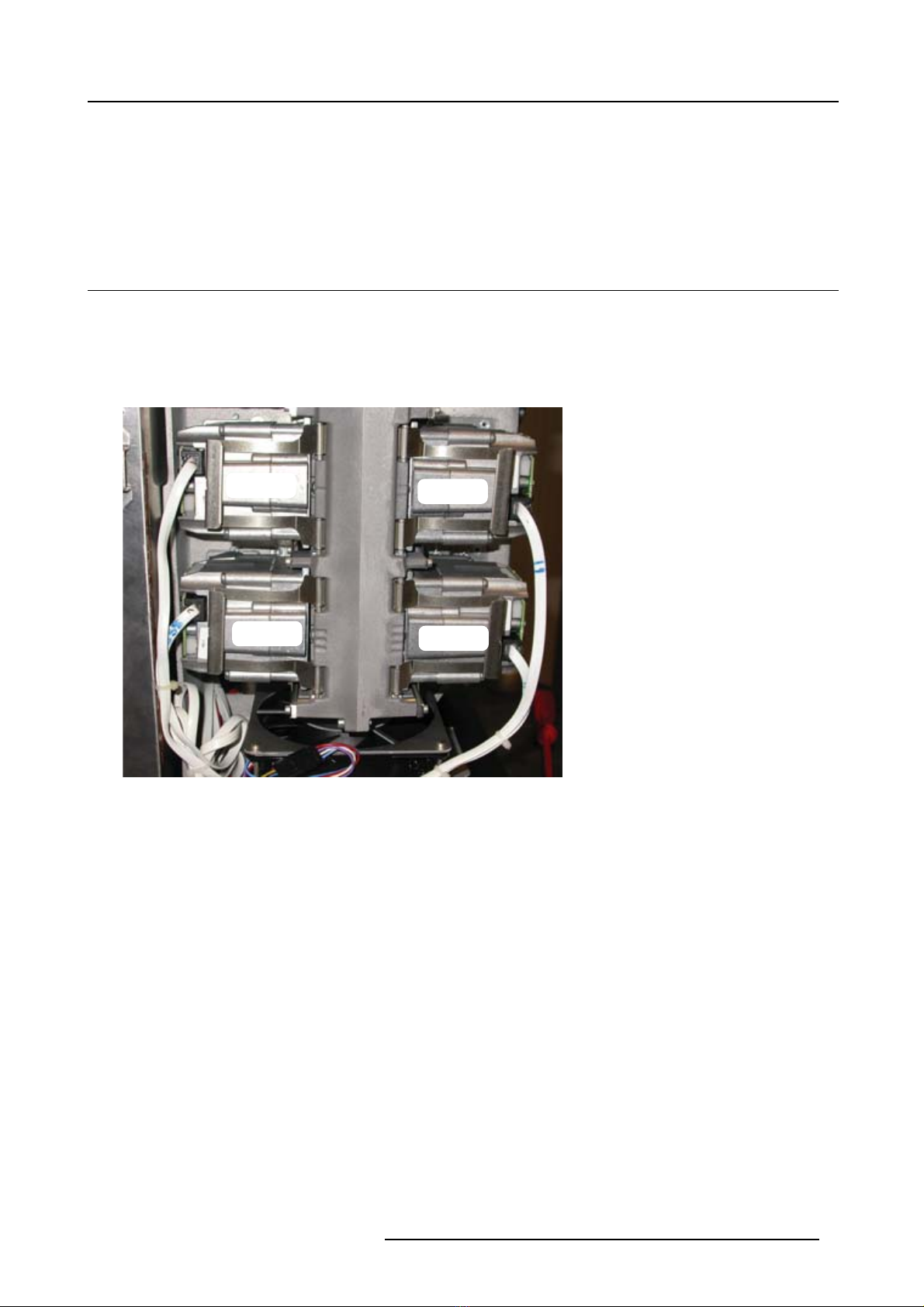

Lamp 4

Lamp 3

Lamp 2

Lamp 1

Image 3-1

2. Cut the necessary wire ties.

3. At the bottom side of the projector, unplug the info cables.

R59770193 LAMP INFO CABLES CLM 22/05/2008 7

3. Installation procedures

Lamp 4

Lamp 3

Lamp 2

Lamp 1

Image 3-2

4. Pull the cables through the gap in the optical base.

3.2 Mounting the new cables

Necessary parts

Wire ties

How to mount

1. Unpack the cables and mark both sides as described in the next table.

Cable number Indication on cable

Z34720315 /or1

Z34720325 // or 2

Z34720335 /// or 3

Z34720345 //// or 4

2. At the bottom side, plug one side of the cables in the correct position.

Cable with mark : Into lamp : Connector number

/ or 1 lamp 1 J501

// or 2 lamp 2 J502

/// or 3 lamp 3 J503

//// or 4 lamp 4 J504

8R59770193 LAMP INFO CABLES CLM 22/05/2008
