Barco TLD(2.8-5.0):1 Bedienungsanleitung

BARCO PROJECTION SYSTEMS

Date:16.11.2000

INSTALLATION MANUAL

LENS TLD(2.8 - 5.0):1 for SLM Series projectors

R9840690

Art. No.: R5976222Rev : 00

TLD(2.8-5.0):1

Kit

BARCO  1  Projection Systems

TLD(2.8-5.08):1 Lens R9840690

What has to be

done

This new lens has to be installed on the SLM series projector

Necessary Tools no tool necessary

To be continued on next page.

Warning ! Risk of personal injury. Instructions for lens installation must be followed thoroughly.

Installing the

Lens

To install the lens, follow the next procedure:

1&2

Take the lens assembly out of its packing material and

remove the lens caps on both sides.

Move the handle (A) of the lens anchor system to the right.

Push the lens, motors at the top, in the lens block gap

horizontally, lining up the motor connector on the lens with

the connector on the lens block (B), until the lens clicks in

the lens anchor system.

Attention: for a table mounted projector, hold the projector

when pushing the lens into the lens block to avoid sliding

off from the table.

Step Action Image

Illustrations

Image 1

Image 2

Image 3

BARCO  2  Projection Systems

TLD(2.8-5.08):1 Lens R9840690 (Continued)

What has to be

done

Removing the lens on the SLM series projector

Necessary Tools no tool necessary

Warning ! Risk of personal injury. Instructions for lens installation must be followed thoroughly.

To be continued on next page.

Illustrations

Image 1

Image 2

Image 3

Removing the

lens

To remove the lens, follow the next procedure:

2&3

Support the lens with one hand.

Move the handle (A) of the lens anchor system to the left

Take the lens unit out of the lens block.

Step Action Image

BARCO  3  Projection Systems

TLD(2.8-5.08):1 Lens R9840690 (Continued)

Zoom/focus

Adjustment of the

Lens

To adjust the lens, follow the next procedure :

Press the BARCO key on the RCU to display the zoom/focus menu on

the screen.

To focus or zoom the image :

a Push the cursor keys éor êto zoom and çor èto focus the

center of the image.

b When finished, press exit key.

See also owners manual of the projector, chapter Controlling, item

The selection key.

Step Action

To be continued on next page.

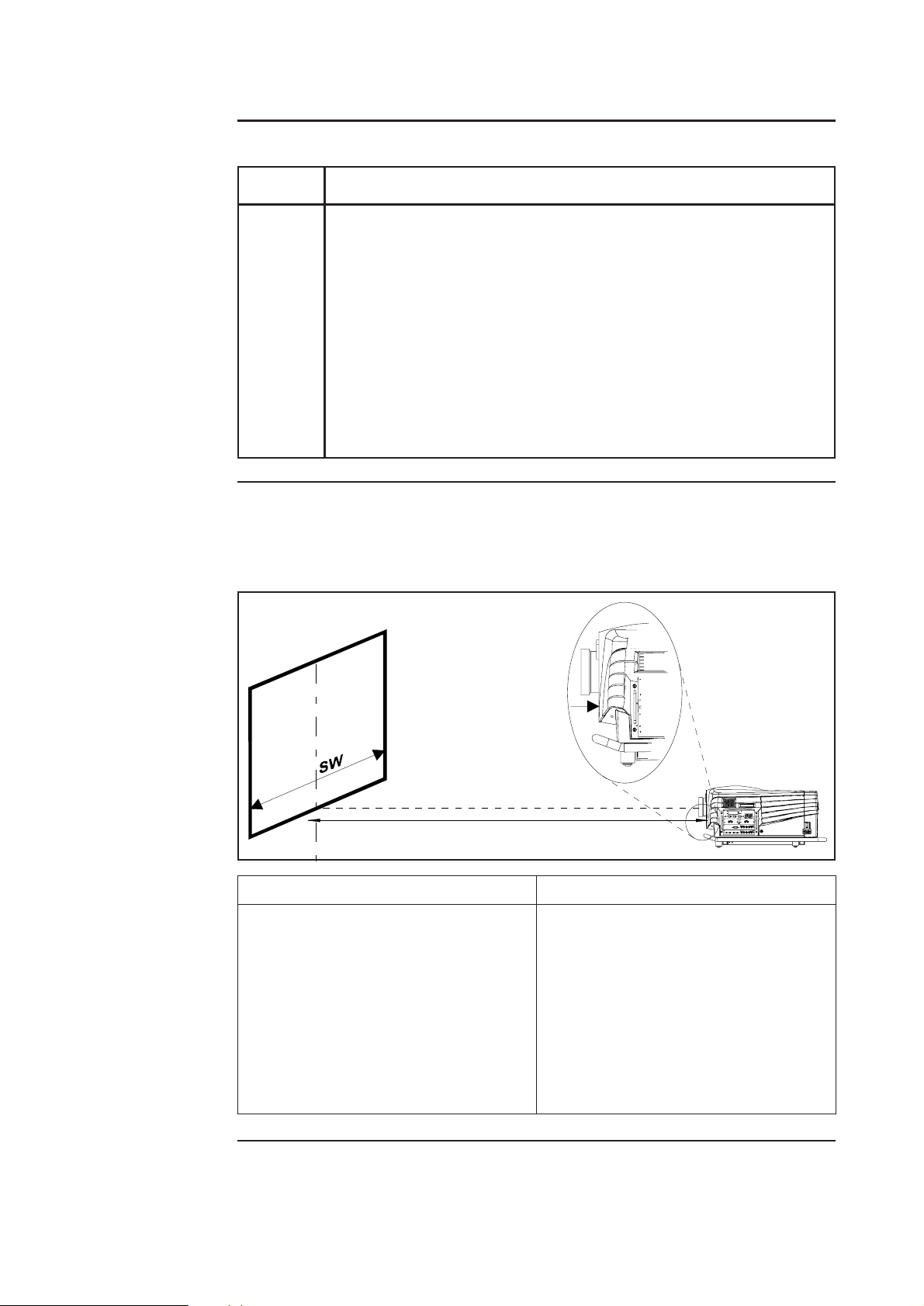

Lens Formula To calculate the distance (range) between the projector frontside and the screen (PD)

(see also the manual of the projector) for a given screen width (SW), use the following

formula for:

Barco projector SLM G5 & R6:

Metric system (PD and SW in meter) :

PDWIDE = 2.84 x SW - 0.15

PDTELE = 5.18 x SW - 0.37

Inch system (PD and SW in inches) :

PDWIDE = 111.81 x SW - 5.91

PDTELE = 203.94 x SW - 14.57

Barco projector SLM G5

Metric system (PD and SW in meter) :

PDWIDE = 2.88 x SW - 0.15

PDTELE = 5.26 x SW - 0.37

Inch system (PD and SW in inches) :

PDWIDE =113.39 x SW - 5.91

PDTELE = 207.09 x SW - 14.57

Barco projector SLM R6

BARCO  4  Projection Systems

Lens Cleaning

Procedure

To minimize the possibility of damaging the optical coating or scratching exposed lens

surface, we have developed recommendations for cleaning the lens.

FIRST, we recommend you try to remove any material from the lens by blowing it off

with clean, dry deionized air. DO NOT use any liquid to clean the lenses.

A TorayseeTM cloth is included with the lens kit.

Proceed as follows :

Always wipe lenses with a CLEAN TorayseeTM cloth.

Always wipe lenses in a single direction. Do not wipe back and for-

wards across the lens surface as this tends to grind dirt into the coating.

Do not leave cleaning cloth in either an open room or lab coat pocket,

as doing so can contaminate the cloth.

If smears occur when cleaning lenses, replace the cloth. Smears are

the first indication of a dirty cloth.

Do not use fabric softener when washing the cleaning cloth or softener

sheets when drying the cloth.

Do not use liquid cleaners on the cloth as doing so will contaminate the

cloth.

Step Action

Order number for a new TorayseeTM cloth : R379058.

Toraysee Cloth

Order Number

TLD(2.8-5.08):1 Lens R9840690
