Barco’s CLM R10+ is a compact, 10,000 lumen DLP projector, designed and built specifically for the

demanding rental and staging market.

With its sealed engine and DLP technology, the CLM R10+ delivers a brilliant, sharp and consistent

image - even after years of use - without time consuming and expensive maintenance.

The CLM R10+ features a strong, all-metal chassis ensuring the highest levels of reliability and comes

with its own rigging kit, allowing for quick and easy set up. Its compact size, light weight and low

noise levels make the CLM R10+ the ideal solution for both small and midsize venues.

Priced in the same range as many high brightness LCD projectors, but with all the advantages of DLP

technology, the CLM R10+ truly defines a new class of projection.

Key features:

• 10k lumen brightness

• Outstanding value

•DLP image quality

• Rugged and reliable

• Compact and lightweight

Introducing a new class of projection

preliminary

BR CLM R10+ feb07 15-02-2007 11:16 Pagina 2

10k lumen brightness - for today and tomorrow

The CLM R10+ features a new and very efficient lamp/light

engine combination that produces 10,000 lumens. Being a DLP

projector, the performance of the CLM R10+ will remain con-

sistent over a long time.

There’s no need to regularly replace expensive optical parts

just to maintain the output level and image quality. The projector

also features a sealed light engine and high density filters to

keep it clean and true to its specification without time con-

suming maintenance.

The SXGA+ resolution (1400 x 1050 pixels) of the CLM R10+ offers

87% more pixels than the XGA panels used in high brightness LCD

projectors.

This makes a significant difference to the projection of data graphics

images used in presentations and creative projections in shows.

Outstanding DLP image quality

Along with this brightness comes an image quality that rivals

much more expensive projectors. This high performance single

chip design is based on the same state of the art technology as

on our award winning FLM R20+.

With SXGA+ (1400 x 1050 pixel) resolution, the CLM R10+ has

87% more pixels than the XGA resolution of the high brightness

LCD projectors. This ensures crisp, clear video and data images

without loss of details.

The CLM R10+ is entirely Barco engineered and manufactured.

It has been designed and built to the same high standard as its

successful bigger brothers, the SLM, FLM and XLM, all of which

are industry references in the demanding rental and staging

market.

399 mm (15.71”)

CLM R10+ dimensions

515 mm (20.28”)

775 mm (30.51”)

BR CLM R10+ feb07 15-02-2007 11:16 Pagina 3

Rugged - built for the road

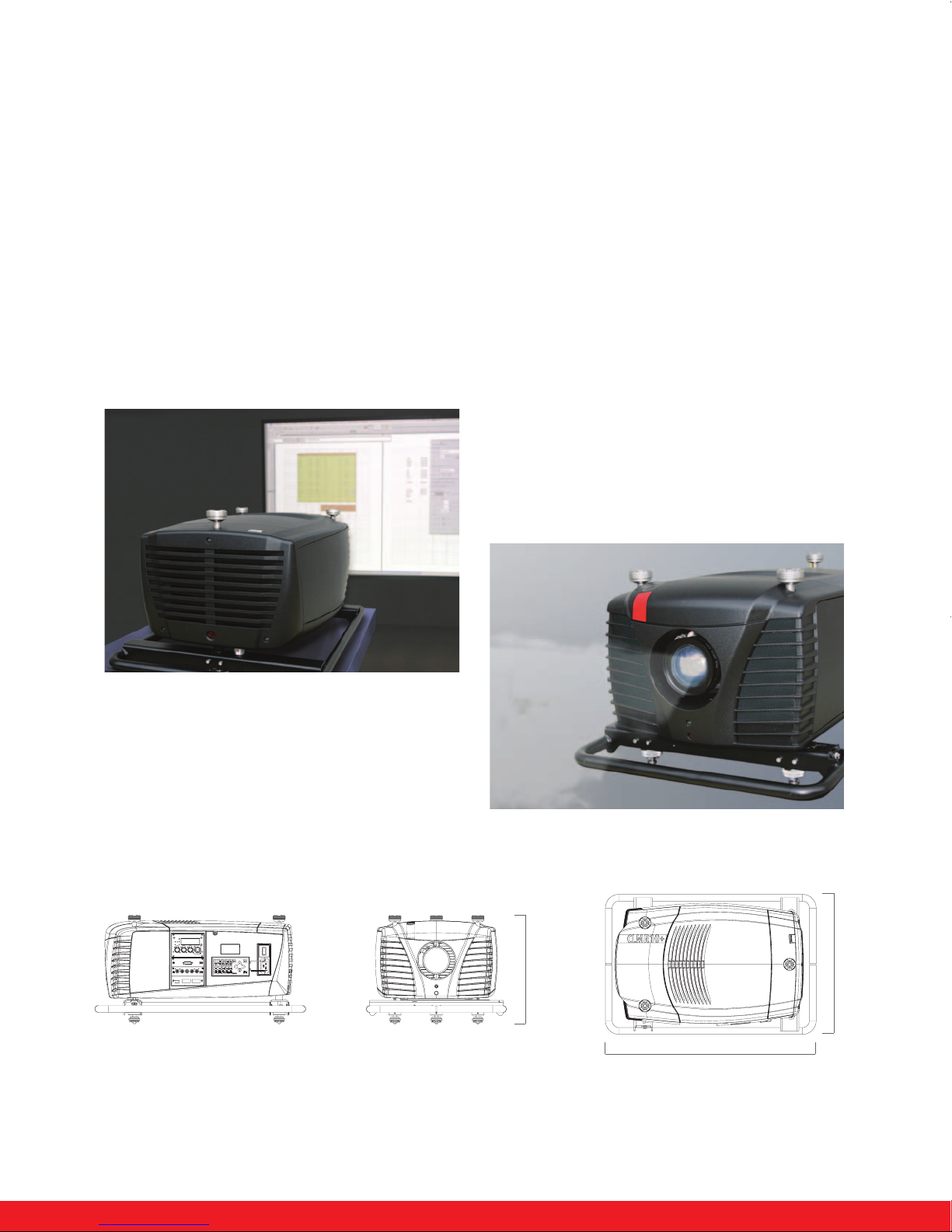

The CLM features a sturdy all-metal chassis that protects

- as well as keeps - all parts in place even under the

toughest conditions. An optional frame with carrying

handles makes rigging on trusses easy.

Compact, low noise and lightweight

The compact size of the CLM will allow it to fit applications

where previously, lower brightness projectors were the

only choice. The light weight of the CLM makes handling

and rigging quick and easy.

Outstanding value and fully featured - why settle for less?

The CLM does not only feature high brightness and great image quality.

Its fully featured design means it offers outstanding value by being a

complete unit straight out of the box;

• Optical dimmer (true black) controlled by DMX512 signal

• Soft edge blending

•On-touch auto alignment

• Remote control by Ethernet / Projector Toolset

•Practical and easy rigging points

The price of the CLM R10+ makes it attractive to markets and

applications that previously had to settle for lesser products.

Until now, high brightness DLP projectors were typically either higher

priced or unsuitable for smaller applications. With the CLM R10+ there

is now a Barco DLP projector to cover these applications - within your

budget.

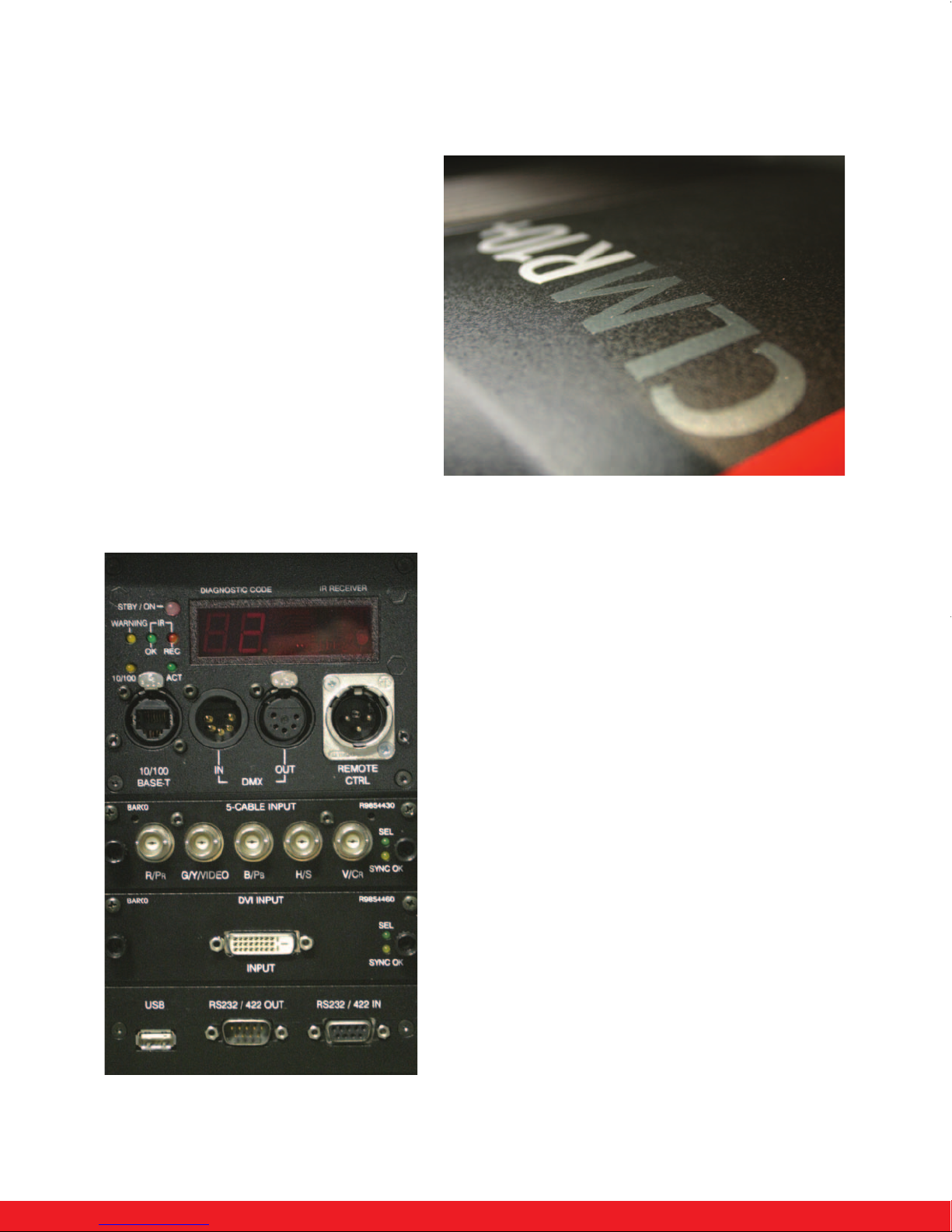

The full featured connectivity of the CLM R10+ makes it uniquely suitable for

venues and situations where sources and applications vary from day to day.

The plug-in input modules allow for any signal type to be accommodated.

The remote configuration via Ethernet with our Projector Toolset makes

centralized control and set-up a breeze. The remote control of most parameters

by DMX512 including true optical dimming ensures easy integration with

show and lighting control systems.

BR CLM R10+ feb07 15-02-2007 11:17 Pagina 4

Barco Events

Noordlaan 5, 8520 Kuurne - Belgium

Tel. +32 56 36 80 47 - Fax + 32 56 36 83 86

email: sales.events@barco.com

www.barco.com/events

Ref.no. R599145 - February 2007

DLP™ technology by Texas Instruments offers crystal clear images with superior quality.

DLP is a trademark of Texas Instruments.

The information and data given are typical for the equipment described.

However any individual item is subject to change without any notice.

The latest version of this product sheet can be found on www.barco.com.

CLM R10+ specifications

Light output (1) 10,000 Center lumen • 9,500 Ansi lumen

Resolution 1,400 x 1,050 (native, SXGA+)

Contrast ratio (2) 1,200:1 (full field)

High Contrast Mode (3) (4) contrast enhancement by optical dowser

Lamp 4 x 300 W

Lamp warranty 750 Hrs

Max. ambient temperature 40°C (104°F)

Power consumption 1600 W

Mains voltage 100 - 240 V / 50 - 60 Hz

Weight 30 kg excl. lens and rigging frame

Dimensions (W x L x H) 692 x 442 x 293 mm (27.24 x 17.40 x 11.54 inch) • excl. carrying handle + rigging points

Noise level at 25°C 49 dB(A)

FEATURES

Sealed DLP core standard

Network connectivity 10/100 Base-T, RJ-45 connection

Optical dowser (dimmer) 0 - 100% brightness control by DMX512 signal

Scenergix edge blending horizontal and vertical electronic edge blending

Advanced picture in picture two sources simultaneously

INPUTS

Input source compatibility (5) max. input resolution up to UXGA (2,048 x 1,536)

Standard inputs configurable; 5 cable (BNC) & DVI

(1) Measured with CLD 1.6 - 2.4 lens, on axis at 220 V (+/- 10% variation)

The brightness may vary slightly depending on the mains voltage

(2) Full white / full black on full field

(3) High Contrast Mode setting reduces light output to about 75% of the max. light output

(4) Contrast ratio’s up to 2000:1 are possible in high contrast mode

(5) all current video sources in composite, S-VHS, RGB or component or Serial digital format

all current proposed HDTV, extended and improved television standards (1080i, 720p, ...)

computer and workstations with a resolution up to 1,600 x 1,200

most Macintosh computers

direct digital interfacing with current and future digital standards
