Galaxy NH-12

Barco’s Galaxy NH-12 is the world’s first active stereoscopic projector with Windows

desktop integration that can project 2D mono and 3D stereo images simultaneously

in full native 1080p HD. The 12,000 lumens, three-chip DLP Galaxy provides brighter,

more reliable images and a wider field of view thanks to its 1080p HD resolution.

It is a network-centric projector, which greatly increases its ease-of-use in image-crit-

ical and virtual reality applications with large amounts of data.

12,000 lumens three-chip DLP, 1080p HD stereoscopic projector

Galaxy NH-12 brochure Oct07b:iCon H600 leaflet2i 11/29/07 4:38 PM Page 3

Excellent stereo image quality

The Galaxy NH-12’s 1080p HD resolution yields a pixel count that is 60% more than

that of a classic SXGA+ resolution, which means far more detail can be displayed at

once, and image sizes will be closer to the human eye’s field of view.

Its three-chip DLP technology is noted for its high reliability, natural color reproduction,

extended gray levels and high brightness. The Galaxy NH-12 has improved upon this

with a greater contrast ratio and deeper black levels. In addition, three-chip DLP

technology is also the preferred platform for stereoscopic projection.

The exact 3D rendering that Barco’s Galaxy NH-12 offers is vital to applications such as

automotive design review, analysis of large geophysical data sets, pharmaceutical

and scientific research and many others. The Galaxy NH-12 supports any current type

of stereoscopic technology, depending on the customer’s wishes:

• The NH-12 is a standard active

stereoscopic projector. Active stereo

uses only one projector per stereo

channel, and retains exceedingly high

levels of color quality. By requiring only

one projector per channel, a

visualization system can attain much

higher levels of cost-efficiency.

ACTIVE STEREO ACTIVE INFITEC STEREO PASSIVE POLARIZED OR INFITEC

STEREO

Pair of Infitec+™

stereo glasses

Standard screen

Single DLP™ projector

with Active Infitec+

Pair of passive stereo glasses

Non-depolarizing screen

Two DLP™ projectors

• The NH-12 has integrated optional

active Infitec filters. This Barco-

patented stereo technology has

uncompromised image quality,

regardless of the type of screen you

use. In addition, active Infitec makes

use of considerably more affordable

passive glasses.

• The NH-12 also supports passive

polarized or passive Infitec, if your

visualization center is to be used by

large groups. Passive stereo setups,

where two projectors generate one

stereo image, also retain high levels of

brightness, which is ideal for larger

rooms.

Pair of active stereo glasses

Images at double

refresh rate

Stereo-enabled DLP™

or fast phosphor green

CRT projector

Emitter

Galaxy NH-12 brochure Oct07b:iCon H600 leaflet2i 11/29/07 4:38 PM Page 4

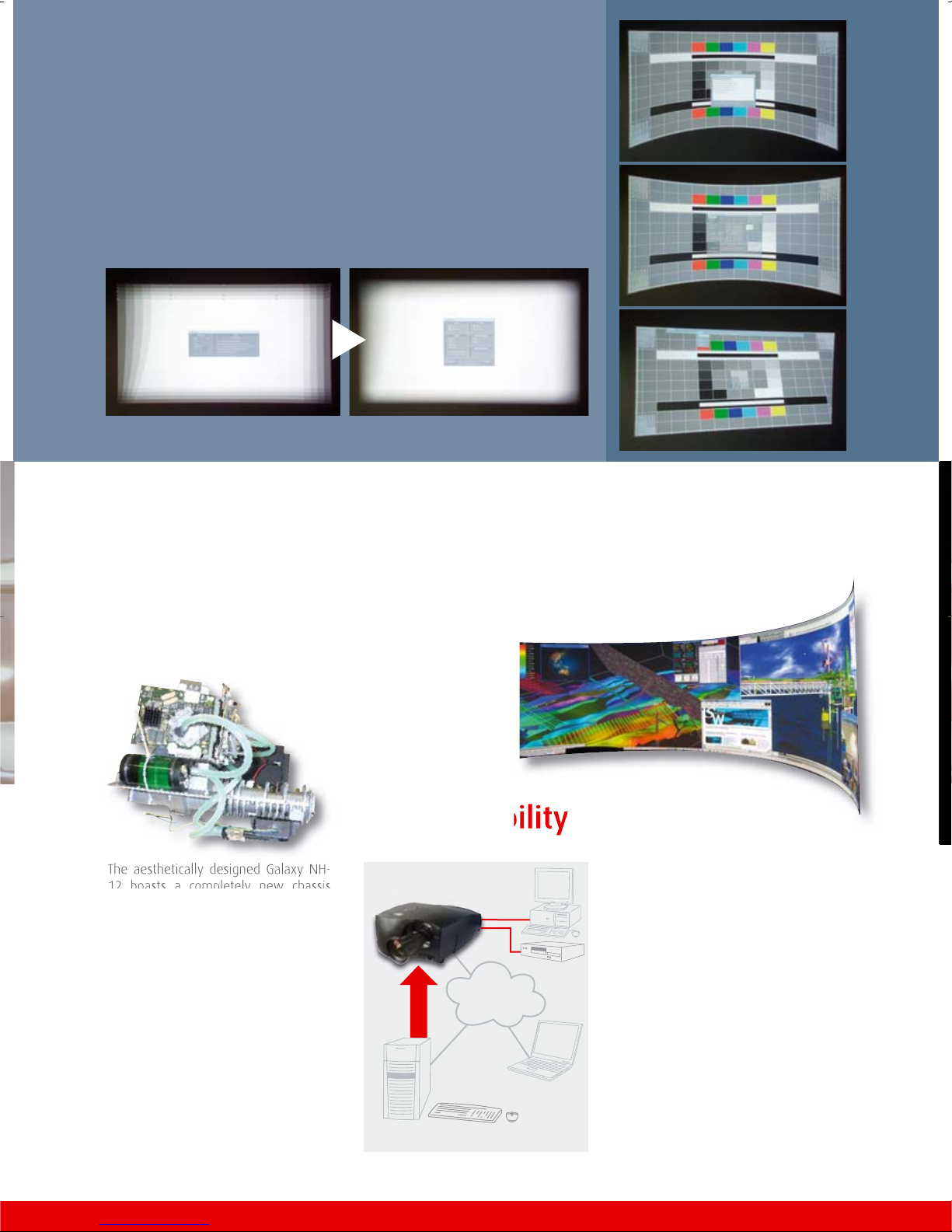

Perfect projection on any

screen type

More flexibility

The aesthetically designed Galaxy NH-

12 boasts a completely new chassis

and optical engine aimed at having

some of the lowest noise levels in its

class, averaging well under 49dB. The

liquid-cooled optical engine’s reliabili-

ty is further increased by being fully

sealed, which means no dust can enter

and cause degradation in contrast and

black levels. Furthermore, no filter

replacement is needed. Your image

quality also remains stable over time,

thanks to the NH-12’s rock solid lens

holder. This grants the Galaxy NH-12 a

system lifetime that is substantially

longer than that of similar three-chip

DLP systems.

Barco’s Galaxy NH-12 can be flexibly

connected to all kinds of sources. With

its wide input range for both 2D mono

and 3D stereo, it is the ultimate in

simultaneous data and video, and

hybrid mono and stereo projection.

The Galaxy NH-12’s wide horizontal and

vertical lens shift options further render

it a perfect choice for both front and

rear projection. Its keystone and

linearity corrections are vastly superior

to those of regular three-chip DLP

systems, and help resulting in an

exceptional image quality.

The Galaxy NH-12 features Barco proprietary technology that makes it an

excellent choice for multi-channel setups and large screen applications, such

as flat or curved display walls, or immersive stereoscopic environments:

• Edge blending technology creates

one continuous image across the entire

screen, without blurry overlap zones,

thanks to new alpha and beta planes.

Barco’s edge blending can be electron-

ic, optical or a combination of the two,

to have the best of both worlds.

• DynaColor and linked CLO (constant

light output) match color or brightness

differences across channels to create

one constant color and light output for

the entire image.

Set-up through real-time on-screen interface Resulting soft-edge mask

• Bi-cubical warping (geometry cor-

rection) ensures that an image is pro-

jected correctly, with an extremely high

level of accuracy (up to 33 by 33 control

points), even across curved, non-flat

surfaces, to guarantee a natural view

free of distortions.

Revolutionary design

LAN/WAN

DVI

Directly connected sources

Networked sources

PC running Barco’s desktop software

Galaxy NH-12 brochure Oct07b:iCon H600 leaflet2i 11/29/07 4:38 PM Page 5

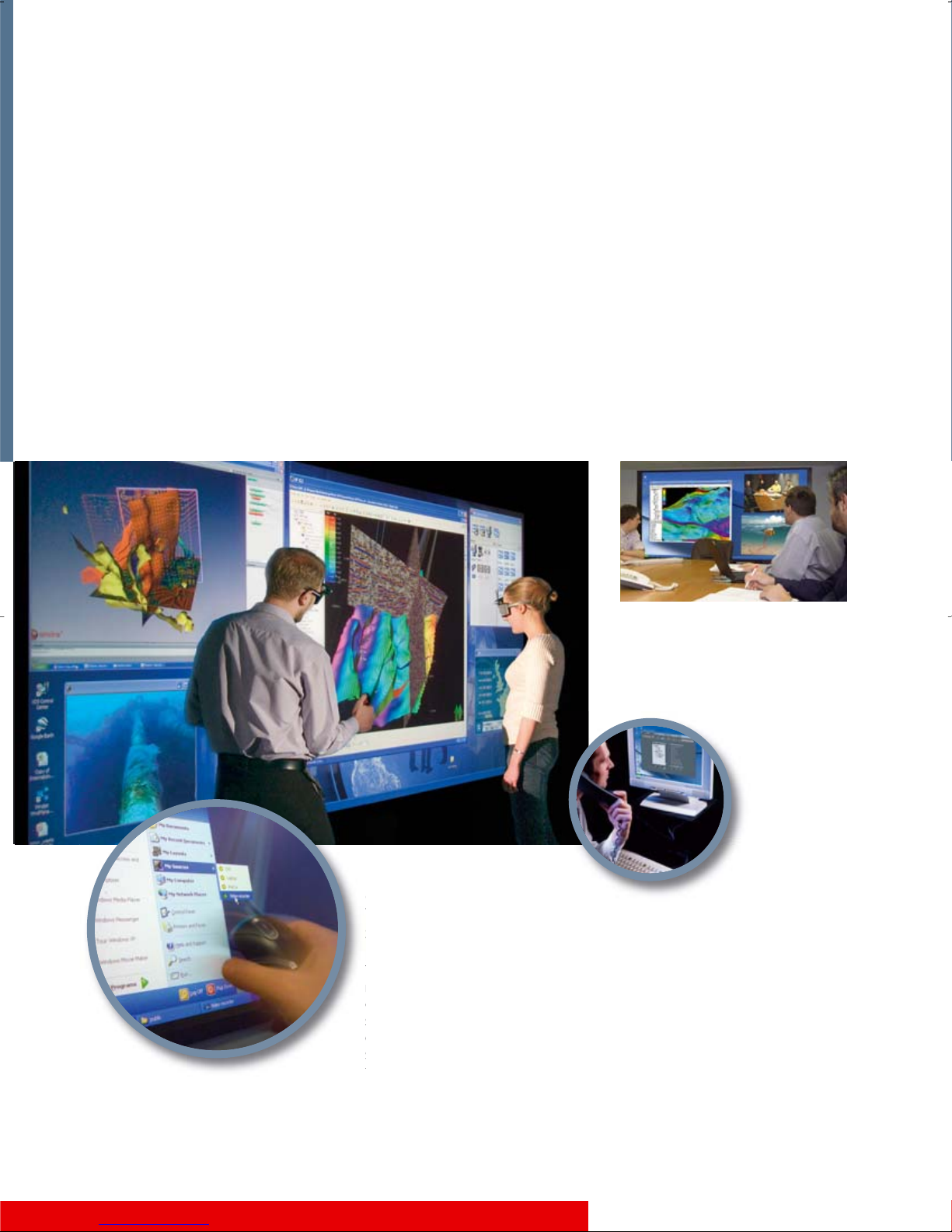

Real-time interaction and collaboration in 1080p HD

Collaborating in real time on multiple sets of data and video simultaneously is

the dream of any multidisciplinary team. By being able to cross-analyze relevant

data on one big screen, the Galaxy NH-12 suddenly makes interactive decision-

making an efficient process that greatly enhances your workflow.

Barco’s Galaxy NH-12 allows easy con-

nection to a vast array of sources,

including computers, 3D workstations,

DVD players and networked locations.

The NH-12 processes these sources,

whether mono or stereo, simultaneous-

ly and renders them in multiple win-

Flexible source multi-windowing Razor-sharp, natural video-

conferencing

Thanks to the Galaxy NH-12’s superior

1080p HD resolution, videoconferencing

over IP in lifelike, natural detail

becomes possible. This renders your

collaboration session interactive to the

greatest level. With your videoconfer-

encing running in one window and

remote participants sharing their desk-

top over the network, each team can

analyze the same information remotely

and simultaneously.

Centralized control and

diagnostics

The Galaxy NH-12 presents a great

asset for your tech support staff, as it

allows easy, centralized control and

diagnostics over the network, including

remote startup and shutdown. Special

Barco software enables staff to check

the projector’s runtime, its lamp life-

time and the status of connected

sources. It also sends automated e-mail

alerts to your AV/IT-personnel in case of

lamp problems.

Maximized ease of use

through Barco-patented

software

The Galaxy NH-12 is controlled with

mouse and keyboard. With a simple

click of the mouse, you can select

sources from the Windows Start Menu

option “My Sources”. Similarly, you can

save and recall various screen layouts

through “My Layouts”. This allows you

to start up an important window config-

uration for a meeting immediately,

without having to go through the time-

consuming routines of selecting and

displaying sources manually each time.

dows that can be freely resized, moved

or made to overlap on a widescreen

Windows desktop at will. Cross-analyz-

ing and collaborating with all relevant

information on one screen accelerates

the decision-making process in ways

that were unthinkable in the past.

Galaxy NH-12 brochure Oct07b:iCon H600 leaflet2i 11/29/07 4:38 PM Page 6

The price of a projection system is more than just its purchase: servicing,

maintenance, peripherals and learning curves should also be taken into account,

and often add up to a much higher cost. Barco’s Galaxy

NH-12 greatly reduces the total cost of ownership on many levels:

Applications

• Geophysical data analysis

• Avionic and automotive design and review

• Scientific research and data management

Reducing your total cost of ownership

Net Cost comparison

€0

€50.000

100.000

150.000

200.000

250.000

VSMR

SMR

MMR

LMR

VCR

AUD

WRR

Network Centric

AV Centric

VSMR: Very small meeting room

SMR: Small meeting room

MMR: Medium size meeting room

LMR: Large meeting room

VCR: Videoconference room

AUD: Auditorium

WRR: War room

• You save time, because

you don’t need to learn

how to work with a new

interface and connect var-

ious sources over and over

again. You simply use

Windows and its Barco Start

Menu options.

• You save money, because you don’t

need to buy remote controls or matrix

switchers. Instead, you use keyboard and

mouse, and display sources simultaneous-

ly on one screen, in fully reconfigurable

windows.

• Reduce maintenance costs.

Your projection system is

practically maintenance-

free due to its sealed optical

engine, and its centralized

control and maintenance

functionalities eliminate many

manual check-up routines.

• Improved reliability. Thanks to its liquid

cooling and its top-of-the-line xenon

lamp, the NH-12 boasts a significantly

longer system lifetime compared to other

three-chip DLP systems.

Galaxy NH-12 brochure Oct07b:iCon H600 leaflet2i 11/29/07 4:37 PM Page 1

www.barco.com

Ref.no. R5990076 November 2007

Barco’s Presentation & Simulation Division is

ISO 9001 certified.

The information and data given are typical for the equipment

described. However any individual item is subject to change without

any notice.

DESIGNED UNDER

ISO

EMEA & ROW

Noordlaan 5

8520 Kuurne - Belgium

Tel. +32 56 36 82 11

Fax +32 56 36 85 26

Barco

Presentation & Simulation Division

contact.bps@barco.com

USA

600 Bellbrook Avenue

Xenia, OH 45385-4053

Tel. +1 (937) 372-7579

Fax +1 (937) 372-8645

APAC

7F, FenYang Road 138

200 031 Shanghai - China

Tel. +86 21 5465 5501

Fax +86 21 5465 5502

Galaxy NH-12 technical specifications

Display capabilities

Light output

12,000 center lumens (+/- 10%)

Contrast

1,800:1 up to 2,000:1 (with TLD+1.2:1 lens in High Contrast Mode)

Resolution

Full HD (1,920 x 1,080)

Chip technology

Sealed and liquid cooled 3-chip DLPTM

Lamps

Lamp

2 kW Xenon

Lamp warranty

750 hrs waranted, max. 800 hrs

Dimensions

Weight

70 kg (154.2 lbs) net - 85 kg (187.4 lbs) shipping weight

Height - width - length

345 / 590 / 913 mm

13.58

” /

23.22

” /

35.94

”

Lenses

Available zoom lenses / HD real throw

TLD HB (1.6-2.0:1) (rt 1.4-1.7:1) R9842060

TLD HB (2.0-2.8:1) (rt 1.7-2.4:1) R9842080

TLD HB (2.8-5.0:1) (rt 2.4-4.3:1) R9842100

TLD HB (5.0-8.0:1) (rt 4.2-7.0:1) R9842120

Available fixed focal lenses

TLD HB (0.8:1) R9842040

TLD+ (1.2:1) R9840775

Lens shift range

Horizontal shift up to +/- 65%

Vertical shift up to +/- 100%

Features

Special features

Standerd active and polarized stereo, optional passive or

active Infitec

Source and PiP operation through Windows OS

Standard full geometry correction

Sealed, liquid-cooled engine

Desktop output including external source windows on DVI-

Inputs and outputs

Standard inputs

1x 5-BNC (RGBHV, RGBS or RGBsB)

1x Composite video (BNC)

1x S-Video (4-pin mini DIN)

1x DVI

1x VGA (D15)

3 stereo sync inputs (mini-DIN)

Optional inputs (1 free layer)

SDI/HD-SDI input

Communication ports

RS232 (on D9)

10/100 Mb/s Ethernet (on RJ45)

Compatibility

Video

PAL, SECAM, NTSC video signals in Composite, S-video,

component or RGB format

All current HDTV standards (720i, 720p, 1080i, 1080p) in

Component or RGB format

Data

All computer graphics formats up to QXGA @ 120 Hz

Analog sources with a pixel clock of up to 270 MHz

DVI sources with a pixel clock of up to 165 MHz

Safety

Safety standards

ETL60950 and EN60950

CE compliant

CCC compliant

Power

AC power

200 - 240 VAC/50-60 Hz

Max. power consumption / dissipation

2,800 Watt / 9,560 BTU

Order info

Galaxy NH-12 R9040400

New 2kW lamp R9843080

Refurbished lamp R9843090

QXGA RGBHV input R9843020

DVI/D15 input R9843030

SDI/HD-SDI R9843040

Galaxy NH-12 brochure Oct07b:iCon H600 leaflet2i 11/29/07 4:38 PM Page 2

Andere Handbücher für Galaxy NH-12

Andere Barco Projektor Handbücher

Barco

Barco DP2K-23B Bedienungsanleitung

Barco

Barco G50 Bedienungsanleitung

Barco

Barco CINE7 R9010040 Bedienungsanleitung

Barco

Barco R9002110 Bedienungsanleitung

Barco

Barco BarcoSLM G8 Bedienungsanleitung

Barco

Barco Galaxy NW12 Montageanleitung

Barco

Barco BarcoData 1209S Bedienungsanleitung

Barco

Barco iD H250 Bedienungsanleitung

Barco

Barco BarcoReality 909 Bedienungsanleitung

Barco

Barco iD R600 Bedienungsanleitung

Barco

Barco R9001890 Bedienungsanleitung

Barco

Barco Vision 3200 Bedienungsanleitung

Barco

Barco F70 Series Bedienungsanleitung

Barco

Barco HDF W series Bedienungsanleitung

Barco

Barco DP2K-15C Bedienungsanleitung

Barco

Barco D-Cine Premiere DP90P Bedienungsanleitung

Barco

Barco F400 Benutzerhandbuch

Barco

Barco CineVERSUM 110 Bedienungsanleitung

Barco

Barco DP-1500 Bedienungsanleitung

Barco

Barco Graphics 6300 Bedienungsanleitung

Barco

Barco B-10 Mobile LED R9855510 Bedienungsanleitung

Barco

Barco CLM HD8 Handbuch

Barco

Barco R9001450 Bedienungsanleitung

Barco

Barco SP4K-C Series Benutzerhandbuch

Beliebte Projektor Handbücher anderer Marken

iEmmet

iEmmet MP-312 Bedienungsanleitung

Epson

Epson VS400 Bedienungsanleitung

Sony

Sony VPL-HS10 Marketing Specifications & Features Bedienungsanleitung

Sony

Sony VPL-HW65ES Service-Handbuch

Toshiba

Toshiba TLP-791U Bedienungsanleitung

Philips

Philips LC1341 Referenzhandbuch

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Bedienungsanleitung

NEC

NEC NP600S EDU Bedienungsanleitung

BenQ

BenQ SH753P Bedienungsanleitung

Eiki

Eiki EK-623U series Bedienungsanleitung

Epson

Epson PowerLite Pro Cinema 6020UB Bedienungsanleitung

Epson

Epson PowerLite Home Cinema 705HD Bedienungsanleitung

Christie

Christie LHD700 Bedienungsanleitung

Navitar

Navitar FX Bedienungsanleitung

InFocus

InFocus LitePro 560 Bedienungsanleitung

Sony

Sony SRX-R815P Bedienungsanleitung

Vivitar

Vivitar DP1500 X Bedienungsanleitung

Acer

Acer C20 Series Bedienungsanleitung
