Barco PGWU-62L(-K) Bedienungsanleitung

http://www.barco.com/en/products-solutions/projectors

For more information and Maintenance Guidelines,

check the Detailed User Manual on:

- Remove the lens before transporting the projector.

- Do not block the ventilation in -and outlets.

- Using the projector at a non recommended tilt angle will reduce the lifetime of the light

source or create unexpected behaviour of the unit.

- Pointing with a laser device into the lens can cause severe damage to the DMD.

This damage is not covered by warranty.

10 Important Info

R5905897-00 MAN QSG PGxx-62L

see user manualADVANCED

service informationSERVICE

normal/eco/powerMODE

information on light source statusINFO

select language

LANGUAGE

adjust keystoneKEYSTONE

adjust lens shiftLENS SHIFT

adjust lens zoomLENS ZOOM

adjust lens focusLENS FOCUS

modify image aspect ratioASPECT RATIO

adjust image colourCOLOR

adjust image contrastCONTRAST

BRIGHTNESS

Toggle between input sourcesINPUT

MODE

INFO

SERVICE

ADVANCED

KEYSTONE

BRIGHTNESS CONTRAST COLOR

LENS ZOOM

LANGUAGE

INPUT

LENS FOCUSASPECT RATIO LENS SHIFT

9OSD Lite Menu

8Starting Projector

OFF/STBY

Error

During Start-up

1 sec 1 sec 1 sec 1 sec 1 sec

Status Led

IR Position

Top/Rear

IR Position

Front

Quick Keys

Quick Key 1

Quick Key 2

Push Menu-UP twice

for instant ‘Picture Mute’

Push Menu-LEFT twice

for instant ‘Picture Freeze’

(for Remote and keypad)

Quick Key 3

Push Menu-OK for

quick access to the

Focus/Zoom Menu

Feedback LED

Menu - UP

Menu - RIGHT

Menu - OK

Menu - LEFT

Menu - DOWN

Home/Menu

Battery Lid

(Slide down

to open)

Power

On/StandBy

(See User Manual for detailed info on Inputs)

6Input Cables

*(Ceiling mount system is not included)

Please check the manual of your

supportsystem for compatability

Unit Weight: 18 kg max.

5Ceiling Mount*

4Cable Cover

3Lens Assembly B

Remove protective covers

from both ends of the lens

before starting assembly.

2Lens Assembly A

(EU/US/CH)

user

manual

AAA (2x)

1Packaging Contents

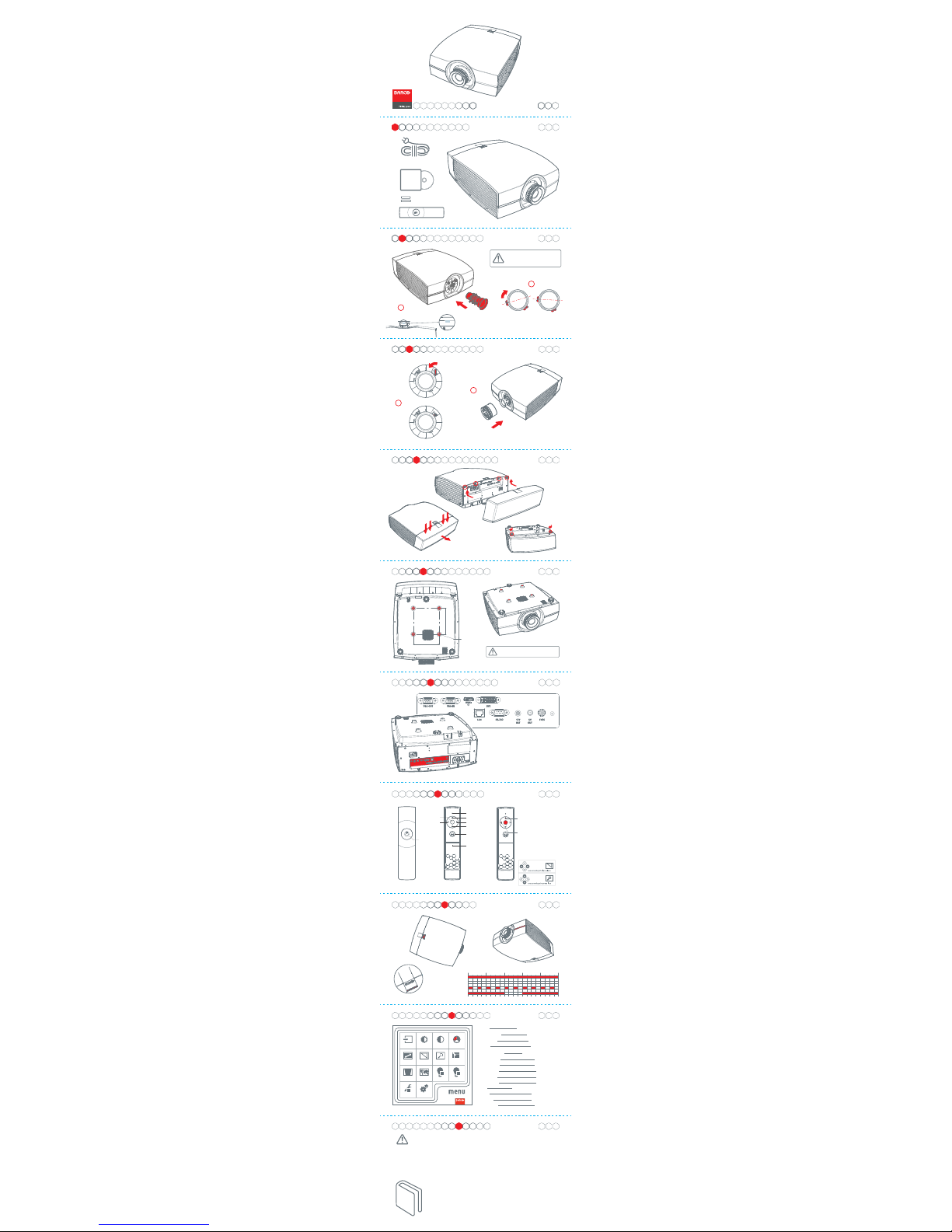

Quick Setup Guide

Congratulations on purchasing

this product

PGWU-62L/K

PGWX-62L/K

Click!

TOP

200

M6 depth 10

(4x)

adjust brightness level

7Remote Control

如需获取更多详细信息和维护指导，请于以下链接查看用户手册:

http://www.barco.com/en/products-solutions/projectors.htm

- 运输投影机前请先将镜头卸下;

- 请勿阻塞投影机的进出风口;

- 如果投影机倾斜超过推荐的角度，

则会缩短投影机光源的寿命，并造成其他意外损坏

- 激光直接或间接照射到投影机镜头上可能会严重损坏数字微镜设备 (DMD™)，

这种损坏不在质保范围

10 重要信息

Rev. 00

请查阅用户手册

服务信息

选择功率模式

投影灯状态信息

语言选择

调整几何失真

调整镜头位移

调整镜头变焦

调整镜头聚焦

调整图像纵横比

调整图像显示模式

调整图像反差

调整图像亮度

在不同输入信号源之间切换

ADVANCED

SERVICE

MODE

INFO

LANGUAGE

KEYSTONE

LENS SHIFT

LENS ZOOM

LENS FOCUS

ASPECT RATIO

COLOR

CONTRAST

BRIGHTNESS

INPUT

MODE

INFO

SERVICE

ADVANCED

KEYSTONE

BRIGHTNESS CONTRAST COLOR

LENS ZOOM

LANGUAGE

INPUT

LENS FOCUSASPECT RATIO LENS SHIFT

9OSD 精简菜单

关机/待机

使用中

报错

正在启动

1 sec 1 sec 1 sec 1 sec 1 sec

Led 指示灯

前置红外接收器

8启动投影机

7遥控器

快捷键

快捷键 1

快捷键

连续按两次“菜单-上”

连续按两次“菜单-左”键，

可使画面立即静止

可以暂停投影

(遥控器和后面板上的按键)

按“菜单-OK”键

可快速进入聚焦/变焦菜单

LED 指示灯

菜单 - 上

菜单 - 右

菜单 - OK

菜单 - 左

菜单 - 下

Home/菜单

电池盖

(下滑打开)

电源开/

待机

(详细信息请查看用户手册)

6接口信息

本机重量: 18kg Max.

*（本产品不包含安装托架）

请参照

您所使用的安装托架的手册进行安装

5安装托架*

4接口后盖的拆装

3镜头的安装 B

安装镜头前，

请将镜头前后保护盖取下。

2镜头的安装 A

(EU/US/CH)

用户

手册

AAA (2x)

1箱内物品

快速安装手册

感谢您购买巴可公司的产品

请依据此手册快速安装并使用您的投影机：

快捷键

PGWU-62L/K

PGWX-62L/K

Click!

TOP

Click!

200

M6 depth 10

(4x)

上盖/后置

红外接收器
