The perfect solution to

multi-channel projection

SIM 5R

Photo courtesy U.S. Air Force

Photo courtesy CSC Defense Mission Engineering and Integration Division

•Single chip DLP™ technology

•SXGA+ resolution (1400 x 1050 pixels)

•High brightness

•Extreme bandwidth 16-bit processing

•Dual lamp redundancy, easy service features

•Unique multi-channel projection features

•Raises training efficiency

•Lowers operation costs

•Reduces maintenance costs

•An easy upgrade path for existing maritime, flight,

driving, gunnery, and ATC training simulators

SIM 5R Nov06:SIM 5 plus5 11/15/06 10:42 AM Page 3

Reshaping multi-channel projection displays

Optimal multi-channel geometry

Inter-channel color matching

Image scaled using generic

bilinear algorithm

Image scaled using

WARP 6™ algorithm

WARP 6™ software interface

Chromatically matched and highly-

optimized optical engines guarantee

color uniformity across channels.

DynaColor™

Barco’s DynaColor™ algorithm is an

advanced tool for perfect color matching

across all system channels. It allows to

digitally set the primary and secondary

Photo courtesy U.S. NavyPhoto courtesy of U.S. Air Force Photo courtesy WaterPhoto courtesy Link Simulation and Training

More on Barco’s dedicated multi-channel

technologies: www.barco.com/simulation

Advanced

Geometry Distortion

WARP 6™ uses Barco’s proprietary

bi-cubic interpolation. The internal 16-bit

upscaling preserves the finest details in

the images, without introducing any

frame delays or resampling artefacts.

Thanks to the built-in WARP 6™

electronics, the SIM 5R can be used in a

wide variety of curved-screen

applications, ranging from

straightforward cylindrical displays to the

most severe distortions.

color coordinates for all projectors.

These color coordinates are compared in

order to find the common color gamut.

Different DynaColor settings can be

stored in a single projector for advanced

use such as combined mono and stereo

projection.

Dynacolor wipes out color differences, to

let you see the sky as it is meant to be,

wherever you turn your head.

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

DynaColor

common color gamut

ch 1

ch 2

SIM 5R Nov06:SIM 5 plus5 11/15/06 10:42 AM Page 4

Excellent blending at

high brightness levels

Extra use of the white segment in

the DLP™ color wheel improves

brightness but introduces white

peaking in the overlap zones,

making blends visible.

Barco’s unique gamma compensation

maintains excellent blending at high

brightness levels. Optical Soft-Edge

Blending is not influenced by white

peaking.

Left Right

Barco’s proprietary OSEM optical blending

filters in the lightpath, limiting the black

level in the overlap zone to the separate

images, resulting in seamless images with

invisible blends, even in night scenes.

Barco’s flexible ESEM technology adjusts

edge blending to a uniform black level.

In multi-channel setups, the non-zero black

level of light valve projectors normally

leads to brighter overlap zones, especially

visible in night scenes.

Multi-channel visualization: a challenge in

need of a dedicated display solution.

Ship bridge simulator using simulation-

dedicated projectors.

Left Right

True black Projector black

White se

men

No white se

men

Efficient seamless blending

sy Waterbouwkundig Instituut Antwerpen, Belgium Photo courtesy Lockheed Martin Photo courtesy Aéroport de Paris (ADP), France

SIM 5R Nov06:SIM 5 plus5 11/15/06 10:43 AM Page 5

Uniform brightness and contrast

Accurate images for night and dusk training

Extended Contrast Ratio (ECR)

Dark night scenes typically deliver video signals

with reduced dynamic range and almost no

contrast. Barco’s NVGVIEW system add-on enables

users wearing NVG devices to see bright,

properly-defined targets and images for

true training accuracy and realism.

NVGVIEW™ projection

By electronically enhancing these video signals

and dimming to rescale to full dynamic range,

Barco’s ECR greatly improves the contrast ratio

and picture quality.

Constant Light Output (CLO)

An integrated, calibrated light meter

measures and controls the light output.

•New and used lamps can be mixed

•Not all lamps need to be changed at

the same time

The xRACU allows for Linked CLO, so

the brightness of all linked projectors is

monitored and adjusted to the lowest

value.

Contrast level independent from

dimming level. Black level and overlap

zones don’t change when changing

lamp bulbs.

Uniform dimming

•Increased dynamic range (20:1)

•Accurate dark images

•Contrast level independent from

dimming level (black level and

Optical Soft Edge Matching do not

change when changing lamps)

Rescaled video signal

Original video signal of a night scene

grayscales

256

grayscales

IMPROVED CONTRAST

REDUCED CONTRAST

Channel with new lamp

After dimming

After CLO

Unbalanced system:

2000:1 contrast

on middle channel only

3-channel system with

new lamp on middle

channel:

non-uniform brightness

and contrast

Balanced Sim 5plus

system:

1000:1 constant contrast

on every channel

Constant contrast dimmer

Typical dimmer:

brighter in the center

of the image

Standard image: weak dynamic range

ECR delivers full dynamic night scenes.

Barco ECR uniform dimming:

maintains image quality

Photo courtesy Thales Training & Simulation

SIM 5R Nov06:SIM 5 plus5 11/15/06 10:43 AM Page 6

Briefing and debriefing applications

Lower total cost of ownership

Budget-friendly, on-board

input switching

•Multiple inputs eliminate the need for

expensive external switchers:

DVI-D (up to 170 MHz), configurable

5-wire BNC, VGA (D15), optional

composite video and S-video,

•Communication inputs and outputs

include 10/100 BaseT fast Ethernet

(RS232/422)

Dual source visualization (PiP)

Allows you to show a debriefing window

or mission information by means of the

optional video input.

Fast cross-system remote

control

A fast ethernet connection facilitates

central management of several

simulators over LAN, either on PC or

xRACU (Remote Alignment and Conrol

Unit).

i-Blend: 3-channel edge-

blended panoramic projection

from a single PC

i-Blend is a built-in proprietary software

that produces three-channel pictures with

blend from a single high-bandwidth PC or

workstation output (>170 MHz).

•Reduced IG costs

•Cheaper license costs

•Reduced complexity

Dual lamp system

Easy lamp replacement

•Maximum light efficiency

•Single lamp eco-mode doubles

maximum lamp lifetime

•Automatic redundancy for optimal

system uptime

•No dismantling or realignment for lamp

replacement

Single off-the-shelf PC graphics output e.g. 3640 x 1050 pixels

Infitec: dual

eyepoint viewing

For dual eyepoint

viewing, two

projectors are used -

one for each viewpoint.

Infitec technology filters the

color spectrum of the image into parts:

one for the position of the left viewer

and another for the position of the

right viewer. Matching filters in the

projector and in the glasses ensure the

correct information goes through to the

corresponding viewer.

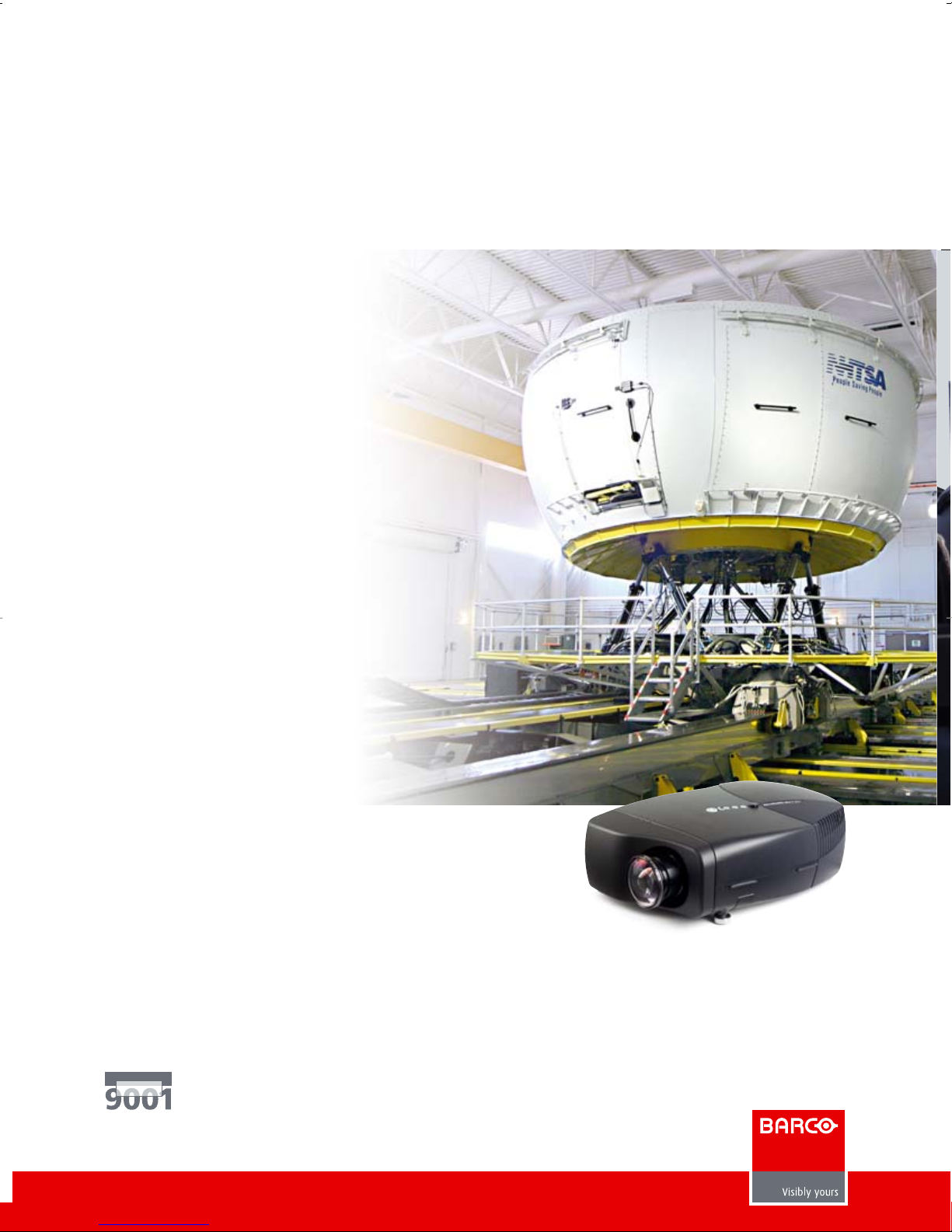

Photo courtesy of NADS and the National Highway Traffic Safety AdministrationPhoto courtesy Rheinmetall Defense Electronics

left viewer image - right viewer image

SIM 5R Nov06:SIM 5 plus5 11/15/06 10:42 AM Page 1

www.barco.com/simulation

Barco Simulation division

US Headquarters:

600 Bellbrook Avenue - Xenia, OH 45385-4053

Tel. +1 (937) 372-7579 • Fax +1 (937) 372-8645

email: simulation.us@barco.com

European Headquarters:

Noordlaan 5, B8520 Kuurne - Belgium

Tel. +32 56 36 82 11 • Fax +32 56 36 86 51

email: info.simulation@barco.com

Highest level of near-reality

immersive visualization

•Dedicated design based on single-chip, high-resolution

DLP technology (SXGA+) for bright, high-contrast images

•Accurate colors and minimal artefacts thanks to integrated

BrilliantColor technology

•Accurate display of database scenes during night, dusk, and poor

weather conditions with Constant Contrast Dimming Technology

•Integrated bicubic WARP 6™ predistortion for utmost detail on

curved and spheric screens

•Uniform brightness and contrast across channels

•Electronic and Optical soft-edge matching for invisible blend

zones

•DynaColor algorithm for accurate cross-channel color matching

Lower total cost of ownership

•Unique built-in features for a seamless, uniform image over

multiple screens eliminate the need for expensive, external

add-on equipment that often causes disturbing artifacts and

extra maintenance costs

•

Optimized for easy maintenance through automated

uniformity readjustments

after a lamp replacement

•Remote, central, cross-system control over LAN

(e.g. with the optional xRACU)

•Input flexibility through DVI, configurable BNC, VGA,

An easy upgrade path

for existing simulators

•Identical throw distance to CRT projectors (wide range of lenses,

motorized zoom, and brightness adjustment optional)

•Wide range of transversal and vertical lens shift for easy image

adjustment

•Extensive Scheimpflug correction allowing off-axis projection

SIM 5R: highest value for money

SIM 5R

November 2006

Barco’s Presentation & Simulation Division is ISO 9001 certified.

The information and data given are typical for the equipment described.

However any individual item is subject to change without any notice.

The latest version of this product sheet can be found on www.barco.com/simulation

WARP 6, DynaColor, OPTICAL SOFT EDGE MATCHING, OSEM, EXTENDED CONTRAST RATIO and ECR are trademarks of Barco.

DESIGNED UNDER

ISO

General specifications available on our website. Extensive

specifications for dedicated installations available upon request.

SIM 5R Nov06:SIM 5 plus5 11/15/06 10:42 AM Page 2

Andere Barco Projektor Handbücher

Barco

Barco R9002384 Bedienungsanleitung

Barco

Barco CRPN-52B Bedienungsanleitung

Barco

Barco OV-713 Bedienungsanleitung

Barco

Barco R9001190 Bedienungsanleitung

Barco

Barco R813307K Bedienungsanleitung

Barco

Barco ULTRA REALITY 7000 Bedienungsanleitung

Barco

Barco Cine VERSUM 80 Bedienungsanleitung

Barco

Barco DP2K-36BLP Betriebsanleitung

Barco

Barco SERIAL COMMUNICATION LCD PROJECTOR Bedienungsanleitung

Barco

Barco XLM H25 Bedienungsanleitung

Barco

Barco BarcoReality 908 Bedienungsanleitung

Barco

Barco DP K-32B Series Betriebsanleitung

Barco

Barco R5976336 Bedienungsanleitung

Barco

Barco iQ PRO G500 Bedienungsanleitung

Barco

Barco iD H250 Bedienungsanleitung

Barco

Barco BarcoiQ GRAPHICS 500 Bedienungsanleitung

Barco

Barco BARCOREALITY SIM 6 MK II + WARP 6 Bedienungsanleitung

Barco

Barco HDQ 4K35 Bedienungsanleitung

Barco

Barco UDX Series Bedienungsanleitung

Barco

Barco BarcoGraphics Maxwell/ 6300 Bedienungsanleitung

Barco

Barco DATA 708 Bedienungsanleitung

Barco

Barco DP2K--20C Bedienungsanleitung

Barco

Barco R9002411 Bedienungsanleitung

Barco

Barco OV-515 Bedienungsanleitung

Beliebte Projektor Handbücher anderer Marken

iEmmet

iEmmet MP-312 Bedienungsanleitung

Epson

Epson VS400 Bedienungsanleitung

Sony

Sony VPL-HS10 Marketing Specifications & Features Bedienungsanleitung

Sony

Sony VPL-HW65ES Service-Handbuch

Toshiba

Toshiba TLP-791U Bedienungsanleitung

Philips

Philips LC1341 Referenzhandbuch

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Bedienungsanleitung

NEC

NEC NP600S EDU Bedienungsanleitung

BenQ

BenQ SH753P Bedienungsanleitung

Eiki

Eiki EK-623U series Bedienungsanleitung

Epson

Epson PowerLite Pro Cinema 6020UB Bedienungsanleitung

Epson

Epson PowerLite Home Cinema 705HD Bedienungsanleitung

Christie

Christie LHD700 Bedienungsanleitung

Navitar

Navitar FX Bedienungsanleitung

InFocus

InFocus LitePro 560 Bedienungsanleitung

Sony

Sony SRX-R815P Bedienungsanleitung

Vivitar

Vivitar DP1500 X Bedienungsanleitung

Acer

Acer C20 Series Bedienungsanleitung
