Installation Manual
FIBONACCI CRESNET
© 2020
basalte v1.0
Before operating the unit, please read this manual
thoroughly and retain it for future reference.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate this
equipment.
Description
Fibonacci Cresnet is a touch-sensitive keypad with a unibody design which combines electronics and cover in
one single article.
The separate touch-sensitive surfaces of Fibonacci each control various functions, using both short and long
press.
By touching more than one surface at the same time (multitouch), additional comfort functions can be
activated including room toggle, scene sequencer and RGB sequencer. The multicolour LED backlight provides
status feedback and can be used as night light.
Fibonacci also has a built-in temperature sensor.
Model No.
0272-03-XX Fibonacci dual Cresnet
0274-03-XX Fibonacci quad Cresnet
0272-03-xx 0274-03-xx
Compatible Fibonacci accessories
0272-00 Fibonacci custom dual label set
0274-00 Fibonacci custom quad label set
(*) contact your sales representative to order custom label sets
Fibonacci is designed to be wall mounted in portrait orientation. Fibonacci Cresnet requires a minimum
in-wall mounting depth of 26mm plus room for cable(s).
A RGB LED
B Temperature sensor
CLabel back light
BA A
C
C
C
*1
* Please review the above drawing to understand how Fibonacci keypad buttons are numbered in Crestron
programming.
*1
*3
*2
*2
*4
Installation Manual
FIBONACCI CRESNET
© 2020
basalte v1.0
basalte bv | hundelgemsesteenweg 1A | 9820 merelbeke | belgium
t +32 (0)9 385 78 38 | f +32 (0)9 329 66 95 | www.basalte.be | info@basalte.be
Technical data
Current consumption Cresnet: Peak during startup: 1 W
During operation: 0,5 W
Ambient temperature: Operations between 5 & 45°C
Storage & Transport between 15 & 55°C
Max. humidity: 93% relative humidity - no moisture condensation
Protection Class: II
Type of protection: IP20
Certification: CE
Installation

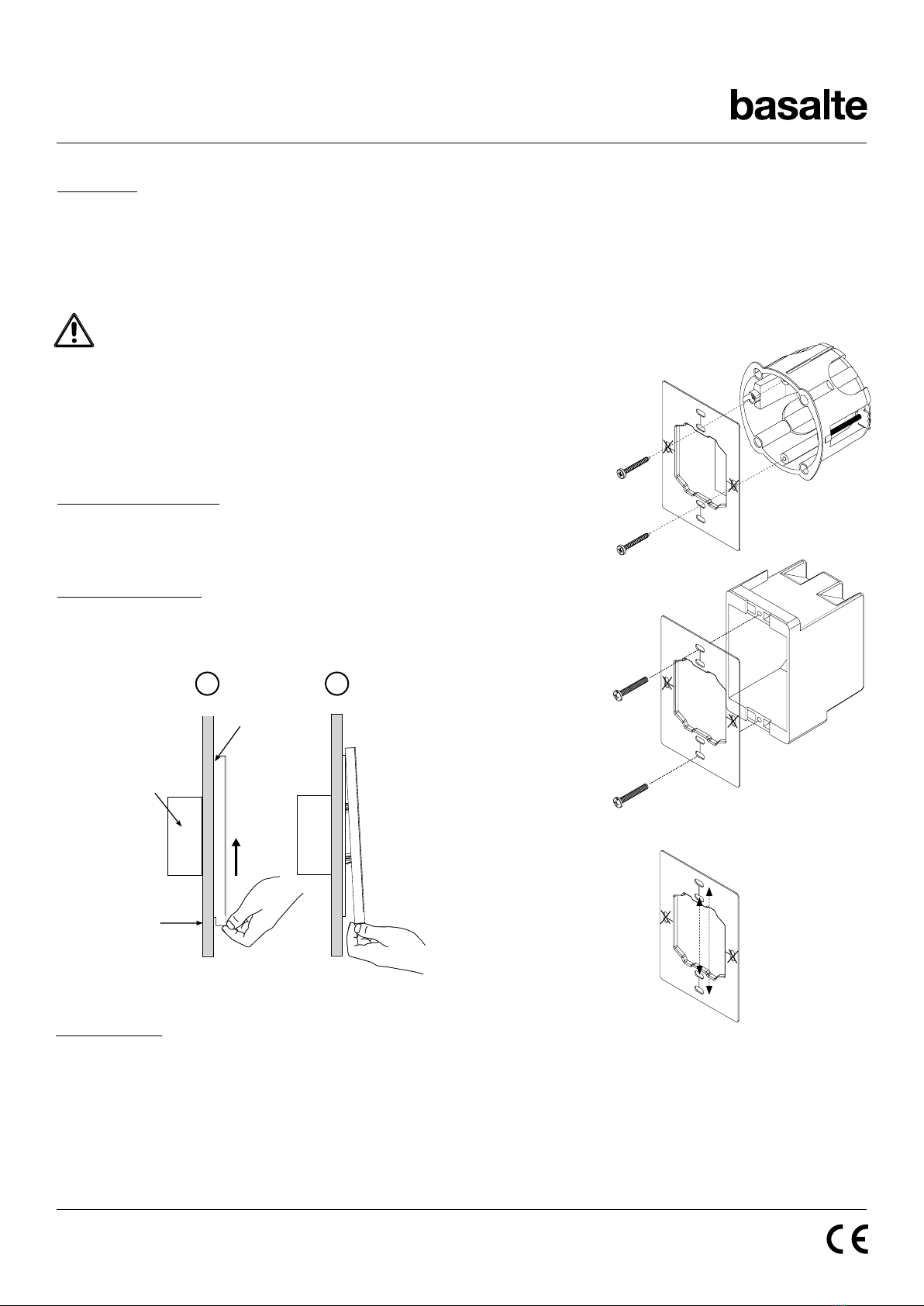

1. Mounting height
The recommended mounting height for Fibonacci is 57” - 65” (1450mm-1650mm) above the finished floor.
2. Rough-In
Use a standard 1-gang US wall box or a standard European back box.
The included mounting bracket should be mounted on the wall using the included screws.
3. Installing Fibonacci on the wall
Position Fibonacci for portrait mounting, align the mounting bracket
hooks with the Fibonacci mounting slots and gently press it towards
the mounting bracket/wall. Fibonacci snaps in when pushed to its
mounting bracket.
Powering up Fibonacci
Connect the keypad to the Cresnet bus according to the Crestron
installation guidelines.
Please refer to the software manual to configure Fibonacci.
Removing Fibonacci
Follow the step 1 and 2 in order to remove Fibonacci from the wall.
1 2
Single-gang box
Mounting
bracket
Dry wall
Push
Pull
a 60 mm (2,36”)
b 84,5 mm (3.33”)
ab
Only use the openings on the vertical axis as shown on the picture.
