Bat-caddy X4 Bedienungsanleitung

User Manual

Bat-Caddy X4 Series (X4 & X4R)

ATTENTION: PLEASE FOLLOW ALL ASSEMBLY INSTRUCTIONS AND

READ AND UNDERSTAND THE OPERATING INSTRUCTIONS BEFORE YOU

OPERATE THE CADDY, EITHER MANUALLY OR BY REMOTE CONTROL.

TABLE OF CONTENTS

Page

Packing List…………………………………………………..…………………………………………………….……3

Parts Glossary…………………………..………………………………..…………………………………………….4

Assembly Instructions ………………...…………………………………………….……………………………5

Operating Instructions…………………………………………………...………………….……………………7

Maintenance & Additional Instructions…………………...……………………………………………10

Technical Specifications………………………………………………………………….………..……………15

Troubleshooting & Frequently Asked Questions………….…….…………………..…………….18

NOTE:

This device complies with part 15 of the FCC Rules and with Industry Canada license‐exempt RSS

standard(s). Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired

operation.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE

CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT

SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT

Bat-Caddy X4R

FCC ID: QSQ-REMOTE

IC ID: 10716A-Remote

PACKING LIST

1. Standard Parts (X4)

1 Caddy Frame

2 Rear Wheels (Left & Right)

1 Battery Pack (Battery, Bag, Leads)

1 Charger

1 Tool Kit

1 User Manual, Warranty, Terms & Conditions

2. Standard Parts (X4R)

1 Caddy Frame

1 Anti-Tip Wheel & Pin

2 Rear Wheels

1 Battery Pack (Battery, Bag, Leads)

1 Charger

1 Tool Kit

1 Remote Control (needs 2 AAA Batteries)

1 User Manual, Warranty, Terms & Conditions

3. Optional Accessories (X4 & X4R)

1 Scorecard Holder

1 Cup Holder

1 Umbrella Holder

1 Seat Cushion, Stand, & Hardware

Carry Case

Additional accessories available for purchase at www.batcaddy.com

PARTS GLOSSARY

1. Manual Rheostat Speed Control

2. Upper Bag Support

3. Bag Support Strap

4. Battery

5. Rear Wheel

6. Wheel Hubcap

7. Rear Wheel Quick Release Catch

8. Dual Motors

9. Lower Bag Support & Strap

10.Front Wheel

11.Upper Frame Locking Knob

12.Handle IC Controller

13.Battery Plug

14.Front Wheel Tracking Adjustment

15.Scorecard Holder

16.Lower Frame Locking Knob

Not shown: charger, remote control (X4R)

ASSEMBLY INSTRUCTIONS

1. Unpack all items carefully and check inventory.

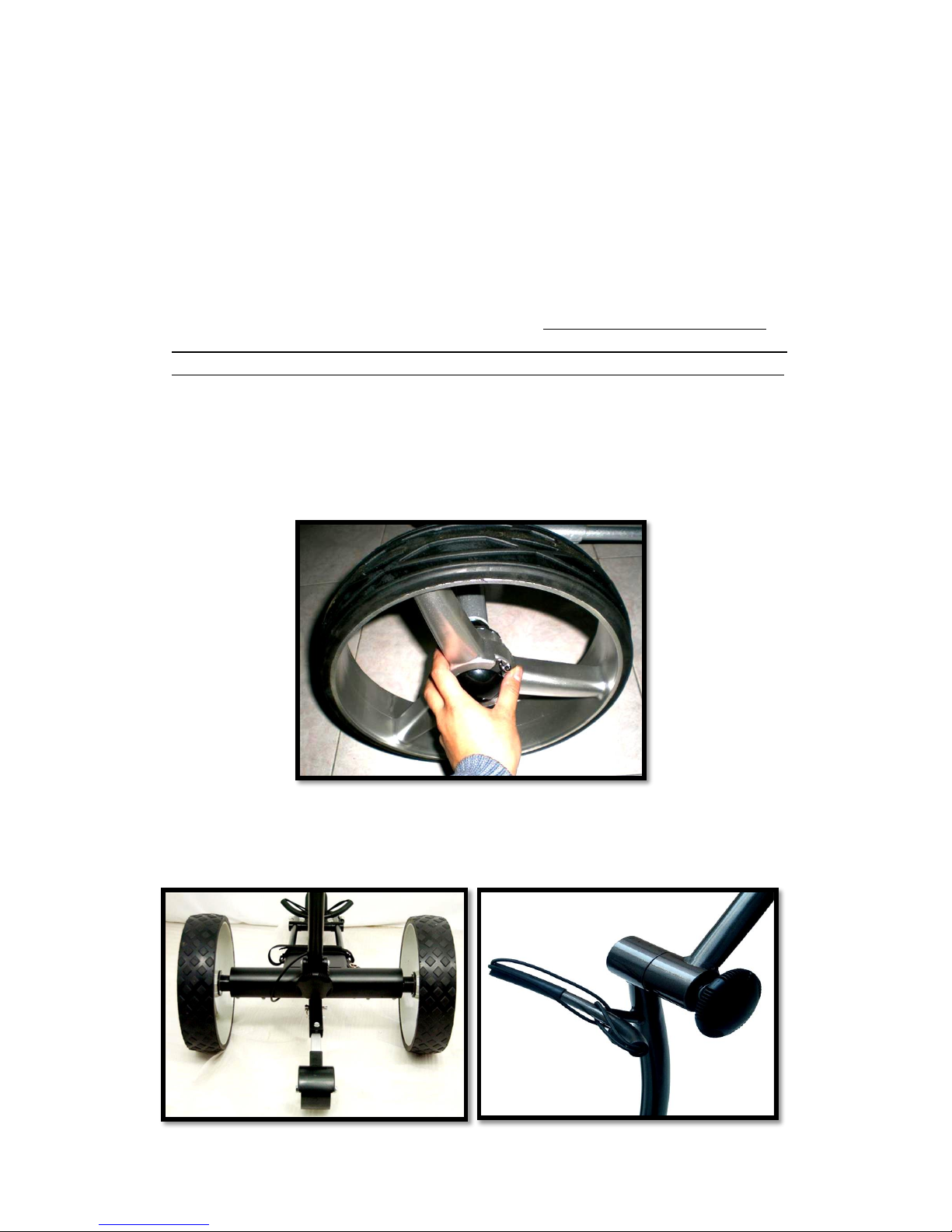

2. Place frame structure (one piece) on soft and clean ground to protect frame from being

scratched. Attach wheels to axles by pushing wheel locking button on the outside of the

wheel and inserting the axle extension into the wheel. Make sure to keep the locking

button on the outside of the wheel pushed in during this process, in order to enable

the axle extensions, including the two pins, to be inserted all the way into the wheel. If

not locked in, the wheel will not be connected to the axle and will not be propelled! Test the

lock by trying to pull the wheel out. Note: the X4 caddy has a right (R) and a left (L) wheel,

seen from behind in driving direction. Please make sure that the wheels are assembled on

the correct side, as otherwise the clutches will not engage. To disassemble the wheels

proceed in reverse order.

3. Erect Frame by unfolding and connecting the main frame tubes together at the two frame

locks by fastening the lower and upper frame locking knobs. Proceed in reverse for folding

the caddy.

4. Place battery pack on battery tray and fasten both Velcro straps around battery and frame

tightly. Insert 3 prong battery plug into caddy outlet. (Note: Do not screw plug nut into caddy

to prevent damage in case of a tip-over). Note: BEFORE CONNECTING make sure that

caddy power is OFF, Rheostat Speed Control on handle is in OFF position and the

remote control is stored securely!

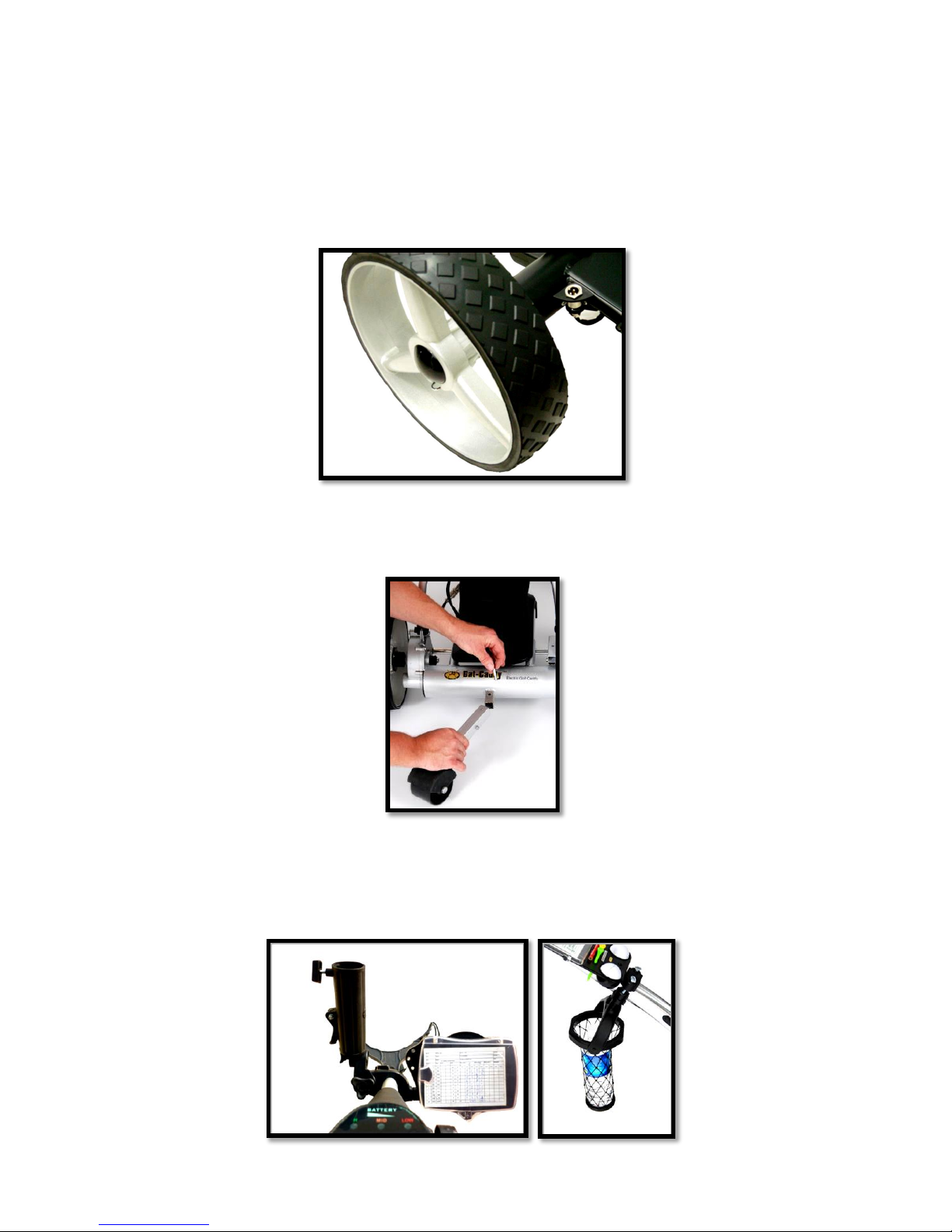

5. For X4R insert anti tip wheel into holding bar on motor housing and secure with pin.

6. Install optional accessories, such as Scorecard/Beverage/Umbrella holder, below

handle in the foreseen places or receptors.

OPERATING INSTRUCTIONS

1. Handle Control Functions

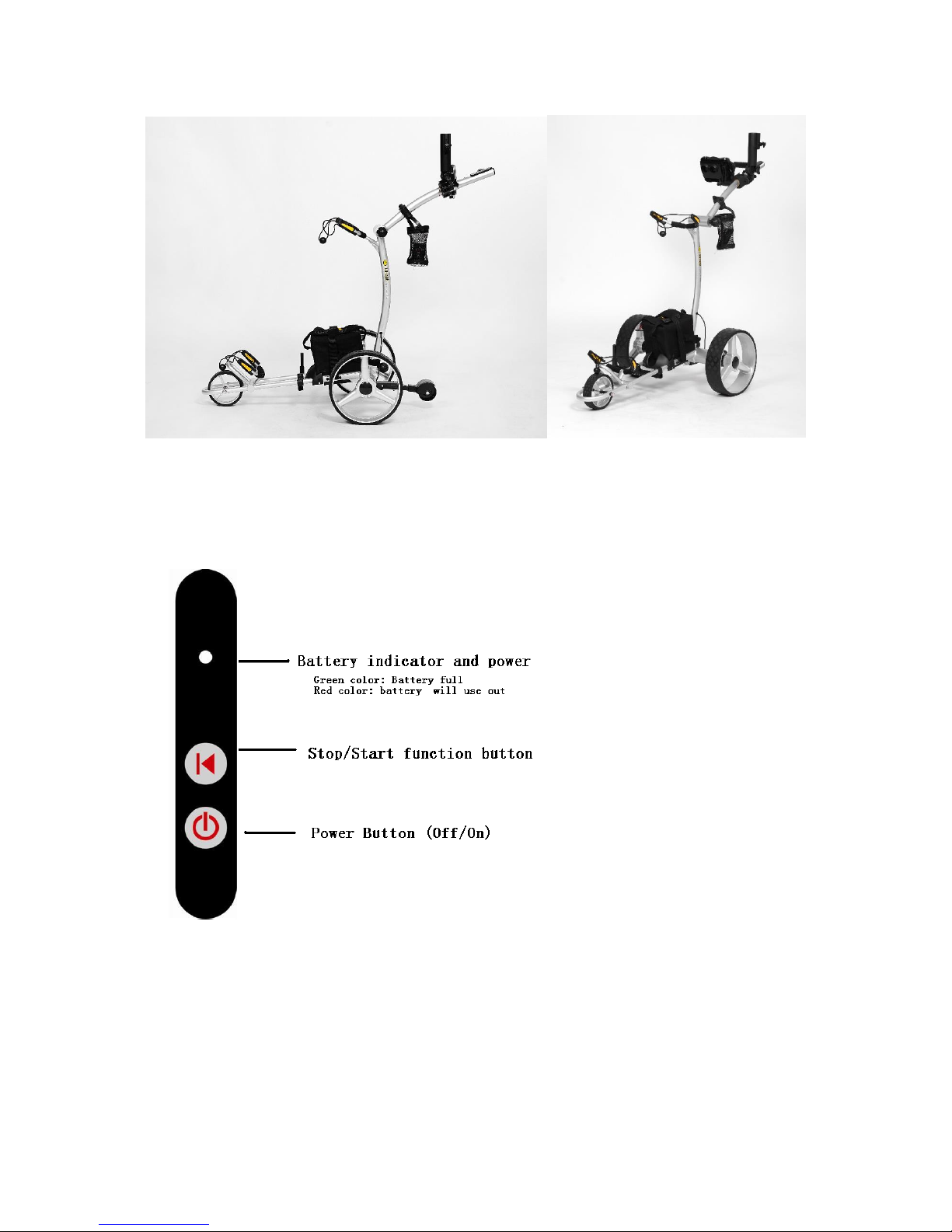

1. The rheostat speed buttonon the right side of the handle lets you choose your preferred speed

seamlessly. Dial forward to increase speed. Dial backwards to reduce speed.

2. Press ON/OFF power button for about 2 seconds to turn caddy on or off

3. The Digital Cruise Control: Select the ideal speed to match your pace with the rheostat speed

knob. In order to stop press the red cruise control button on the top of the handle. The cart

will remember its last speed setting when you stop. Once you are ready to go press the button

again, and the caddy will automatically travel at the same speed, except if you change the

speed knob position.

4. The caddy is equipped with a "Soft start" ability which ensures smooth acceleration up to

selected speed by pressing the stop/start button on the handlebar control panel.

5. The battery indicator LED with green or red color on the handle shows the battery charge at

any time. If green the battery is charged. When it turns red please recharge the battery soon.

2. Remote Control Operation (X4R Only)

Functions:

A. STOP: The red STOP button in the middle of the directional arrows should be used

for stopping the caddy.

B. Timer: 10, 20, 30 yards/meters: press once -> 10, twice -> 20; three times -> 30 y

C. Backward Arrow: Pressing the back arrow will set the caddy in backward motion.

Increase backward speed by pushing multiple times. Press also to decrease forward

speed/slow down the caddy

D. Forward Arrow: Pushing the forward arrow will set the caddy in forward motion.

Pushing multiple times will increase the speed. Push Backward arrow to slow down.

E. Left Arrow: initiates left turns. When the arrows are released the caddy stops

turning and continues straight with the original speed prior to turning.

F. Right Arrow: same as left arrow function.

G. On/Off Switch: On right side of device turns remote control on or off; recommended

to prevent accidental engagement of caddy

H. Antenna: internal

I. Batteries: 2 x 1.5V AAA

Important Notes –PLEASE READ CAREFULLY

-Change the remote control batteries once the indicator LED gets weak

-The remote control uses two 1.5V AAA batteries available in any supermarket,

drug store, or electronics store

-It is recommended to keep a set of extra batteries ready as replacement

-To change the batteries, open up the battery compartment cover by pulling the

lever and place the batteries according to the diagram in the battery

compartment

-The remote control system is designed to not interfere with other electric caddies

-The maximum range of the remote control varies between 80-100 yards,

depending on the battery charge, obstacles, atmospheric conditions, power lines,

cell phone towers, other electronic/natural interference sources

-It is strongly recommended to operate the caddy at a maximum range not

exceeding 20 yards in order to prevent the loss of control of the unit!

3Additional Functions

Freewheeling Mode: The caddy can be easily operated without power. In order to

activate the freewheeling mode, turn main power Off. The caddy now can be pushed

manually with little resistance.

Remote Control Resynchronization

Remote with on/off switch (as of 2014; no external antenna)

Step #1 - Make sure power is totally off for at least five (5) seconds

Step #2 - Hold down the stop button on the remote.

Step #3 - Power up cart. Continue to hold down the stop button.

Step #4 - Continue hold down the stop button until the lights on the LED screen blink.

Step #5 - Cart is now in “sync” test each function to assure all are functioning.

You are ready to go!

Remote for carts from 2010- 2013/14 (Controller has no green button, remote w strap

antenna)

Step #1 –Make sure power is off for at least five (5) seconds.

Step #2 - Hold down the forward button on the remote. Make sure the red LED light is lit.

Step #3 - Power up the cart. Continue to hold down the forward button on the remote.

Step #4 - Start counting slowly. Cart will start to move before you reach 15.

Step #5 - Cart is now in "sync" test each function to assure they are functioning.

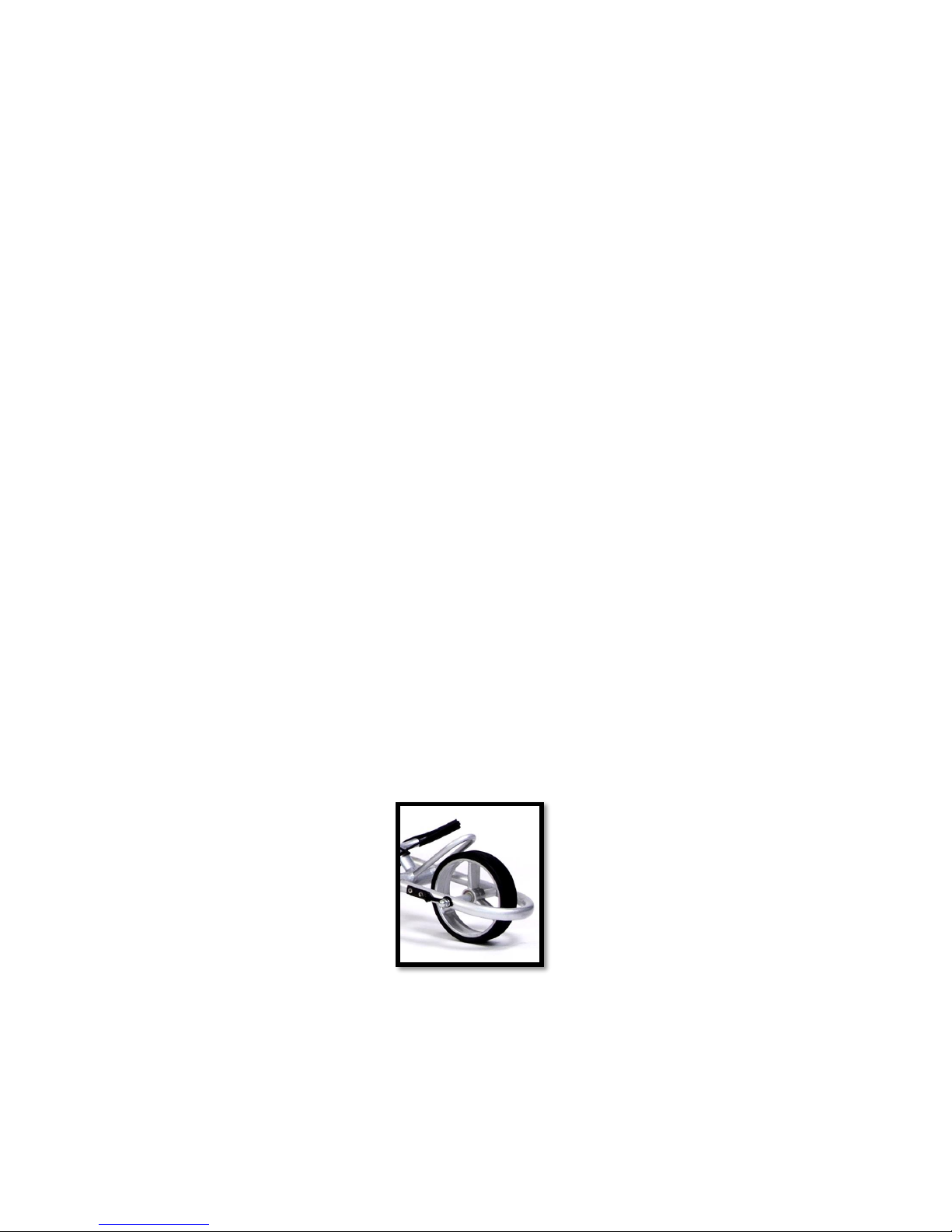

Tracking Adjustment: Tracking behavior of all electric caddies is strongly

dependent on equal weight distribution and slope. Test your caddy’s tracking by

operating it on a level surface without the bag. If changes are necessary, you can adjust

the tracking of your caddy by loosening the front wheel axle and the adjustment bar on

the right side of the front wheel and shifting the axle accordingly. After such adjustment

fasten screws in reverse order but do not over tighten.

4 Electronic Systems

Remote Control Range: We recommend not to exceed 20-30 yards distance. The

greater the distance between you and caddy, the greater the chance of losing

contact with it.

Microcomputer: The remote caddy has 3 microcomputer controls: The first is in

main controller box. The second is in the remote control handset, and the third is

in the handle.

Safety Protection: When the temperature of the controller box reaches its upper

limit in case of an overload it will automatically shut down to cool off.

Microprocessor Controlled Electronics System: When you connect the battery,

the electronics system will automatically run through a start-up routine. Then you

can press the main OFF/ON switch on the handle. The battery charge indicator

lights will show you the charge level of the battery from green (fully charged) to

red (discharged).

Important: The electronics controller box contains no user serviceable parts.

Therefore, it is sealed to reduce the risk of moisture entering and impacting the

electronic system. Breaking this seal increases the risk of damaging the

electronics and decreasing the reliability of your caddy. DO NOT attempt to open

the controller case. Doing so will void the warranty!

Battery Operation and Care: Follow battery charge and maintenance

instructions.

MAINTENANCE & ADDITIONAL INSTRUCTIONS

1. Battery Charging and Maintenance (see specific separate

instructions for sealed lead acid (SLA) and lithium batteries)

PLEASE OBEY THESE PRECAUTIONS FOR BATTERY USE & CHARGING:

-Please do not charge the battery in a sealed container or in upside down position.

It is recommended to charge the battery in a well ventilated area.

-Please do not charge the battery near a heater, where heat accumulation may

occur, or in direct sunshine.

-In order to prolong the service life of the battery, please avoid complete discharge

and charge the battery after every use. Unplug the battery from the charger once

the charge is complete. When the trolley is not in use for an extended period of

time, it is recommended to charge the battery once a month.

-The battery’s poles’ red color stands for positive, and the black for negative. In

case of battery replacement please reconnect the poles of the battery correctly;

otherwise your caddy could suffer severe damage.

-Please do not disassemble the battery or throw it into a fire; this will cause an

EXPLOSION!

-NEVER TOUCH THE ELECTRIC POLES OF THE BATTERY! THIS IS A SEVERE

SAFETY HAZARD!

Battery Charging Instructions SLA Batteries:

Connect the battery cable plug with the charger and then plug the charger into an

electrical outlet. During the charging cycle the LED on the charger will show a red steady

Andere Handbücher für X4

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Bat-caddy Golfwagen Handbücher

Bat-caddy

Bat-caddy X3 Series Bedienungsanleitung

Beliebte Golfwagen Handbücher anderer Marken

Yamaha

Yamaha YDRA Betriebsanleitung

Club Car

Club Car Tourall 1989 Bedienungsanleitung

ACG

ACG 39Roadster eGC 2013 Bedienungsanleitung

MGI

MGI ZIP X3 Bedienungsanleitung

MGI

MGI ZIP X1 Bedienungsanleitung

GEM

GEM E580 Bedienungsanleitung

Yukon Trail

Yukon Trail solar wing 350 Bedienungsanleitung

Sunrise Medical

Sunrise Medical TROPHY 20 Bedienungsanleitung

Club Car

Club Car Carryall 300 2021 Handbuch

Club Car

Club Car 1995 Golf Car Handbuch

Textron

Textron EZGO RXV 2016 Bedienungsanleitung

Cushman

Cushman 623526-H Bedienungsanleitung

Atomic

Atomic COUPE & TRUCK Bedienungsanleitung

GARIA

GARIA Golf Car Bedienungsanleitung

Giggo

Giggo GT00100 Bedienungsanleitung

Peg-Perego

Peg-Perego FIAT 500 Bedienungsanleitung

Columbia ParCar

Columbia ParCar Summit Bedienungsanleitung

CRICKET MINI GOLF CARTS

CRICKET MINI GOLF CARTS RX5 Bedienungsanleitung
