Baumatic BHI645SS Bedienungsanleitung

BHI645SS 60cm

Induction hob

User Manual for your Baumatic

BHI645SS

60 cm Induction hob

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

JW 19/12/12

Contents

Environmental note 4

Important safety information 5 – 8

Specifications 9 – 11

Product and aperture dimensions 9

Product specifications 9

Electricaldetails 10

Ceramic hob surface layout 10

Control panel layout 11

Using the ceramic hob 11 - 22

Beforefirstuse 11

Touchcontrols 12

Switchingthehobon 12

Switching on a zone and setting a power level 13

Powerlevels 14

Switchingoffazone 14

Switchingthehoboff 15

Residual heat indicator 15

Pansensor 15

Cookware that is suitable for an induction hob 16

Theboostfunction 16

The hob timer (minute minder) 17

The hob timer (linked to a cooking zone) 18 – 19

Cancelling a timer function 20

Lockingthehobtop 20

Safetycut-off 21

High temperature protection 21

Detectionofunknownitems 21

Thestop/startfunction 21

Hobguidelines 22

Cleaning and maintenance 23 - 24

Cleaning the ceramic hob top 23

Aftereachuse 23

Cleaningtable 23

Using a ceramic hob scraper 24

Using a specialist ceramic hob cleaner 24

Installation 24 - 30

Positioning 25

Unpacking the appliance 26

Installing the appliance 26– 27

Electrical connection 27 - 28

Connecting the mains supply cable 28

Replacing the mains supply cable 29

My appliance isn’t working correctly 29 - 31

Errorcodes 30

Baumatic consumables 32

Contactdetails 35

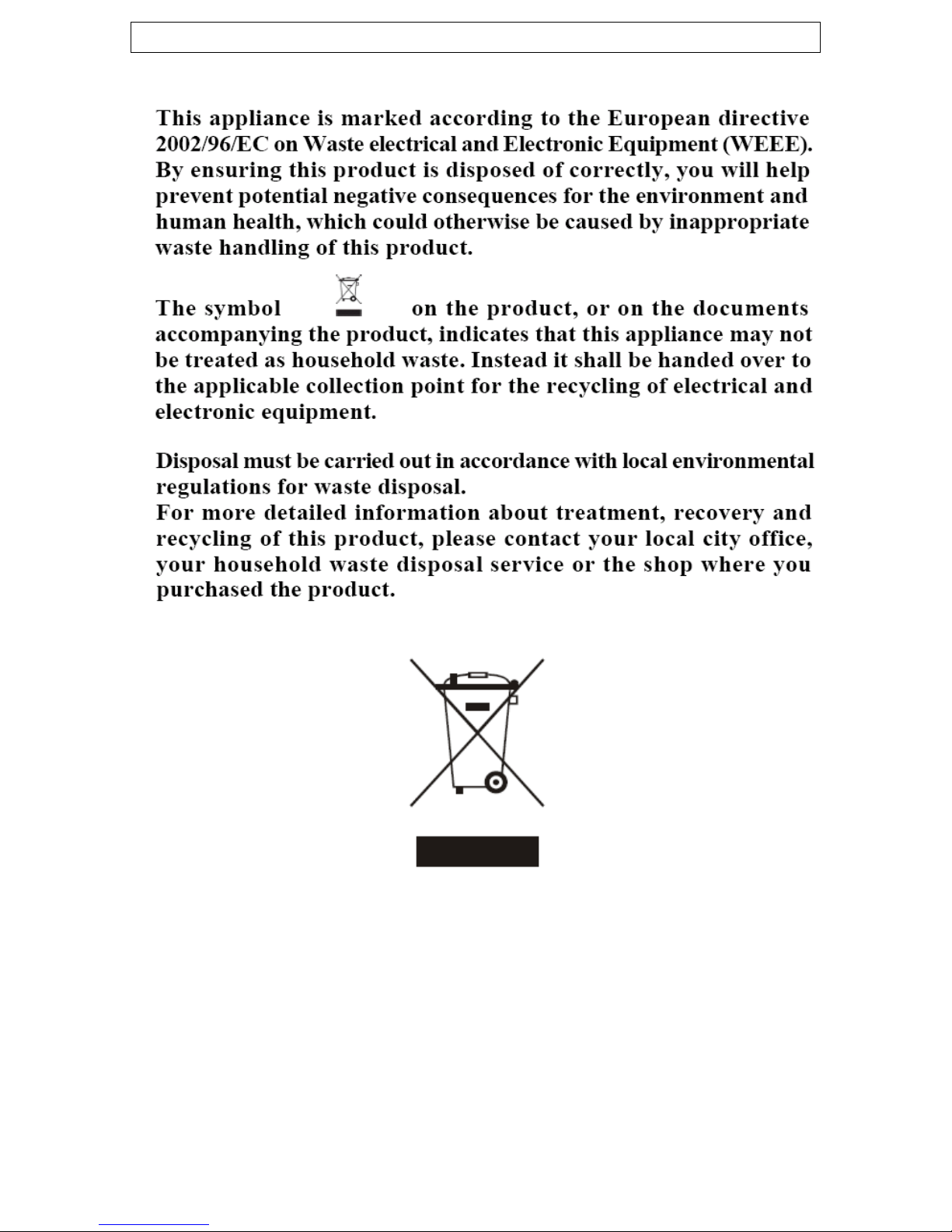

Environmental note

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

all packaging material with due regard for the

environment.

oPlease discard

Important safety information

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

ooklet, please contact the Baumatic Advice Line.

ehold use and for

ambient temperature of the

scolouration at

of this temperature limit, will be the liability of

Guarantee. The foregoing does not

t of Baumatic Ltd.

ld not use this appliance to store items on or as a work

kept away

atic service

rs or their authorised service agent.

General Information

This appliance is designed for domestic housothe cooking and frying of domestic foodstuffs.

oIMPORTANT: The adjacent furniture and all materials used in

the installation must be able to withstand a minimum

temperature of 85°C above the

room it is located in, whilst in use.

oCertain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or di

temperatures below the guidelines given above.

oAny damage caused by the appliance being installed in

contravention

the owner.

oYour new appliance is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted

in Baumatic’s Conditions Of

affect your statutory rights.

oThe use of this appliance for any other purpose or in any other

environment without the express agreemen

will invalidate any warranty or liability claim.

oYou shou

surface.

oNo modifications to the appliance are permitted by Baumatic Ltd.

oYou should not store or place flammable or highly flammable

liquids/materials on top of or near the appliance. Items made

from aluminium, plastic or plastic film should also be

from the appliance, as they may fuse to the surface.

oRepairs may only be carried out by Baum

enginee

hild Safety

ce at any time. During and after use, all

surfaces will be hot.

se ensure that they are kept under close supervision

at all times.

uld only be allowed to utilise the appliance

when supervised.

eneral Safety

ly be installed and connected by a

suitably qualified person.

uild the appliance into, meet with the relevant

standards.

s supply. Otherwise there is the risk of electric

shock occurring.

uring use

hob surface when it

is delivered should be removed before use.

the appliance, otherwise

there is a risk of burns being caused.

t with the hob surface when it is hot or any hot

cookware.

ng with fat and oil the appliance should

not be left unattended.

sure that all of the cooking zones are switched off after

use.

oBaumatic strongly recommend that babies and young children

are prevented from being near to the appliance and not allowed

to touch the applian

oIf it is necessary for younger family members to be in the

kitchen, plea

oOlder children sho

oThe appliance should on

oCare should be taken to ensure that the units and work surfaces

that you b

oIf you notice any scratches, splits or cracks in the ceramic glass,

you should immediately switch off the appliance and disconnect

it from your main

oAny film or stickers that are present on the

oCare should be taken when utilising

oYou should not allow the electrical connection cables to come

into contac

oIf fat and oil overheats, then it can ignite extremely quickly. For

this reason, when cooki

oMake

oIMPORTANT: This ceramic induction hob fully complies

with current legislation regarding electro-magnetic

interference and is designed not to interfere with other

electronic appliances providing these comply with the

same legislation.

oAs the hob generates magnetic fields in its immediate

vicinity, pacemakers and active heart implants must be

designed to comply with relevant regulations. If in doubt,

you should consult the manufacturer of your device or

your doctor. In this respect, Baumatic can only guarantee

the conformity of our own product.

oIf an object made of metal, (e.g. saucepan lid, knife, fork

or spoon) is placed on a cooking zone that is switched on,

it can get hot.

Cleaning

oCleaning of the hob should be carried out on a regular basis.

oIMPORTANT: Before attempting to clean the appliance, it

should be disconnected from the mains and allowed to cool.

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oYou should not use a steam jet or any other high pressure

cleaning equipment to clean the appliance.

Installation

This appliance must be correctly installed by a

suitably qualified person, strictly in accordance

with the manufacturer’s instructions. Please see

the specific section of this booklet that refers to

installation.

Baumatic Ltd. declines any responsibility for injury or damage,

to person or property, as a result of improper use or incorrect

installation of this appliance.

Declaration of conformity

This appliance complies with the following European Directives:

-2006/95/CE General regulations / Low tension

-1935/2004/CE 90/128/EEC This appliance is suitable to come in

contact with food

-2004/108/CE Electromagnetic compatibility

oThe manufacturer declares that the hob is built using certified

materials and requires the appliance to be installed in

accordance with the standards currently in force. This appliance

must be used by a trained person for domestic purposes only.

To avoid damaging your appliance

oThe ceramic glass can be damaged by objects falling onto it.

oThe ceramic glass edge can be damaged by knocks from

cookware. oCast iron and cast aluminium

cookware with damaged bases

may scratch the ceramic surface if

they are dragged across it.

oPans should be lifted on and off the hob surface and not

dragged.

oCooking zones should not be switched on without cookware

placed on it. Also the cookware should not be empty.

oFood or liquid that has high sugar content may damage the hob

top, if it comes into contact with the ceramic hob surface. Any

spillages should be wiped up immediately, however this may not

prevent the hob surface from becoming damaged.

Specifications

Product dimensions: Aperture dimensions:

Depth: 525 mm Depth: 495 mm

Width: 595 mm Width: 565 mm

Height: 60 mm Height: 110 mm (incl. ventilation)

Product specifications:

o1 x 2.20 kW induction zones with booster (3.60 kW) Ø 220 mm

o1 x 2.20 kW induction zones with booster (3.00 kW) Ø 180 mm

o1 x 1.40 kW induction zones with booster (2.00 kW) Ø 150 mm

o1 x 1.40 kW induction zones with booster (2.00 kW) Ø 140 mm

oFront touch control operation

o4 individual residual heat indicators

o4 independent induction generators

oElectronic timer

oPan compatibility detection

oPause function

oRecall function

oSafety lock

Standard accessories

oCeramic hob scraper

Electrical details

Rated Voltage: 220 - 240 Vac 50 - 60 Hz

Supply Connection: 32A (double pole switched fused

outlet with 3mm contact gap)

Max Rated Inputs: 7.20 kW

Mains Supply Lead: 3 core x 6 mm² (not supplied)

For future reference please record the following information which can

be found on the rating plate and the date of purchase which can be

found on your sales invoice. The rating plate of your hob is located on

the underneath of the appliance. Therefore it is a good idea to record

this information before you install your appliance.

Model Number ……………………………….

Serial Number ……………………………….

Date of Purchase ……………………………….

Ceramic hob surface layout

1) 1 x 2.20 kW induction zones with booster (3.60 kW) Ø 220 mm

2) 1 x 1.40 kW induction zones with booster (2.00 kW) Ø 150 mm

3) 1 x 2.20 kW induction zones with booster (3.00 kW) Ø 180 mm

4) 1 x 1.40 kW induction zones with booster (2.00 kW) Ø 140 mm

5) Hob surface

6) Control panel

Inhaltsverzeichnis

Andere Baumatic Kochfeld Handbücher

Baumatic

Baumatic BHC602 Bedienungsanleitung

Baumatic

Baumatic BF13 Bedienungsanleitung

Baumatic

Baumatic BHG300SS Bedienungsanleitung

Baumatic

Baumatic BHC310 30cm Bedienungsanleitung

Baumatic

Baumatic BHI400SS Bedienungsanleitung

Baumatic

Baumatic B14.2SS Bedienungsanleitung

Baumatic

Baumatic BHI650 Bedienungsanleitung

Baumatic

Baumatic B11.1SS Bedienungsanleitung

Baumatic

Baumatic B47SS Bedienungsanleitung

Baumatic

Baumatic Studio Solari AS26SS Bedienungsanleitung

Baumatic

Baumatic BHI625 Bedienungsanleitung

Baumatic

Baumatic BMEH381I Bedienungsanleitung

Baumatic

Baumatic BSIH64-ANZ Bedienungsanleitung

Baumatic

Baumatic AS4.1 Betriebsanleitung

Baumatic

Baumatic BHC300 Bedienungsanleitung

Baumatic

Baumatic BHG642R Bedienungsanleitung

Baumatic

Baumatic BGH60 Bedienungsanleitung

Baumatic

Baumatic Pythagora P61SS Bedienungsanleitung

Baumatic

Baumatic BHS320.55SS Bedienungsanleitung

Baumatic

Baumatic BSIH32-ANZ Bedienungsanleitung

Baumatic

Baumatic BHI300 Bedienungsanleitung

Baumatic

Baumatic BMEH93G2I Bedienungsanleitung

Baumatic

Baumatic OMBRA2BL Bedienungsanleitung

Baumatic

Baumatic BT18.5SS Bedienungsanleitung

Beliebte Kochfeld Handbücher anderer Marken

Siemens

Siemens EX875KYV1E Technisches Datenblatt

AEG

AEG CERAMIC HOB 6010 K Bedienungsanleitung

VALERA

VALERA CT 70A Bedienungsanleitung

Zanussi

Zanussi ZGF 6420 Bedienungsanleitung

Gaggenau

Gaggenau CI 273 Bedienungsanleitung

G3 Ferrari

G3 Ferrari Energy Bedienungsanleitung

Pkm

Pkm IN4B Bedienungsanleitung

Award

Award H903BG Bedienungsanleitung

Zanussi

Zanussi VCH 5005 RZ Bedienungsanleitung

Miele

Miele KM 523 Bedienungsanleitung

Hotpoint

Hotpoint IS67V8CCXT/E Bedienungsanleitung

AEG

AEG HK854870XB Bedienungsanleitung

Cookology

Cookology SEP600BK Bedienungsanleitung

Bauknecht

Bauknecht Hob Bedienungsanleitung

Zanussi

Zanussi ZGM 782 Bedienungsanleitung

dipo INDUCTION

dipo INDUCTION DIBK218S Bedienungsanleitung

Miele

Miele KM 5987 Bedienungsanleitung

Miele

Miele KM 360 G Bedienungsanleitung
