Baumatic BSD67MS Bedienungsanleitung

User Manual for your

HOD885SS

90 cm Built in multifunction

electric double oven.

BSD6 MS

90 cm Built-in

multifunction electric

double oven

BSD6 MS

60cm Built-in Multifunction

Electric Double Oven

NOTE

This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance

JW 19/10/12

Contents

Environmental note 4

Important safety information 5 – 7

Specifications 8– 11

Product and aperture dimensions 8

Product specifications 8

Standard accessories 8

Coolin fans 9

Electrical details 9

Control panel 10

Oven pro rammer / timer display 10

Initial set-up of your oven 11 – 12

Selectin manual operation mode 11

Settin the time of day 11

Before first use 11 – 12

Timer functions 12 - 15

The minute minder function (main oven and lower oven) 12

The duration function (main oven only) 13

The end cook function (main oven only) 14

The start and end time function (main oven only) 15

Adjustin the audible si nal 15

Selecting a cooking function and temperature 16 – 20

Selectin an oven function 16

Selectin a main oven function 16 - 17

Main oven thermostat control knob 17

Selectin a lower oven function 18

Lower oven thermostat control knob 18

Oven operatin li hts (main and lower oven) 19

Cookin uidelines 19 - 20

Warnin s 20

Cleaning and maintenance 21 – 24

General cleanin instructions 21

Replacin the oven bulb 22

Removin the oven door for cleanin 23

Removin the inner door lass for cleanin 24

Installation 25 – 29

Electrical connection 25

Connectin the mains supply cable 26

Replacin the mains supply cable 27

Installin the oven into the kitchen cabinet 28

Positionin the appliance 28

Ventilation requirements 29

My appliance isn’t working correctly 30 – 32

Cooking tables 33 - 34

Contact details 35

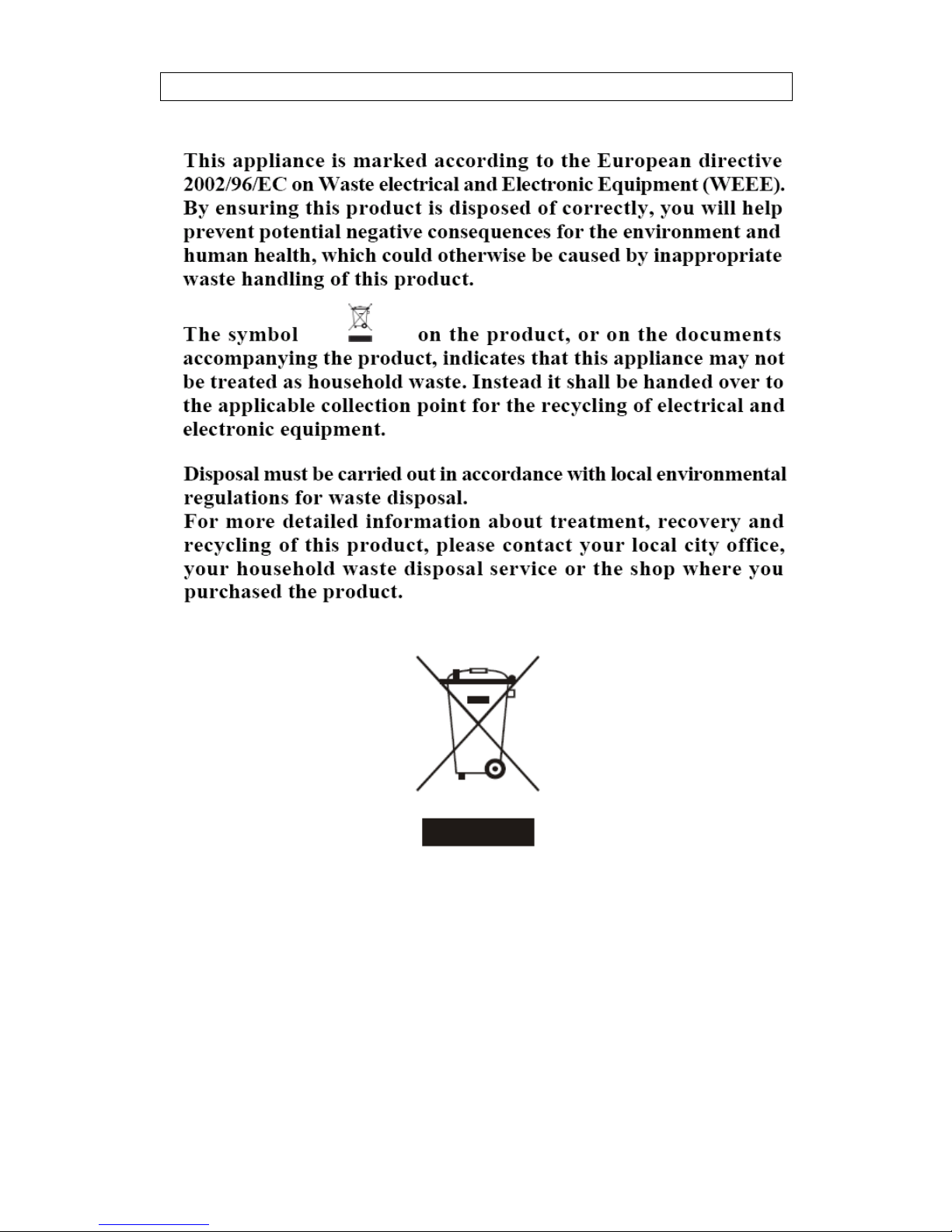

Environmental note

oThe packa in materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packa in material with due re ard for the

environment.

IMPORTANT SAFETY INFORMATION

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attemptin to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact Customer Care Department.

General Information

oThis appliance is desi ned for domestic household use and can

be built into a standard kitchen cabinet or housin unit.

oIMPORTANT: The adjacent furniture or housing and all

materials used in the installation must be able to withstand a

minimum temperature of 85°C above the ambient temperature

of the room it is located in, whilst in use.

oCertain types of vinyl or laminate kitchen furniture are

particularly prone to heat dama e or discolouration at

temperatures below the uidelines iven above.

oAny dama e caused by the appliance bein installed in

contravention of this temperature limit, or by placin adjacent

cabinet materials closer than 4mm to the appliance, will be the

liability of the owner

oThe use of this appliance for any other purpose or in any other

environment without the express a reement of Baumatic Ltd.

will invalidate any warranty or liability claim.

oYour new appliance is uaranteed a ainst electrical or

mechanical defects, subject to certain exclusions that are noted

in Baumatic’s Conditions Of Guarantee. The fore oin does not

affect your statutory ri hts.

oRepairs may only be carried out by a qualified Service

Agent To arrange an Engineer visit, please contact us via

the contact details on page 35

Warning and safety instructions

oThis appliance complies with all current European safety

le islation. Baumatic do wish to emphasise that this compliance

does not remove the fact that the appliance surfaces will

become hot during use and retain heat after operation

Child Safety

oBaumatic stron ly recommend that babies and youn children

are prevented from bein near to the appliance and not allowed

to touch the appliance at any time

oIf it is necessary for youn er family members to be in the

kitchen, please ensure that they are kept under close supervision

at all times.

General Safety

oDo not place heavy objects on the oven door or lean on the

oven door when it is open, as this can cause dama e to the oven

door hin es.

oDo not leave heated oil or fat unattended, as this is a fire risk.

oDo not place pans or bakin trays directly on the base of the

oven cavity, or line it with aluminium foil.

oDo not allow electrical fittin s or cables to come into contact

with areas on the appliance that et hot.

oDo not use the appliance to heat the room it is located in or to

dry clothin .

oDo not install the appliance next to curtains or soft furnishin s.

oDo not attempt to lift or move cookin appliances by usin the

oven door or handle, as this may cause dama e to the appliance

or result in injury to the person liftin the appliance.

Cleaning

oCleanin of the oven should be carried out on a re ular basis.

oGreat care should be taken whilst usin this appliance and when

followin the cleanin procedure.

oIMPORTANT: The appliance must be disconnected from the

mains before following the cleaning procedure.

Installation

This appliance must be correctly installed by a

suitably qualified person, strictly in accordance

with the manufacturer’s instructions

oBaumatic declines any responsibility for injury or damage,

to person or property, as a result of improper use or

installation of this appliance

oHeat, steam and moisture will be created durin use of the

appliance, take care to avoid injury and ensure that the room is

adequately ventilated. If the appliance is oin to be used for

prolon ed periods of time, then additional ventilation may be

required.

oPlease consult with your qualified installer if you are in any doubt

about the amount of ventilation that you will require.

Declaration of conformity

oThe manufacturer declares that the oven is built usin certified

materials and requires the appliance to be installed in

accordance with the standards currently in force. This appliance

must be used by a trained person for domestic purposes only.

Specifications

Product Dimensions

Hei ht: 885 mm

Width: 595 mm

Depth: 562 mm

Aperture dimensions

875-878 mm

565 mm

565 mm (min)

Product specifications:

oEner y efficiency class: A/A

oLED full pro rammer

o2 x Coolin fans*

oTriple- lazed removable doors

oRemovable inner door lass

oMechanically controllable thermostat

oMain oven: multifunction oven

o7 functions

oGross capacity: 60 litres

oNet capacity: 46 litres

oTop oven: static oven and grill

o4 functions

oGross capacity: 36 litres

oNet capacity: 25 litres

Standard accessories:

oRemovable side racks

o3 x Safety shelves

o1 x Enamelled bakin tray with handle

o1 set catalytic self cleanin liners

o1 set telescopic runner

o1 pizza stone

*Cooling fans

oTwo tan ential coolin fans are fitted inside of this appliance, to

make the internal temperature of the oven stable and the

external surface temperature lower.

Electrical details:

Rated Voltage: 220-240 Vac 50 Hz

Supply Connection: 30A

Max Rated Inputs: 4.6 kW

Mains Supply Lead: 3 x 2.5 mm²

Oven Light Bulb: 25 W 300°C screw type py my

For future reference please record the followin information which can

be found on the ratin plate and the date of purchase which can be

found on your sales invoice. The ratin plate for your oven can be

located by openin the bottom oven door and lookin on the front

frame of the oven chassis.

Model Number ……………………………….

Serial Number ……………………………….

Date of Purchase ……………………………….

Control Panel

1) Oven function selector knob

2) Thermostat control knob

3) Power indicator li ht

4) Oven operatin li ht

5) LED display

6) Oven pro rammer/timer

Oven programmer/timer

7) Automatic cookin symbol

8) Oven in use symbol

9) Decimal point symbol

10) Minute minder symbol

11) Plus button

12) Pro ramme button

13) Minus button
