Bayco SL-1522 Bedienungsanleitung
WARNINGS
IMPORTANT SAFETY INSTRUCTIONS
WARNING: READ ALL INSTRUCTIONS CAREFULLY
SAVE THESE INSTRUCTIONS
WARNING: When using outdoor lights, basic safety precautions should always be
followed to reduce the risk of fire, electrical shock, and personal injury, including
the following:
Not intended for use in wet areas.
DO NOT use with extension cord near water or where water may accumulate.
Keep plugs and receptacles dry.
For use only on GFCI protected circuits.
Use only three-wire outdoor extension cords 16 AWG or larger that have three-prong
grounding plug and receptacles that accept the appliance’s plug.
DO NOT use this work light with a 2 wire extension cord
Use only three-wire extension cords rated for outdoor use, such as an extension
cord of cord type SEW, SEOW, SEEOW, SEOOW, SOW, SOOW, STW, STW, STOW,
STOW, STOOW, SJEW, SJEOW, SJW, SJW, SJOW, SJOOW, SJTW, SJTOW, OR
SJTOOW.
SAVE THESE INSTRUCTIONS
Instruction Manual
SL-1522
THANK YOU FOR PURCHASING THE SL-1522 LED WORK LIGHT.
SAVE THESE INSTRUCTIONS.
PLEASE READ THESE INSTRUCTIONS BEFORE USING YOUR WORK LIGHT.
SAFETY INSTRUCTIONS
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK,
(EXPOSURE TO EXCESSIVE UV RADIATION,) OR INJURY TO PERSONS
WARNING: To reduce the risk of FIRE, ELECTRIC SHOCK OR INJURY TO
PERSONS:
Lighted lamp may become hot!
Light can be used indoor and outdoor.
Check that the sealed push button switch is in the off position before plugging in the
work light
Connect light to 120Volt, 60 Hz power source only.
Do not touch hot lens, or enclosure.
Do not remain in light if skin feels warm.
Do not look directly at lighted lamp, or direct the light at other persons.
Keep lamp away from flammable materials.

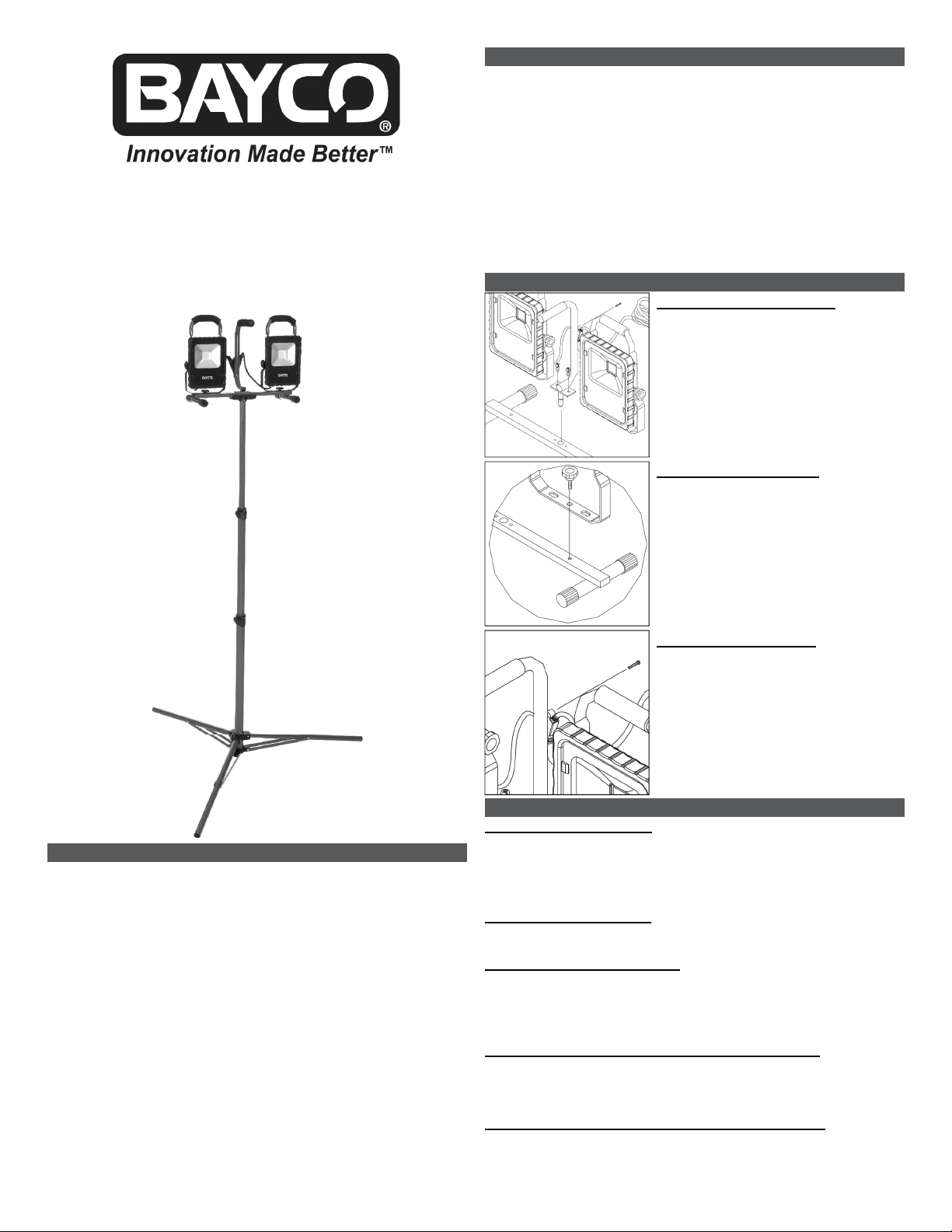

ASSEMBLY - PLEASE REFER TO THE ILLUSTRATIONS
SETTING UP THE WORK LIGHT
OPENING THE TRIPOD LEG SET
Fully unfold the Tripod Leg Set and slide the Center Collar down until it locks into
place.
WARNING: Do NOT attempt to use the Tripod Leg Set unless the legs are fully
extended and locked into place. This is the ONLY position that the leg set can
be used in.
CLOSING THE TRIPOD LEG SET
Press the RED Release Button on the side of the Center Collar and then raise the
Center Collar up until the Tripod Let Set is fully retracted.
ADJUSTING THE COLUMN SECTIONS
The tripod has two adjustable sections of the column that can be used to customize
the working height of the Work Light. Each section is locked into place by means of a
Cam Lock Lever. To adjust the height of either section, release the Cam Lock Lever
for that section, extend the column to the desired length and the re-lock the Cam Lock
Lever.
REMOVING THE CONVERTIBLE LIGHT HEAD FROM THE TRIPOD
The SL-1522 is designed so that the entire Light Head can be removed from the
tripod. To remove the Light Head, grasp the Padded Light Handle with one hand,
squeeze together the Light Head Release Clip Tabs and pull up on the Padded Light
Handle.
INSTALLING THE CONVERTIBLE LIGHT HEAD ON TO THE TRIPOD
CAUTION: Before installing the Light Head on to the Tripod, be certain that the
INSTALLING THE CARRY HANDLE
Using a #2 Phillips Screwdriver and the 2
included short screws, attach the Carry Handle to
the Light Stand.
CAUTION: Hand-tighten only. Do not overtighten
or use an electric or battery-powered Drill Driver.
Doing so may cause damage to the unit or the
screws.
INSTALLING THE LIGHT HEADS
Align the center hole in the bracket of each of
the Light Heads with the corresponding hole in the
Light Stand.
Using the included thumb screws, tighten until
finger tight. Do this for both Light Heads.
CAUTION: Do not use any tools to tighten the
thumb screw. Finger tight is all that is required.
Overtightening may cause damage to the unit.
INSTALLING THE “Y” SPLITTER
Using a #2 Phillips Screwdriver and the included
long screw, attach the “Y” Splitter on the Power
Cord to the back of the Carry Handle.
CAUTION: Hand-tighten only. Do not overtighten
or use an electric or battery-powered Drill Driver.
Doing so may cause damage to the unit or the
screw.
Leg Set is fully extended and locked in place and that both of the two column
Cam Lock Levers are securely locked.
To install the Light Head on to the Tripod, simply line up the Locking Alignment Pin
on the bottom of the Light Head Stand with the hole in the top of the Tripod Column.
Then simply press down until the Light Head locks into place. Be certain that the
Light Head is locked into the Tripod Column before letting go of the Light Head.
OPERATION
The SL-1522 has a two sealed push button switches. One located on the back of
each of the two light heads. This provides for independent use of each of the lights.
TURNING THE LIGHT ON:
Press and release one or both of the push button switches.
TURNING THE LIGHT OFF:
Press and release the push button switch for the light that is to be turned off.
